Sale!

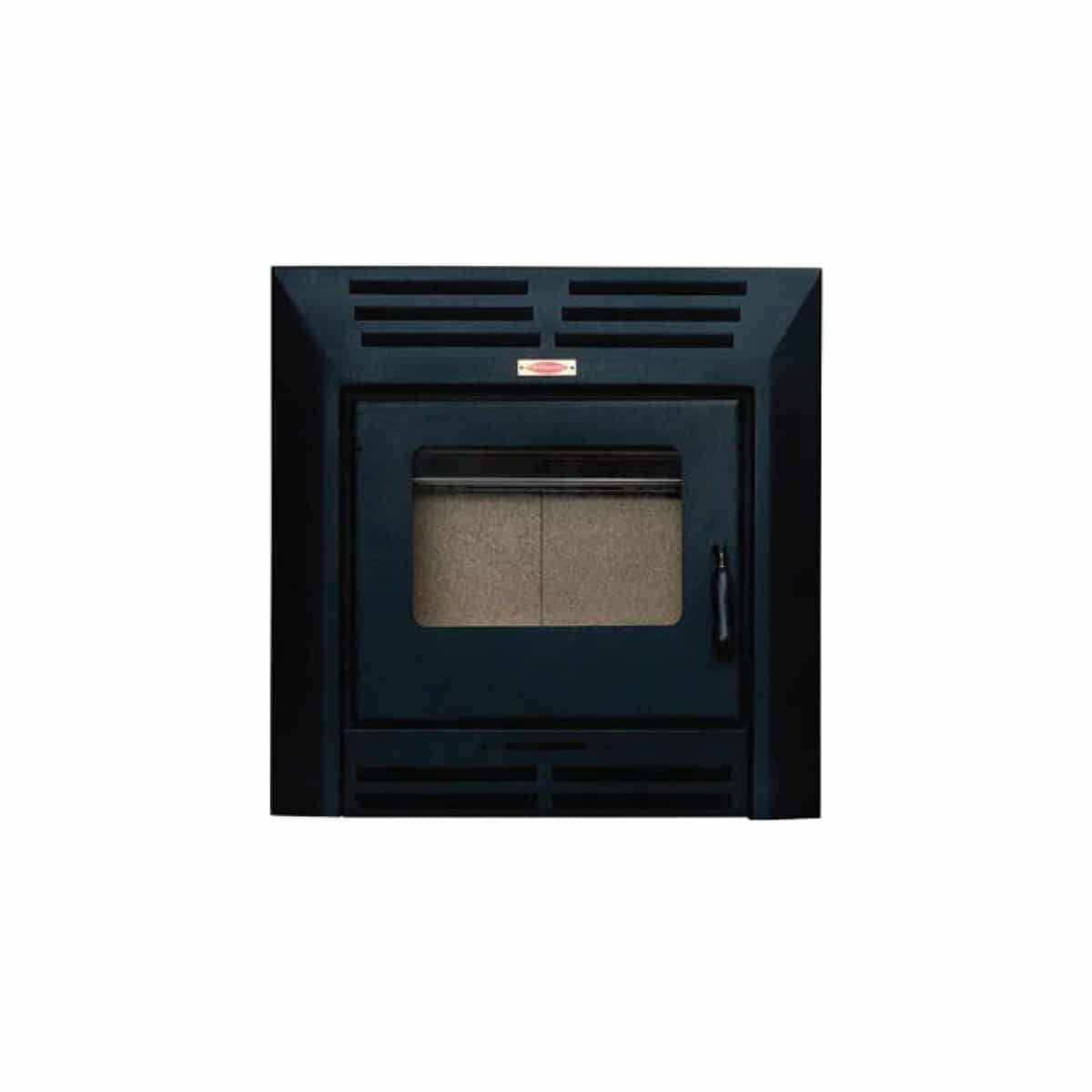

Jetmaster Rigel built-in slow combustion stove, front view: a black frame with vents above and below and a glass door

Your fireplace, up close

Will it fit my space?

About your fireplace

Heat: 7.6 kW · mild-steel body
Included: Stove with door, vermiculite inner boards, removable ash pan, cast grid, poker, installation manual
Not included: Flue pipes, cowl, building materials and installation
Guarantee: Five years on the firebox, 12 months on accessories

Jetmaster Fireplaces

Jetmaster 750 Built-in Rigel Slow Combustion Stove

Name: Jetmaster Rigel Built-in Fireplace | Braai Culture
Brand: Jetmaster
SKU: 40200003
Price: 17799.00 ZAR
Availability: InStock

A built-in stove with a large window on the fire.

From: Original price was: R18,734.00.Current price is: R17,799.00.

Save R935

SKU 40200003

In stock Delivery ETA: 5–15 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE STOVE AND ITS ESSENTIALS

Closed combustion.
Built into the wall.

A mild-steel closed-combustion stove with a door and a large viewing window, made to be built in. Vermiculite inner boards line the firebox, the cast grid holds the fire and the ash pan comes out for emptying. Close the door, settle in and watch the flames through the window on a cold winter's night.

Vermiculite inner boardsLine the firebox
Cast gridHolds the fire
Removable ash panComes out for emptying
Large viewing windowIn the stove door
PokerIncluded
Installation manualIn the box: read it before you plan

The Jetmaster Rigel built into a grey chimney breast above a raised concrete hearth, a fire behind its glass, while a father and his daughter read on the sofa

STORY TIME BY THE FIRE

The warmest seat in the house.

Late afternoon light, a favourite book and a fire glowing behind the glass. The Rigel sits neatly in the wall, so the room stays open and calm while the warmth spreads. Pull the blanket over and turn one more page.

The chimney breast, hearth, logs, furniture and decor are not included. Confirm the flue, hearth and clearances with an independent installer.

MADE FOR WINTER EVENINGS

Warmth you can watch.

THE VIEW

Keep the flames in sight.

The door has a large viewing window, so the flames stay part of the evening while the fire burns in a closed firebox.

THE HEAT

Start with the room you want to heat.

The heat output is listed as 7.6 kW. The Output Calculator on this page uses that figure to compare the stove with your room.

THE FLUE

Plan the flue with the build.

The stove takes a 150 mm round flue (nominal size), and the optional flue pipes come in 1,200 mm lengths. Plan the route and the roof exit with an independent installer before the building work starts.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

Body width × depth: 650 × 377 mm
Body height: 649 mm
Front width × height, including frame: 724 × 688 mm
Round flue size, nominal: 150 mm
Optional flue pipe length, each: 1,200 mm
Heat output, listed: 7.6 kW
Body material: Mild steel
Inner lining: Vermiculite boards
Type: Built-in, closed combustion

Plan the body, frame and flue together.

With the frame, the front is 724 × 688 mm; the body behind it is 650 mm wide and 649 mm high. These are stove dimensions, not a building opening, so have your installer check the actual unit, the cut-out and safe clearances.

The drawing as text

ALL SIZES IN MILLIMETRES
Jetmaster Rigel Built-in
Built-in closed-combustion wood stove, with a door and a viewing window
01 FRONT VIEW
688 height including frame
724 width including frame
02 SIDE VIEW
377 body depth
649 body height
Front at the right.
03 TOP VIEW
650 body width
377 body depth
Front at the bottom.
04 OPTIONAL FLUE (SMALLER SCALE)
Ø150
1,200 flue segment
Flue pipes are sold separately.
The stove takes a Ø150 round flue.
Flue pipes come in 1,200 lengths.
PLANNING NOTES
These are product sizes, not a building-opening size. Ask us for the opening size before you build.
Included: the stove, vermiculite inner boards, a removable ash pan, a cast grid, a poker, the manual.
Not included: flue pipes, cowl, building materials and installation.
Plan the flue route and the roof exit with your installer before the building work starts.

GOOD TO KNOW

Plan your setup.

An installation manual comes with the stove. Plan the opening and the flue with it before the building work starts.

What comes with the stove?

The mild-steel outer body with its door and large viewing window, vermiculite inner boards, a removable ash pan, a cast grid, a poker and the installation manual. The flue pipes and cowl are not included.

How much heat does it give?

The heat output is listed as 7.6 kW. The Output Calculator on this page uses 7.6 kW to compare the stove with the room you want to heat. Use the result as a guide when you plan.

How much space do I need?

The body is 650 mm wide, 377 mm deep and 649 mm high. With the frame, the front is 724 mm wide and 688 mm high. These are stove dimensions, not the building opening, so have your installer confirm the cut-out and safe clearances against the actual unit.

Is the stove 750 mm wide?

No. Plan with the measured sizes: the body is 650 mm wide, and the front is 724 mm wide including the frame.

Which flue does it need?

The stove takes a 150 mm round flue (nominal size). The optional flue pipes come in 1,200 mm lengths, and the fitted length depends on how the joints overlap. Have an independent installer check the height, support, roof exit and any bends.

Are the flue pipes and cowl included?

No. You can add the 150 mm flue pipes on this page. For the cowl and the rest of the flue route, send a photo and measurements for a product and flue configuration quote.

Does it come with an installation manual?

Yes. The installation manual comes with the stove. Read it with your installer before you plan the opening and the flue.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.

What warranty does it carry?

The firebox has a five-year Jetmaster warranty against defects in materials and workmanship, with normal domestic use and maintenance. Ask us for the full terms.
