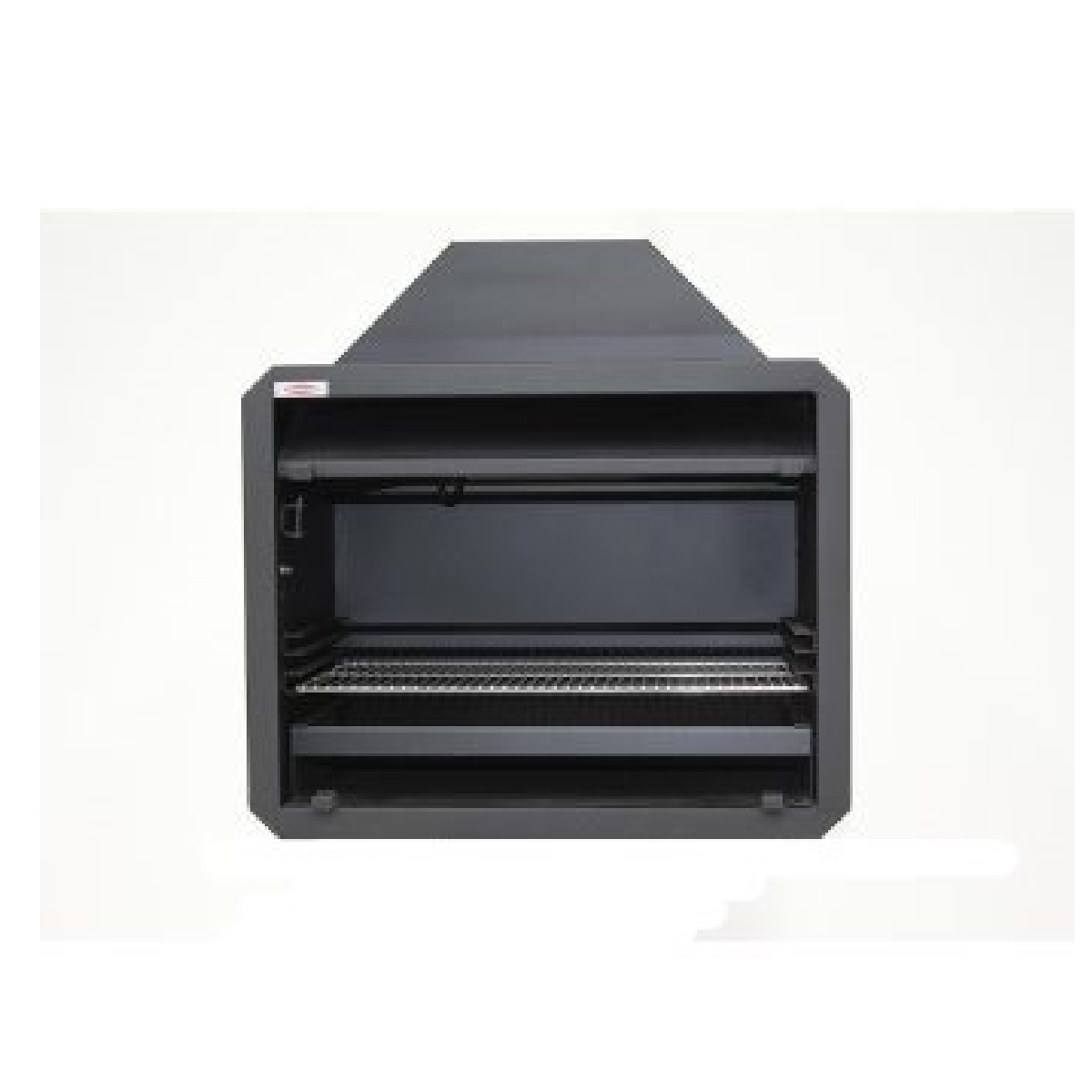

Jetmaster 800 Nova built-in braai in black mild steel, seen from the front, with the smoke gather on top and the nickel-plated grill inside

Your braai, up close

Will it fit my space?

About your braai

Included: Mild-steel firebox chamber, smoke gather, front frame, nickel-plated grill
Not included: Flue pipes, cowl, escutcheon plate, insulation blanket, building materials, installation
Guarantee: 5 years on the braai box

Jetmaster Built-in Braais

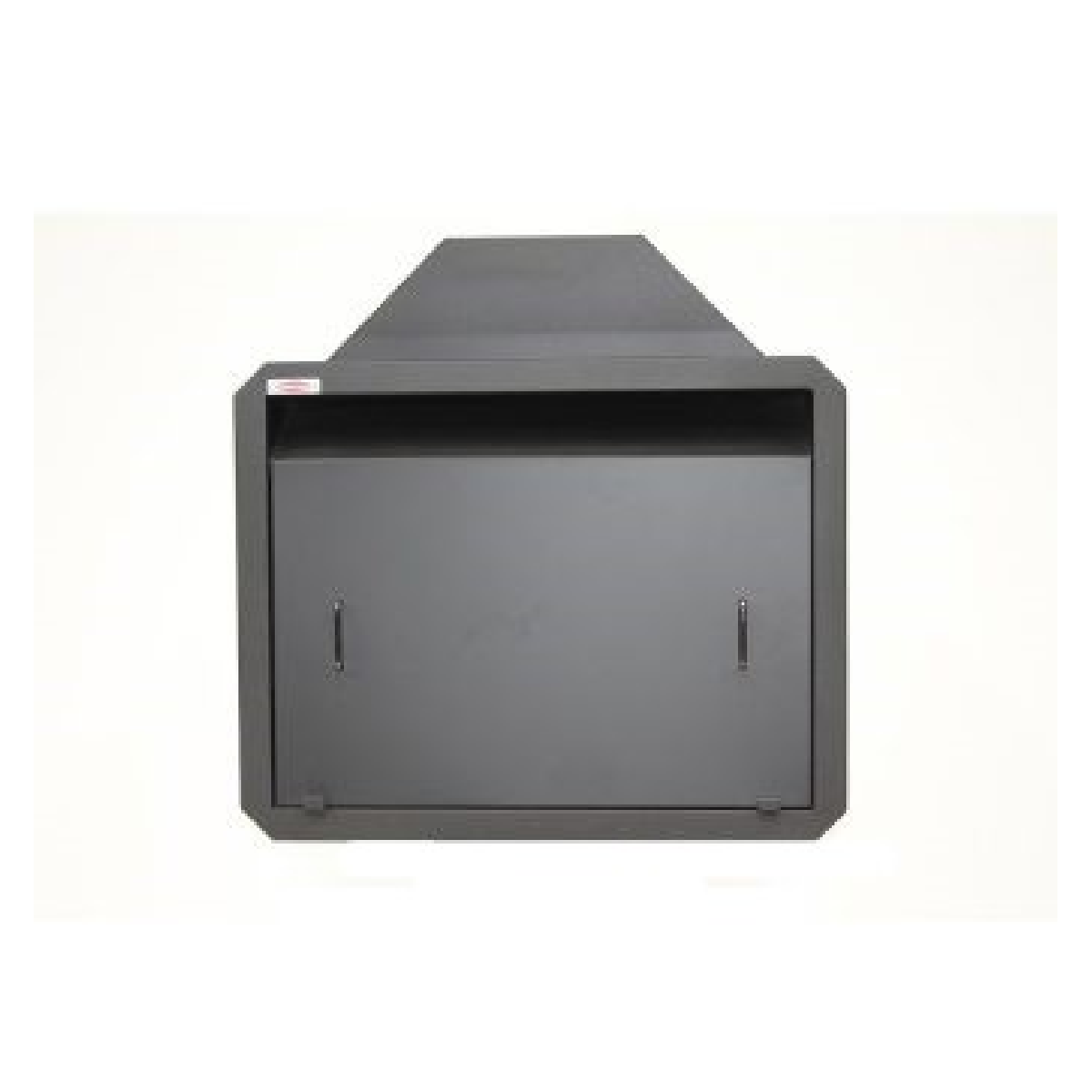

Jetmaster 800 Nova mild steel Built-in Braai (1 Door)

Name: Jetmaster 800 Nova Built-in Braai | Braai Culture
Brand: Jetmaster
SKU: D3000014
Price: 8999.00 ZAR
Availability: InStock

A mild-steel built-in braai for wood or charcoal.

From: Original price was: R9,699.00.Current price is: R8,999.00.

Save R700

SKU D3000014

In stock Delivery ETA: 5–15 working days

Complete your setup

Guide

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE NOVA, READY TO BUILD IN

Build it in.
Braai over the coals.

The Nova 800 is a mild-steel firebox with its own smoke gather, made to build into your braai area. Light wood or charcoal, let it burn down to good coals and braai on the nickel-plated grill. Plan the 225 mm flue and the surround before the bricks go up, and the front frame finishes it neatly.

Mild-steel firebox chamberWith a separate smoke gather above
Nickel-plated cooking grill
Burns wood or charcoal
No charcoal starter on the 800 model
Flue connection Ø 225 mmPipes, cowl and plate are options
Front frame included

Jetmaster 800 Nova built-in braai in a face-brick wall, food on the grid, a removable door against the wall and a man preparing meat beside it

MAKE ROOM FOR THE FIRE

Lunch starts when the coals are ready.

A Sunday lunch that runs into the evening. Chops and boerewors over the coals, friends around the counter and one more round while the fire is going. Build it into the heart of your patio.

The brick wall, counter, cupboard, firewood and props are not included. Confirm the flue route, support and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Good braais start with a plan.

THE FIRE

Wood or charcoal, your choice.

Light a wood fire or use charcoal, whichever suits the meal. Braai over the coals on the 785 × 420 mm nickel-plated grill, and keep the fire going for the next round.

THE FLUE

Plan the flue with the build.

The specified flue size is 225 mm (nominal), and the optional flue pipes come in 1,200 mm lengths. Plan the route, the cowl and the insulation with an independent installer before the building work starts.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

Body width × depth: 800 × 450 mm
Width including front frame: 900 mm
Body height, without the gather: 615 mm
Smoke gather height: 251 mm
Cooking grill: 785 × 420 mm
Flue size, nominal: 225 mm
Optional flue pipe length, each: 1,200 mm
Firebox and gather material: Mild steel
Fuel: Wood or charcoal

Plan the body, gather and flue together.

The 615 mm body height and the 251 mm gather height are measured separately, so confirm the overall height on the actual unit. These are product dimensions, not a building opening: have your installer check the unit and safe clearances.

The drawing as text

ALL SIZES IN MILLIMETRES
Jetmaster 800 Nova Built-in Braai
Built-in braai: wood and charcoal, mild steel, with one door
01 FRONT VIEW
785 cooking grid
800 body width
900 including frame
02 SIDE VIEW
450 body depth
251 gather
615 body height
Front at the right.
03 COOKING GRID
785 width
420 depth
04 TOP VIEW
800 body width
450 body depth
Front at the bottom. White: the gather neck.
05 OPTIONAL FLUE (SMALLER SCALE)
Ø225 flue
1,200 flue segment
The flue, the cowl, the escutcheon
plate and the insulation are options.
Ask us how many flue segments
your chimney needs.
PLANNING NOTES
These are product sizes, not a building-opening
size. Ask us for the opening size before you build.
The gather sits on top of the body. Ask us for the
total height before you build the chimney breast.
This model has no charcoal starter.

GOOD TO KNOW

Plan your setup.

Plan the braai, the flue and the surround together, before the building work starts.

What comes with the braai?

The mild-steel firebox chamber and smoke gather, the front frame and the 785 × 420 mm nickel-plated grill. The flue pipes, cowl, escutcheon plate and insulation blanket are options on this page. Building materials and installation are separate.

Is a door included?

Ask us to confirm the door before you order. We will check exactly what is supplied with this unit.

Which fuel can I use?

Wood or charcoal, whichever suits the meal.

How much cooking space is there?

The nickel-plated grill is 785 × 420 mm, inside a body 800 mm wide.

How much space should I allow?

The body is 800 mm wide, 450 mm deep and 615 mm high, and the front frame is 900 mm wide. The smoke gather above the body is 251 mm high and is measured separately, so confirm the overall height on the actual unit before you build the surround.

Are the flue, cowl and insulation included?

No. Flues, insulation and building materials are separate from the braai. Add the flue pipes, cowl, escutcheon plate and insulation blanket on this page, or send a photo and measurements for a configuration quote.

How do I plan the flue?

The specified flue size is 225 mm (nominal). The optional flue pipes come in 1,200 mm lengths, and the fitted length depends on how the joints overlap. Have an independent installer check the height, support, roof exit and any bends.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.

What does the warranty cover?

The braai box has a five-year Jetmaster warranty against defects in materials and workmanship, with normal domestic use and maintenance. Corrosion and discolouration are excluded. Accessories carry 12 months, and exclusions apply. Ask us for the full terms.
