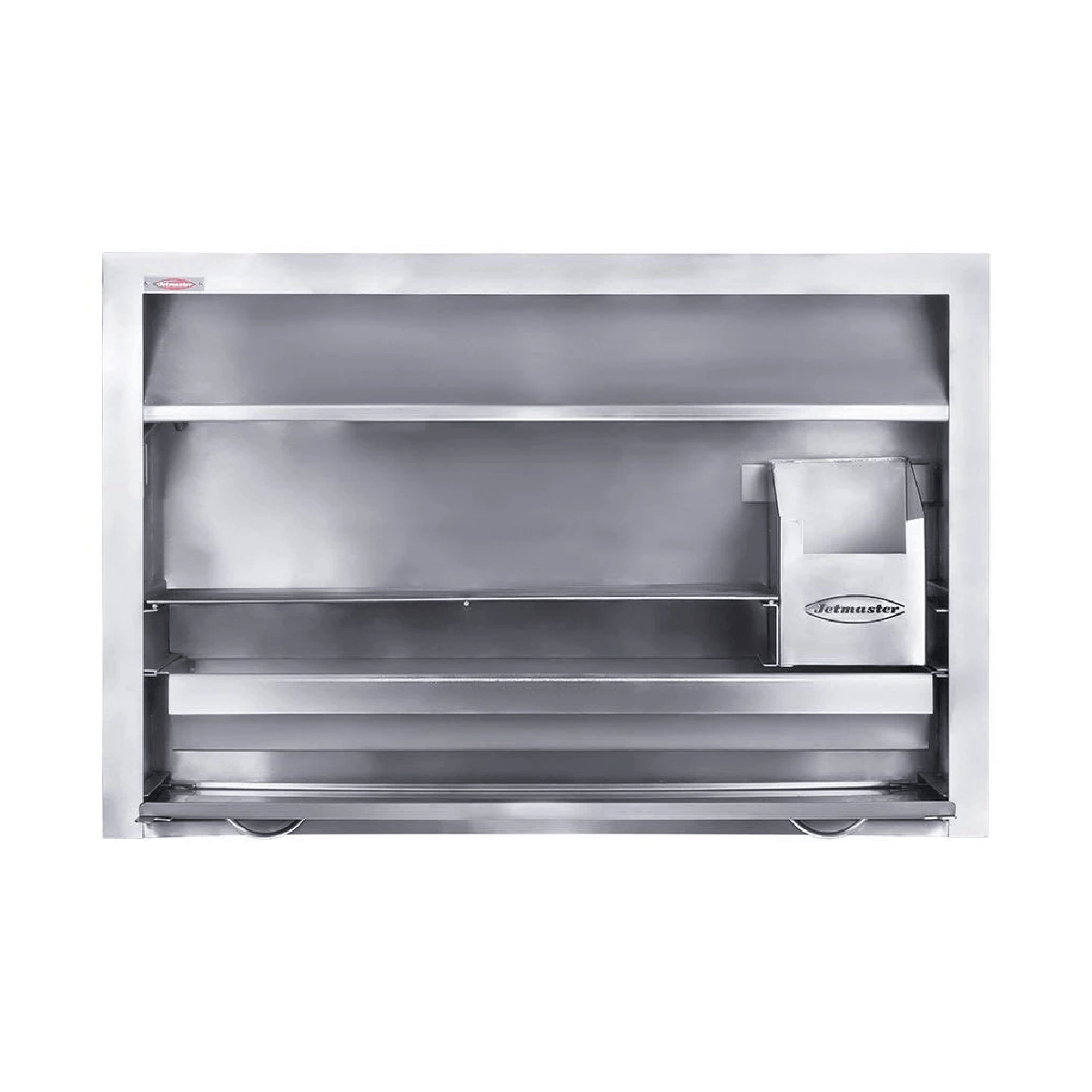

Jetmaster 1200 Super Deluxe Stainless Steel Built-in Braai

A stainless-steel built-in braai with a spit motor, made to order in 304 steel.

Original price was: R107,077.00.Current price is: R86,999.00.

Save R20,078
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU 40020963

Made to order Delivery ETA: 15–20 working days

About your braai

Spit roasting
Chicken and sheep spits on a heavy-duty 220 V motor
Included
Door, charcoal tray and starter, potjie arm, light fitting, ash and warming drawers
Not included
Flue, electrical work, building work and installation
Your total R86,999.00

Awesome, you get free delivery!

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Get a Quote

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE THAN A GRID

Roast, potjie and braai from one fire.

Slide a chicken onto the spit of the Jetmaster 1200 Super Deluxe Stainless Braai and let the 220 V motor turn it slowly. The adjustable charcoal starter gets the fire going, the swivel arm swings a potjie in and out, and the warming and utensil drawer keeps the tongs close. Ash drops into its own drawer, and the light fitting keeps it bright after dark.

This braai is made to order. We confirm the current list of what comes with it when you order.

  1. Heavy-duty 220 V electric spit motorFor the chicken and sheep spits
  2. Swivel suspension arm with a potjie hookSwings over the fire
  3. Adjustable charcoal starterWith a charcoal tray
  4. Slide-in-and-under reinforced doorWith a handle bar
  5. 304 stainless-steel firebox and smoke gatherA heavy-duty combination
  6. Installation manualUnder Plan your setup
Jetmaster 1200 Super Deluxe Stainless Braai in a grey-clad patio wall at sunset, a woman turning boerewors and chops while a boy waits with a plate

SUPPER ON THE PATIO

Plates ready.
The wors is nearly done.

The sun is going down, the boerewors is sizzling and someone is already holding out a plate. Built into your patio wall, a Super Deluxe in stainless steel turns an ordinary weeknight into supper outside, with the spit and the potjie arm waiting for the weekend.

The scene shows a Super Deluxe of this design at this braai's size. The wall cladding, counters, table, chairs, plants and food are not included. Plan the gather, flue and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Plan the power before the bricks.

THE SPIT

Roast on the Jetmaster 1200 Super Deluxe Stainless Braai.

The heavy-duty 220 V motor turns the chicken and sheep spits for you. A qualified electrician does the electrical work, and the motor and the light fitting must both be earthed.

THE FIRE

Charcoal, started right.

Light the charcoal in the adjustable charcoal starter, then spread the coals on the charcoal tray. When a potjie is on the menu, swing the suspension arm over the fire and hang it from the hook.

THE BUILD

Insulated and well supported.

Your installer supports the braai mainly along its bottom side and back edges, and fits fibreglass insulation and an expansion joint around the body and gather.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Jetmaster 1200 Super Deluxe Stainless Braai dimension drawing, page 1 of 3: front and side views, in millimetres.
Page 1 of 3
Body width × depth
1,247 × 603 mm
Body height, without the gather
865 mm
Gather above the body
508 mm
Front frame width × height
1,300 × 935 mm
Depth including the front frame
635 mm
Spit motor box, beside the body
227 mm
Gather outlet width × depth
500 × 350 mm
Round flue with the 350 × 500 adaptor, nominal
475 mm
Flue section length
1,200 mm
Minimum chimney flue length
2,000 mm
Side clearance to combustibles
200 mm
Top clearance to combustibles
450 mm
Maximum face recess
150 mm
Material
304 stainless steel

Plan the body, motor box and flue together.

The body is 1,247 mm wide, 603 mm deep and 865 mm high, and the gather adds 508 mm above it. The spit motor box stands out 227 mm beside the body. These are product dimensions, not a building opening: have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body is 1,247 wide, 603 deep and 865 high. The gather adds 508 above it.
  • The spit motor box stands out 227 beside the body. Plan the opening for both.
  • Support the braai mainly along its bottom side and back edges.
  • The body and the gather need fibreglass insulation and an expansion joint.
  • A qualified electrician must do the electrical work. The light and the 220 V spit motor must be earthed.
  • Included: chicken and sheep spits, the spit motor, a charcoal tray and an adjustable charcoal starter.
  • Also included: a light fitting, a swivel arm with a potjie hook, an ash drawer and a warming and utensil drawer.
  • The reinforced door has a handle bar and slides in and under.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Jetmaster 1200 Super Deluxe Stainless Steel Built-in Braai
  • Built-in braai: 304 stainless steel, with a spit motor box, a charcoal starter and two drawers
  • 01 FRONT VIEW
  • 500 gather outlet
  • 935 front frame
  • 1,300 including frame
  • 02 SIDE VIEW
  • 350 outlet depth
  • 508 gather
  • 865 body
  • 603 body depth
  • 635 including frame
  • Front at the right. Door folded down.
  • The body height does not include the gather.
  • Dashed: the spit motor box.
  • 03 TOP VIEW
  • 227 motor box
  • 1,247 body width
  • 635 including frame
  • 1,300 including frame
  • Front at the bottom. White: the gather outlet.
  • 04 FACE RECESS (SMALLER SCALE)
  • 150 at most
  • Front at the right.
  • The face of the braai sits
  • at most 150 behind the face
  • of the brickwork or plaster.
  • 05 CLEARANCES (SMALLER SCALE)
  • 200 side
  • 200 side
  • 450 top
  • Braai box from the front, without the gather.
  • No combustible material inside the dashed line,
  • unless that material is insulated.
  • 06 FLUE SECTION, SOLD SEPARATELY (SMALLER SCALE)
  • Ø475 round flue
  • 1,200 flue section
  • The gather outlet is rectangular:
  • 500 by 350. The round flue fits
  • with the 350 × 500 adaptor.
  • Ask us which flue parts fit
  • before you order.
  • The minimum chimney flue length
  • is 2,000 mm.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The body is 1,247 wide, 603 deep and 865 high. The gather adds 508 above it.
  • The spit motor box stands out 227 beside the body. Plan the opening for both.
  • Support the braai mainly along its bottom side and back edges.
  • The body and the gather need fibreglass insulation and an expansion joint.
  • A qualified electrician must do the electrical work. The light and the 220 V spit motor must be earthed.
  • Included: chicken and sheep spits, the spit motor, a charcoal tray and an adjustable charcoal starter.
  • Also included: a light fitting, a swivel arm with a potjie hook, an ash drawer and a warming and utensil drawer.
  • The reinforced door has a handle bar and slides in and under.

GOOD TO KNOW

Plan your setup.

Read your installation manual before you plan, and book a qualified electrician for the spit motor and the light.

Read the instruction manual

What is included?

The 1200 Super Deluxe, made to order in 304 stainless steel: the heavy-duty firebox and smoke gather, a slide-in-and-under reinforced door with a handle bar, a charcoal tray, an adjustable charcoal starter, a swivel suspension arm with a potjie hook, a light fitting for a conventional bulb, an ash disposal drawer, a warming and utensil drawer, and chicken and sheep spits with a heavy-duty 220 V motor.

Is the flue included?

No, the flue is separate. The gather outlet is rectangular, 500 × 350 mm. With the 350 × 500 adaptor, the round flue sections have a nominal diameter of 475 mm and a length of 1,200 mm. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

How tall must the chimney be?

The minimum chimney flue length is 2,000 mm. Your independent installer plans the flue route and the final height for your building.

Does it need an electrician?

Yes. A qualified electrician must do the electrical work for the 220 V spit motor and the light fitting, and both must be earthed. Plan it with your installer before the wall goes up.

How much space do I need?

The body is 1,247 mm wide, 603 mm deep and 865 mm high, and the gather rises 508 mm above it. The front frame is 1,300 mm wide and 935 mm high; with the frame, the depth is 635 mm. The spit motor box stands out 227 mm beside the body. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.

How close can it be to combustible materials?

Without extra insulation, keep combustible materials at least 200 mm from the sides of the braai box and 450 mm above it. Adequate extra insulation can change this, so let your installer decide. The braai can sit at most 150 mm behind the masonry face.

How is it built in?

Support the braai mainly along its bottom side and back edges. The body and the gather need fibreglass insulation and an expansion joint. Your independent installer follows the installation manual under Plan your setup.

Which fuel does it use?

It is set up for charcoal, with a charcoal tray and an adjustable charcoal starter. Ask us before you braai over wood.

Which cooking grid comes with it?

Grids differ between configurations. Ask us which grid comes with your made-to-order braai, and its size, before you order.

What does the guarantee cover?

Ask us for the current Jetmaster guarantee terms for this braai before you order.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer, and the electrical work with a qualified electrician.
