THE GRATE
No grate yet. Your call.
This version comes without a grate. The optional basket grate and pan is one of the choices on this page, and the wood grate is 1,020 mm wide and 340 mm deep. Not sure? Ask us which setup suits your fire.
Sale!
About your fireplace
- Heat
- Convection and radiated · 100 m² heating area listed
- Included
- Mild-steel fireplace with damper control, sold without a grate
- Not included
- Basket grate and pan, flue adapter, flue pipe, cowl, insulation blanket, fire screen, installation
- Guarantee
- Five years on the fireplace box

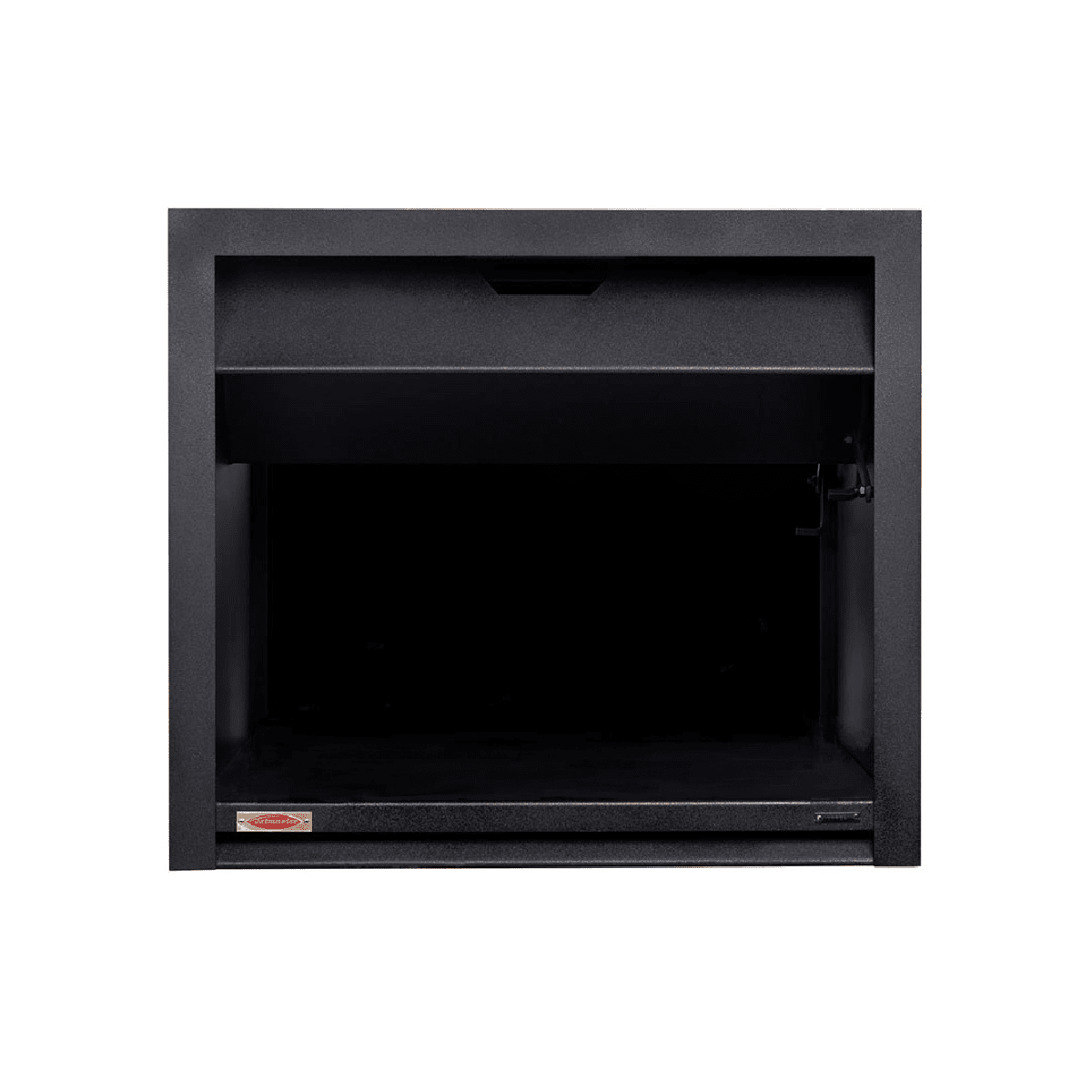

Jetmaster Professional Universal 1050
A wide built-in open fire, sold without a grate so you choose how it burns.
Original price was: R17,188.00.R16,199.00Current price is: R16,199.00.
Save R989In stock Delivery ETA: 5–15 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsSTART WITH THE FIRE, ADD WHAT YOU NEED
Jetmaster Professional Universal 1050.
Bring your own grate.
The Jetmaster Professional Universal 1050 is a built-in open fireplace in mild steel, and it comes without a grate, so the next choice is yours. Burn wood or charcoal, use the damper control to tune the fire and settle in for convection and radiated heat. Want the basket grate and pan as well? Add them right here on this page.
Sold without a grate. The basket grate and pan, the flue parts and the insulation blanket are options on this page.
- Damper controlManage the fire
- Convection and radiated heatMild-steel body
- Wood or charcoalGas is a separate version
- Installation manualUnder Plan your setup
ONE MORE CHAPTER
Story time, with the fire for company.
The day is done, the logs are burning and there is one more chapter to read. A wide open fire pulls everyone in, from the youngest in the house to the oldest. Build it into your lounge and it soon becomes the spot where winter evenings happen, with no one in a hurry to leave.
This fireplace is sold without a grate. The logs, plastered chimney breast, hearth, furniture, basket and décor are not included. Plan the flue and clearances with an independent installer.
CHOOSE, THEN BUILD
A few things to decide first.
THE HEAT
Warmth that fills the room.
Universal fireplaces give convection and radiated heat. The listed wood heating capacity is 100 m². We do not have a Jetmaster kW figure for this model, so treat the area as a guide and ask us about your room.
THE FLUE
Plan the flue before you build.
The rectangular flue section is 400 × 200 mm. A flue adapter, round flue pipe and rotating cowl are options on this page. Ask us for the round flue diameter before you order: we confirm it with Jetmaster.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 1,099 × 503 mm
- Body height, without the gather
- 780 mm
- Gather above the body
- 252 mm
- Add to the width for the frame
- 100 mm
- Rectangular flue width × depth
- 400 × 200 mm
- One length of round flue
- 1,200 mm
- Optional wood grate width × depth
- 1,020 × 340 mm
- Insulation, existing masonry recess
- 25 mm
- Fuel
- Wood or charcoal
- Material
- Mild steel
Plan the body, gather and flue together.
The 780 mm body height does not include the 252 mm gather or the flue, and you add 100 mm to the width for the frame. These are product sizes, not a building opening, so ask us for the opening size and have your installer check the actual unit and safe clearances.
The drawing as text
- ALL SIZES IN MILLIMETRES
- Jetmaster Professional Universal 1050
- Built-in open fireplace for wood or charcoal, sold without a grate
- 01 FRONT VIEW
- Damper
- Sold without a grate
- 400 rectangular flue
- 252 gather
- 780 body height
- 1,099 body width
- 02 SIDE VIEW
- 200 rectangular flue
- 503 body depth
- Front at the right.
- 03 TOP VIEW
- 1,099 body width
- Front at the bottom. White: the flue outlet.
- 04 FLUE ACCESSORIES
- 503 body depth
- 400 width
- 200 depth
- Rectangular flue
- Round flue
- 1,200 length
- One length of round flue
- 05 WOOD GRATE (OPTION)
- 1,020 width
- 340 depth
- 06 GAS GRATE (OPTION)
- 1,045 width
- 370 depth
- PLANNING NOTES
- Sold without a grate. The wood grate is an optional basket grate.
- Ask us for the round flue diameter before you order: we confirm it with Jetmaster.
- For the width including the frame, add 100 mm.
- These are product sizes, not a building-opening size. Ask us for the opening size before you build.
- Ask us for the frame height and projection and the flue position: we confirm them with Jetmaster.
- In an existing masonry recess, allow 25 mm all round for insulation.
- The adaptor, flue, cowls, screens and ceramic blanket are listed as separate accessories.
- The gas grate belongs to the gas version. It is not part of this wood fireplace.
GOOD TO KNOW
Plan your setup.
Read your installation manual before you plan the wall and the flue.
See also: Built-in fireplaces · More from Jetmaster · Jetmaster Pro Universal 700 D Fireplace with Basket Grate and Pan
What is included?
The Jetmaster Professional Universal 1050 main unit: a built-in open fireplace in mild steel with damper control. It is sold without a grate. The basket grate and pan, flue adapter, round flue pipe, rotating cowl and insulation blanket are options on this page. Ask us to confirm the full parts list for your order.
Does it come with a grate?
No. This version is sold without a grate. The optional basket grate and pan is one of the choices on this page, and the wood grate measures 1,020 × 340 mm. Choose it here, or ask us which setup suits you.
Which fuel can I use?
Wood or charcoal. Gas options are separate versions, so the gas grate on our drawing is not part of this fireplace. Ask us if you would rather burn gas.
How much heat does it give?
Universal fireplaces give convection and radiated heat. The listed wood heating capacity is 100 m², which is a guide to room area and not a heat output. We do not have a Jetmaster kW figure for this model, so send us your room size and we will help you compare.
Is the flue included?
No. The adaptor, flue, cowls, screens and ceramic blanket are listed as separate accessories. A flue adapter, round flue pipe, rotating cowl and insulation blanket are options on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts for your setup.
What size is the flue?
The rectangular flue section is 400 × 200 mm, and one length of round flue is 1,200 mm. Ask us for the round flue diameter before you order: we confirm it with Jetmaster. These sizes describe the flue parts. They are not a cut-out in your building.
How much space do I need?
The body is 1,099 mm wide, 503 mm deep and 780 mm high. The gather is a further 252 mm, before the flue, and you add 100 mm to the width for the frame. These are product sizes, not a building opening. Ask us for the opening size, the frame height and projection, and the flue position before you build: we confirm them with Jetmaster.
Can it go into an existing masonry recess?
In an existing masonry recess, allow 25 mm all round for insulation. That allowance is for this kind of recess only. It is not a finished opening size or a clearance from combustible materials. The insulation blanket is an option on this page. Have your installer check the rest.
Which parts of the installation manual apply?
The South African Jetmaster installation booklet applies to this Universal model. It also covers other models and has gas chapters, so follow the sections for this fireplace. Where the booklet and this page differ on the round flue, ask us first.
What does the guarantee cover?
Universal fireplace boxes are listed with a five-year Jetmaster guarantee against faults in materials and workmanship. It applies to normal domestic use, with proof of purchase, correct installation and maintenance, and its exclusions apply. Accessories have separate cover. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
