WIKING AM49 12kW– Slow Combustion Fireplace

A compact multifuel stove with a wide arched glass door and curved feet.

Original price was: R23,700.00.Current price is: R22,699.00.

Save R1,001

SKU WIKINGAM49-12K

Currently out of stock Delivery ETA: To be confirmed after restock

Ask us about stock

About your fireplace

Heat
10 kW nominal · 12 kW maximum
Included
The stove, with its riddling grate and ash pan
Not included
Flue pipes, accessories and installation

Ask us when it is back, or for a similar model.

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE AM49, UP CLOSE

Small enough to fit: the WIKING AM49 Slow Combustion Fireplace.

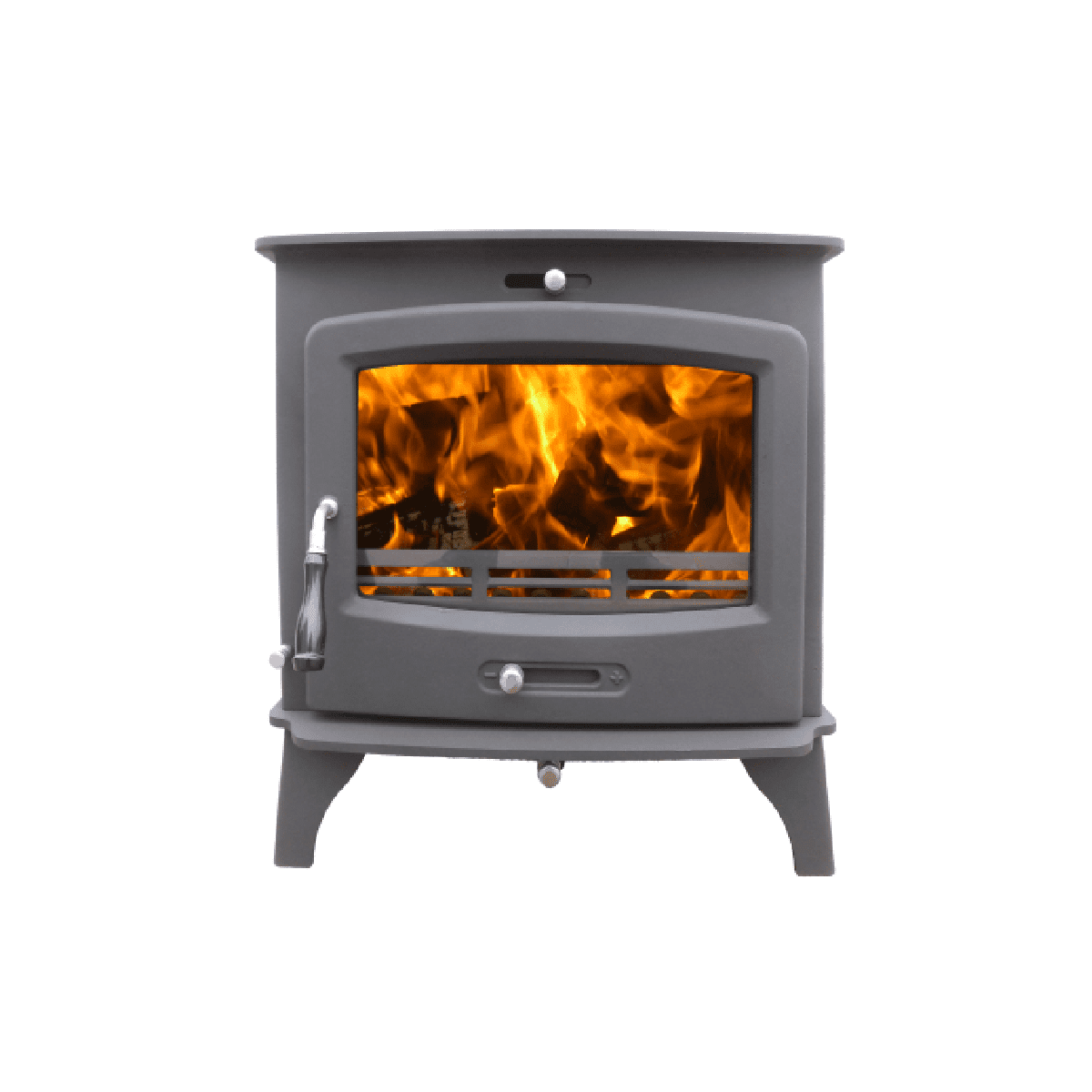

The WIKING AM49 Slow Combustion Fireplace is a freestanding closed-combustion stove with one wide, gently arched glass door. It is multifuel, and a riddling grate and ash pan keep the fire bed clear and the clean-up simple. The flue connects on top or at the back, which gives your installer a choice. It weighs 120 kg, so plan the move and the floor.

  1. Riddling grate and ash panIncluded, for an easy clean-up
  2. Top or rear flue outletFor a 150 mm nominal flue pipe
  3. Multifuel fireboxAsk us which fuels to burn
  4. Slider control below the door
  5. Net weight120 kg
WIKING AM49 alight on a dark stone hearth in a study with green walls, a black flue pipe above, bookshelves, a desk lamp and a leather armchair in afternoon sun

A WARM CORNER TO READ IN

Green walls, good books, a steady fire.

Afternoon sun across the green walls, a shelf of well-read books and the AM49 burning steadily on its hearth. Pull the leather armchair a little closer, open the next chapter and let the cold stay outside. Winter afternoons were made for this.

The flue pipe, hearth, furniture, books and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.

BEFORE THE FIRST FIRE

Heat, grate and flue, sorted.

THE HEAT

10 kW nominal, up to 12 kW.

The AM49 gives 10 kW nominal and up to 12 kW maximum heat output; the 12 kW in its name is the maximum. The Output Calculator uses 11 kW, the middle of the two, to compare with your room.

THE GRATE

Riddle, then empty the pan.

The riddling grate drops the ash into the ash pan and keeps the fire bed clear. Empty the pan once the ash is completely cold.

THE FLUE

On top or at the back.

The flue connects on top or at the rear, for a 150 mm nominal flue pipe. Send us a photo and measurements for a flue quote, and we will help you choose the parts.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing
WIKING AM49 Slow Combustion Fireplace dimension drawing: front, side and top views, in millimetres.
Download the dimension drawing
Overall width × depth
618 × 387 mm
Overall height, floor to top
629 mm
Flue outlet
Top or rear
Flue pipe size (nominal)
150 mm
Net weight
120 kg
Fuel
Multifuel
Combustion
Closed

Plan the stove, the flue and the clearances together.

The AM49 is 618 mm wide, 387 mm deep and 629 mm high on its feet. Ask us for the installation clearances before you plan, and have an independent installer check the hearth and the floor for its 120 kg.

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • WIKING AM49 Slow Combustion Fireplace
  • Closed combustion multifuel stove with a wide arched glass door
  • 01 FRONT VIEW
  • 618 overall width
  • 629 overall height
  • 02 SIDE VIEW
  • 387 overall depth
  • Back at the left. Front at the right.
  • The flue connects on top or at the rear (dashed).
  • 03 TOP VIEW
  • 618 overall width
  • 387 overall depth
  • Back at the top. Front at the bottom.
  • For a nominal 150 flue pipe.
  • PLANNING NOTES
  • These are product sizes. Have an independent installer confirm the hearth, the flue route and the clearances.
  • Ask us for the installation clearances before you plan the position.
  • Heat output: 10 kW nominal, 12 kW maximum.
  • The stove weighs 120 kg, so have your installer check that the floor and the hearth can carry it.
  • An ash pan and a riddling grate are included.
  • Send us a photo and measurements for a flue quote.

GOOD TO KNOW

Plan your setup.

Ask us for the installation details before you plan the hearth and the flue.

What is included?

The WIKING AM49 stove, with its riddling grate and ash pan. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.

Which fuel does it burn?

The AM49 is a multifuel stove. Ask us which fuels are approved for it before your first fire, and burn only those.

How much heat does it give?

10 kW nominal and up to 12 kW maximum heat output. The 12 kW in its name is the maximum. The Output Calculator uses 11 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.

Where does the flue connect?

On top or at the rear, for a 150 mm nominal flue pipe. Have an independent installer choose the outlet and plan the flue route, height and support for your building.

Is the flue included?

No. Chimney flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.

How much space does it need?

The AM49 is 618 mm wide, 387 mm deep and 629 mm high, from the floor to the top. Ask us for the installation clearances and the hearth size before you build, and have your installer apply them with your local requirements.

How heavy is it?

The net weight is 120 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.

How does the riddling grate work?

Riddle the grate to drop the ash into the ash pan and keep the fire bed clear. Empty the ash pan only once the ash is completely cold.

Is there a guarantee?

Ask us to confirm the guarantee terms for the AM49 before you order, and we will send them to you.

Can you help with my setup?

Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
