WIKING NEWMAN 03 8Kw – Slow Combustion Fireplace

Full cast iron and a wide glass door, for long evenings by the fire.

Original price was: R19,350.00.Current price is: R17,999.00.

Save R1,351

SKU WKINGNEWMAN03

In stock Delivery ETA: 5–7 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE NEWMAN 03

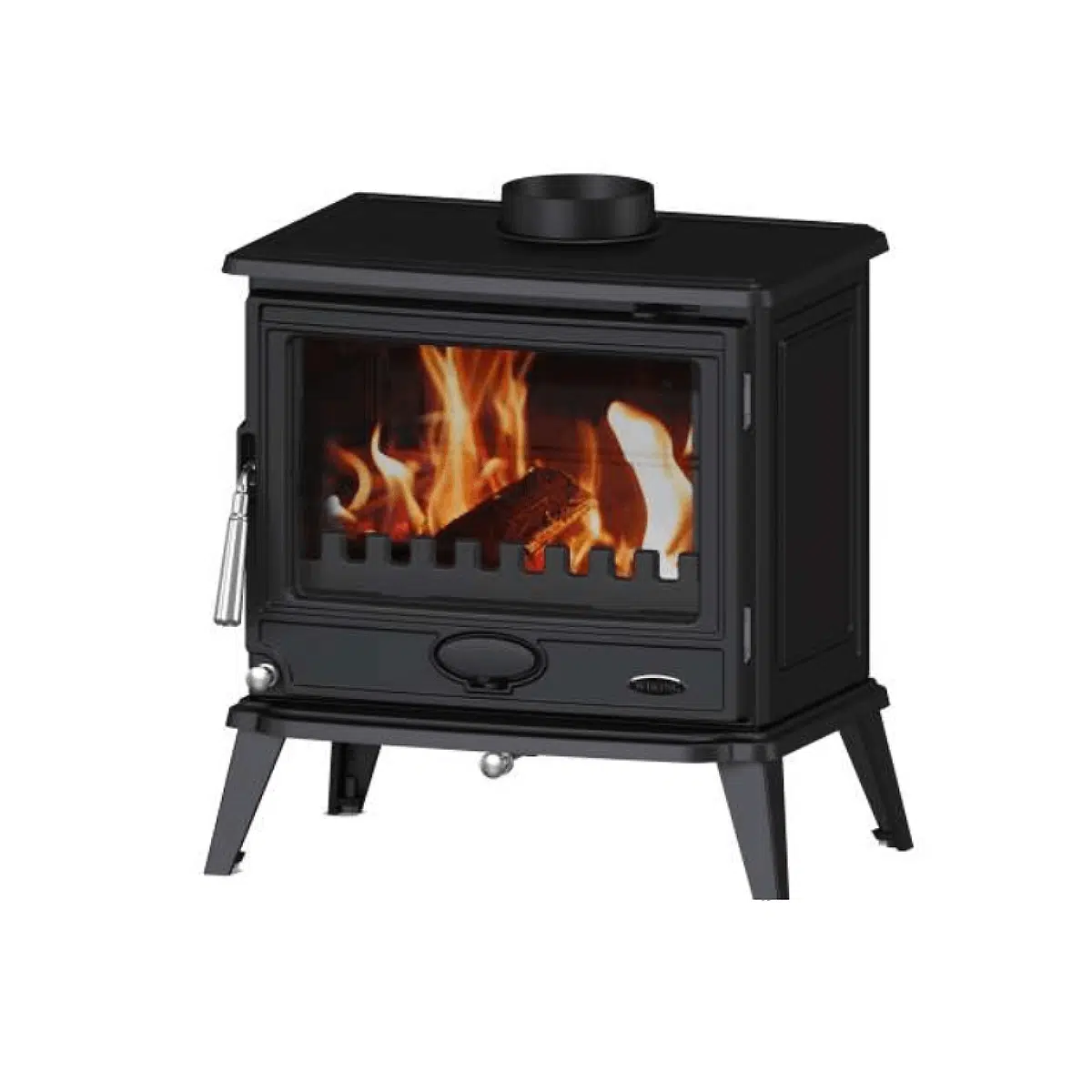

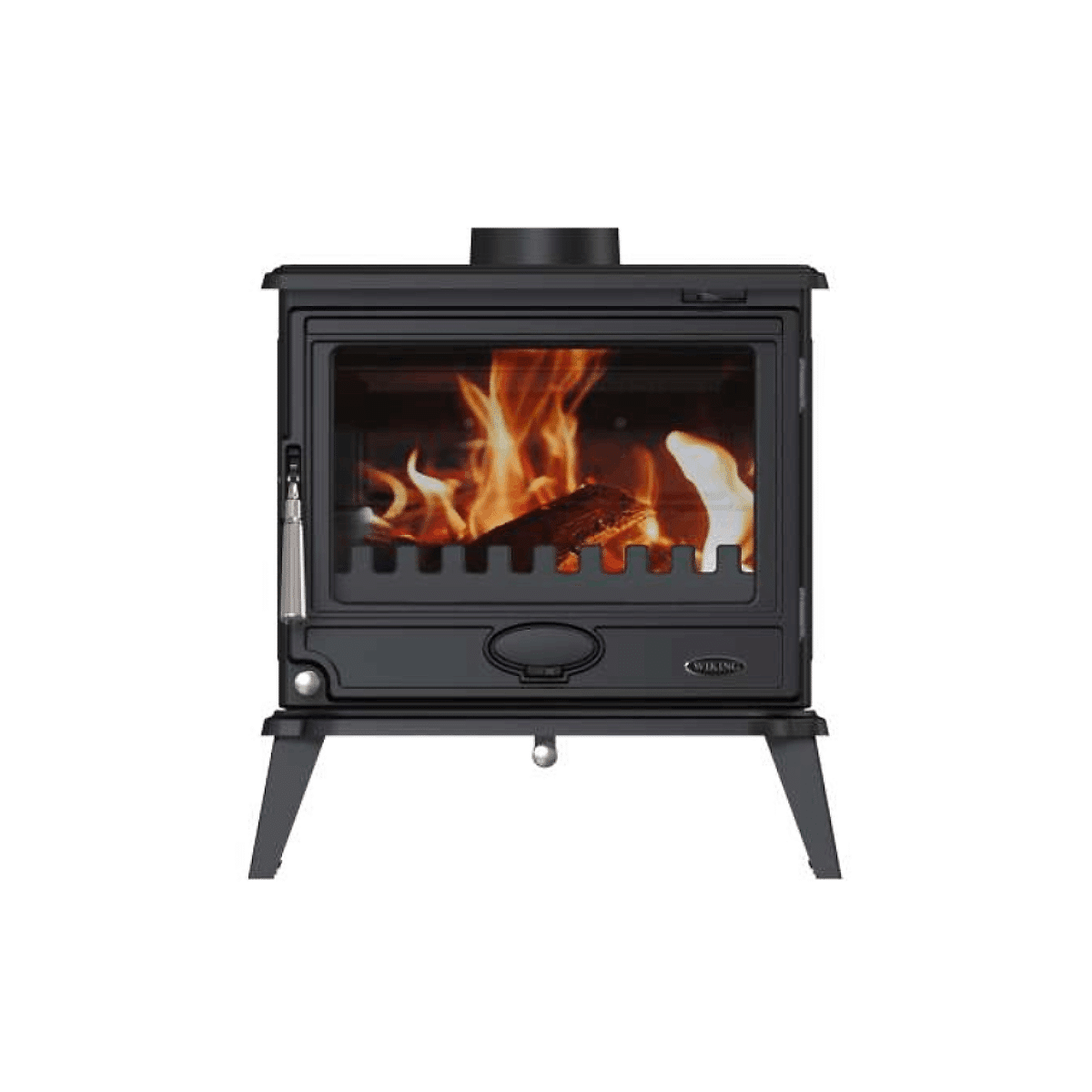

A wide view from the WIKING NEWMAN 03 Slow Combustion Fireplace.

The WIKING NEWMAN 03 Slow Combustion Fireplace is a full cast-iron, closed-combustion stove for dry wood or A-grade anthracite. The wide glass door gives a proper view of the flames, and the ash falls through the riddling grate into the pan below, ready to empty when cold. Your installer can take the flue off the top or the back, on a 125 mm nominal pipe.

  1. Riddling grate and ash panThe ash drops into the pan below
  2. Dry wood or A-grade anthraciteOnly these two fuels
  3. Flue on top or at the rearFor a 125 mm nominal flue pipe
  4. Wide glass doorGlass size 421 × 260 mm
  5. Installation manualUnder Plan your setup
WIKING NEWMAN 03 alight on a dark hearth plate against a cream wall, a couple with mugs by the couch, thick socks on, a sunny window and a timber floor

SLOW MORNINGS

Hot chocolate, thick socks, fire lit.

Sun on the hills outside and nowhere to be. Light the NEWMAN 03 early, wrap your hands around a hot mug and let the cast iron take the chill out of the room. Breakfast can wait a little longer.

The flue pipe is sold separately. The hearth plate, furniture, rug and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.

A LITTLE PRACTICAL THINKING

Plan the heat, the flue and the room.

THE HEAT

8 kW nominal, up to 10 kW.

The NEWMAN 03 is rated at 8 kW nominal and 10 kW maximum heat output when burning wood. The Output Calculator uses 9 kW, the middle of the two, to compare with your room.

THE FLUE

On top or at the back.

Connect a 125 mm nominal flue pipe on top or at the rear. Add flue pipes, bends and a cowl as options on this page, or send us a photo and measurements for a flue quote.

THE ROOM

Give it space to breathe.

Keep 1,000 mm between the stove and household furnishings. We recommend 800 mm from combustible walls. Leave 1,200 mm above it to a combustible ceiling.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing
WIKING NEWMAN 03 Slow Combustion Fireplace dimension drawing: front, side and top views and clearances, in millimetres.
Download the dimension drawing
Top casting width
551.5 mm
Foot span, outside edges
576.3 mm
Depth (casing)
399.8 mm
Height to the top casting
596.5 mm
Height including the flue collar
632 mm
Body casting height
457.3 mm
Glass size
421 × 260 mm
Nominal flue pipe
125 mm
Material
Full cast iron
Fuel
Dry wood or A-grade anthracite

Plan the stove, the hearth and the flue together.

The NEWMAN 03 stands 596.5 mm to its top casting and 632 mm to the top of the flue collar, and its feet span 576.3 mm. These are product dimensions: have an independent installer check the hearth, the clearances and the flue.

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • WIKING NEWMAN 03 Slow Combustion Fireplace
  • Cast-iron stove for dry wood or A-grade anthracite, with one wide glass door
  • 01 FRONT VIEW
  • 551.5 top casting
  • 596.5 to the top casting
  • 632 to the collar top
  • 457.3 body casting
  • 576.3 across the feet
  • 02 SIDE VIEW
  • 399.8 casing depth
  • Back at the left. Front at the right.
  • The flue connects on top or at the rear (dashed).
  • 03 TOP VIEW
  • 576.3 across the feet
  • 399.8 casing depth
  • Back at the top. Front at the bottom.
  • For a nominal 125 flue pipe.
  • 04 COMBUSTIBLE WALLS, TOP VIEW (SMALLER SCALE)
  • 800 to wall
  • 800 to wall
  • 05 FLOOR PROTECTOR, TOP VIEW (SMALLER SCALE)
  • 400 in front
  • 200
  • 200
  • Front at the top.
  • 06 CEILING AND FURNISHINGS (SMALLER SCALE)
  • 1,200 to the ceiling
  • 1,000 to furnishings
  • 07 FLUE ABOVE THE ROOF (SMALLER SCALE)
  • 1,500 above the roof
  • 600 above the ridge
  • PLANNING NOTES
  • These are product sizes. Have an independent installer confirm the hearth, the flue route and the clearances.
  • The constructional hearth must be solid, non-combustible and at least 125 thick with its finish.
  • The hearth must reach 400 in front of the stove.
  • Where a firewall is needed, it must be at least 100 thick, usually brick, concrete or stone.
  • In a recess, leave a free air gap of 200 at the sides and top and 150 at the back. These gaps apply only in a recess.
  • Heat output: 8 kW nominal, 10 kW maximum.
  • Glass size 421 × 260.
  • A cowl, flue pipes, bends, a T-piece drain, escutcheon plates and wall brackets are options on this page.
  • Accessories and installation are not included. Send us a photo and measurements for a flue quote.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The WIKING NEWMAN 03 cast-iron stove, with its riddling grate and ash pan. Flue pipes, a cowl, bends, a T-piece drain, escutcheon plates and wall brackets are options you can add on this page. Accessories and installation are not included.

Which fuel can I burn?

Dry wood or A-grade anthracite, and nothing else. Keep your firewood dry. The heat output figures are for wood.

How much heat does it give?

8 kW nominal and up to 10 kW maximum heat output, rated on wood. The Output Calculator uses 9 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.

Where does the flue connect?

On top or at the rear, for a 125 mm nominal flue pipe. On the roof diagram in the manual, the flue ends 1,500 mm above the roof where it passes through, and 600 mm above the ridge. Have an independent installer choose the outlet and plan the flue route, height and support.

Is the flue included?

No. Flue pipes, a cowl and the other flue parts are options on this page, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.

How much space does it need?

The stove is 551.5 mm wide at the top casting, its feet span 576.3 mm, and it is 399.8 mm deep. It stands 596.5 mm to the top casting or 632 mm to the top of the flue collar. Keep household furnishings 1,000 mm away, and leave 1,200 mm above it to a combustible ceiling. We recommend 800 mm from combustible walls. Your installer must follow the installation manual that comes with the unit.

What hearth does it need?

Build a solid, non-combustible constructional hearth at least 125 mm thick, finishes included, that reaches 400 mm in front of the stove. Its floor-protector diagram, also on our drawing, shows edge extensions of 400 mm and 200 mm. Your installer confirms the hearth for your floor and room.

Can it stand in a recess?

Yes, with permanent free air around it: 200 mm at the sides, 200 mm above and 150 mm behind. These gaps apply only in a recess. Where a firewall is needed, build one at least 100 mm thick, usually brick, concrete or stone.

What size is the glass?

The glass measures 421 × 260 mm. Give us this size if you ever need a replacement pane.

What does the guarantee cover?

The main stove body has a three-year limited Home Fires guarantee when you register it within 30 days; otherwise the cover is 12 months. It covers the first owner at the first installed location, needs professional installation, and excludes the glass, grate, firebricks, handles, seals, paint and other wear parts. The manual has the full terms.

Can you help with my setup?

Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
