Sale!

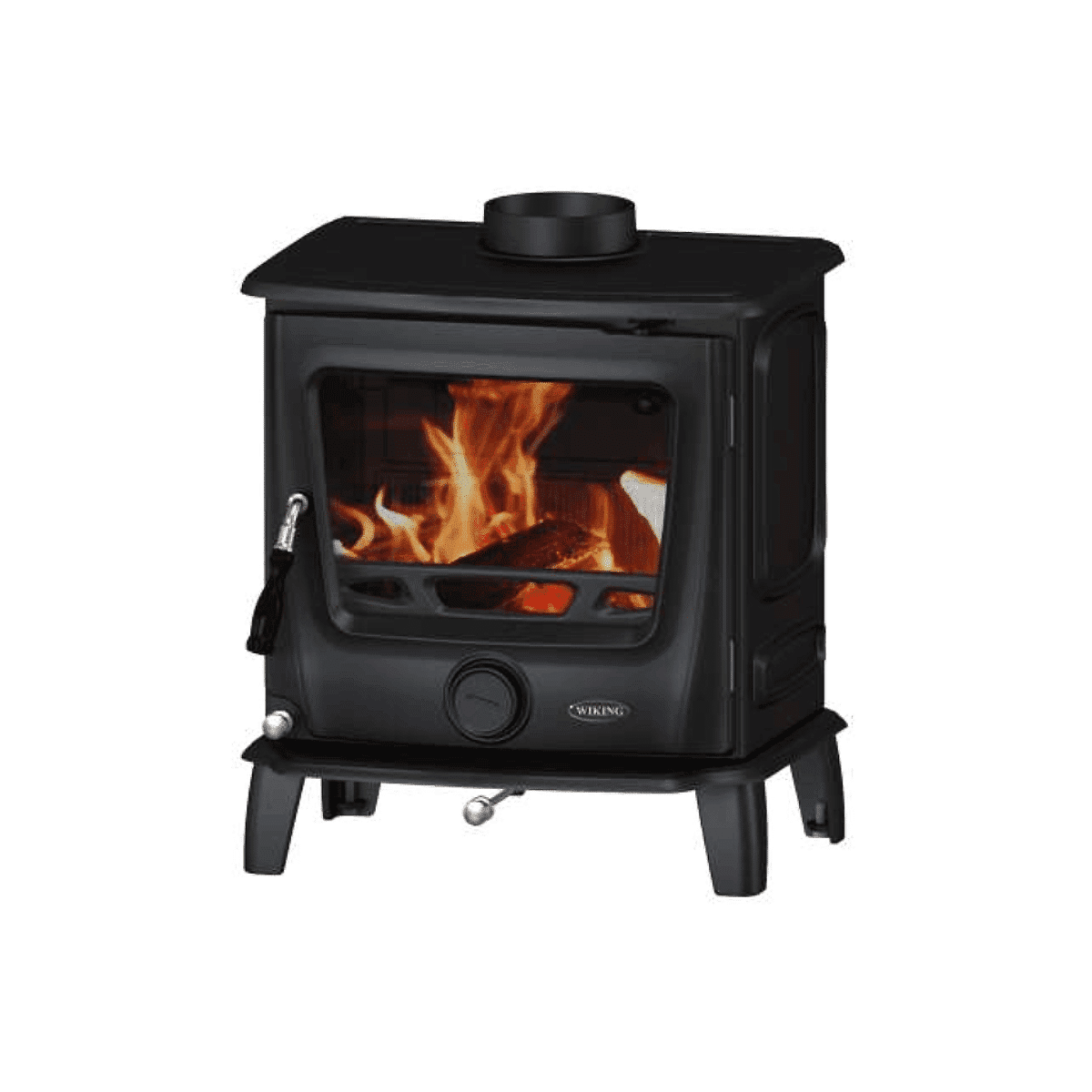

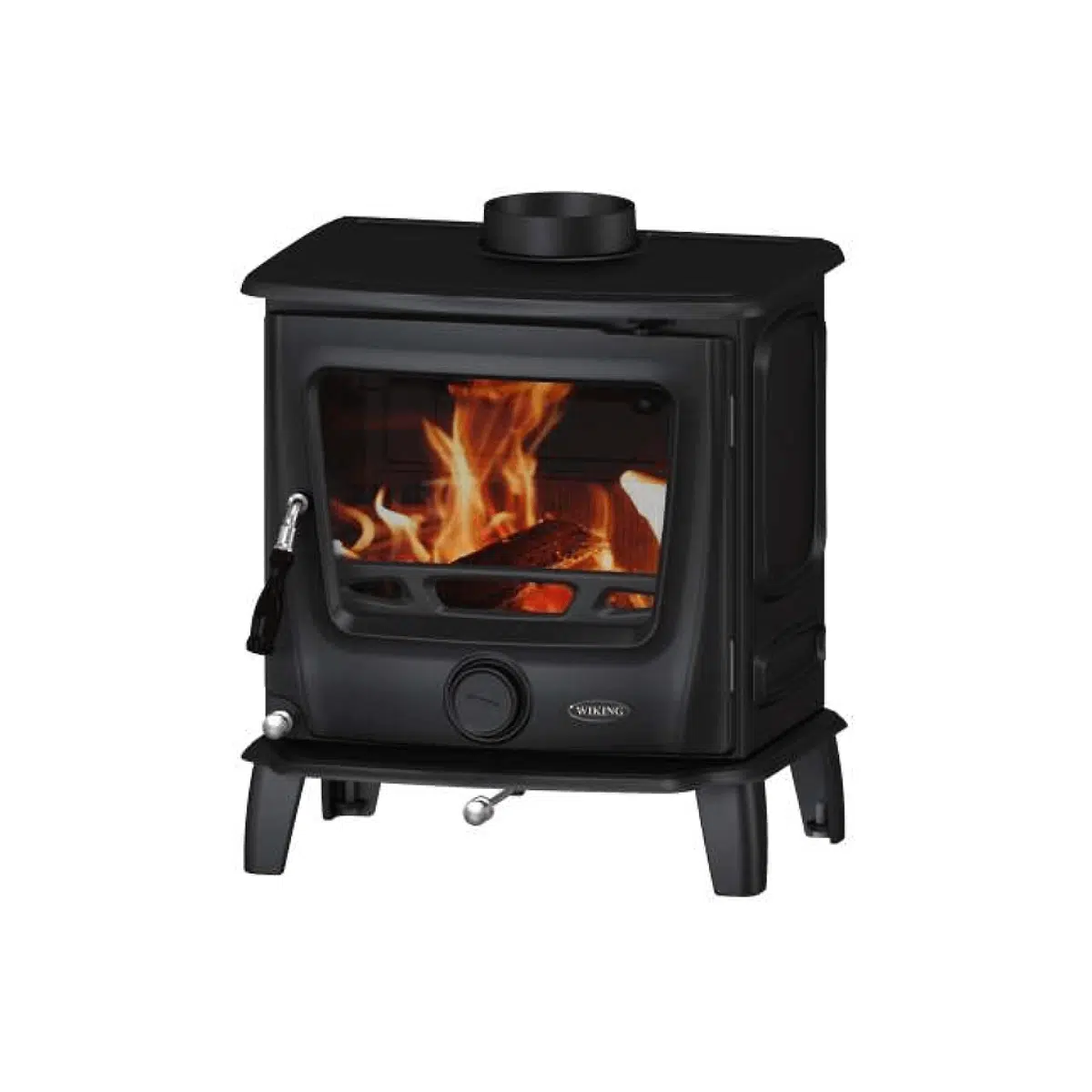

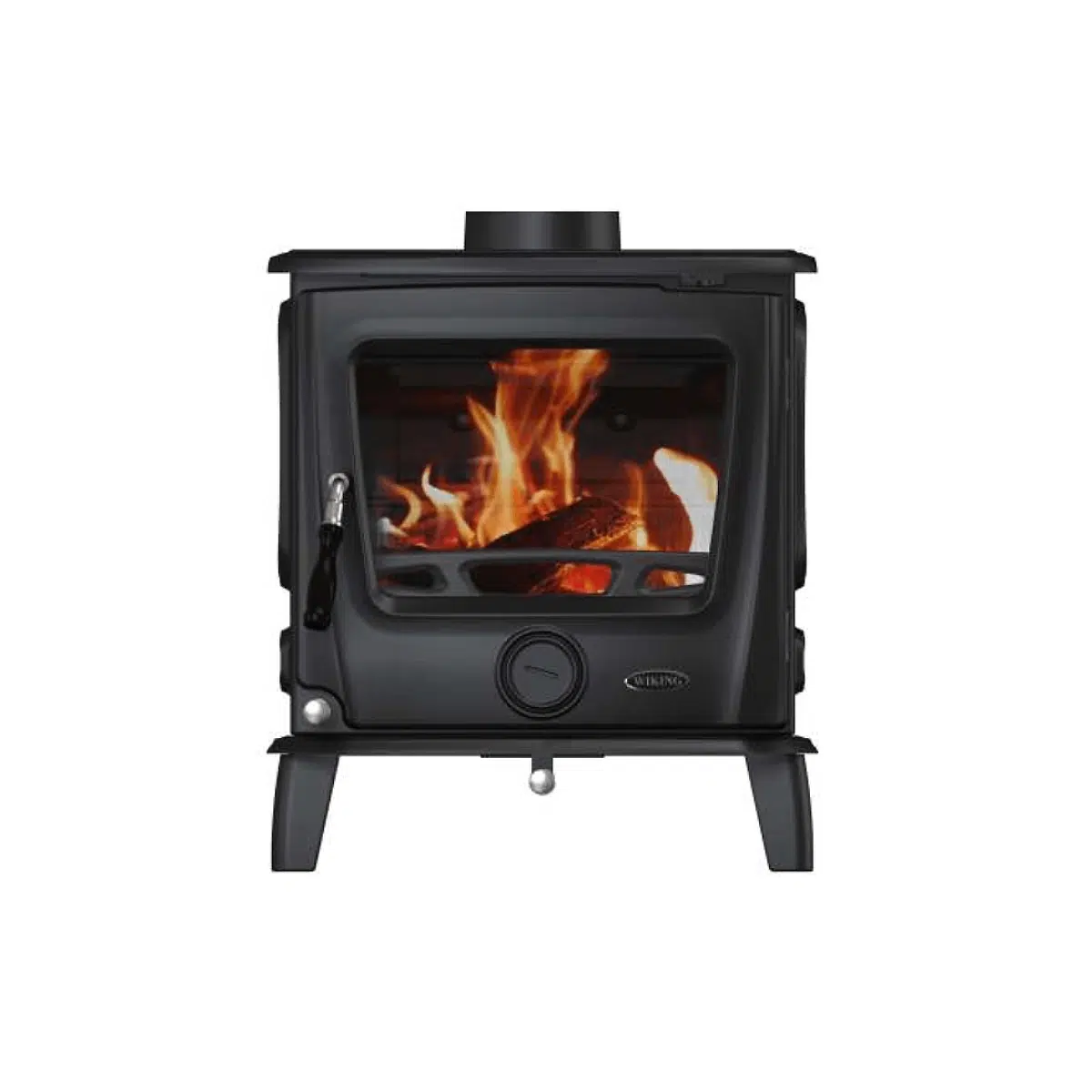

WIKING HB cast-iron fireplace in black, front view: an arched glass door with a wood fire, a handle on the left, a round knob, the WIKING badge and four legs

Your fireplace, up close

Will it fit my space?

About your fireplace

Build and fuel: Full cast iron · dry wood
Included: The stove, with its riddling grate and ash pan
Not included: Flue pipes, cowl and other flue parts (options on this page), accessories and installation
Guarantee: Three years on the stove body when registered within 30 days

Wiking Fireplaces

WIKING HB 8Kw – Slow Combustion Fireplace

Name: WIKING HB Slow Combustion Fireplace | Braai Culture
Brand: Wiking
SKU: WKINGHB
Price: 17399.00 ZAR
Availability: InStock

Classic cast iron, an arched glass door and a slow, steady wood fire to watch.

Original price was: R18,450.00.Current price is: R17,399.00.

Save R1,051

SKU WKINGHB

In stock Delivery ETA: 5–7 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE HB

Cast iron through and through.
Flue on top or behind.

The HB is a full cast-iron, closed-combustion stove for dry wood. Load a few logs, close the door and watch the flames through the glass. Ash falls through the riddling grate into the pan below, ready to empty once it is cold. Your installer can take the flue off the top or the back, on a 125 mm nominal pipe.

Riddling grate and ash panThe ash drops into the pan below
Burns dry woodKeep your logs dry
Flue on top or at the rearFor a 125 mm nominal flue pipe
Glass doorGlass size 373 × 250 mm
Installation manualUnder Plan your setup

WIKING HB alight on a dark hearth plate against a cream wall, with a grandmother on a couch and two children on floor cushions playing cards at a coffee table at dusk

CARD GAMES BY THE FIRE

Deal another hand.
The fire will wait.

Evenings stretch out when the stove is lit. Gran deals the cards, the kids argue over the rules, and the HB keeps a wood fire glowing behind the glass while the light outside fades. Nobody is in a hurry to go to bed.

The flue pipe is sold separately. The hearth plate, furniture, rug and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.

A LITTLE PRACTICAL THINKING

Plan the fuel, the flue and the room.

THE FIRE

Dry wood, door closed.

The HB is a closed-combustion stove: the fire burns behind the closed glass door. Burn dry wood, and empty the ash pan under the riddling grate once the ash is cold.

THE FLUE

On top or at the back.

Connect a 125 mm nominal flue pipe on top or at the rear. Add flue pipes, bends and a cowl as options on this page, or send us a photo and measurements for a flue quote.

THE ROOM

Give it space to breathe.

The manual asks for 1,000 mm between the stove and household furnishings, and recommends 800 mm from combustible walls. Leave 1,200 mm above it to a combustible ceiling.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

Top casting width: 510 mm
Depth (casing): 437.6 mm
Height to the top casting: 578 mm
Height including the flue collar: 614 mm
Body casting height: 469 mm
Glass size: 373 × 250 mm
Nominal flue pipe: 125 mm
Net weight: 102 kg
Material: Full cast iron
Fuel: Dry wood

Plan the stove, the hearth and the flue together.

The HB stands 578 mm to its top casting and 614 mm to the top of the flue collar. These are product dimensions: have an independent installer check the hearth, the clearances and the floor for its 102 kg.

The drawing as text

WIKING HB. Dimensions in millimetres.
Front: top casting width 510 mm
Front: height to the top casting 578 mm
Front: height including the flue collar 614 mm
Front: body casting height 469 mm
Side: depth 437.6 mm
Glass size 373 × 250 mm
Combustible walls (installation schematic): 800 mm and 800 mm
Floor protector, edge extensions (schematic): 400 mm, 200 mm and 200 mm
Chimney and roof (installation schematic): 1,500 mm above the roof at the flue, 600 mm above the ridge
Use the installation manual for all site requirements.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The WIKING HB cast-iron stove, with its riddling grate and ash pan. Flue pipes, a cowl, bends, a T-piece drain, escutcheon plates and wall brackets are options you can add on this page. Accessories and installation are not included.

Which fuel can I burn?

Dry wood. Keep your firewood dry, and ask us before you burn any other fuel in it.

How much heat does it give?

Ask us before you order. We confirm the HB's heat output with Home Fires, and we help you match the stove to your room. Insulation, ceiling height and climate change how warm a room feels.

Where does the flue connect?

On top or at the rear, for a 125 mm nominal flue pipe. The manual's roof diagram shows the flue ending 1,500 mm above the roof where it passes through, and 600 mm above the ridge. Have an independent installer choose the outlet and plan the flue route, height and support.

Is the flue included?

No. Flue pipes, a cowl and the other flue parts are options on this page, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.

How much space does it need?

The stove is 510 mm wide at the top casting and 437.6 mm deep, and stands 578 mm to the top casting or 614 mm to the top of the flue collar. The manual asks for 1,000 mm to household furnishings, recommends 800 mm from combustible walls, and asks for 1,200 mm above it to a combustible ceiling.

What hearth does it need?

The manual asks for a solid, non-combustible constructional hearth at least 125 mm thick, finishes included, that reaches 400 mm in front of the stove. Its floor-protector diagram, also on our drawing, shows edge extensions of 400 mm and 200 mm. Your installer confirms the hearth for your floor and room.

Can it stand in a recess?

Yes, with permanent free air around it: 200 mm at the sides, 200 mm above and 150 mm behind, as the manual sets out. These gaps apply only in a recess. Where a firewall is needed, the manual asks for one at least 100 mm thick, usually brick, concrete or stone.

What size is the glass?

The glass measures 373 × 250 mm. Give us this size if you ever need a replacement pane.

How heavy is it?

The net weight is 102 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.

What does the guarantee cover?

Home Fires gives a three-year limited guarantee on the main stove body when you register it within 30 days; otherwise the cover is 12 months. It covers the first owner at the first installed location, needs professional installation, and excludes the glass, grate, firebricks, handles, seals, paint and other wear parts. The manual has the full terms.

Can you help with my setup?

Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
