WIKING T1204 9kW– Slow Combustion Fireplace

Square glass, curved cast-iron sides and a classic wood fire to watch.

Original price was: R20,370.00.Current price is: R18,999.00.

Save R1,371

SKU WKINGT1204

In stock Delivery ETA: 5–7 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE T1204

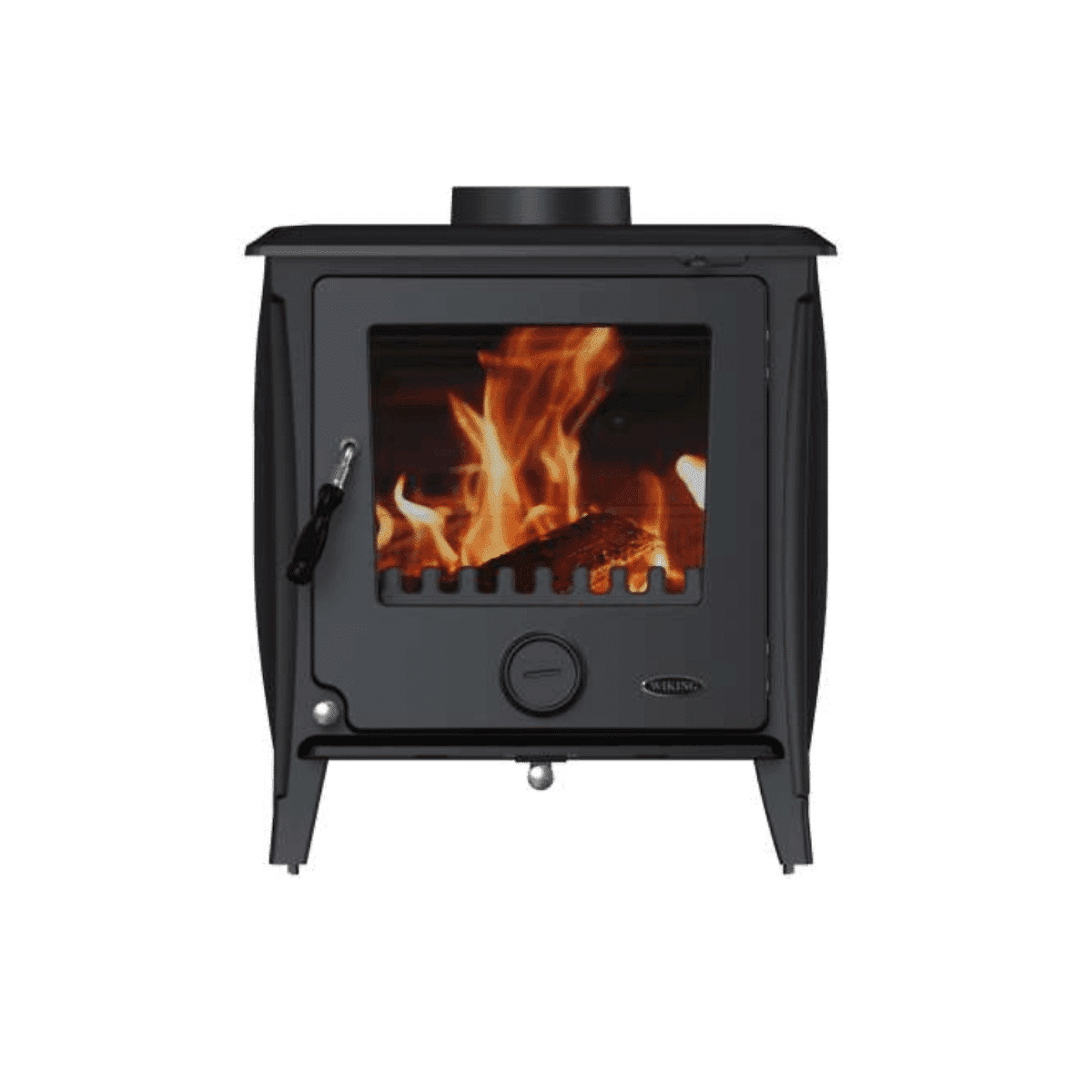

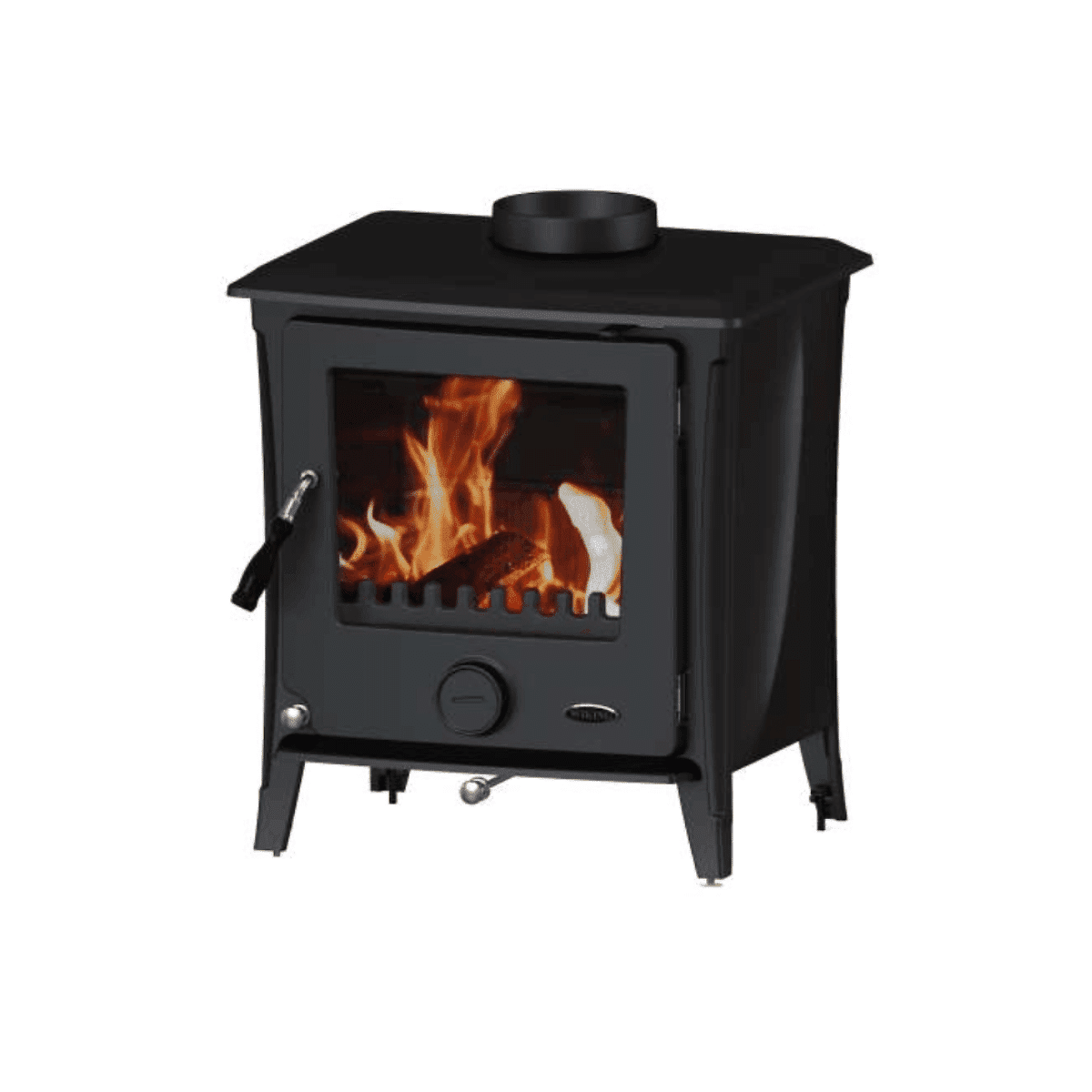

WIKING T1204 Slow Combustion Fireplace, a cast-iron classic.

The WIKING T1204 Slow Combustion Fireplace is a full cast-iron, closed-combustion stove for dry wood. Stack the logs, close the door and enjoy the fire through the square glass. Ash falls through the riddling grate into the pan below, ready to empty once it is cold. Your installer can take the flue off the top or the back, on a 150 mm nominal pipe.

  1. Riddling grate and ash panThe ash drops into the pan below
  2. Burns dry woodKeep your logs dry
  3. Flue on top or at the rearFor a 150 mm nominal flue pipe
  4. Glass doorGlass size 342 × 281 mm
  5. Installation manualUnder Plan your setup
WIKING T1204 alight on a dark hearth plate against a charcoal plaster wall, with a leather couch, a fig tree and a low wooden bench in afternoon sun

A QUIET CORNER, WARMED

Dark walls, a bright fire.

Charcoal plaster, a leather couch and low afternoon sun across the floor. Light the T1204 and the whole room changes mood: the flames dance behind the square glass and the cast iron settles in for the evening ahead.

The flue pipe is sold separately. The hearth plate, furniture, plants, rug and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.

A LITTLE PRACTICAL THINKING

Plan the fuel, the flue and the room.

THE FIRE

Dry wood, door closed.

The T1204 is a closed-combustion stove: the fire burns behind the closed glass door. Burn dry wood, and empty the ash pan under the riddling grate once the ash is cold.

THE FLUE

On top or at the back.

Connect a 150 mm nominal flue pipe on top or at the rear. Add flue pipes, bends and a cowl as options on this page, or send us a photo and measurements for a flue quote.

THE ROOM

Give it space to breathe.

Keep 1,000 mm between the stove and household furnishings. We recommend 800 mm from combustible walls. Leave 1,200 mm above it to a combustible ceiling.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing
WIKING T1204 Slow Combustion Fireplace dimension drawing: front, side and top views and clearances, in millimetres.
Download the dimension drawing
Top casting width
561 mm
Depth (casing)
454.6 mm
Height to the top casting
606.2 mm
Height including the flue collar
641.8 mm
Body casting height
502.5 mm
Glass size
342 × 281 mm
Nominal flue pipe
150 mm
Net weight
126 kg
Material
Full cast iron
Fuel
Dry wood

Plan the stove, the hearth and the flue together.

The T1204 stands 606.2 mm to its top casting and 641.8 mm to the top of the flue collar. These are product dimensions: have an independent installer check the hearth, the clearances and the floor for its 126 kg.

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • WIKING T1204 Slow Combustion Fireplace
  • Cast-iron stove for dry wood, with one glass door and curved side pillars
  • 01 FRONT VIEW
  • 561 top casting
  • 606.2 to the top casting
  • 641.8 to the collar top
  • 502.5 body casting
  • 02 SIDE VIEW
  • 454.6 casing depth
  • Back at the left. Front at the right.
  • The flue connects on top or at the rear (dashed).
  • 03 TOP VIEW
  • 561 top casting
  • 454.6 casing depth
  • Back at the top. Front at the bottom.
  • For a nominal 150 flue pipe.
  • 04 COMBUSTIBLE WALLS, TOP VIEW (SMALLER SCALE)
  • 800 to wall
  • 800 to wall
  • 05 FLOOR PROTECTOR, TOP VIEW (SMALLER SCALE)
  • 400 in front
  • 200
  • 200
  • Front at the top.
  • 06 CEILING AND FURNISHINGS (SMALLER SCALE)
  • 1,200 to the ceiling
  • 1,000 to furnishings
  • 07 FLUE ABOVE THE ROOF (SMALLER SCALE)
  • 1,500 above the roof
  • 600 above the ridge
  • PLANNING NOTES
  • These are product sizes. Have an independent installer confirm the hearth, the flue route and the clearances.
  • The constructional hearth must be solid, non-combustible and at least 125 thick with its finish.
  • The hearth must reach 400 in front of the stove.
  • Where a firewall is needed, it must be at least 100 thick, usually brick, concrete or stone.
  • In a recess, leave a free air gap of 200 at the sides and top and 150 at the back. These gaps apply only in a recess.
  • The stove weighs 126 kg, so have your installer check that the floor and the hearth can carry it.
  • Glass size 342 × 281.
  • An ash pan and a riddling grate are included.
  • Flue pipes, accessories and installation are not included. Send us a photo and measurements for a flue quote.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The WIKING T1204 cast-iron stove, with its riddling grate and ash pan. Flue pipes, a cowl, bends, a T-piece drain, escutcheon plates and wall brackets are options you can add on this page. Accessories and installation are not included.

Which fuel can I burn?

Dry wood. Keep your firewood dry, and ask us before you burn any other fuel in it.

How much heat does it give?

Ask us before you order. We confirm the T1204's heat output with Home Fires, and we help you match the stove to your room. Insulation, ceiling height and climate change how warm a room feels.

Where does the flue connect?

On top or at the rear, for a 150 mm nominal flue pipe. On the roof diagram in the manual, the flue ends 1,500 mm above the roof where it passes through, and 600 mm above the ridge. Have an independent installer choose the outlet and plan the flue route, height and support.

Is the flue included?

No. Flue pipes, a cowl and the other flue parts are options on this page, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.

How much space does it need?

The stove is 561 mm wide at the top casting and 454.6 mm deep, and stands 606.2 mm to the top casting or 641.8 mm to the top of the flue collar. Keep household furnishings 1,000 mm away, and leave 1,200 mm above it to a combustible ceiling. We recommend 800 mm from combustible walls. Your installer must follow the installation manual that comes with the unit.

What hearth does it need?

Build a solid, non-combustible constructional hearth at least 125 mm thick, finishes included, that reaches 400 mm in front of the stove. Its floor-protector diagram, also on our drawing, shows edge extensions of 400 mm and 200 mm. Your installer confirms the hearth for your floor and room.

Can it stand in a recess?

Yes, with permanent free air around it: 200 mm at the sides, 200 mm above and 150 mm behind. These gaps apply only in a recess. Where a firewall is needed, build one at least 100 mm thick, usually brick, concrete or stone.

What size is the glass?

The glass measures 342 × 281 mm. Give us this size if you ever need a replacement pane.

How heavy is it?

The net weight is 126 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.

What does the guarantee cover?

The main stove body has a three-year limited Home Fires guarantee when you register it within 30 days; otherwise the cover is 12 months. It covers the first owner at the first installed location, needs professional installation, and excludes the glass, grate, firebricks, handles, seals, paint and other wear parts. The manual has the full terms.

Can you help with my setup?

Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
