THE FUEL
Wood or anthracite.
The ME086 is a multi-fuel stove: burn dry, seasoned wood or anthracite. Use the riddling grate to clear ash between loads and empty the ash tray often.
Sale!
WIKING ME086 9-11kW– Slow Combustion Fireplace
A cast-iron stove for wood or anthracite, with a clear view of the fire.
Original price was: R19,940.00.R18,799.00Current price is: R18,799.00.
Save R1,141In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- 9 kW nominal · 11 kW maximum
- Included
- Cast-iron stove, glass loading door, riddling grate, ash tray
- Not included
- Flue kit (quoted to suit your building), flue joint rope, non-combustible hearth, installation
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMADE IN CAST IRON
Cast iron, glass and a steady fire.

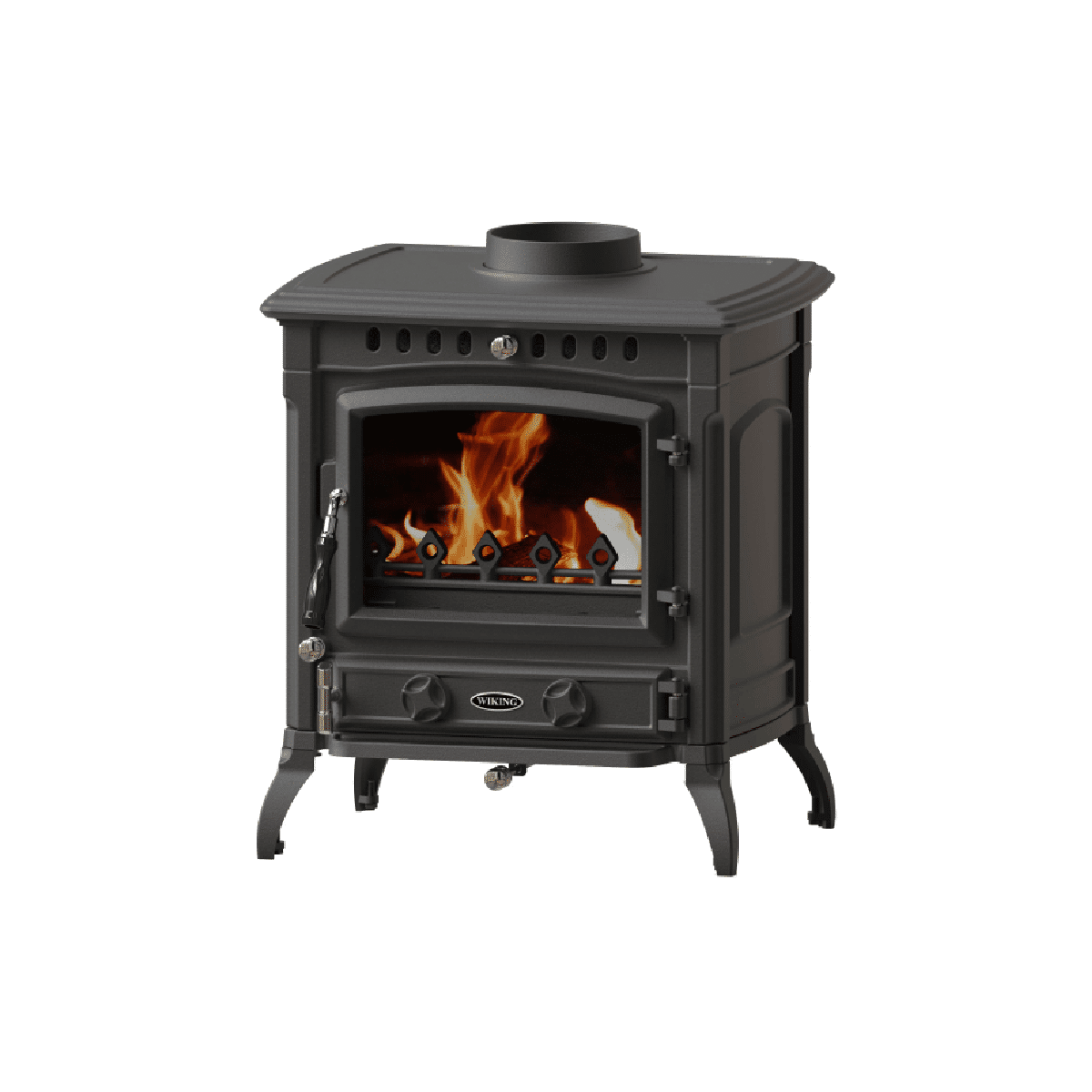

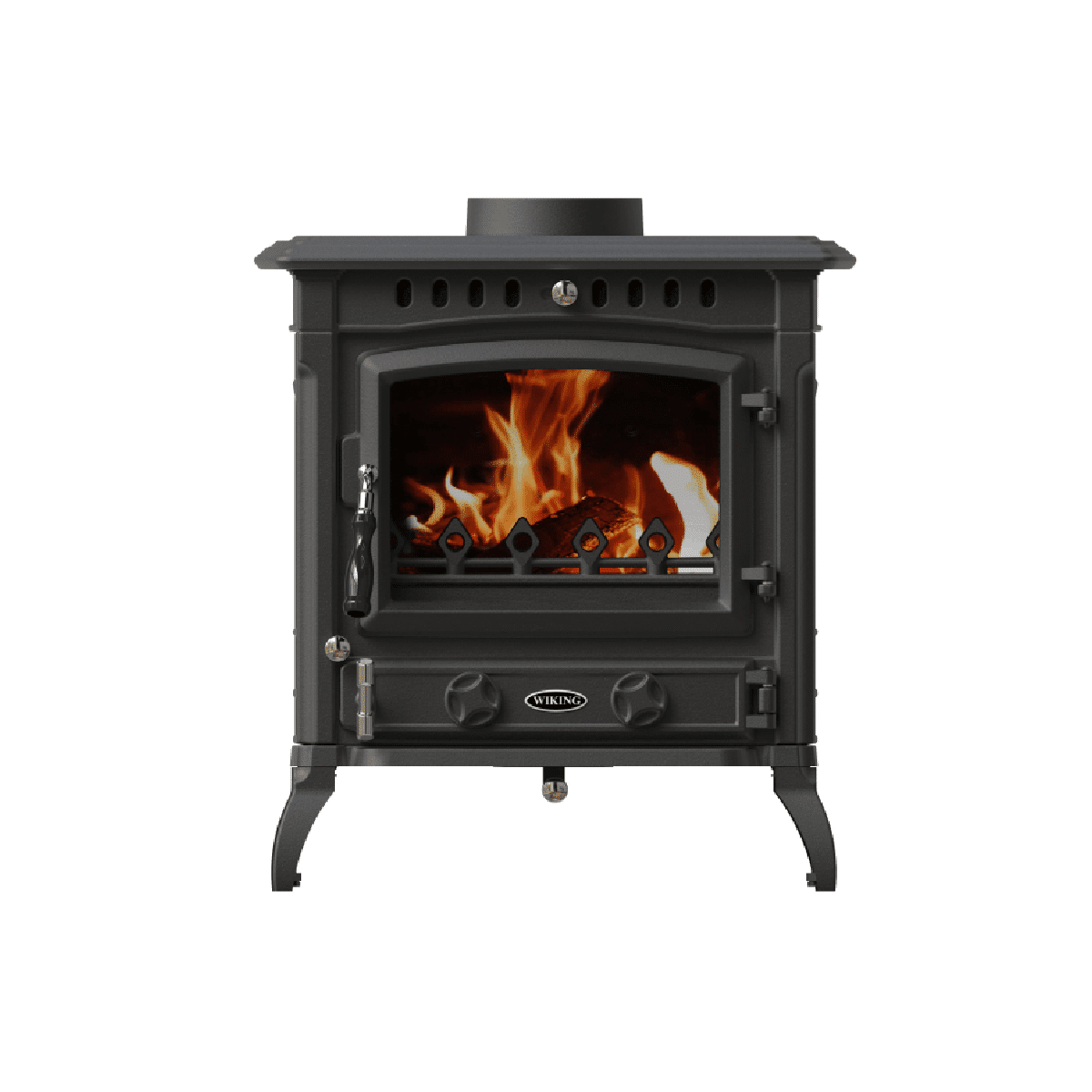

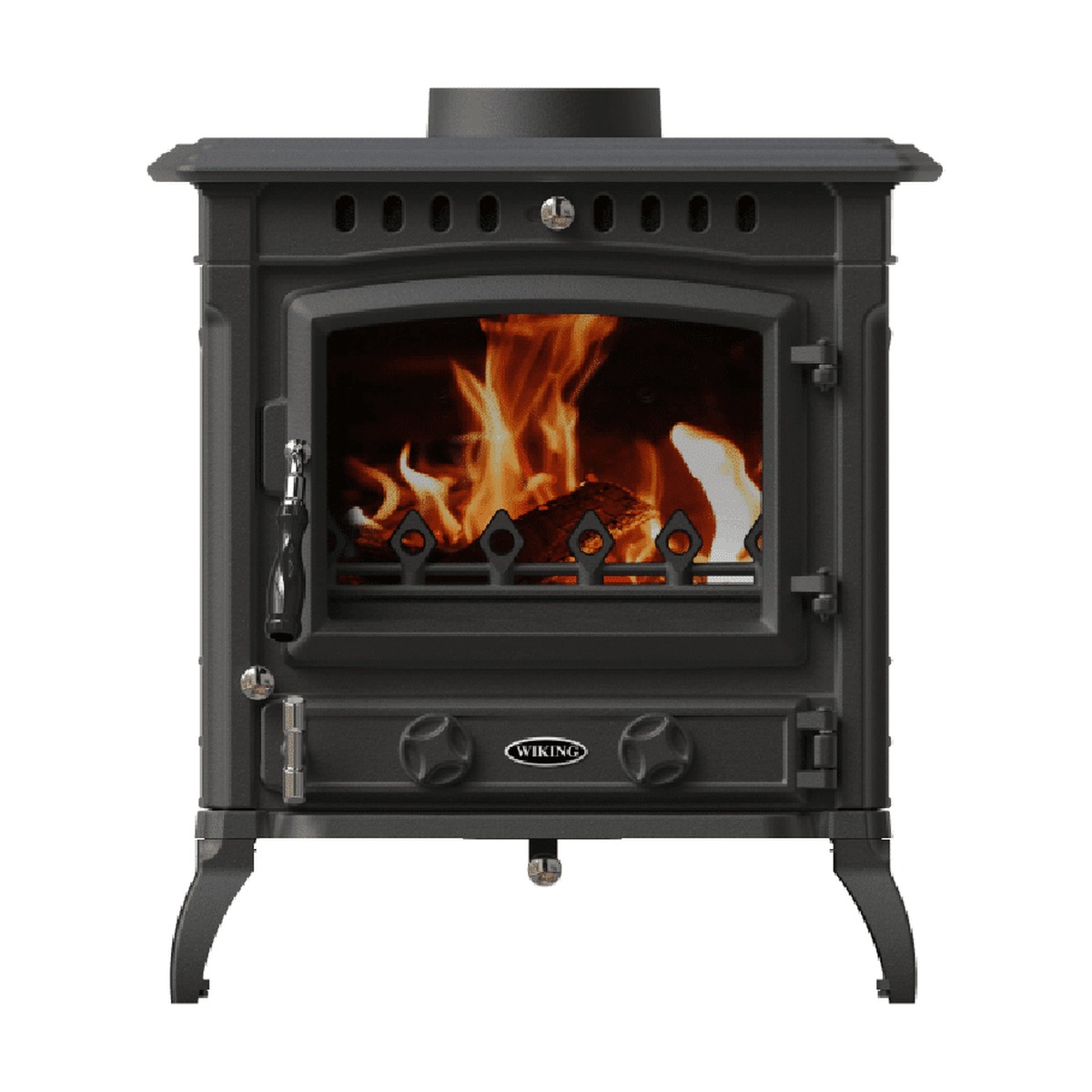

The WIKING ME086 is a freestanding closed-combustion stove in black cast iron, from the body to the door and handle. One glass pane keeps the flames in view, while the riddling grate and ash tray help you keep a dry-wood or anthracite fire going right through a winter evening. Fit the flue at the top or the rear, whichever suits your room.
- Black cast-iron body, door and handleClosed combustion
- Glass loading door328 × 235 mm pane with a rounded top
- Riddling grate and ash trayMulti-fuel: dry wood or anthracite
- Ø150 mm flue outlet, top or rearFlue kit quoted to suit your building
- Weighs 130 kgNeeds a non-combustible hearth
- Installation manualUnder Plan your setup
MAKE YOURSELF AT HOME
A quiet corner for the fire.

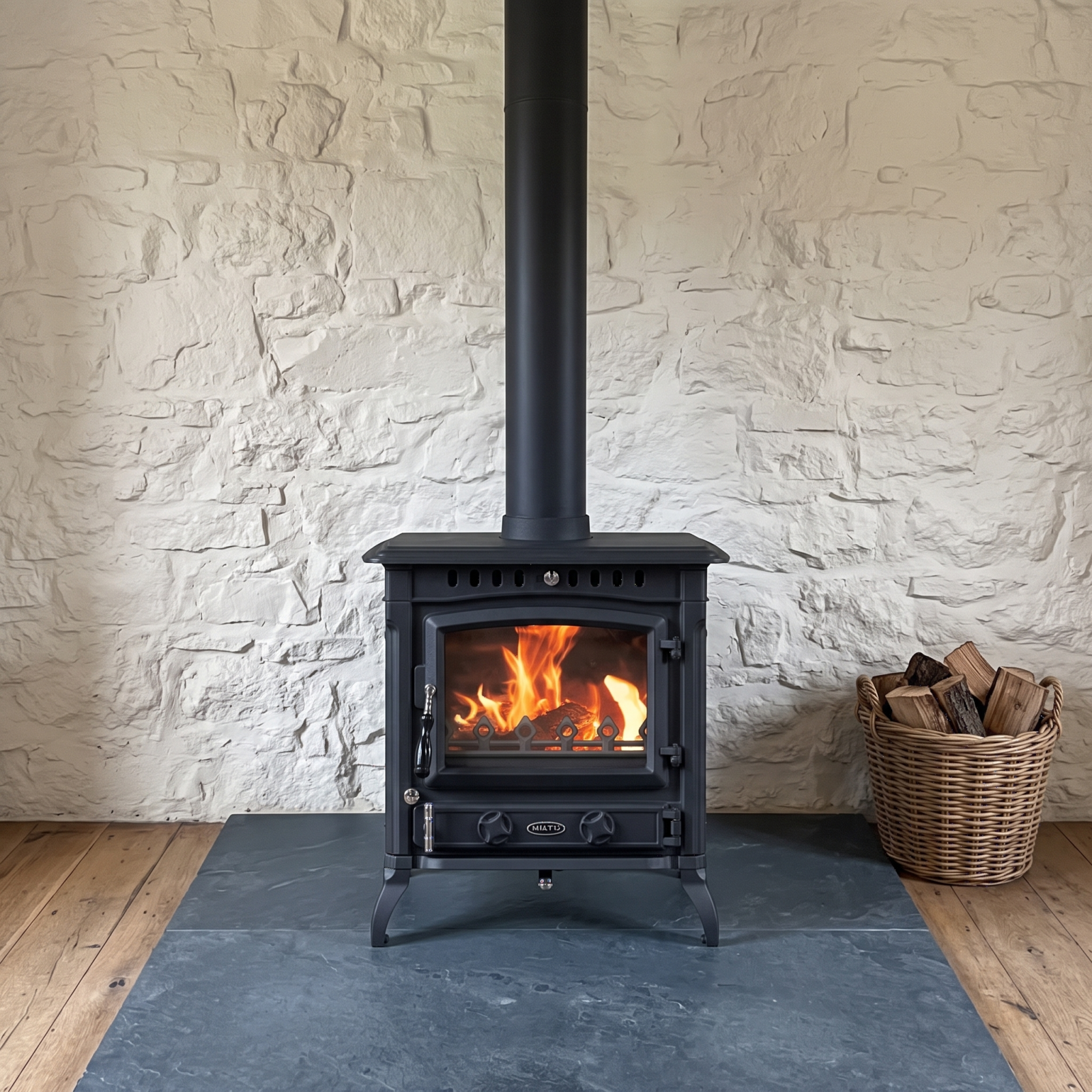

Set the cast-iron stove on its hearth, let the glass face the room and settle in. On a cold winter night, a steady fire turns a quiet corner into the warmest seat in the house.
Hearth plate, flue, furniture and installation are not included. Have an accredited installer confirm the flue route, ventilation and clearances.
A LITTLE PRACTICAL THINKING
Keep the fire burning well.
THE CONNECTION
Top or rear flue.
The 150 mm outlet connects at the top or the rear, so your installer can choose the route that suits your room and roof.
THE HEAT
9 kW nominal output.
Maximum output is 11 kW. Room size, insulation and ceiling height affect the warmth you feel.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 578 × 465 mm
- Height to the top cap
- 628 mm
- Height to the top flue spigot
- 663.6 mm
- Flue outlet diameter, top or rear
- 150 mm
- Glass pane
- 328 × 235 mm
- Weight
- 130 kg
- Material
- Cast iron
- Fuel
- Dry wood or anthracite
Plan the stove, hearth and flue together.
The body stands 628 mm to the cap and 663.6 mm to the top flue spigot. These are product dimensions; have an accredited installer confirm the hearth, flue route and safe clearances on the actual unit.
The drawing as text
- PRODUCT DIMENSIONS · MM
- WIKING ME086 · CAST-IRON SLOW COMBUSTION STOVE
- 01 · FRONT
- 02 · SIDE
- 578 width
- 628 cap height
- 465 depth
- Flue Ø150 mm
- Flue Ø150 mm, top or rear outlet. Flue kit sold separately.
- Weight 130 kg.
- 663.6 overall height
- 537.2 across feet
- 507.9 body height
- 03 · TOP
- Rear
- Collar centred left to right
- Set back towards rear; position not dimensioned
- Collar Ø152.6 inside
- 464.5 depth
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The cast-iron ME086 stove with its glass loading door, riddling grate and ash tray. The flue kit, hearth and installation are not included. Flue kits are quoted to suit your building.
How much heat does it give?
Nominal output is 9 kW and maximum output is 11 kW. The Output Calculator uses 10 kW, the middle of the two. Room size, insulation and ceiling height affect the warmth you feel.
Which fuel can I use?
The ME086 is a multi-fuel stove for dry, seasoned wood or anthracite. Follow the instruction manual for loading and air settings. Do not burn household waste.
How much space does it take?
The body is 578 mm wide, 465 mm deep and 628 mm high to the cap. The short top spigot reaches 663.6 mm. The stove weighs 130 kg. These are product dimensions, not the full space needed for safe use.
Where does the flue connect?
The 150 mm outlet connects at the top or the rear. Flue kits are quoted to suit your building, with 1 m of 5 mm rope to seal the flue joint.
How much clear space is needed?
Follow the clearances in the instruction manual for combustible walls, furnishings and the ceiling, and stand the stove on a non-combustible hearth. Have an accredited installer confirm the layout and the floor support.
Does the room need ventilation?
Yes. The room needs a permanent supply of fresh air for the fire. Your installer sizes the vent for the stove. Do not fit an extractor fan in the same room.
Can I connect it to an existing chimney?
An accredited installer must check the chimney before connection. Do not connect it to a chimney that serves another appliance, and have the chimney swept first.
What should I do before the first fire?
Have the installation checked before use. Burn a few small fires first to cure the high-temperature paint; a mild smell is normal, so keep the room ventilated.
Can you help plan my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an accredited installer.
Reviews
Related products
-
Jetmaster

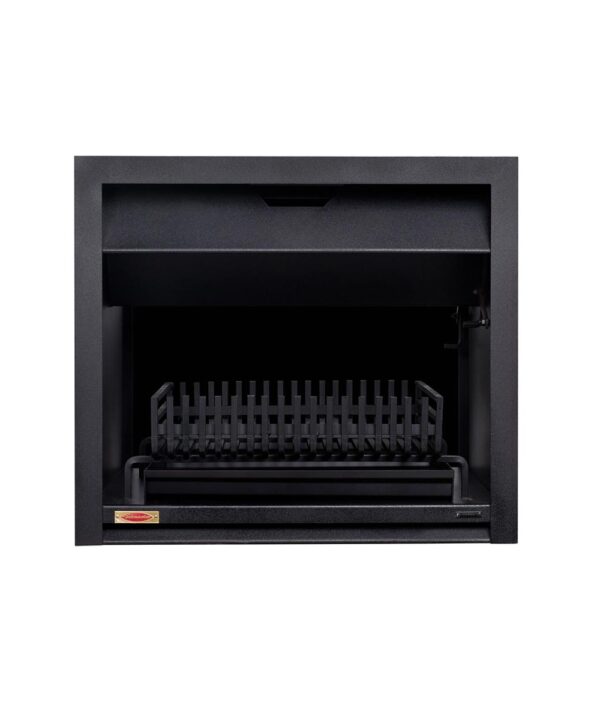

Jetmaster Pro Universal 700 S with Basket Grate and Pan
From: Original price was: R13,088.00.R12,399.00Current price is: R12,399.00. Save R689 -
Jetmaster

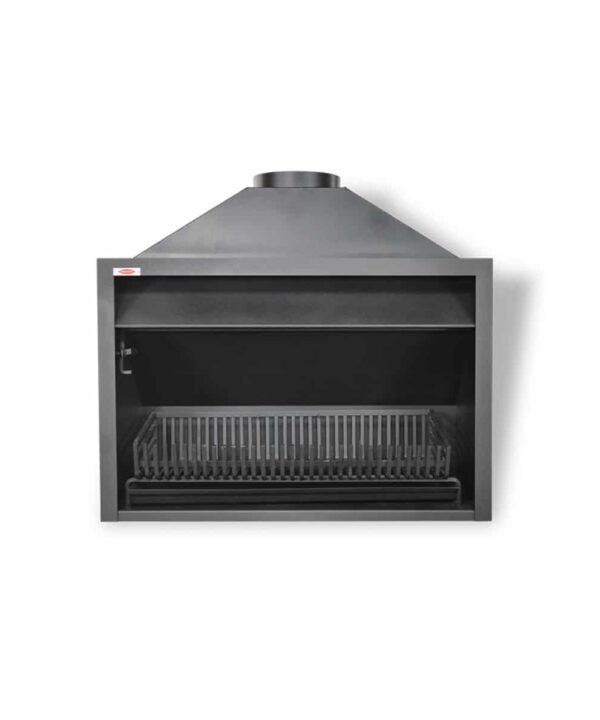

Jetmaster Premium 1050 Built-in Fireplace (non convection)
