THE FLUE
On top or at the back.
Connect a 150 mm nominal flue pipe on top or at the rear, whichever suits the room. Send us a photo and measurements for a flue quote, and we will help you choose the parts.
Sale!
WIKING XN088 12-15kW– Slow Combustion Fireplace
Glass at the front and on the sides, so the fire shows from more of the room.
Original price was: R26,520.00.R24,999.00Current price is: R24,999.00.
Save R1,521Currently out of stock Delivery ETA: To be confirmed after restock
About your fireplace
- Build
- Full cast iron · flue on top or at the rear
- Included
- The stove, with its riddling grate and ash pan
- Not included
- Flue pipes, accessories and installation
Ask us when it is back, or for a similar model.
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE XN088
Front and side glass.
Cast iron all round.

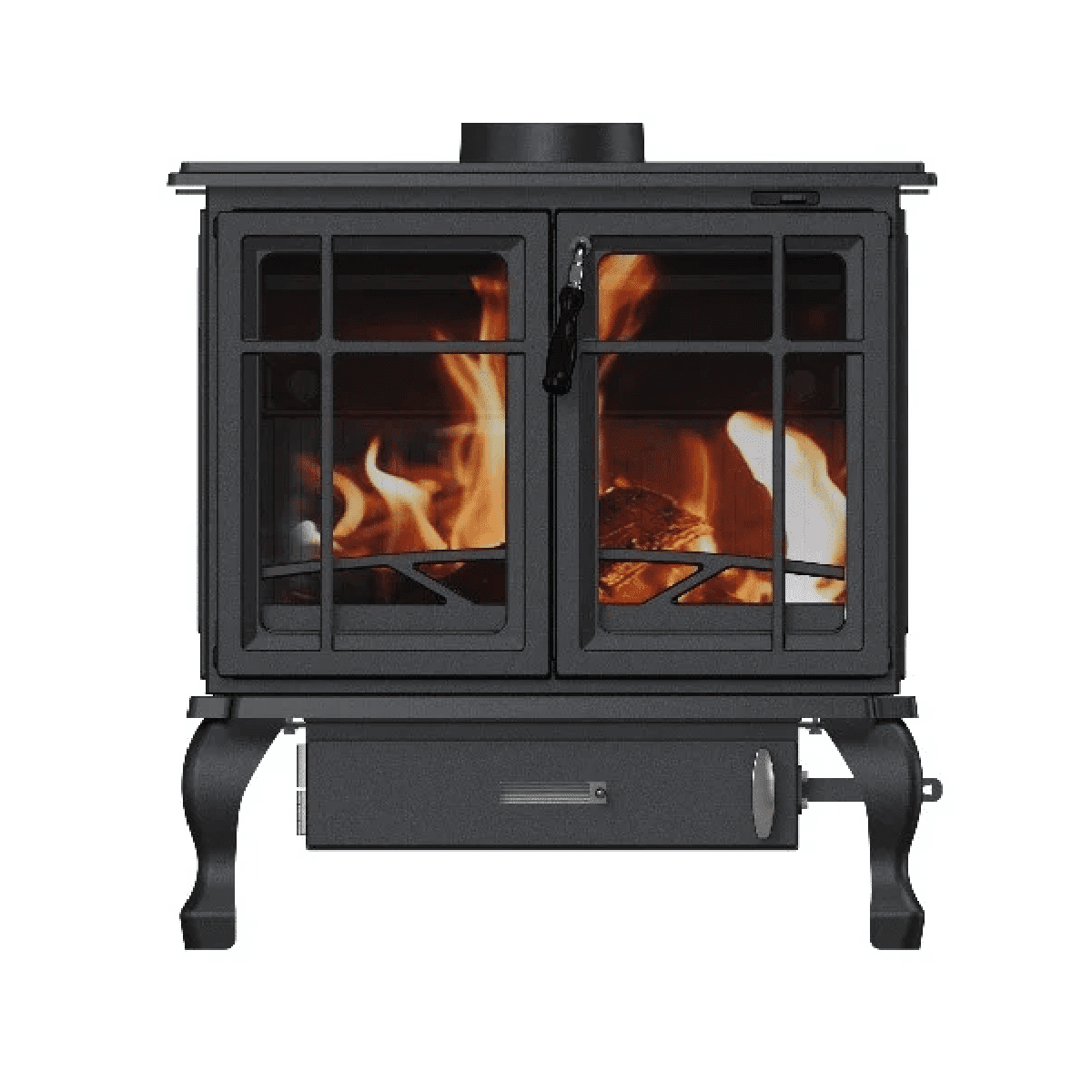

The XN088 is a full cast-iron, closed-combustion stove with glass at the front and on the sides. Riddle the grate and the ash drops into the pan below, ready to empty once it is cold. The flue can leave from the top or the back, whichever suits your room. At 145 kg net it is a solid piece, so plan the move and the hearth early.
- Front glass, two panes368 × 245 mm each
- Side glass, two panes347 × 250 mm each
- Riddling grate and ash panThe ash drops into the pan below
- Flue on top or at the rearFor a 150 mm nominal flue pipe
- Installation manualUnder Plan your setup
TEA AND A WARM ROOM
An afternoon that takes its time.
A pressed-steel ceiling, soft afternoon light and a pot of tea for two. With the XN088 alight behind its glass, the conversation drifts, the tea gets topped up and the afternoon can take as long as it likes.
The flue pipe, hearth, furniture, tea set and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
A LITTLE PRACTICAL THINKING
Plan the flue, the hearth and the room.
THE HEARTH
A solid base, and a little extra.
The manual asks for a non-combustible constructional hearth at least 125 mm thick, finishes included, with an extra 400 mm at the front for any hot material that falls out.
THE ROOM
Give it space to breathe.
The manual asks for 1,000 mm between the stove and household furnishings, and recommends 800 mm from combustible materials. Leave 1,200 mm above it to a combustible ceiling.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Top plate width × overall depth
- 710 × 497.6 mm
- Height to the top plate
- 725.6 mm
- Height including the flue collar
- 762.1 mm
- Body casting height
- 511.5 mm
- Front glass, two panes, each
- 368 × 245 mm
- Side glass, two panes, each
- 347 × 250 mm
- Nominal flue pipe
- 150 mm
- Net weight
- 145 kg
- Material
- Full cast iron
Plan the stove, the hearth and the flue together.
The XN088 stands 725.6 mm to its top plate and 762.1 mm to the top of the flue collar. These are product dimensions: have an independent installer check the hearth, the clearances and the floor for its 145 kg.
The drawing as text
- WIKING XN088. Dimensions in millimetres.
- Front: width at the top plate 710 mm
- Front: height to the top plate 725.6 mm
- Front: height including the flue collar 762.1 mm
- Front: body casting height 511.5 mm
- Top: overall depth 497.6 mm
- Top: outlet bore Ø152.6 mm
- Nominal flue pipe Ø150 mm
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The WIKING XN088 cast-iron stove, with its riddling grate and ash pan. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel can I burn?
Ask us before your first fire which fuels Home Fires approves for the XN088, and burn only those.
How much heat does it give?
The heat ratings we have for the XN088 do not agree, so we are confirming its output with Home Fires before we give a kW figure. Ask us, and we will help you match a stove to the size of your room.
Where does the flue connect?
On top or at the rear, for a 150 mm nominal flue pipe. The manual gives the outlet socket's inside diameter as 152 to 157 mm, and our drawing shows it at Ø152.6 mm. Have an independent installer choose the outlet and plan the flue route, height and support.
Is the flue included?
No. Flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The stove is 710 mm wide at the top plate, 497.6 mm deep, and 725.6 mm high to the top plate or 762.1 mm to the top of the flue collar. The manual asks for 1,000 mm to household furnishings, recommends 800 mm from combustible materials, and asks for 1,200 mm above it to a combustible ceiling.
What hearth does it need?
The manual asks for a solid, non-combustible constructional hearth at least 125 mm thick, finishes included, with an extra 400 mm at the front for any hot material that falls out. Your installer confirms the hearth for your floor and room.
Can it stand in a recess?
Yes, with permanent free air around it: 200 mm at the sides, 200 mm above and 150 mm behind, as the manual sets out. These gaps apply only in a recess. Have your installer check the opening and the flue before you build.
What size is the glass?
The front has two panes of 368 × 245 mm each, and the sides have two panes of 347 × 250 mm each. Give us these sizes if you ever need a replacement pane.
How heavy is it?
The net weight is 145 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.
How does the riddling grate work?
Riddle the grate to drop the ash into the ash pan below and keep the fire bed clear. Empty the ash pan only once the ash is completely cold.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
