THE ROOM
Pick the right room.
Without permanent ventilation, the room must be at least 270 m³. Chad-O-Chef suggests it for rooms up to 598 m³ (181 m²), depending on room conditions. Its maximum gas input is 14.7 kW.
Sale!
About your fireplace
- Room size
- Suggested for rooms up to 181 m²
- Included
- Fireplace, three burners, six glass walls, black fire glass, two vent covers, instruction manual
- Not included
- Non-flammable housing, gas pipework, installation by a registered gas installer
- Guarantee
- Two years on the fireplace, terms apply

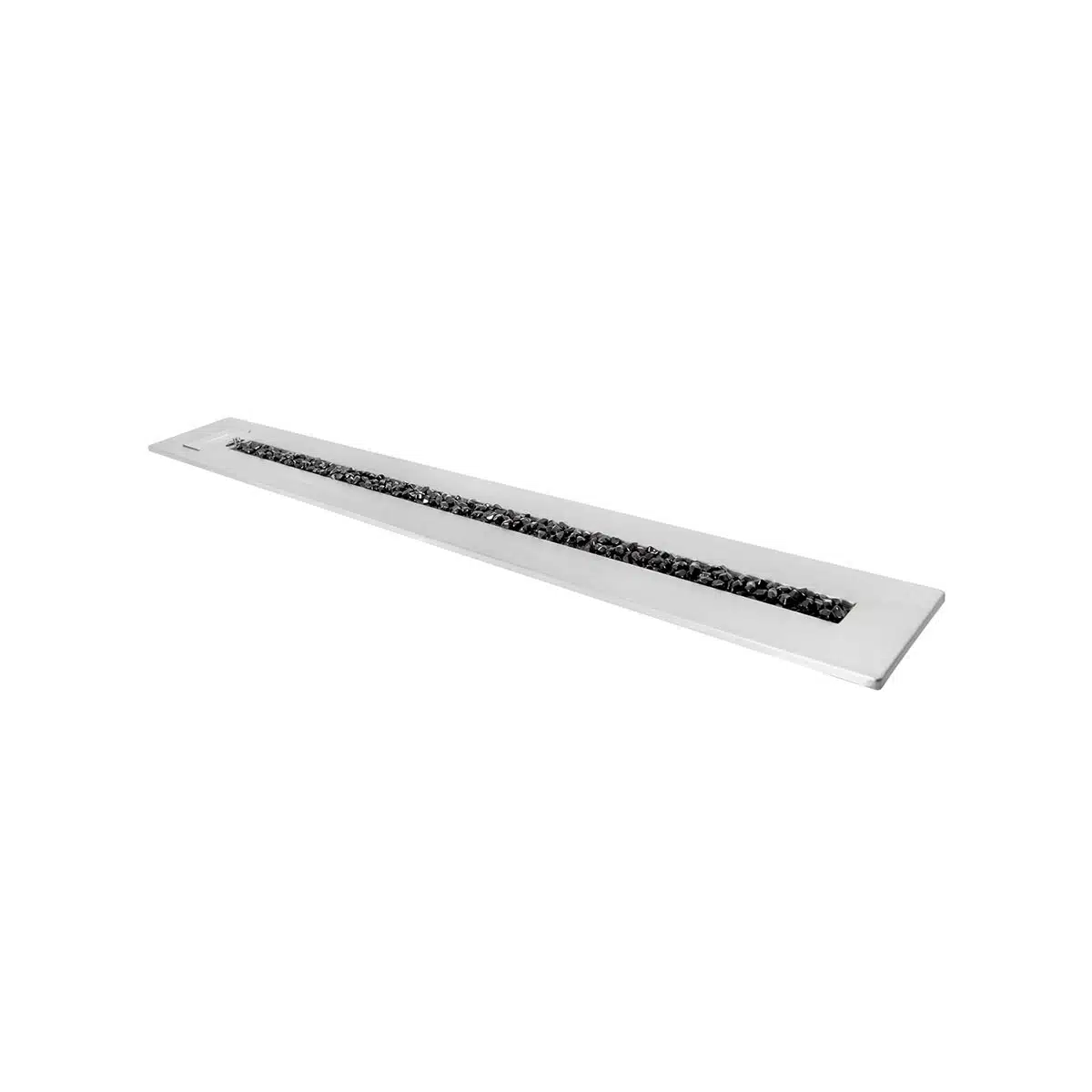

Chad-O-Chef 1610 Flameline Drop-In Fireplace
Three burners, one long line of gas flame, and no chimney to build.
From: R24,199.00
Save R1,601In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE FLAMELINE 1610
One long line of flame.
No chimney.
The Flameline 1610 is a flueless gas fireplace that drops into a non-flammable housing and rests on its rim. Three burners run a long line of flame over diamond black fire glass, with glass walls along both sides. A piezo spark lights it, and an oxygen-depletion pilot is part of its safety system. Choose stainless steel or Midnight Mirror.
- Three burnersSix glass walls along the flame
- Diamond black fire glassClear, blue or gold as options
- Piezo spark ignition
- Oxygen-depletion pilotPart of its safety system
- Two vent covers260 × 110 mm each
- Installation manualUnder Plan your setup
EVENINGS ON THE COUCH
One long flame.
Everyone close.
The day is done, the garden lights are on and the whole family has found a spot on the couch. A long line of flame dances over black fire glass in the stone plinth, with no wood to carry in and no ash to sweep. Movie or stories, tonight everyone stays up a little longer.
The stone plinth, feature wall, couch, coffee table and décor are not included. Plan the housing, ventilation and gas connection with a registered gas installer.
BEFORE YOU BUILD THE PLINTH
Room, housing and wall, planned.
THE HOUSING
Built in, with air from below.
The fireplace drops into a 1,550 × 152 mm cut-out in a non-flammable housing. The housing needs two brick-sized ventilation openings below the unit, and the two supplied vent covers finish them neatly.
THE WALL
Close to a wall, if you like.
Models made since January 2022 have glass walls along both sides of the burners, so it can stand against a wall within the manual's clearances: at least 100 mm to a non-combustible, heat-resistant wall behind.
MEASURE THE CUT-OUT FIRST
Will it fit your space?
- Rim length × depth
- 1,660 × 215 mm
- Cut-out length × depth
- 1,550 × 152 mm
- Body below the rim, top to bottom
- 148 mm
- Body depth, front to back
- 132 mm
- Vent cover width × height, each
- 260 × 110 mm
- Weight
- 19 kg
- Gas
- LPG or natural gas
- Maximum gas input
- 14.7 kW
- Material
- Stainless steel
- Finish
- Stainless steel or Midnight Mirror
Plan the cut-out, housing and ventilation together.
The 1,660 × 215 mm rim rests on the edge of a 1,550 × 152 mm cut-out, and the body reaches 148 mm below the rim. These are product sizes, not a building plan: your registered gas installer checks the actual unit, the housing and the clearances.
The drawing as text
- Chad-O-Chef Flameline 1610. Dimensions in mm.
- Front, underrim body: rim length 1,660 mm
- Front, underrim body: body 148 mm below the rim
- Body length and glass projection are unlabelled contours.
- Side: rim depth 215 mm
- Side: body depth 132 mm
- Top: plan view, no measurement
- Housing surface cut-out: length 1,550 mm
- Housing surface cut-out: depth 152 mm
- Vent cover, two supplied: width 260 mm
- Vent cover, two supplied: height 110 mm
- Contours illustrate the exact model. Use the installation manual for siting and clearances.
GOOD TO KNOW
Plan your setup.
Read your instruction manual with your gas installer before you plan the housing.
What is included?
The Flameline 1610 in the finish you choose, with three burners, six glass walls, decorative stones of diamond black fire glass, two vent covers and the instruction manual. The housing, the gas supply pipework and the installation are not included.
Which finish can I choose?
Stainless steel or Midnight Mirror. Choose one finish on this page. The fireplace itself is made of stainless steel with heat-resistant coatings.
Which gas does it use?
LPG or natural gas. Confirm your gas type with us before you order. A gas installer registered with SAQCC Gas for that gas type must install it.
What size room is it for?
Chad-O-Chef suggests it for rooms up to 598 m³ (181 m²), depending on room conditions. Its maximum gas input is 14.7 kW. Ask us to check it against your room.
Does it need a flue or chimney?
No. It is a flueless gas fireplace, so there is no flue or chimney to build. A pilot oxygen depletion system, with an 18.5% oxygen minimum, is part of its safety system.
Does the room need ventilation?
Without permanent ventilation, the room must be at least 270 m³. A smaller room needs permanent ventilation, planned by your gas installer with the manual.
How is it installed?
It drops into a 1,550 × 152 mm cut-out in a non-flammable housing and rests on its rim. The housing needs two brick-sized ventilation openings below the unit, which the two 260 × 110 mm vent covers finish. A gas installer registered with SAQCC Gas for your gas type installs and connects it.
Can it go against a wall?
Yes, the current model. Flamelines made since January 2022 have glass walls along both sides of the burners and can be installed against a wall when the manual's clearances are kept, with at least 100 mm to a non-combustible, heat-resistant wall behind.
How much clear space does it need?
To combustible materials, keep at least 300 mm at the sides (500 mm to curtains and fabric), 800 mm to the ceiling, 100 mm to the floor, carpet included, and 1,000 mm to furniture in front. To non-combustible, heat-resistant materials, keep 100 mm at the sides. Your installer follows the full manual.
Can I choose another fire glass colour?

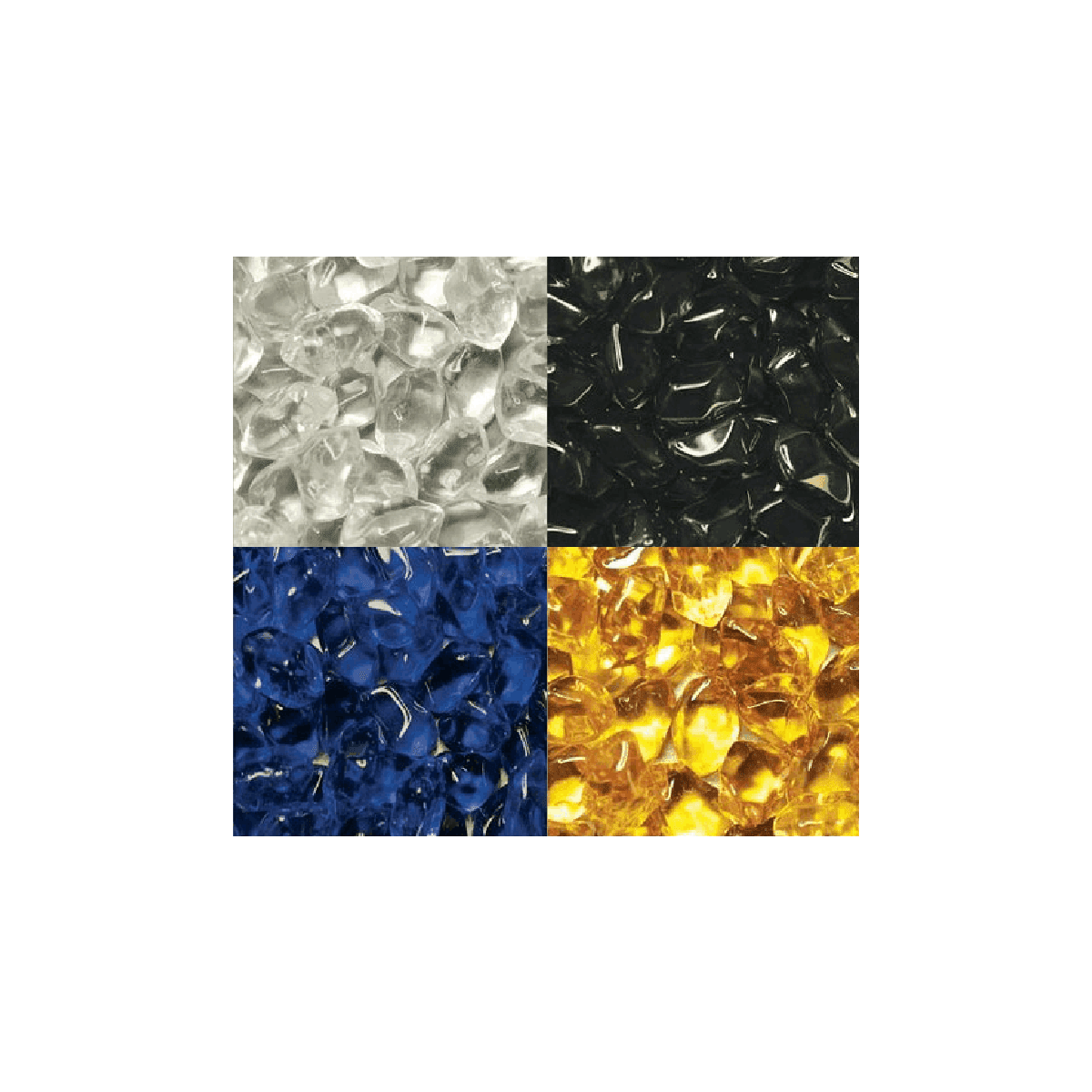

Diamond black fire glass comes as standard. Clear, blue or gold fire glass are options, so ask us before you order.
What does the guarantee cover?
Chad-O-Chef gives a two-year guarantee on the fireplace; terms and conditions apply. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements for a product and configuration quote. We do not install, so arrange installation with an independent, registered gas installer.
