Chad-O-Chef 800 Universal Grate Fireplace

Turns your single-sided wood-burning fireplace into a flueless gas fire.

Original price was: R11,650.00.Current price is: R10,999.00.

Save R651
Rated 5.0 out of 51 review

Pay in interest-free instalments with Float

SKU VFG800

In stock Delivery ETA: 5–7 working days

About your fireplace

Gas use
8.7 kW maximum gas input · 0.64 kg/hr of LPG at most
Included
Fireplace grate, burner, decorative stones and instruction manual
Not included
Mantelpiece, surrounding fireplace and installation. Ask us about the regulator
Guarantee
Two years on the fireplace, subject to terms and conditions
Your total R10,999.00

Awesome, you get free delivery!

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Get a Quote

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

FROM WOOD TO GAS

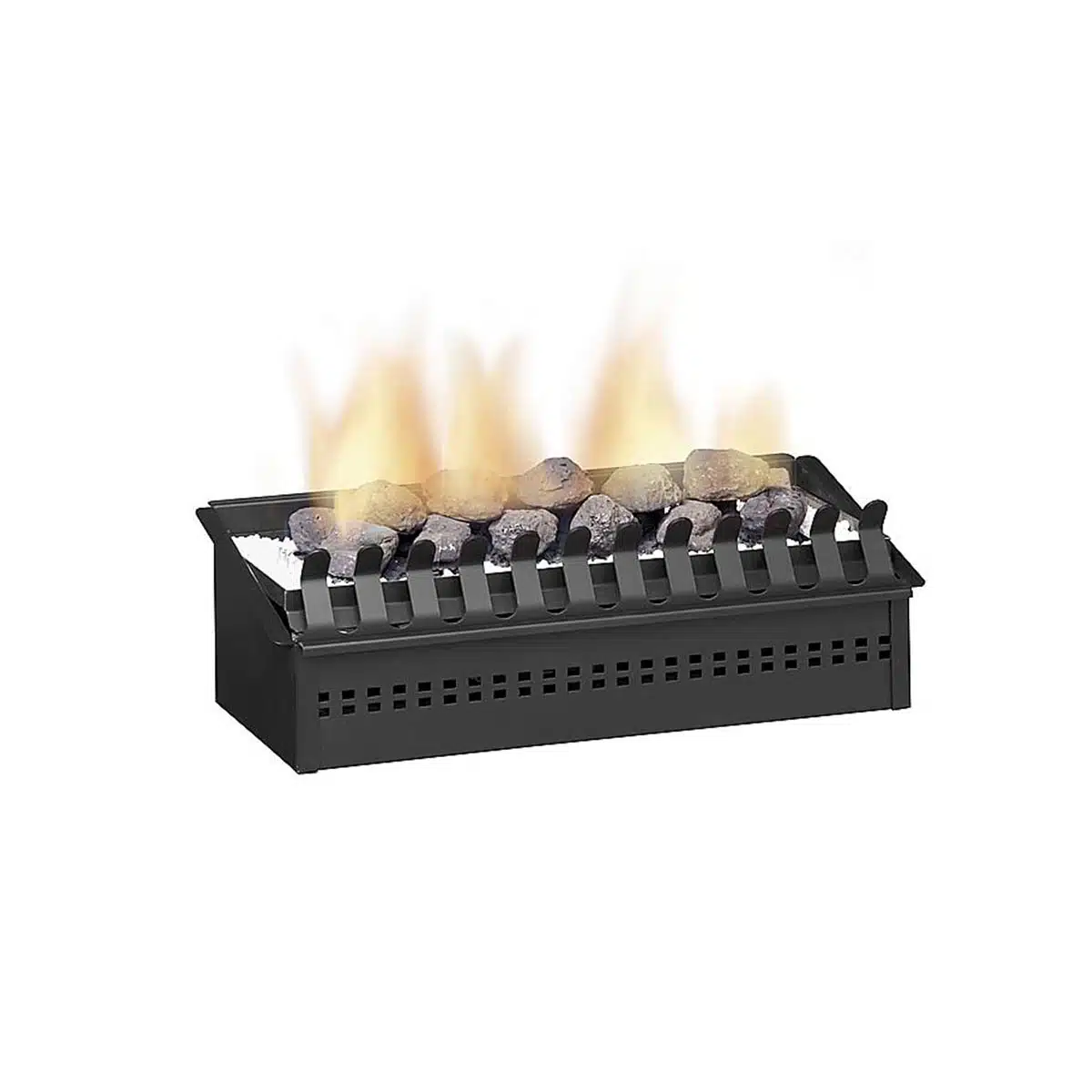

Chad-O-Chef 800 Universal Grate Fireplace: gas where the logs were.

The Chad-O-Chef 800 Universal Grate Fireplace turns a traditional single-sided wood-burning fireplace into a flueless gas fire. Black ceramic ash and coals sit in the burner with a white stone surround, a piezo spark does the lighting and the appliance is designed to give radiant heat. The firewood can stay at the shop.

Close off an existing chimney. A SAQCC Gas registered installer must install it. Not for bedrooms, bathrooms, toilets or saunas.

  1. Black mild steel
  2. Black ceramic ash and coalsWith a white stone surround
  3. Piezo spark ignition
  4. Oxygen Depletion System pilotVentilation rules still apply
  5. Gas inlet compression fitting8 mm
  6. Installation manualUnder Plan your setup
Chad-O-Chef 800 Universal Grate Fireplace alight in a stacked slate wall, while a couple in their fifties talk on the couch in a family lounge one evening

THE COUCH IS CALLING

Two people, one couch, no wood.

The week is finally over and the conversation is only getting started. The flames move through the coals in the wall, nobody has to get up to feed the fire and the talk wanders wherever it likes. Some of the best evenings at home look exactly like this.

The slate wall, fireplace opening, furniture, rug, plants and lights are not included. Keep combustible furniture at least 1,000 mm from the front of the fireplace.

BEFORE YOU CONVERT

Check your fireplace and your room.

THE FIREPLACE

Made for a single-sided fireplace.

The grate is for an existing traditional single-sided wood-burning fireplace. Close off an existing chimney for this flueless installation, and let a qualified gas installer handle the work. The mantelpiece and the surrounding fireplace stay yours.

THE ROOM

Know your room volume.

Rooms under 160 m³ need suitable permanent ventilation. Your installer works that out, and the sum includes any other combustion appliances. We recommend a maximum room volume of 398 m³, or 108 m² of floor area.

THE GAS

Tell us which gas you have.

The range has LPG and natural gas versions, and the version supplied must match the gas at your home. This listing doesn't select one, so tell us which you use before you order, and we'll confirm the version with you.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

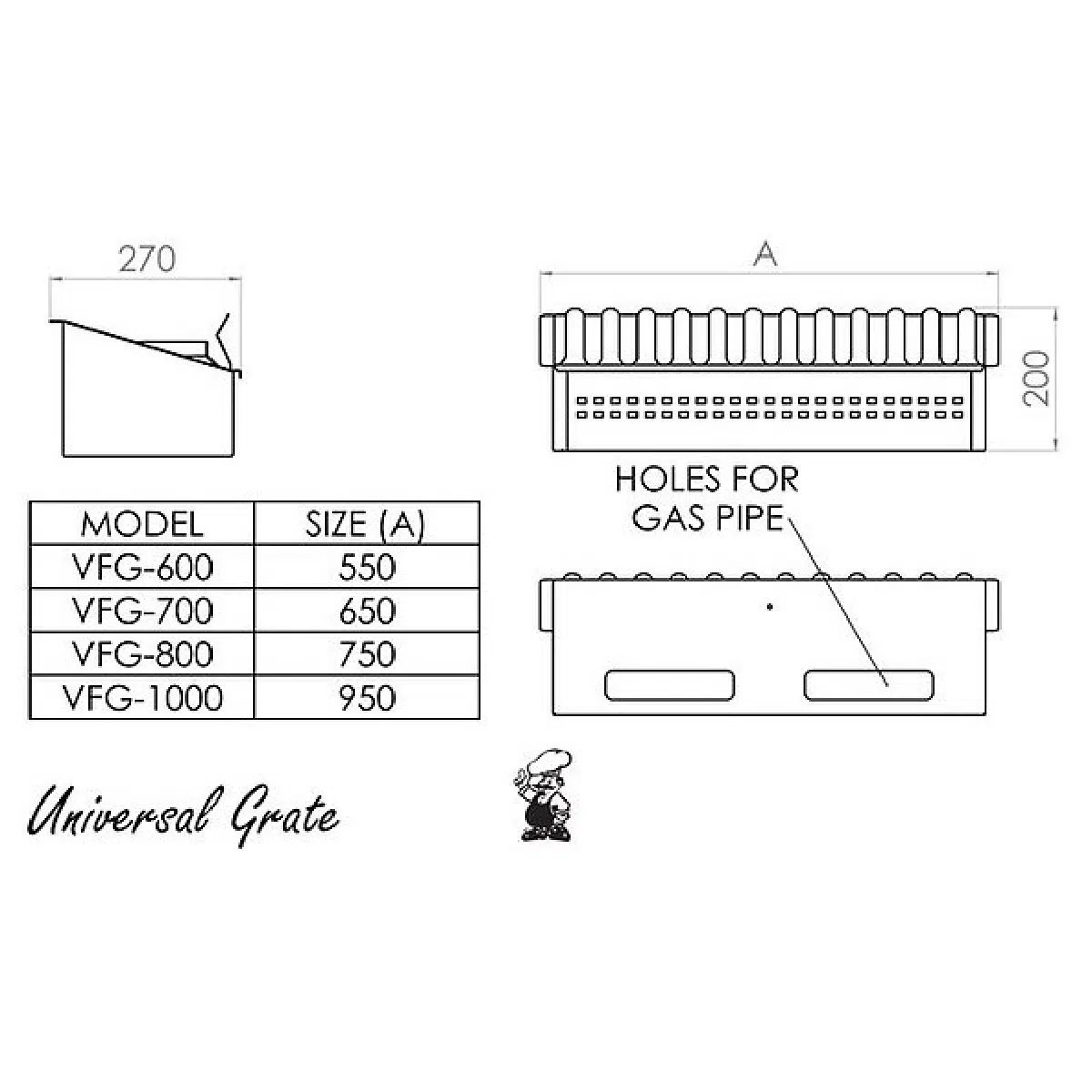

Chad-O-Chef 800 Universal Grate Fireplace dimension drawing, page 1 of 2: front, side, back and top views, in millimetres.
Page 1 of 2
Overall width × depth
750 × 270 mm
Overall height
200 mm
Sides to combustibles, at least
100 mm
Sides to curtains or fabric, at least
500 mm
Front to combustible furniture, at least
1,000 mm
Upper edge to ceiling, at least
800 mm
Lower edge to floor or carpet, at least
100 mm
Heat-resistant masonry shelf, above
500 mm
Air vent distance, recommended
500 mm
Material
Black mild steel

Measure inside your fireplace.

These are the sizes of the assembled grate, with the width taken across the outer rim. The 800 is the model name. They aren't a cut-out size, so measure your fireplace and have your installer check the fit and the clearances.

Planning notes

  • These are product sizes: measure the inside of your fireplace. The mantelpiece and the fireplace are not included.
  • This is model VFG800. It is 750 wide.
  • If there is a chimney, it must be closed off. This is a flueless gas fireplace.
  • Keep combustibles 100 from the sides, curtains and fabric 500 from the sides, and furniture 1,000 from the front.
  • Keep the grate at least 500 from any air vent. A shelf above it must be heat-resistant masonry. No TV above it.
  • The room must hold at least 160 m³ if it has no permanent ventilation. Not for a bedroom, bathroom, toilet or sauna.
  • We recommend a room of at most 398 m³ and a floor area of at most 108 m².
  • Gas: LPG at 2.8 kPa. Maximum consumption 0.64 kg/hr, maximum input 8.7 kW. Gas inlet fitting: 8 mm.
  • It takes 14 coals or 12 pebbles, set with gaps of about 10 mm. A registered SAQCC Gas installer must fit it.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Chad-O-Chef 800 Universal Grate Fireplace
  • Flueless gas grate that fits inside an existing single-sided wood-burning fireplace
  • 01 FRONT VIEW
  • 750 overall width
  • 200 height
  • 02 SIDE VIEW
  • 270 overall depth
  • 200 height
  • Front at the right.
  • 03 BACK VIEW
  • The two slots are for the gas pipe.
  • 04 TOP VIEW
  • 750 overall width
  • 270 depth
  • Front at the bottom.
  • 05 CLEARANCES FROM ABOVE (SMALLER SCALE)
  • Back of the fireplace
  • Furniture in front
  • 1,000 to furniture
  • 100 to sides
  • 500 to curtains
  • 06 CLEARANCES FROM THE FRONT (SMALLER SCALE)
  • 800 to the ceiling
  • 500 to a shelf
  • 100 to floor
  • 100 to sides
  • 500 to curtains
  • PLANNING NOTES
  • These are product sizes: measure the inside of your fireplace. The mantelpiece and the fireplace are not included.
  • This is model VFG800. It is 750 wide.
  • If there is a chimney, it must be closed off. This is a flueless gas fireplace.
  • Keep combustibles 100 from the sides, curtains and fabric 500 from the sides, and furniture 1,000 from the front.
  • Keep the grate at least 500 from any air vent. A shelf above it must be heat-resistant masonry. No TV above it.
  • The room must hold at least 160 m³ if it has no permanent ventilation. Not for a bedroom, bathroom, toilet or sauna.
  • We recommend a room of at most 398 m³ and a floor area of at most 108 m².
  • Gas: LPG at 2.8 kPa. Maximum consumption 0.64 kg/hr, maximum input 8.7 kW. Gas inlet fitting: 8 mm.
  • It takes 14 coals or 12 pebbles, set with gaps of about 10 mm. A registered SAQCC Gas installer must fit it.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What does it fit?

An existing traditional single-sided wood-burning fireplace. The grate is 750 mm wide across its outer rim, 270 mm deep and 200 mm high, and those aren't cut-out sizes. Measure the inside of your fireplace, then have your installer check the actual fit.

What is included?

The fireplace grate, the burner, decorative stones and the instruction manual. The mantelpiece and the surrounding fireplace are not included, and nor is the installation. Ask us about the regulator for your setup before you order.

What happens to my chimney?

Close off an existing chimney for this flueless gas-grate installation. A qualified gas installer does the installation, so have yours plan this part too.

Which gas does it use?

The range offers LPG and natural gas versions, and the version supplied must match your gas. Tell us which you use before you order, and we'll confirm it. On LPG, the operating pressure is 2.8 kPa and the maximum gas consumption is 0.64 kg/hr. Ask us to confirm the natural gas pressure. The gas inlet compression fitting is 8 mm.

How much heat does it give?

We have no rated heat output for this grate, so we don't quote one. The 8.7 kW is the maximum gas input: the gas going in, not the heat coming out. The appliance is designed to provide radiant heat.

What size room does it need?

Without permanent ventilation, the minimum room volume is 160 m³. Smaller rooms require suitable permanent ventilation, and your installer calculates it, counting other combustion appliances. We recommend a maximum room volume of 398 m³, or 108 m² of floor area. Insulation, climate and room conditions affect how it performs.

Where must it not go?

Do not install it in a bedroom, bathroom, toilet or sauna. Do not position electrical equipment such as a TV above the fireplace, and do not use or place combustible material above it. We recommend you don't install it within 500 mm of an air vent, to avoid affecting the Oxygen Depletion System.

How much space does it need around it?

Keep at least 100 mm from the sides to combustible material and 500 mm to curtains or fabric. Leave at least 1,000 mm in front to combustible furniture, 800 mm above to the ceiling and 100 mm below to the floor, carpet included. A heat-resistant masonry shelf sits 500 mm above the upper edge. Your installer must follow the installation manual that comes with the unit.

Who installs it, and can you help?

Installation requires a SAQCC Gas registered installer for your gas type, and the installer provides a Certificate of Compliance afterwards. We do not install, so arrange an independent installer with that registration. Send us a photo and measurements for a product and configuration quote.

How do the coals go on?

The standard finish has black ceramic ash and coals in the burner with a white stone surround. It is listed with 14 coals or 12 pebbles, one or the other and not both. They sit in a single layer, double row, about 10 mm apart. Use only the number of coals or pebbles supplied. Fire glass is an alternative finish. Ask us to confirm the finish before you order.

How often does it need a service?

A qualified gas installer must service the fireplace at the first sign of malfunction and at least once every two years.

What does the guarantee cover?

The fireplace has a two-year Chad-O-Chef guarantee, subject to terms and conditions. Those terms set what it covers and what it leaves out, so ask us for the current ones.
