About your braai
- Included
- Hood with grease filter, drip tray and light fitting
- Not included
- Ducting, mock-flue, extractor motor, damper and weather-dome
- Guarantee
- 3 years, terms apply

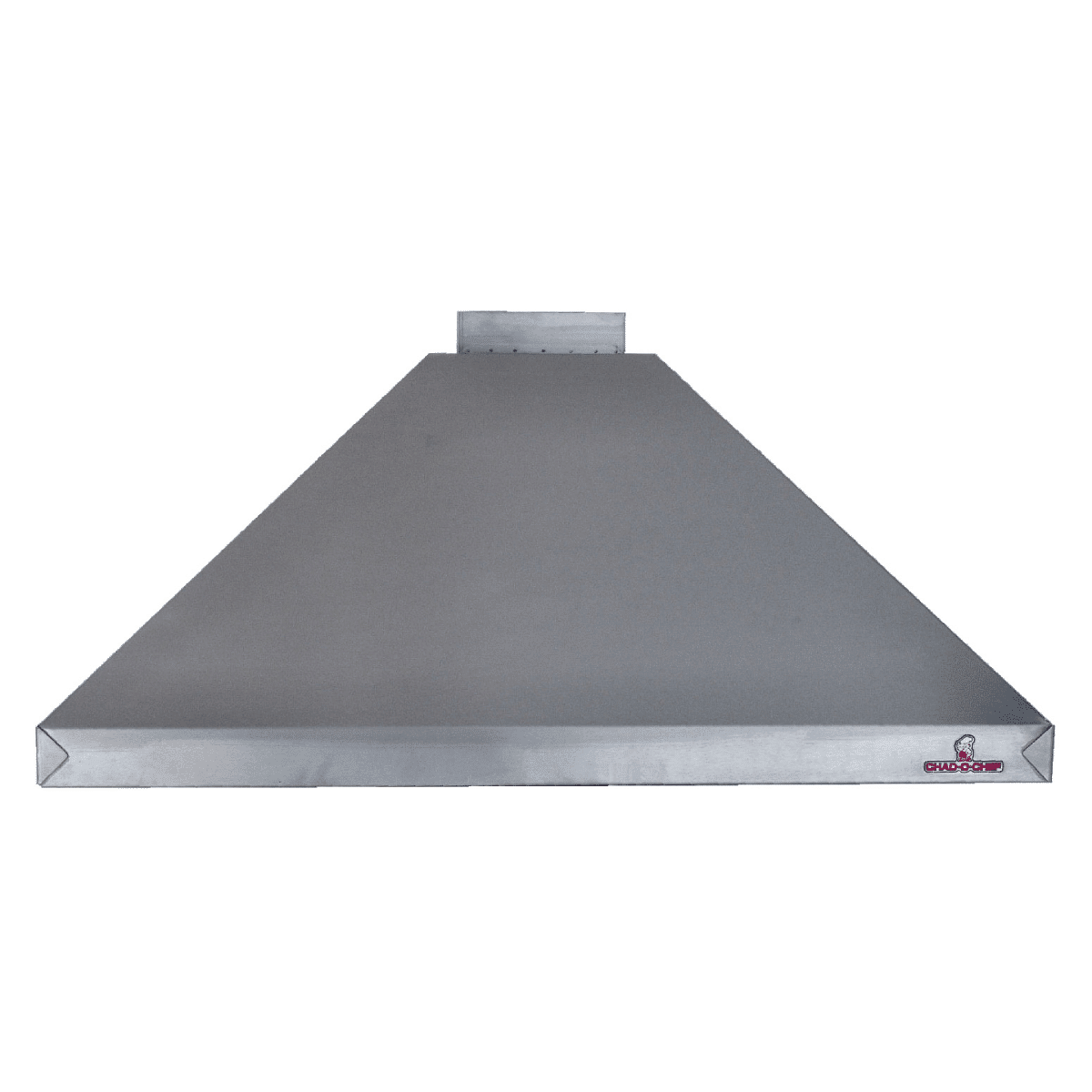

Chad-O-Chef Wall Mounted Extractor Hood 1000
A stainless-steel hood that draws the smoke away from your gas braai.
From: R14,299.00
Save R501In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsPLAN IT AS ONE SYSTEM
The hood first.
Then fan, duct and dome.
Mount the hood on the wall above your Chad-O-Chef gas braai and let it take the smoke away. A grease filter, a drip tray and a light fitting come with it. Choose a top or rear exit, and Inland or Coastal grade (Coastal is made for the coast). The extractor fan is a separate item, so confirm the complete system with us: hood, duct length and fan.
- Mount 600–700 mm above the grillGrill surface to the hood's underside
- A qualified electrician must install the fanSetup step; the fan is sold separately
- Installation manualUnder Plan your setup
MEASURE THE WALL AND THE GRILL
Will it fit your space?
- Use with
- Chad-O-Chef gas braais
- Hood width × depth
- 1,000 × 630 mm
- Crown width × depth, top exit
- 260 × 260 mm
- Square duct exit
- 200 × 200 mm
- Top exit: back of hood to duct
- 30 mm
- Rear exit: base to duct lower edge
- 135 mm
- Mounting height above the grill
- 600–700 mm
- Exit
- Top or rear
- Material
- Inland or Coastal grade stainless steel
Plan the hood, fan and ducting together.
The hood is 1,000 mm wide and 630 mm deep, with a 200 × 200 mm square duct exit. Ask us for its height before you plan a tight space, and confirm the complete system with us before you order.

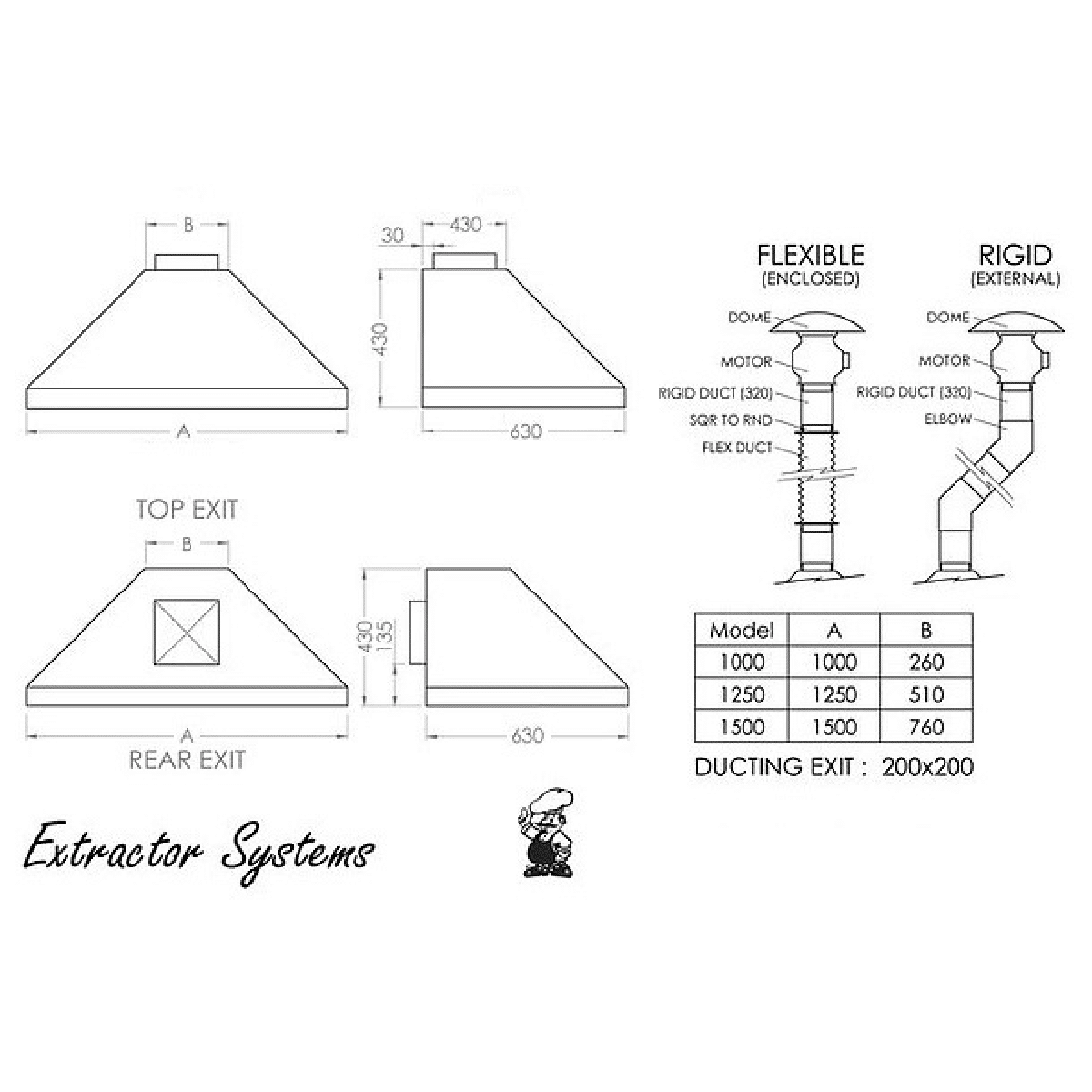

The drawing as text
- ALL SIZES IN MILLIMETRES
- Chad-O-Chef Wall Mounted Extractor Hood 1000
- Stainless-steel hood for above a gas braai; top or rear duct exit, motor sold separately
- 01 TOP EXIT, FRONT VIEW
- 260 top width
- 200 duct
- 1,000 width
- 02 TOP EXIT, SIDE VIEW
- 200 duct
- 260 top depth
- 30 to the duct
- 630 depth
- Wall at the left. Front at the right.
- 03 REAR EXIT, FRONT VIEW
- 260 top width
- 200 duct
- 200 duct
- Dashed: the duct exit in the back of the hood.
- 04 REAR EXIT, SIDE VIEW
- 135 lower edge
- 200 duct
- 630 depth
- Wall at the left. The duct exit is at the back.
- 05 HEIGHT ABOVE THE GRILL (SMALLER SCALE)
- Grill
- 600 lowest
- 700 highest
- Solid: the hood at its lowest.
- Dashed: the hood at its highest.
- Both are measured from the grill.
- PLANNING NOTES
- A stainless-steel extractor hood for the smoke from Chad-O-Chef gas braais. It goes on the wall.
- It comes with a grease filter, a drip tray and a light fitting.
- Choose a top or a rear duct exit. The duct exit is 200 × 200.
- The motor, the ducting, the mock flue, the damper and the weather dome are sold separately.
- Mount the hood 600 to 700 above the grill.
- A qualified electrician must install the extractor fan. Confirm the full system for your installation.
GOOD TO KNOW
Plan your setup.
Read the installation manual before you plan the hood, fan and ducting.
What does it fit?
The wall above a Chad-O-Chef gas braai: it is made to extract the smoke from Chad-O-Chef gas braais. Mount it 600–700 mm above the grill, measured from the grill surface to the hood's underside. Tell us your braai model before you order and we will check it with you.
What is included?
The hood with a grease filter, a drip tray and a light fitting. The ducting, mock-flue, extractor motor, damper and weather-dome are separate purchases.
Which fan and ducting do I need?
The extractor fan is a separate item, and the ducting is not included either. The complete system (the hood, the duct length and the fan) must be confirmed for your installation, so send us your plan and we will confirm it with you before you order. A qualified electrician must install the fan.
Top exit or rear exit?
Both are offered: choose one on this page. On the top exit, the duct sits 30 mm from the back of the hood. On the rear exit, the duct's lower edge is 135 mm above the hood's base. Both exits are 200 × 200 mm square.
Inland or Coastal grade?
Chad-O-Chef makes the hood in two grades of stainless steel: choose one on this page. Inland grade is for general corrosion resistance. Coastal grade is for severely corrosive conditions and homes at the coast. If you are not sure which suits your home, ask us before you order.
How big is it?
The hood is 1,000 mm wide and 630 mm deep. The crown on top is 260 mm wide and, on the top-exit hood, 260 mm deep. Ask us for the height before you plan a tight space.
Is there a guarantee?
Yes. These braai products have a three-year Chad-O-Chef guarantee, subject to its terms. The hood is for domestic use only.
Can you help with my setup?
Yes. Send a photo and measurements of your braai area for a product and configuration quote. We do not install, so arrange fitting with an independent installer and a qualified electrician for the fan.
