Dovre 2620SC/B Closed Combustion Fireplace Insert with Fans

A wide glass door on the fire, and two fans to carry the warmth into the room.

Original price was: R66,660.00.Current price is: R62,699.00.

Save R3,961
Rated 2.0 out of 51 review

Pay in interest-free instalments with Float

SKU DOVRE2620SC/B

In stock Delivery ETA: 5–7 working days

About your fireplace

Heat
10 kW nominal · 12 kW maximum on wood
Included
Black insert with glass door, two built-in fans with thermo switch and speed controller, ash tray
Not included
Flue pipes, warm-air ducts, electrical connection and installation

Free delivery in Central Gauteng on orders from R5,500. Other areas: delivery cost on request.

How delivery works

DeliveryHow it works

Because most of our products are huge, it’s difficult for us to keep stock of all of them. For this reason, we deliver a lot of our products directly from our suppliers and manufacturers, to offer you a great price and a fresh braai and a warm fireplace.

PRIORITY DELIVERYWe will make sure you are kept in the loop at every single step of the way and we will have your order processed as a priority. Tracking number included.

FREE DELIVERYLook, it’s free but we are unable to provide an exact time or take specific delivery requests as we are at the mercy of our suppliers. We still do our best to deliver as quickly as possible and in most cases we are much quicker than the stated turn around time.

Mail us for any queries.
[email protected]

Your total R62,699.00

Delivery cost to be confirmed.

Get a Quote

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE 2620SC/B, UP CLOSE

Big logs in.
Warm air out.

Load the Dovre 2620SC/B Closed Combustion Fireplace with logs up to 50 cm and burn dry, seasoned wood. Two built-in fans push warm air out front, two 125 mm connections can take it to other rooms, a thermo switch looks after them, and a controller sets the speed. The door can be changed to open from the other side, and the ash tray catches the ash.

  1. Logs up to 50 cm longWood only
  2. Two built-in fansThermo switch and speed control

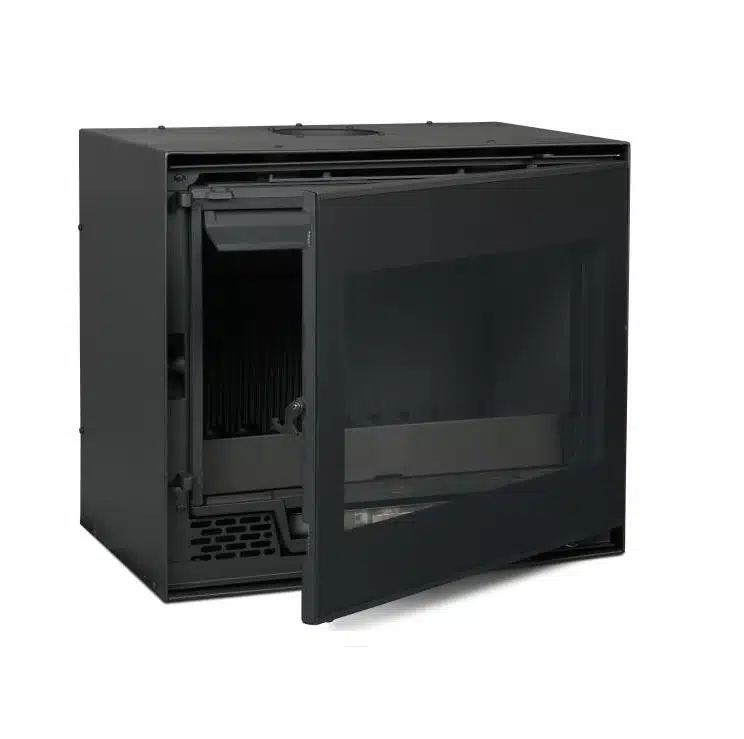

  3. Door can open from either sideIts opening direction can be changed
  4. Riddling grate and glass air washA riddling rod, and a top air slide for the glass
  5. Top flue connection, 150 mmCentre 120 mm from the rear
  6. Installation manualUnder Plan your setup
Dovre 2620SC/B insert with a wood fire, built into a white plastered chimney breast above a long timber bench with stacked logs, a couple on a couch in front

WINTER EVENINGS, SORTED

Pull up the blanket.
The fans do the rest.

A cold evening, a mug of something hot and a fire behind the glass. Settle into the couch while the fans send the warmth across the room, and add another log when the flames settle down. Before long, this is the corner of the house where everyone ends up.

The chimney breast, timber bench, firewood, furniture and décor are not included. Have an independent installer plan the flue, the electrical connection and the clearances.

READY FOR WINTER

How the Dovre 2620SC/B Closed Combustion Fireplace works.

THE HEAT

Rated at 10 kW nominal.

The 2620SC/B is rated at 10 kW nominal and 12 kW maximum on wood, with 80% efficiency, and it turns down to 3.3 kW. The Output Calculator uses 11 kW, the middle of the nominal and maximum values, to compare with your room.

THE FANS

Warm air where you want it.

Two built-in fans move up to 180 m³ of air an hour, and two 125 mm convection connections can carry warm air to other areas. A thermo switch and a separate speed controller manage them. They need a 230 V, 50 Hz electrical connection.

THE CONNECTIONS

One flue, on top.

The 150 mm flue connects at the top, with its centre 120 mm from the rear. There is no outside-air connection, so plan the room's ventilation and the flue route with your installer.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Dovre 2620SC/B Closed Combustion Fireplace dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Insert width × height
695 × 600 mm
Insert depth
455 mm
Top flue diameter
150 mm
Flue centre from the rear
120 mm
Convection outlet diameter
125 mm
Convection outlet centres, apart
540 mm
Convection outlet centre from the rear
75 mm
Weight
160 kg
Build
Cast iron in a steel convection box
Fuel
Wood only
Finish
Black

Plan the opening, flue and ducts together.

These are the insert's own sizes, not a cut-out in the chimney breast. Have an independent installer plan the opening, the clearances and the flue from the manual, and check the actual unit before building.

Planning notes

  • These are the insert's own sizes, not a building opening. Ask us for the opening size before you build.
  • Have an independent installer plan the opening, the clearances and the flue from the manual.
  • Two built-in fans give 180 m³/h of warm air. A thermo switch and a separate speed controller run them.
  • The fans need a 230 V, 50 Hz electrical connection (0.5 A). Have it wired by a qualified electrician.
  • It burns wood only, with logs up to 50 cm long.
  • The insert weighs 160 kg. The door can open from either side.
  • Flue pipes and cowl, warm-air ducts, the electrical connection and installation are not included.
  • Send us a photo, your room measurements and roof details for a product and flue quote.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Dovre 2620SC/B
  • Wood-burning fireplace insert with two fans: flue and convection-air connections on top
  • 01 FRONT VIEW
  • 695 width
  • 600 height
  • 02 SIDE VIEW
  • 455 depth
  • 600 height
  • Back at the left. Front at the right.
  • 03 TOP VIEW WITH THE CONNECTIONS
  • 540 convection-air centres
  • Ø125 air
  • Ø125 air
  • Ø150 flue
  • 75 air centres from the rear
  • 120 flue centre
  • 455 depth
  • Back at the top. Front at the bottom.
  • A convection-air connection at each side of the flue.
  • PLANNING NOTES
  • These are the insert's own sizes, not a building opening. Ask us for the opening size before you build.
  • Have an independent installer plan the opening, the clearances and the flue from the manual.
  • Two built-in fans give 180 m³/h of warm air. A thermo switch and a separate speed controller run them.
  • The fans need a 230 V, 50 Hz electrical connection (0.5 A). Have it wired by a qualified electrician.
  • It burns wood only, with logs up to 50 cm long.
  • The insert weighs 160 kg. The door can open from either side.
  • Flue pipes and cowl, warm-air ducts, the electrical connection and installation are not included.
  • Send us a photo, your room measurements and roof details for a product and flue quote.

GOOD TO KNOW

Plan your setup.

Read your installation manual before you plan the installation.

Read the instruction manual

What is included?

The Dovre 2620SC/B insert in black, with its straight glass door, two built-in fans with a thermo switch and a separate speed controller, and an ash tray. The flue pipes, any warm-air ducts, the electrical connection and the installation are not included.

Which fuel does it burn?

Wood only. Burn dry, seasoned wood. This model is not for coal. Logs can be up to 50 cm long.

How much heat does it give?

It is rated at 10 kW nominal and 12 kW maximum on wood, with 80% efficiency, and 3.3 kW at its lowest. The Output Calculator uses 11 kW, the middle of the nominal and maximum values, to compare with your room. Insulation, ceiling height and climate change how warm a room feels.

What do the fans do?

Two built-in fans move up to 180 m³ of air an hour. Two extra convection connections of 125 mm, with centres 540 mm apart, can carry warm air to other areas. A thermo switch and a separate speed controller manage them. They need a 230 V, 50 Hz electrical connection (0.5 A): have it wired by a qualified electrician.

Where does the flue connect?

At the top, through a 150 mm flue connection with its centre 120 mm from the rear. There is no outside-air connection. Plan the flue route with an independent installer.

Is the flue included?

No. The flue pipes and cowl depend on your room and roof. Send a photo, your room measurements and roof details for a product and flue configuration quote.

How much space do I need?

The insert is 695 mm wide, 600 mm high and 455 mm deep, and it weighs 160 kg. These are the insert's own sizes, not a cut-out. Have your installer plan the opening and the clearances from the manual, and check the actual unit before building.

Can the door open the other way?

Yes. The door's opening direction can be changed, so it can suit the layout of your room. Ask your installer to set it up.

Is this Dovre's current model?

The 2620SC/B is an insert from the earlier Dovre range: it appears in the 2016–2017 Dovre brochure, and it's still listed by our supplier. If you compare it with Dovre's newer inserts, check the model name, as the sizes and features can differ.

What guarantee does it have?

Ask us for the current guarantee terms for the 2620SC/B before you order.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer, and the electrical connection with a qualified electrician.
