Clean steel lines on legs, with a big square window on a wood fire.
Original price was: R19,840.00.R18,699.00Current price is: R18,699.00.
Save R1,141In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE FLAMM 560

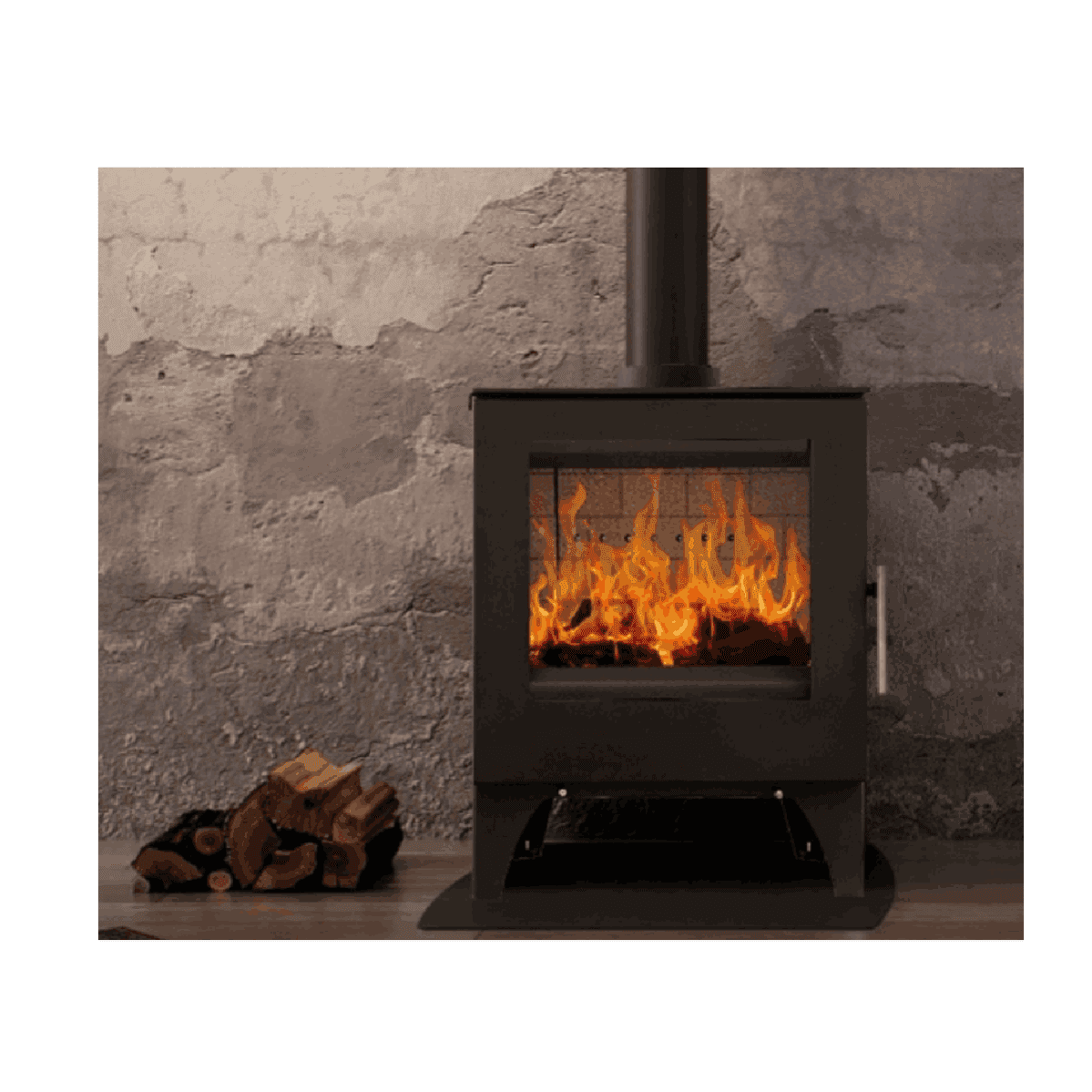

The FLAMM 560 is a closed-combustion stove with a fully welded 5 mm steel firebox, lined with firebrick and finished in metallic black high-heat paint. It burns wood only, never coal or anthracite. The glass is 391 mm wide and 365 mm high, so the fire takes centre stage, and the ash pan keeps the clean-up simple.
SEA AIR, WARM ROOM
Pale walls, bare floorboards and a window full of sea. When the afternoon wind picks up, light the FLAMM 560, settle into the couch with a blanket and let the big glass window put on the show. The weekend can take its time.
The flue pipe, hearth plate, furniture, rug and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
A LITTLE PRACTICAL THINKING
THE HEAT
Home Fires rates the FLAMM 560 at 9 kW nominal and 11 kW maximum heat output, and gives an indicative heating capacity of about 110 m². The Output Calculator uses 10 kW, the middle of the two, to compare with your room.
THE FLUE
Connect a 150 mm nominal flue pipe to the top outlet. The manual asks you to avoid horizontal runs: at most 400 mm, then at least 2,500 mm of vertical flue. Send us a photo and measurements for a flue quote.
THE ROOM
The manual asks for 1,000 mm between the stove and household furnishings, and recommends 800 mm from combustible materials. Leave 1,200 mm above it to a combustible ceiling.
MEASURE THE WHOLE SETUP
Plan the stove, the hearth and the flue together.
The FLAMM 560 stands 720 mm to its top plate, on legs 162 mm high; the flue collar on top is extra. These are product dimensions: have an independent installer check the hearth, the clearances and the flue.
GOOD TO KNOW
Read your instruction manual before you plan the installation.

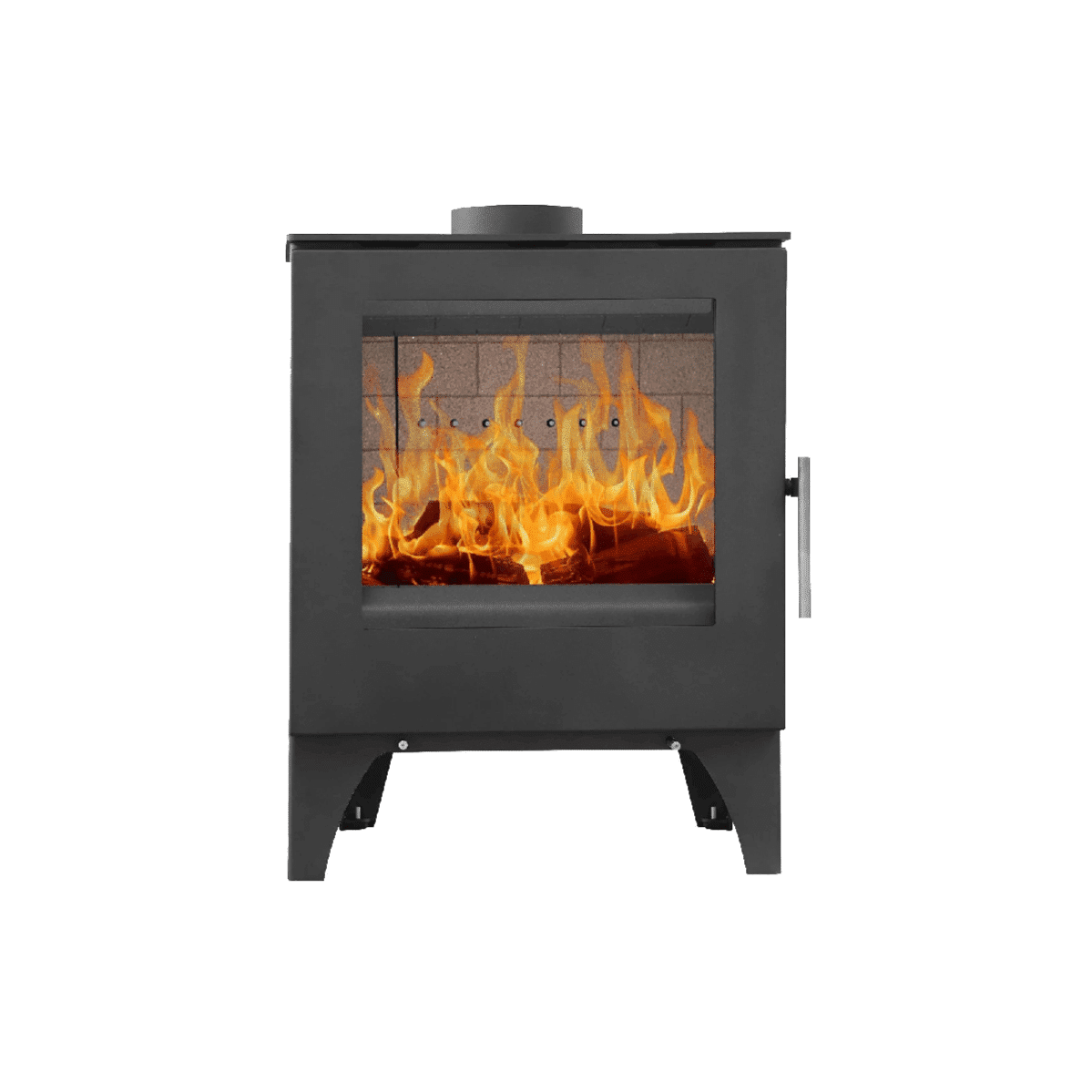

The FLAMM 560 stove on its legs, with the firebrick lining, the ash pan and the door with its handle. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Wood only. Home Fires says coal and anthracite must not be used in the FLAMM 560.
9 kW nominal and up to 11 kW maximum heat output. The Output Calculator uses 10 kW, the middle of the two. Home Fires gives an indicative heating capacity of about 110 m²; insulation, ceiling height and climate change how warm a room feels.
On top. The outlet has an inside diameter of 151.5 mm, for a 150 mm nominal flue pipe. The manual asks you to avoid horizontal runs: keep any horizontal run to 400 mm at most, followed by at least 2,500 mm of vertical flue. Have an independent installer plan the flue route, height and support.
No. Flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
The manual suggests that a flue of 4,500 mm from the stove to the top could be enough, depending on your site. Its roof diagram shows the flue ending 1,500 mm above the roof where it passes through, and 600 mm above the ridge. Your installer designs the flue for your house.
The casing is 560 mm wide and 422 mm deep, or 454.4 mm deep with the handle. It stands 720 mm to the top plate, on 162 mm legs. The manual asks for 1,000 mm to household furnishings, recommends 800 mm from combustible materials, and asks for 1,200 mm above it to a combustible ceiling.
The manual asks for a constructional hearth at least 125 mm thick, with a floor protector that reaches at least 400 mm in front of the stove and 200 mm at the sides and the back. Where a firewall is needed, it asks for one at least 100 mm thick. Your installer confirms the hearth for your floor and room.
Yes, with free air around it: at least 200 mm at the sides, 200 mm above and 50 mm behind, as the manual sets out. Have your installer check the opening and the flue before you build.
The glass is 391 mm wide and 365 mm high. Give us this size if you ever need a replacement pane.
Home Fires gives a 5-year extended guarantee on the main stove body when you register it within 30 days; otherwise the cover is 12 months. It covers the first owner at the first installed location, and exclusions apply. The manual has the full terms.
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
