THE FIREBOX
Steel at its core.
The fully welded 5 mm steel firebox has vermiculite lining and an insulated outer casing.
Sale!

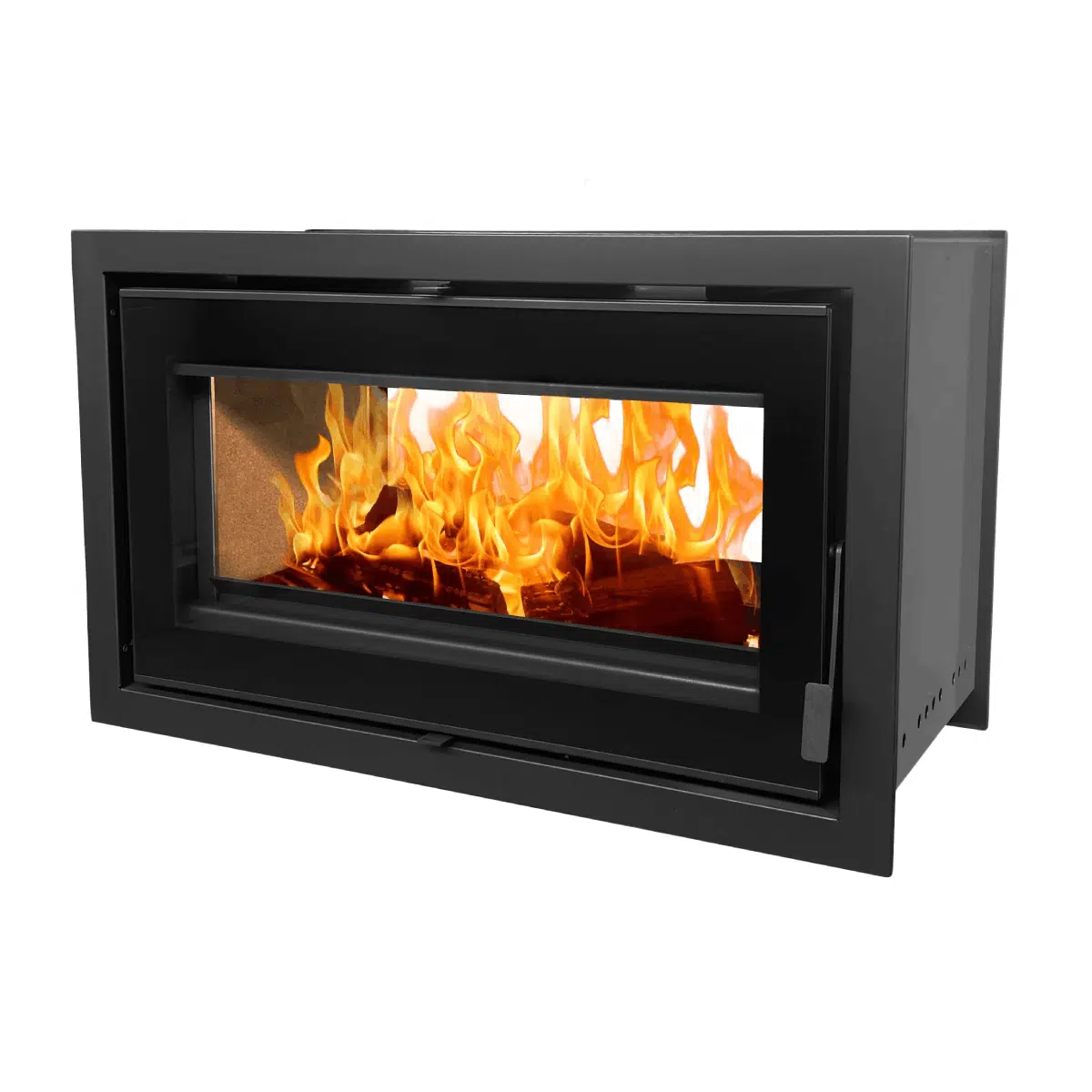

FLAMM 950 – Closed Combustion Double Sided Built-in Fireplace with Trim plate
Bring two rooms together around one wood fire.
Original price was: R39,010.00.R36,699.00Current price is: R36,699.00.
Save R2,311In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- 13 kW nominal · 16 kW maximum
- Included
- Fireplace, two glass doors, trim plates for both sides, insulated casing, vermiculite lining, ash pan
- Not included
- Flue kit (quoted to suit your building), non-combustible hearth and surround, installation
- Guarantee
- 5 years on the main body if registered within 30 days
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.

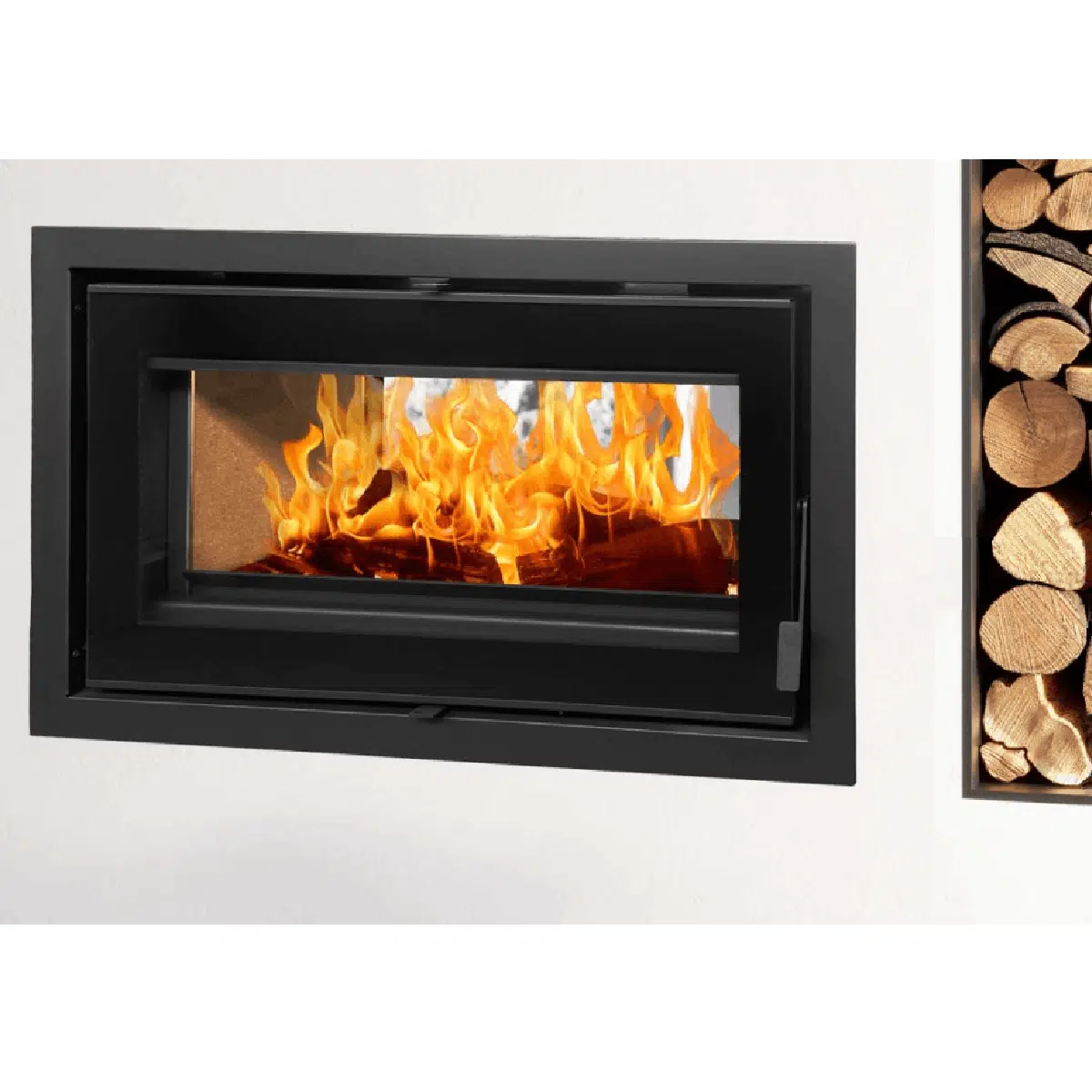

WhatsApp UsTHE FLAMM 950, DOUBLE-SIDED
A fire to share.
From either side.
A fully welded 5 mm steel firebox with glass doors on both sides makes the FLAMM 950 a focal point between two rooms. Vermiculite lining and an insulated outer casing sit behind black trim plates on each face. Burn dry, seasoned hardwood, keep the doors closed while it burns, and lift out the cold ash with the ash pan.
Register the fireplace within 30 days of purchase for the five-year guarantee. Without registration, the cover is 12 months.
- 80% efficiencyWood-burning
- Fully welded 5 mm steel fireboxVermiculite lining, insulated casing
- Black steel trim plates on both faces
- Dry hardwood logs, about 35 cm or lessUnder 20% moisture
- 150 mm top flue on its own dedicated routeFlue kit quoted to suit your building
- Installation manualUnder Plan your setup
MAKE YOURSELF AT HOME
The warmest part of both rooms.
Keep the conversation flowing from the lounge to the dining table. A view of the same fire connects the spaces, even when everyone finds their own favourite spot.
Surround, hearth, flue, installation and furnishings are not included. Have an accredited installer confirm the design and clearances.
BUILT FOR SLOWER EVENINGS
More warmth.
A clear view of the fire.
THE HEAT
13 kW nominal output.
Maximum output is 16 kW, with 80% efficiency. Room size, insulation and ceiling height affect the warmth you feel.
THE EVERYDAY
Wood, glass and a quieter pace.
Use dry, seasoned hardwood. Keep the doors closed during normal use. Remove cold ash with the ash pan.
PLAN BOTH SIDES OF THE WALL
Will it fit your space?
- Body width × depth
- 952 × 447 mm
- Body height
- 536 mm
- Width × height with trims
- 988 × 601 mm
- Depth with trims
- 479 mm
- Glass pane, each side
- 847 × 467 mm
- Top flue diameter
- 150 mm
- Flue centre from either face
- 240 mm
- Minimum air space, sides and top
- 200 mm
- Weight
- 180 kg
- Material
- Fully welded steel
Product dimensions are not the opening size.
Allow for the recess air space, airflow, hearth and flue route. Have an accredited installer check both sides of the wall and the actual unit before construction.
The drawing as text
- BRAAI CULTURE / DIMENSIONS
- FLAMM 950 · Double-sided built-in
- ALL SIZES IN MILLIMETRES
- 01 FRONT / BOTH TRIM PLATES
- 988
- 601
- Black steel trim finishes both room faces.
- 02 BODY / WITHOUT TRIMS
- 952
- 536
- Body depth: 447
- Glass pane: 847 × 467
- 03 TOP / FLUE CONNECTION
- 988
- 479
- Ø150 flue
- Connection bore: Ø151.9
- Flue centre: 240 from either face
- Centre position is nominal.
- 04 INSTALLATION ALLOWANCES
- 200
- 200
- Recess: ≥200 at each side and above
- Combustible materials: ≥800
- Furnishings: ≥1,000
- Combustible ceiling above: ≥1,200
- Hearth: ≥400 in front of each door
- 05 SECTION / BOTH DOORS
- Door
- Door
- Product sizes are not opening sizes. Use a non-combustible hearth and surround.
- Have an accredited installer confirm the recess, combustion air, flue route and clearances.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
See also: FLAMM 950 Double Sided Fireplace on Log Base · FLAMM 950 Single Sided Fireplace on Log Base · FLAMM 950 Single Sided Built-in Fireplace
What is included in the price?
The fireplace includes trim plates for both sides, an insulated outer casing, two doors with handles, vermiculite lining and an ash pan. The flue kit, hearth and surround are not included. Arrange installation with an accredited installer.
How much heat does it give?
Nominal output is 13 kW and maximum output is 16 kW, with 80% efficiency. The Output Calculator uses 14.5 kW, the middle of the two. Room size, insulation and ceiling height affect the warmth you feel.
What space does the recess need?
The body is 952 mm wide, 447 mm deep and 536 mm high. With trims, the unit is 988 mm wide, 479 mm deep and 601 mm high. Leave at least 200 mm of permanent free air space around the sides and top of a recess. Have an accredited installer confirm the opening, support and access for this double-sided installation.
How much clear space is needed around the fire?
Keep combustible materials at least 800 mm away and furnishings at least 1,000 mm away. Allow at least 1,200 mm to a combustible ceiling above the fireplace. Use a non-combustible hearth with at least 400 mm in front of each loading door. The installer must check the full design and local requirements.
Which flue does it use?
The top connection takes a 150 mm flue. The connection bore is 151.9 mm. The flue centre is 240 mm from either face in the nominal top view. Flue kits are quoted to suit the building. The flue must have its own chimney route. External sections need insulated twin-wall pipe.
Can I connect it to an existing chimney?
An accredited installer must check the chimney condition, size, draw and cleaning access before connection. Do not connect it to a chimney that serves another appliance. Have the chimney swept before use.
Does the room need ventilation?
Yes. Provide permanent combustion air to the room. The installer must size the air vents for the building and fireplace output. Do not use an extractor fan in the same room or in a room that supplies its combustion air.
Which wood should I use?
Use dry, seasoned hardwood with less than 20% moisture. Logs should be about 350 mm long or less. Split logs thicker than 80 mm. Do not burn coal, anthracite, treated timber or household waste.
What should I do before the first fire?
Have the installation checked before use. Follow the paint-curing and initial small-fire sequence in the operating manual. Keep the room well ventilated during this process. Keep both doors closed during normal use and use a fireguard when children are nearby.
What does the warranty cover?
Register the fireplace within 30 days of purchase for the five-year limited main-body warranty. Without registration, the warranty period is 12 months. Consumable parts, including glass, firebricks and seals, are excluded. Keep the purchase, installation and commissioning documents.
Can you help plan my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. We do not provide installation services; arrange installation with an accredited installer.
