THE HEAT
12 kW nominal, up to 14 kW.
The A2 gives 12 kW nominal and up to 14 kW maximum heat output, with a listed efficiency of 82%. The Output Calculator uses 13 kW, the middle of the two, to compare with your room.
Sale!

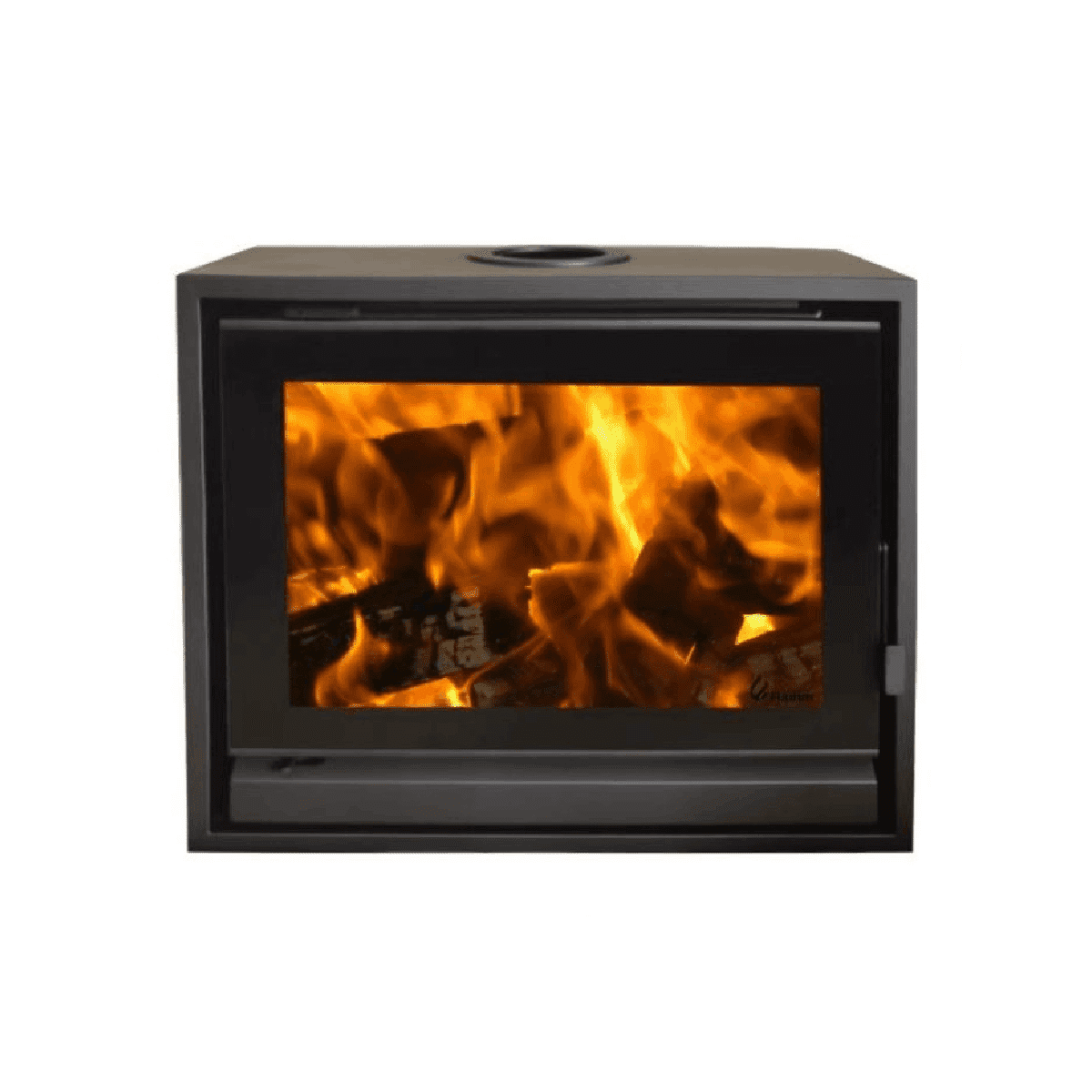

FLAMM A2 – Closed Combustion Freestanding Fireplace
A wide wood stove with a big, bright window on the fire.
Original price was: R29,580.00.R27,999.00Current price is: R27,999.00.
Save R1,581In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- 12 kW nominal · 14 kW maximum
- Included
- The fireplace, with its vermiculite lining (this model has no ash pan)
- Not included
- Flue pipes, accessories and installation
- Guarantee
- 5 years on the main body (limited)
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE A2, UP CLOSE
A wide window on a big fire.
The A2 is all about the view: a wide glass door puts the whole fire on show. Inside the 5 mm steel firebox, a vermiculite lining surrounds the flames. The finish is a black high-heat paint, the flue connects on top, and the listed efficiency is 82%. There is no ash pan, so clear the ash once the fire is out and cold.
- Wide glass doorGlass sheet 792 × 583 mm
- 5 mm steel fireboxVermiculite lining
- Top flue outletFor a 150 mm nominal flue
- Black high-heat finish
- No ash panClear the ash when the fire is cold
CITY LIGHTS, WARM ROOM
Coffee, conversation and a good fire.
The city glitters outside while you settle in with a warm mug and the one you love. The A2's wide window fills the room with firelight, so the evening slows down and the conversation keeps going. Another cup? Why not.
The flue pipe, raised hearth, log basket, firewood, furniture and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
BEFORE THE FIRST FIRE
Heat, view and flue, sorted.
THE FIRE
A big window on the flames.
The glass sheet measures 792 × 583 mm, so the fire stays on show from across the room. A vermiculite lining surrounds the flames inside the 5 mm steel firebox.
THE FLUE
One outlet, on top.
The outlet sits on top, its centre 159.5 mm from the rear edge of the body, with a 155 mm socket for a 150 mm nominal flue pipe. Send us a photo and measurements for a flue quote.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × height
- 892 × 784 mm
- Outlet centre from the rear edge of the body
- 159.5 mm
- Flue socket inside diameter
- 155 mm
- Flue socket outside diameter
- 165 mm
- Flue size (nominal)
- 150 mm
- Glass sheet width × height
- 792 × 583 mm
- Clearance to combustible materials
- 800 mm
- Fuel · finish
- Wood · black high-heat finish
Confirm the depth before a tight fit.
The body is 892 mm wide and 784 mm high. Ask us to confirm the depth and the weight before you plan a tight fit, and have an independent installer check the clearances on site.
The drawing as text
- FLAMM A2 freestanding. Dimensions in mm.
- Front: body width 892 mm
- Front: body height 784 mm
- Top: outlet centre 159.5 mm from the rear edge of the body
- Outlet detail: inside Ø 155 mm, outside Ø 165 mm, nominal pipe Ø 150 mm
- Glass sheet: 792 mm wide, 583 mm high; the visible aperture differs
- Internal lining detail: lower half-panel 333 mm, lower lining height 306 mm, lining total height 480 mm, top half-panel 307 mm, upper lining assembly 180 mm, upper rear band 152 mm
- Installation, schematic: combustible ceiling 1,200 mm above; combustibles 800 mm (manual recommendation)
- Floor protector: 400 mm in front, 200 mm at the side, 200 mm at the rear
- Only if recessed: air gaps of 200 mm at the side, 200 mm at the top and 50 mm at the rear; these gaps do not define a cut-out
- Household furnishings: 1,000 mm
- Conditional sheet hearth 12 mm; constructional hearth 125 mm; firewall 100 mm
- Flue route, manual diagrams (schematic): horizontal run 300 mm, vertical run 2,500 mm, flue height 4,500 mm, rise above the roof 600 mm
- The installer determines the site-specific flue route. Use the exact model manual for installation.
GOOD TO KNOW
Plan your setup.
Ask us for the instruction manual before you plan the installation.
What is included?
The FLAMM A2 closed combustion fireplace in a black high-heat finish, with its vermiculite lining. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel does it burn?
Wood. It is a closed combustion fireplace, with the fire behind the wide glass door.
How much heat does it give?
12 kW nominal and up to 14 kW maximum heat output, with a listed efficiency of 82%. The Output Calculator uses 13 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.
Does it have an ash pan?
No. The A2 has no ash pan. Let the fire go out and the ash cool completely before you clear it.
Where does the flue connect?
At the top. The outlet centre is 159.5 mm from the rear edge of the body, and the socket is 155 mm across inside and 165 mm outside, for a 150 mm nominal flue pipe. Have an independent installer plan the flue route, height and support for your building.
Is the flue included?
No. Chimney flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The body is 892 mm wide and 784 mm high. Ask us to confirm the depth and the weight before you plan a tight fit. The manual asks for at least 800 mm to combustible materials, 1,200 mm to a combustible ceiling and 1,000 mm to household furnishings. Your installer applies the full manual and local requirements.
What does it need underneath?
The manual asks for a floor protector that reaches 400 mm in front of the fireplace and 200 mm beyond the sides and the rear. Depending on your floor, it describes a 125 mm constructional hearth or, in some cases, a 12 mm non-combustible board. Have your installer check the floor.
Can it stand in a recess?
In a recess, the manual asks for a free air gap of 200 mm at the sides and the top and 50 mm at the rear. These gaps are for airflow and do not define a cut-out. Where a firewall is needed, the manual gives 100 mm of brick, concrete or stone.
How high should the flue go?
The manual says a flue of about 4,500 mm could be satisfactory. Where an offset is allowed, it limits a horizontal run to 300 mm, followed by 2,500 mm of vertical flue, and its roof diagram shows the flue rising 600 mm. Your installer decides the route for your building and wind.
What does the guarantee cover?
Home Fires gives a five-year limited warranty on the main body against manufacturing defects. Register it within 30 days, or the term drops to 12 months. It covers the first owner at the first installed location, for a unit bought from Home Fires or an authorised retailer and installed correctly; keep your purchase and installation records. Glass, bricks, baffles, handles, paint and seals are excluded. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
