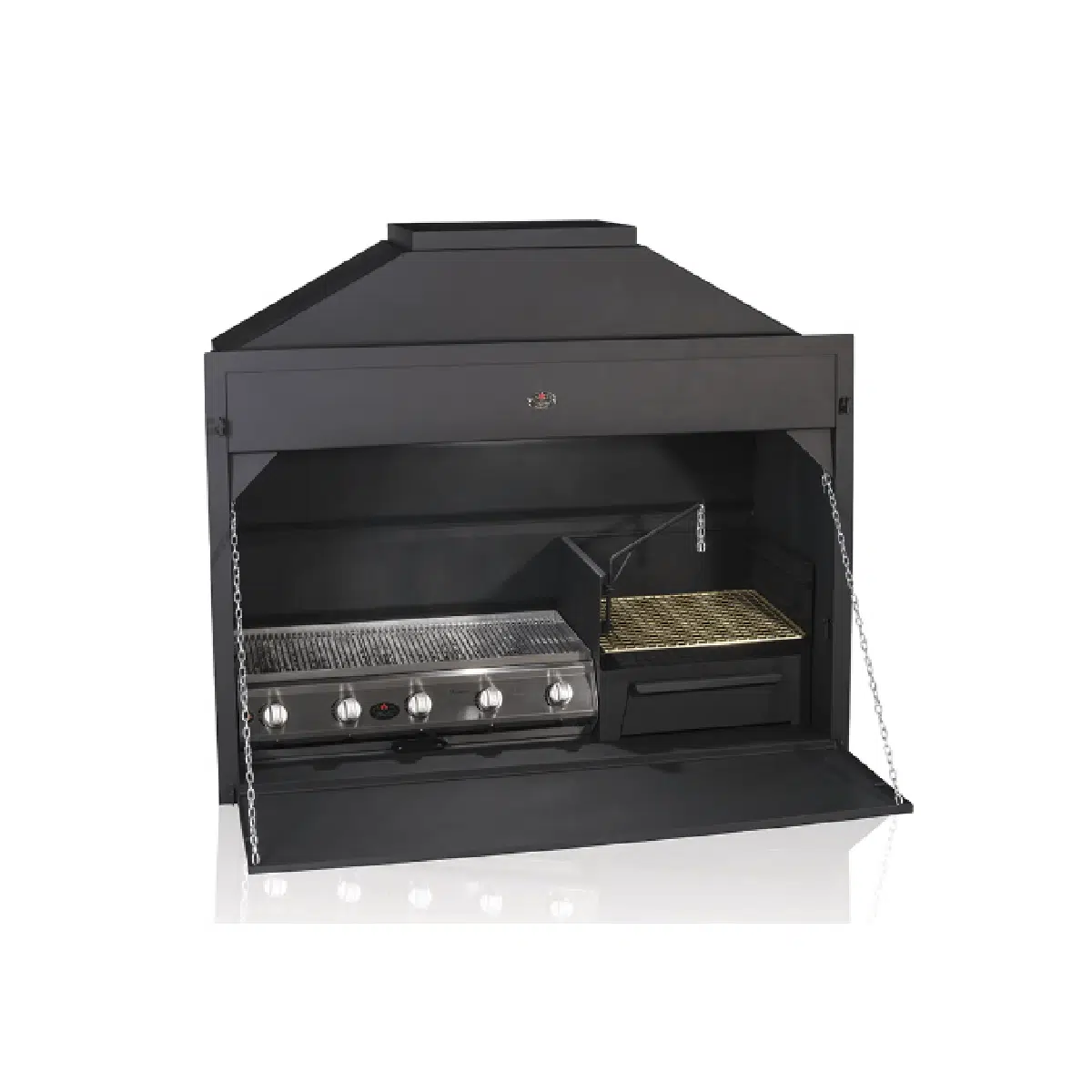

Homefires 1500 Combo Built-in Braai (With 5 burner insert)

Gas for a quick supper, coals for the long weekend, all in one built-in braai.

From: Original price was: R40,120.00.Current price is: R37,799.00.

Save R2,321
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU BRAAIBGAS186+GASBRSH9905FLAT+TABLECOMBO580S

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

TWO FIRES, ONE BRAAI

Gas when you're hungry on the Homefires 1500 Combo 5 Burner Built-in Braai.

On the Homefires 1500 Combo 5 Burner Built-in Braai, light the stainless-steel gas griller for a quick supper, or build a wood or charcoal fire in the table braai when friends stay on. The charcoal grid moves up and down to suit the coals, ash goes into a removable drawer, and a potjie hook waits for something slow. Close the top and bottom doors when done.

  1. Stainless-steel gas grillerModel 9905, five burners
  2. Height-adjustable charcoal grid550 × 460 mm
  3. Removable ash drawerFor an easy clean-up
  4. Potjie hook and light fitting
  5. 3 mm mild-steel shellBlack finish
  6. Installation manualUnder Plan your setup
Homefires 1500 Combo Built-in Braai in a stone-clad wall, a man grilling prawns on the gas griller while a woman brings a tray of drinks

SLOW MORNINGS, GOOD FOOD

Prawns on the gas.
Coals on standby.

Light the gas, lay out the prawns and let a lazy morning roll into lunch. When the afternoon calls for a proper fire, the charcoal side is ready right beside it. One built-in braai, two ways to cook, and a table full of people in no hurry to leave.

The stone-clad wall, counters, table, chairs, plants, food and drinks are not included. Plan the flue, gas connection and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Two ways to cook, one tidy braai.

THE GAS

Supper without waiting for coals.

Use the stainless-steel gas griller for meals without waiting for coals. It is the five-burner 9905 insert, so there is room for a full round on the busy nights.

THE COALS

A grid that moves with the fire.

Raise or lower the charcoal grid to suit the coals, hang a potjie from the hook, and pull out the ash drawer once everything has cooled.

THE DOORS

Neat when the braai is over.

Separate top and bottom doors close the front opening, so the braai looks tidy when it is not in use. The light fitting helps once the sun goes down.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 1500 Combo 5 Burner Built-in Braai dimension drawing, page 1 of 3: front and side views, in millimetres.
Page 1 of 3
Body width × depth
1,540 × 645 mm
Body height, without the gather
1,055 mm
Gather above the body
300 mm
Front frame width × height
1,590 × 1,085 mm
Gather outlet width
600 mm
Open lower door, in front of the body
510 mm
Gas insert width × depth
900 × 500 mm
Table braai width × depth
580 × 480 mm
Charcoal grid width × depth
550 × 460 mm
Material
3 mm mild steel, black

Plan the body, gather and flue together.

The 1,055 mm body height does not include the 300 mm gather or the flue. These are product dimensions, not a building opening, so have your installer check the actual unit, the open door and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 510 in front of the body: keep this space clear.
  • Ask us for the depth of the gather outlet before you order flue parts.
  • The body is 3 mm mild steel with a black finish. The gas griller is stainless steel.
  • Included: separate top and bottom doors, a light fitting, insulation material and touch-up paint.
  • The table braai has a height-adjustable grid, a removable ash drawer and a potjie hook.
  • The flue pipes, the collars and the cowls are separate items.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 1500 Combo Built-in Braai with 5 Burner Insert
  • Built-in braai: a 5-burner gas griller and a model 580 table braai for wood or charcoal
  • 01 FRONT VIEW
  • 600 gather outlet
  • 1,085 frame height
  • 900 gas griller
  • 580 table braai
  • 550 charcoal grid
  • 1,540 body width
  • 1,590 including frame
  • 02 SIDE VIEW
  • 645 body depth
  • 510 door open
  • Front at the right. Lower door open.
  • 300 gather
  • 1,055 body
  • 03 TOP VIEW
  • 600 gather outlet
  • 1,590 including frame
  • Front at the bottom. White: the gather outlet.
  • 04 GAS GRILLER CLEARANCES (SMALLER SCALE)
  • 645 body depth
  • 250 side
  • 250 side
  • 1,500 above the cooking surface
  • 250 back
  • Left: the griller from the front. Right: from the side.
  • No combustible material inside the dashed lines.
  • 05 GAS GRILLER FROM THE FRONT (LARGER SCALE)
  • 900 width
  • 222 high
  • A 5-burner griller, model 9905.
  • 06 GAS GRILLER FROM THE SIDE (LARGER SCALE)
  • 500 depth
  • 222 high
  • Front at the right.
  • 07 TABLE BRAAI FROM THE FRONT (LARGER SCALE)
  • 580 width
  • 430 high
  • 08 TABLE BRAAI FROM ABOVE (LARGER SCALE)
  • 580 width
  • 480 depth
  • 460 grid
  • 550 charcoal grid
  • Front at the bottom.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Leave a 20 mm expansion gap at the sides and back.
  • The minimum chimney height is 2,500 mm.
  • The lower door opens 510 in front of the body: keep this space clear.
  • Ask us for the depth of the gather outlet before you order flue parts.
  • The body is 3 mm mild steel with a black finish. The gas griller is stainless steel.
  • Included: separate top and bottom doors, a light fitting, insulation material and touch-up paint.
  • The table braai has a height-adjustable grid, a removable ash drawer and a potjie hook.
  • The flue pipes, the collars and the cowls are separate items.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 1500 Combo braai with a black 3 mm mild-steel shell and separate top and bottom doors, a stainless-steel 5-burner gas griller (model 9905) and a model 580 table braai for wood or charcoal. The table braai has a height-adjustable grid and a removable ash drawer. A potjie hook, a light fitting, insulation material and touch-up paint come with it. The flue pipe, collar and cowl are optional add-ons.

Which fuel can I use?

Gas on the gas griller, and wood or charcoal in the table braai. Use one side or both, depending on the day.

Which gas does the griller use?

The manual for the 9905 gas insert lists a heat output of 17.5 kW for LPG and for natural gas. That figure is for the gas burners, not for heating a room. Tell us which gas you have before you order, and have an independent gas installer make the connection.

How much cooking space is there?

The charcoal grid is 550 × 460 mm and moves up and down. The gas insert is 900 mm wide and 500 mm deep overall, with five burners. The potjie hook takes a potjie for slow cooking.

Is the flue included?

No. The flue pipe, collar and cowl are optional add-ons that you can choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.

Where does the flue connect?

At the outlet on top of the gather. The gather rises 300 mm above the body, and the outlet is 600 mm wide. Confirm the outlet depth with us before you order flue parts. Homefires' installation guidance gives a minimum chimney height of 2,500 mm.

How much space do I need?

The body is 1,540 mm wide, 645 mm deep and 1,055 mm high, and the gather rises 300 mm above it. The front frame is 1,590 mm wide and 1,085 mm high. Opened, the lower door reaches 510 mm in front of the body. Homefires' guidance leaves a 20 mm expansion gap at the sides and the back. These are product dimensions, not a building opening.

How far must the gas griller be from combustible materials?

Keep 250 mm at the sides, 250 mm at the back and 1,500 mm above the cooking surface. Your installer applies these together with the braai's own installation instructions.

How do I look after it?

Touch-up paint comes with the braai, so you can refresh small marks on the black shell. Empty the ash drawer once the ash is cold, and read the instruction manual for use and care.

Can you help with my setup?

Yes. Send a photo and measurements for a product, gas and flue configuration quote. We do not install, so arrange the installation and the gas connection with an independent installer.
