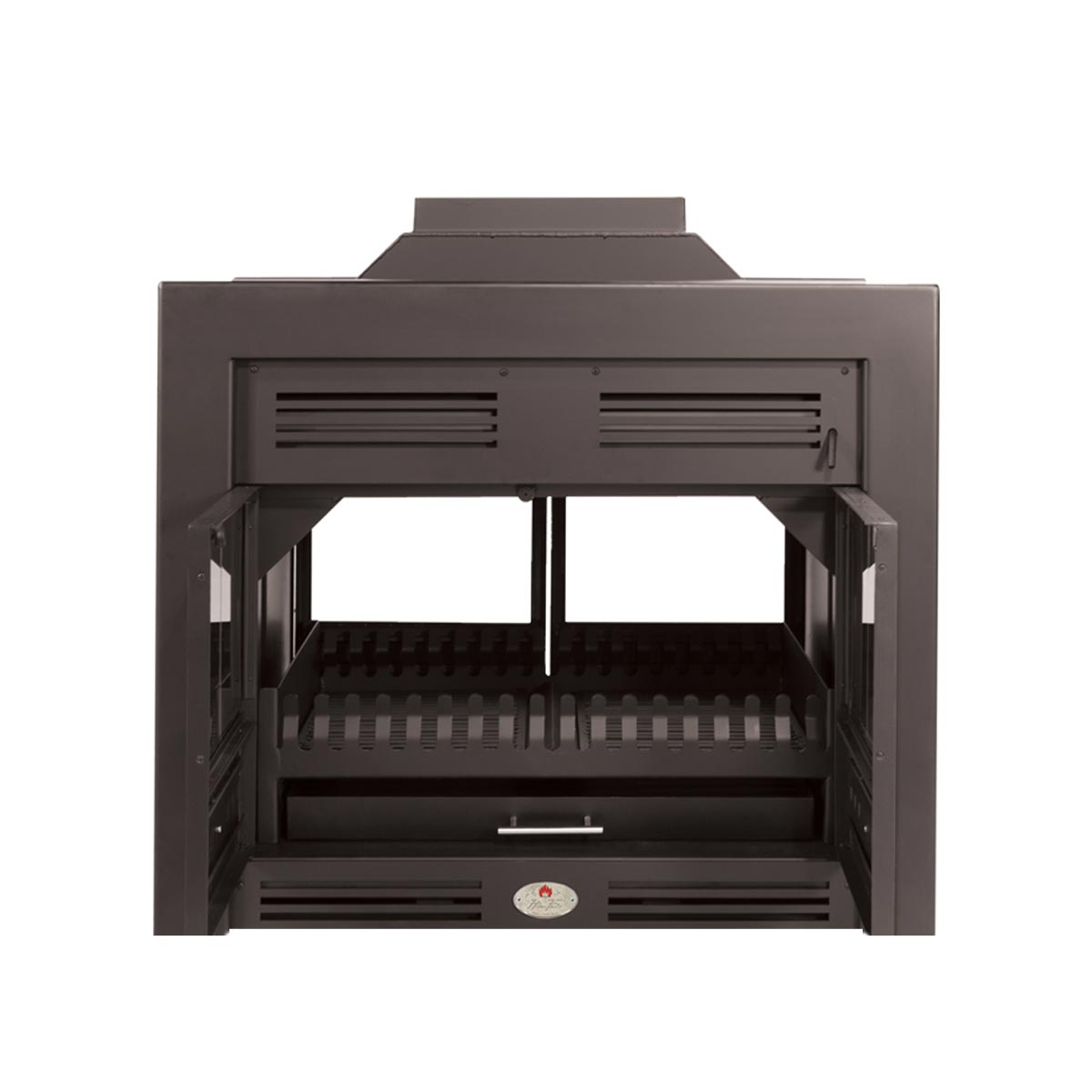

Homefires 800 Double Sided Built-in Fireplace

One open wood fire, shared by two rooms.

From: Original price was: R26,190.00.Current price is: R24,699.00.

Save R1,491
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU F/PLACEB800DUB

In stock Delivery ETA: 5–7 working days

Complete your setup

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE 800 DOUBLE SIDED

The Homefires 800 Double-sided Fireplace gives one fire two faces.

The Homefires 800 Double-sided Fireplace is built into a wall with a face on each side, so one open fire shows in two spaces. Burn wood or anthracite on the fire grate, set the built-in damper and let natural convection spread the warmth. The standard unit is black mild steel, the ash drops into the ash drawer, and touch-up paint keeps the finish fresh.

  1. Open on both facesBuilt in, double-sided
  2. Fire grate, grid and ash drawer
  3. Built-in damper and natural convection system
  4. Insulation material and touch-up paint
  5. Black mild steelThe standard finish
  6. Installation manualUnder Plan your setup
Homefires 800 double-sided fireplace alight in a brick dividing wall of a barn-style home, two friends cooking in the kitchen seen behind the fire

AN OPEN-PLAN AFTERNOON

Someone's cooking.
The fire's already going.

Through the flames, the kitchen is busy: something on the go, fresh herbs on the counter and two friends chatting over it all. On the lounge side, the couch is ready for later. The 800 puts one fire between both spaces, so nobody misses out on the glow.

The brick wall, kitchen, furniture, rug and décor are not included. Plan the flue, the wall and the clearances with an independent installer.

A LITTLE PRACTICAL THINKING

One fire, planned for two rooms.

THE FIRE

Wood or anthracite.

Burn wood or anthracite on the fire grate, and use the built-in damper to manage the fire. The ash drops into the ash drawer, ready to empty once it is cold.

THE HEAT

Natural convection, built in.

A natural convection system is built in. The 800 has a listed heating volume of 180 m³, so send us your room sizes and we will check them with you.

THE FLUE

Flue parts in the 300 × 400 size.

The outlet on top of the gather measures 395 × 305 mm. The flue parts on this page use the 300 × 400 nominal size: pipes in 1,200 mm and 2,400 mm lengths, collars and a rotating cowl.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 800 Double-sided Fireplace dimension drawing, page 1 of 2: front, side and top views and flue, in millimetres.
Page 1 of 2
Body width × depth
920 × 595 mm
Body height, without the gather
755 mm
Gather above the body
195 mm
Frame width × height
990 × 835 mm
Outlet width × depth
395 × 305 mm
Nominal flue size
300 × 400 mm
Fuel
Wood or anthracite
Material
Black mild steel

Plan the body, gather and flue together.

The 755 mm body height does not include the 195 mm gather on top, or the flue. These are product sizes, not the masonry opening: leave a 20 mm expansion gap at the sides and back, and have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Plan the wall, the hearth and the clearances for both faces with your installer.
  • Leave a 20 mm expansion gap at the sides and back of the body.
  • The minimum chimney height is 3.6 m. Keep the metal flue at least 200 mm from wood trusses.
  • Included: a fire grate, a grid, an ash drawer, a built-in damper and a natural convection system.
  • Also included: insulation material, touch-up paint and a guarantee certificate.
  • The heating volume is 180 m³.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 800 Double Sided Built-in Fireplace
  • Built-in fireplace: open on both faces, in black mild steel, for wood or anthracite
  • 01 FRONT VIEW, BOTH FACES
  • 395 gather outlet
  • 835 frame height
  • 920 body width
  • 990 including frame
  • 02 SIDE VIEW
  • 305 outlet depth
  • 595 body depth
  • 195 gather
  • 755 body
  • A fire face at the left and at the right.
  • 03 TOP VIEW
  • 395 gather outlet
  • 305 outlet depth
  • 990 including frame
  • A fire face at the top and at the bottom. White: the gather outlet.
  • 04 FLUE PIPES, SOLD SEPARATELY (SMALLER SCALE)
  • 595 body depth
  • 400 flue size
  • 300
  • The flue pipe from above.
  • Flue pipes, collars and
  • the rotating cowl
  • are options.
  • 1,200 short pipe
  • 2,400 long pipe
  • 05 CLEARANCES FROM THE FRONT (SMALLER SCALE)
  • 450 mantel
  • 300 side
  • 300 side
  • Keep a heat-sensitive mantel or shelf at least 450
  • above the hot-air outlet. Keep other heat-sensitive
  • material at the sides at least 300 away.
  • 06 HEARTH FROM ABOVE (SMALLER SCALE)
  • 350 front
  • 350 front
  • 200 side
  • 200 side
  • Dashed: the edge of the hearth.
  • The hearth extends at each fire face and at the sides.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Plan the wall, the hearth and the clearances for both faces with your installer.
  • Leave a 20 mm expansion gap at the sides and back of the body.
  • The minimum chimney height is 3.6 m. Keep the metal flue at least 200 mm from wood trusses.
  • Included: a fire grate, a grid, an ash drawer, a built-in damper and a natural convection system.
  • Also included: insulation material, touch-up paint and a guarantee certificate.
  • The heating volume is 180 m³.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 800 double-sided built-in fireplace in black mild steel, with a fire grate, a grid, an ash drawer, a built-in damper system and a natural convection system. Insulation material, touch-up paint and a guarantee certificate come with it. The flue pipes, collars and rotating cowl are options, sold separately.

Is it open on both sides?

Yes. The 800 is a built-in, double-sided open fireplace, so the fire shows on both faces. It is vented, so it needs a flue. Plan the wall, the hearth and the clearances for both faces with an independent installer.

Which fuel does it burn?

Wood or anthracite, on the fire grate.

How much heat does it give?

The 800 double-sided has a listed heating volume of 180 m³. We do not have a heat output rating for this model, so send us your room sizes and we will check them with you before you order.

Is the flue included?

No. The 300 × 400 flue pipes (1,200 mm and 2,400 mm lengths), collars and a rotating cowl with slip-on base are options that you choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts for your setup.

Where does the flue connect?

At the outlet on top of the gather, 395 × 305 mm. The gather rises 195 mm above the body, and the flue parts use the 300 × 400 nominal size. It needs a chimney at least 3.6 m high; your installer confirms the height for your roof. Your installer must follow the installation manual that comes with the unit.

How much space does it need?

The body is 920 mm wide, 595 mm deep and 755 mm high, and the gather rises 195 mm above it. The frame is 990 mm wide and 835 mm high. These are product sizes, not the masonry opening. Have your installer check the actual unit and safe clearances before building.

What clearances does it need?

Leave a 20 mm expansion gap between the sides and back of the body and the brickwork. Keep heat-sensitive materials at the sides 300 mm away, and keep a mantel at least 450 mm above the hot-air outlet. The manual has the full instructions.

What hearth does it need?

Extend the hearth at least 350 mm in front of the fireplace and at least 200 mm at the sides. Keep the metal flue at least 200 mm from wood trusses. Your independent installer confirms the details for your building.

Can I get it in stainless steel?

The standard unit is black mild steel. Bodies in 3CR12 or 304 stainless steel are special orders, not this standard model: ask us for a quote.

What does the guarantee cover?

A guarantee certificate comes with the fireplace. Ask us for the full Homefires guarantee terms before you order.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
