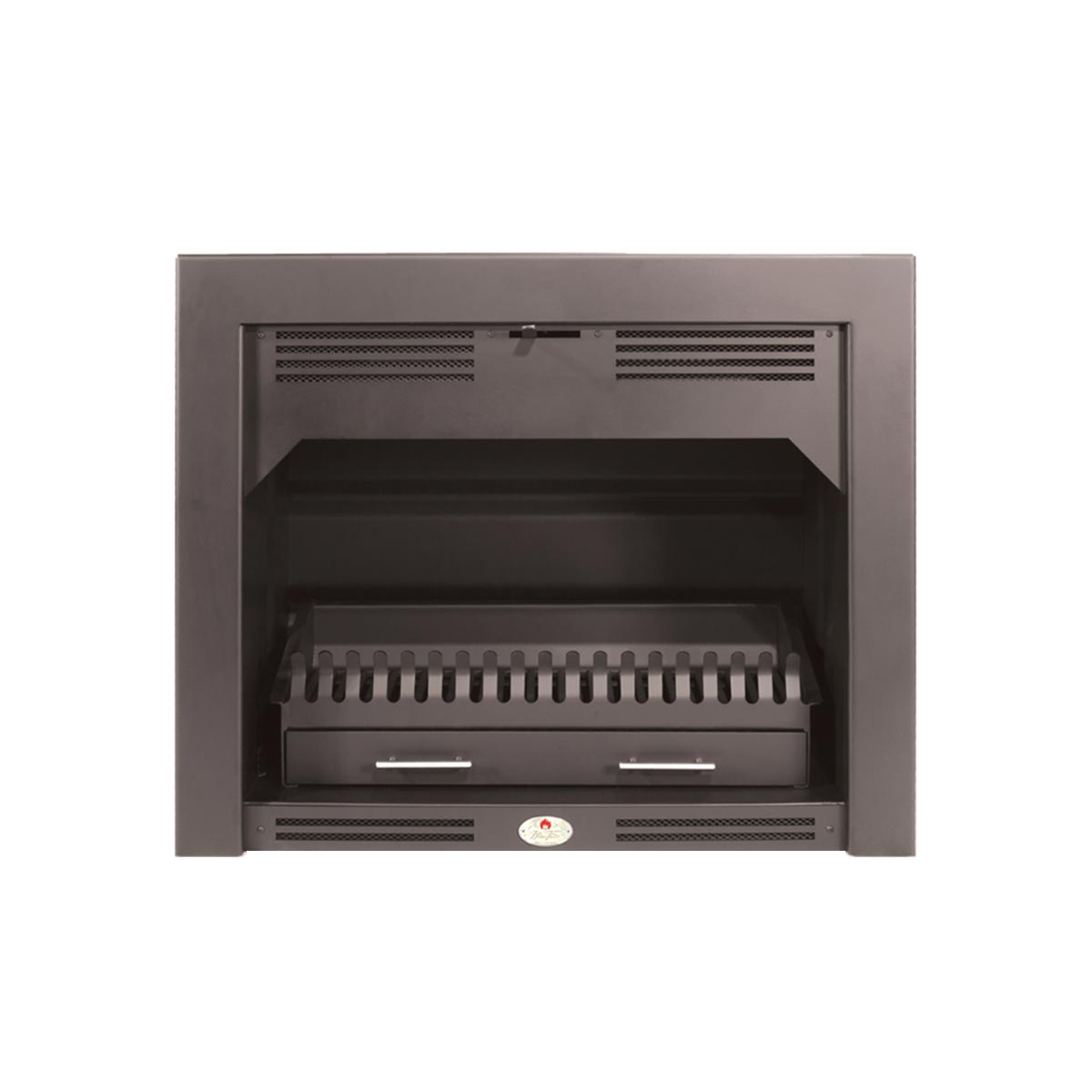

Homefires 850 Built-in Fireplace New Shape

An open fireplace with a flat top, made to slide into an existing cavity.

Original price was: R18,170.00.Current price is: R17,099.00.

Save R1,071
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU F/PLACEB850MSSQ

In stock Delivery ETA: 5–7 working days

Complete your setup

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE 850 NEW SHAPE

The flat-top Homefires 850 New Shape Built-in Fireplace is an easier fit.

The Homefires 850 New Shape Built-in Fireplace has a flat-top casing, so it slides more easily into an existing cavity. Burn wood or anthracite on the fire grate, set the built-in damper and let the natural convection system spread the warmth. The ash drops into the ash drawer, the black mild-steel trim plate is detachable and touch-up paint keeps it fresh.

  1. Flat-top casingFor existing cavities
  2. Fire grate, grid and ash drawer
  3. Built-in damper and natural convection system
  4. Detachable trim plateBlack mild steel
  5. Insulation material and touch-up paint
  6. Installation manualUnder Plan your setup
Homefires 850 New Shape alight in a face-brick chimney breast in the evening, with a tiled hearth, two leather armchairs and a coffee table in front

EVENINGS IN THE LOUNGE

Pull the armchairs closer.

The day is done, the lamps are low and the logs are burning bright in the face-brick wall. Two armchairs, a warm glow and nowhere else to be. Built into the chimney breast, the 850 New Shape turns a quiet evening into the best part of the day.

The face-brick chimney breast, tiled hearth, firewood, furniture and décor are not included. Plan the hearth, flue and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Plan the hearth and the flue early.

THE FIRE

Wood or anthracite.

Burn wood or anthracite on the fire grate and use the built-in damper to manage the fire. It is a fireplace, not a braai: don't prepare food in it.

THE HEAT

Natural convection, built in.

A natural convection system is built in. The 850 has a listed heating volume of 140 m³, so send us your room sizes and we will check them with you.

THE FLUE

Flue parts in the 420 × 220 size.

The outlet opening on top measures 430 × 230 mm. The flue parts on this page use the 420 × 220 nominal size: a flue pipe, a collar and a fixed or rotating cowl.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

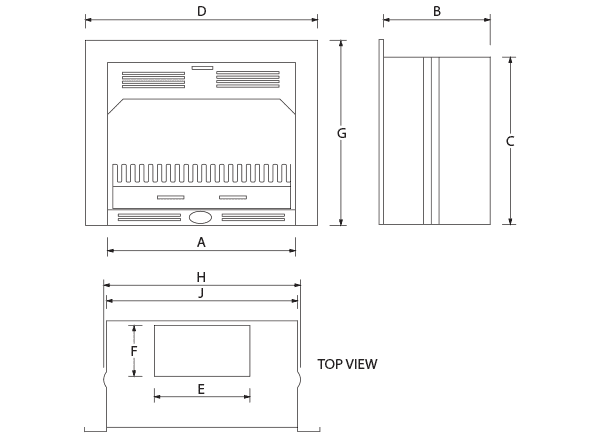

Homefires 850 New Shape Built-in Fireplace dimension drawing, page 1 of 2: front, side and top views, in millimetres.
Page 1 of 2
Front width (A)
845 mm
Casing depth × height (B, C)
480 × 755 mm
Trim plate width × height (D, G)
1,045 × 835 mm
Top width, outside (H)
885 mm
Top width, inside (J)
860 mm
Outlet opening width × depth (E, F)
430 × 230 mm
Nominal flue pipe size
420 × 220 mm
Minimum chimney height
3,600 mm
Fuel
Wood or anthracite
Trim plate
Black mild steel, detachable

Leave room around the casing.

The casing is 755 mm high and 480 mm deep, behind a 1,045 × 835 mm trim plate. These are product sizes, not the masonry opening: leave a 20 mm expansion gap at the sides and back, and have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The flat-top casing fits into an existing cavity. The black mild steel trim plate comes off.
  • Leave a 20 mm expansion gap at the sides and back of the casing.
  • The minimum chimney height is 3.6 m. Keep the metal flue at least 200 mm from wood trusses.
  • Included: a fire grate, a grid, an ash drawer, a built-in damper and a natural convection system.
  • Also included: insulation material, touch-up paint and a guarantee certificate.
  • Burn wood or anthracite. Do not prepare food in the fireplace. The heating volume is 140 m³.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 850 Built-in Fireplace New Shape
  • Built-in open fireplace for wood or anthracite: flat-top casing and a black mild steel trim
  • 01 FRONT VIEW
  • 835 trim height
  • 845 front
  • 1,045 trim width
  • 02 SIDE VIEW
  • 755 casing height
  • 480 depth
  • Front at the left. The top is flat.
  • 03 TOP VIEW
  • 885 top, outside
  • 860 top, inside
  • 430 outlet
  • 230 outlet
  • 480 depth
  • Front at the bottom, at the trim. White: the flue outlet.
  • 04 FLUE PIPE FROM ABOVE (SMALLER SCALE)
  • 420 flue pipe
  • 220
  • The nominal flue pipe size.
  • Flue pipes, collars and the cowl
  • are sold separately.
  • 05 CLEARANCES FROM THE FRONT (SMALLER SCALE)
  • 450 mantel
  • 300 side
  • 300 side
  • Keep a heat-sensitive mantel or shelf at least 450
  • above the hot-air outlet. Keep other heat-sensitive
  • material at least 300 from the front edges.
  • 06 HEARTH FROM ABOVE (SMALLER SCALE)
  • 350 front
  • 200 side
  • 200 side
  • Dashed: the edge of the hearth. Front at the bottom.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The flat-top casing fits into an existing cavity. The black mild steel trim plate comes off.
  • Leave a 20 mm expansion gap at the sides and back of the casing.
  • The minimum chimney height is 3.6 m. Keep the metal flue at least 200 mm from wood trusses.
  • Included: a fire grate, a grid, an ash drawer, a built-in damper and a natural convection system.
  • Also included: insulation material, touch-up paint and a guarantee certificate.
  • Burn wood or anthracite. Do not prepare food in the fireplace. The heating volume is 140 m³.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The 850 New Shape built-in fireplace with its detachable black mild-steel trim plate, a fire grate, a grid, an ash drawer, a built-in damper system and a natural convection system. Insulation material, touch-up paint and a guarantee certificate come with it. The flue pipe, collar and cowl are options, sold separately.

Which fuel does it burn?

Wood or anthracite, on the fire grate. Ask us before you plan to burn anything else. It is a fireplace, not a braai: don't prepare food in it.

How much heat does it give?

The 850 New Shape has a listed heating volume of 140 m³. That is a room-volume guide, not a heat output, and we do not have a kW rating for this model. Send us your room sizes and we will check them with you before you order.

Will it fit my existing cavity?

The New Shape has a flat-top casing for easier insertion into existing cavities. The front is 845 mm wide, the casing 480 mm deep and 755 mm high, and the top 885 mm wide outside. Send us a photo and the sizes of your cavity, and have your installer confirm the fit, with a 20 mm expansion gap at the sides and back.

Is the flue included?

No. The 420 × 220 flue pipe, the collar and a fixed or rotating cowl are options that you choose on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts for your setup.

Where does the flue connect?

At the outlet opening on top of the casing, 430 × 230 mm. The flue parts use the 420 × 220 nominal size. It needs a chimney at least 3.6 m high; your installer confirms the height for your roof. Your installer must follow the installation manual that comes with the unit.

What clearances does it need?

Leave a 20 mm expansion gap between the sides and back of the casing and the brickwork. Keep heat-sensitive materials at the sides 300 mm away, and keep a heat-sensitive shelf or mantel at least 450 mm above the hot-air outlet. The manual has the full instructions.

What hearth does it need?

Extend the hearth at least 350 mm in front of the fireplace and at least 200 mm at the sides. Keep the metal flue at least 200 mm from wood trusses, with the insulation the manual describes. Your independent installer confirms the details for your building.

What does the guarantee cover?

A guarantee certificate comes with the fireplace. Ask us for the full Homefires guarantee terms before you order.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
