THE GAS
LPG, matched to the burner.
This bundle has the LPG coal gas grate. The gas you connect must match the burner and its data plate. Home Fires also makes a natural-gas version, so ask us before you order if your home runs on natural gas.
Sale!
HomeFires Built-in 940 Firebox Vent Free Fireplace
A built-in gas fire on a coal-finish grate, with no flue connection.
Original price was: R19,690.00.R18,299.00Current price is: R18,299.00.
Save R1,391In stock Delivery ETA: 5–7 working days
About your fireplace
- Gas
- LPG · at most 0.64 kg/hr
- Included
- Firebox body with black mild-steel façade, and the LPG coal gas grate (model 700)
- Not included
- Gas supply and connection, building work and installation
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE 940
A coal-finish fire, built into the wall.

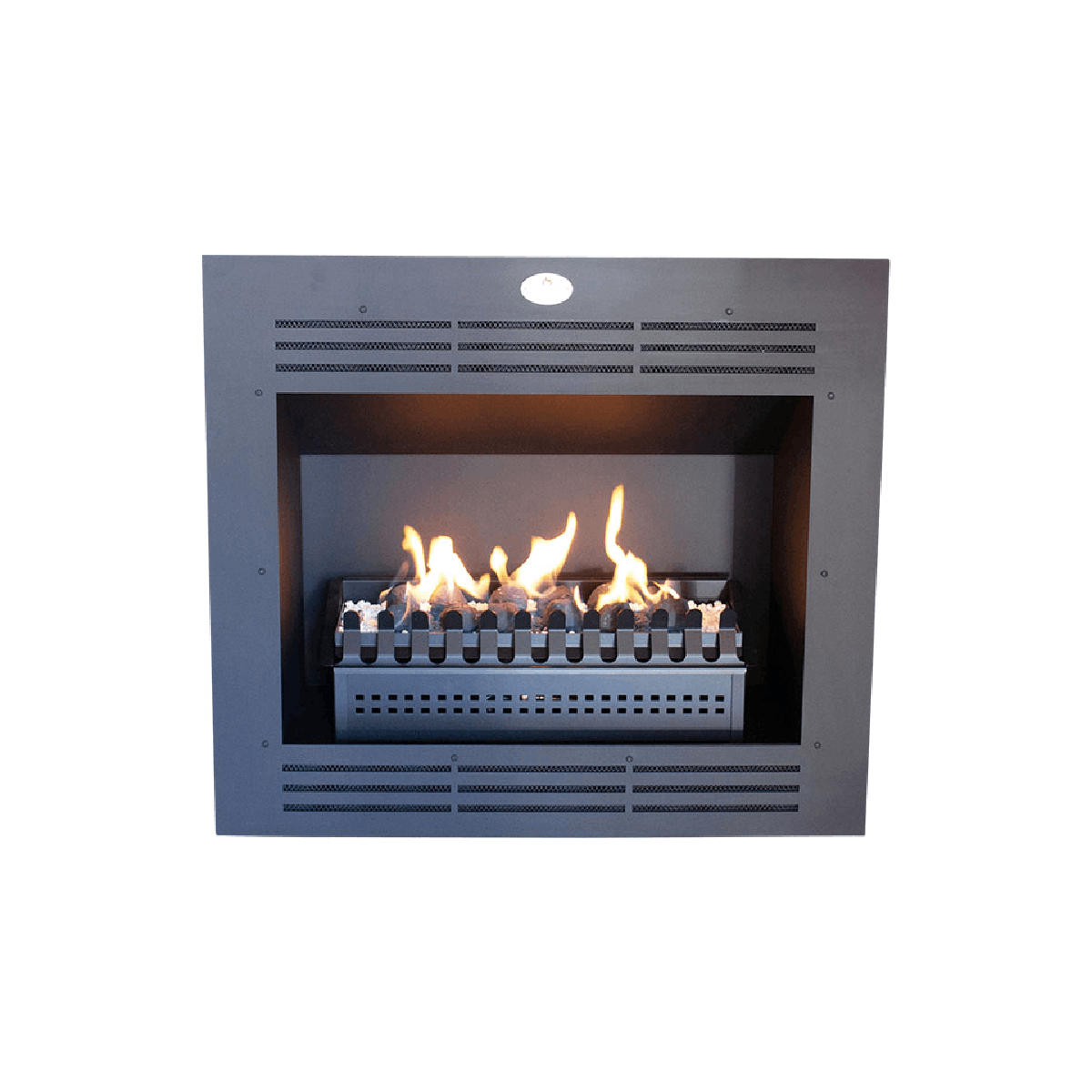

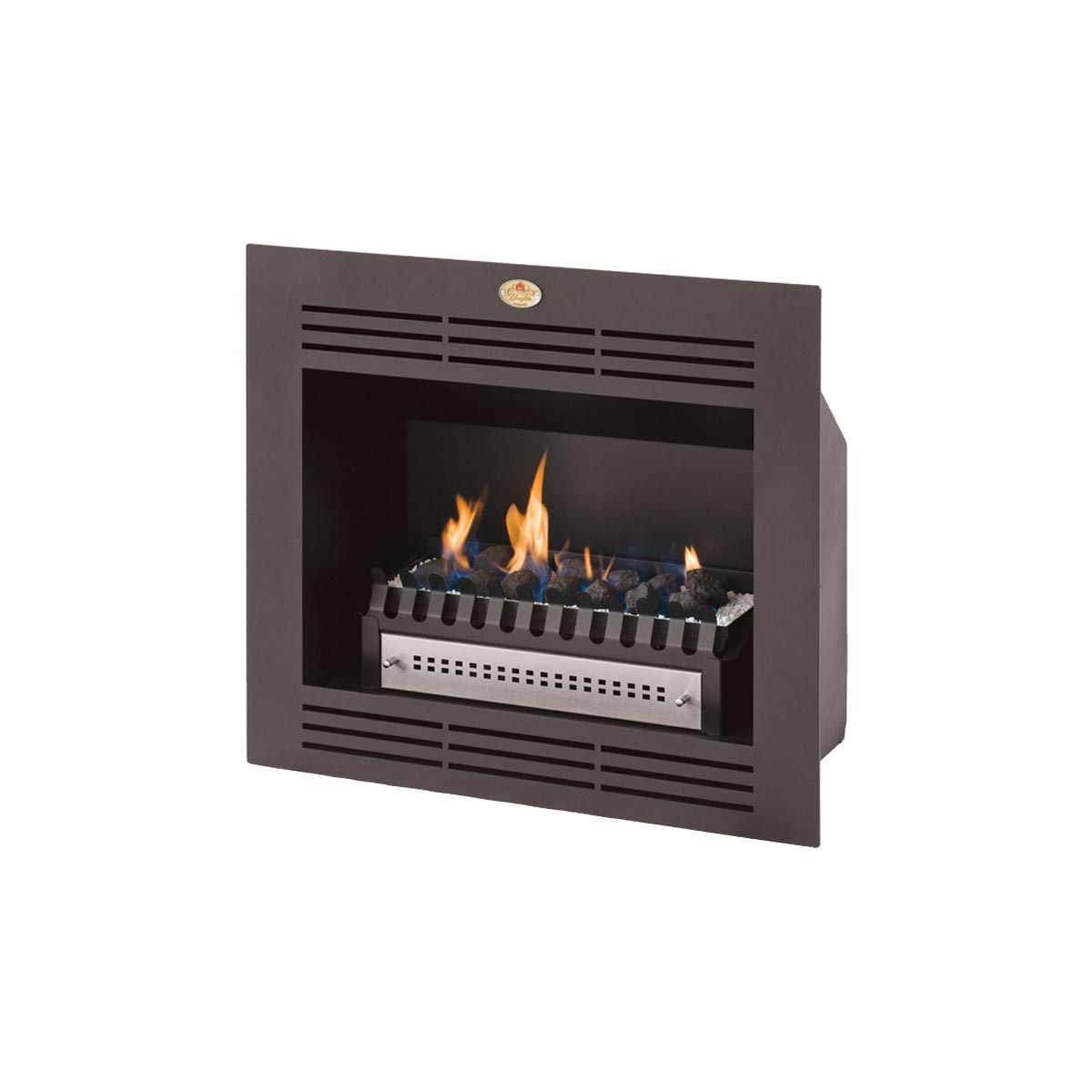

The 940 is a single-sided, vent-free gas firebox that builds into a wall. Its mild-steel housing and façade come in black, and the coal-finish gas grate, model 700, sits in the open firebox. This bundle has the LPG burner. Home Fires also makes a natural-gas version, so ask us if that suits your home better.
Ask us to confirm the minimum room size and ventilation for your room before you order.
- Coal-finish gas grateModel 700, for LPG
- Open, vent-free fireboxNo flue connection
- Mild-steel housing and façadeBlack finish
- Gas grate size650 mm wide, 270 mm deep, 200 mm high
- Maximum gas use0.64 kg/hr with this grate
GAME TIME BY THE FIRE
Your move.
A board game on the table, mugs of something warm and the fire glowing in the stone wall. There are no logs to fetch and no flue in the way, so the afternoon stays all about the game. Whoever loses makes the next round of tea.
The stone feature wall, furniture and décor are not included. Plan the gas connection, room size and ventilation with an independent, qualified gas installer.
A LITTLE PRACTICAL THINKING
Plan the gas and the room first.
THE ROOM
Vent free, so check the room.
The firebox is vent free, with no flue connection. Ask us to confirm the minimum room size and ventilation for your room before you order, and have a qualified gas installer check them on site.
THE GRATE
A coal-finish fire bed.
The model 700 coal gas grate is 650 mm wide, 270 mm deep and 200 mm high, and uses at most 0.64 kg of gas an hour.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Façade width × height
- 940 × 835 mm
- Body width × depth
- 760 × 410 mm
- Body height, at the front
- 730 mm
- Body height, at the back
- 475 mm
- Flat top depth, before the slope
- 100 mm
- Façade overhang, each side
- 90 mm
- Façade overhang, top / bottom
- 75 / 30 mm
- Gas grate width × depth
- 650 × 270 mm
- Gas
- LPG
- Material
- Mild steel, black finish
The façade overlaps the body.
The 940 mm façade overlaps the 760 mm body by 90 mm on each side, 75 mm at the top and 30 mm at the bottom. These are product sizes, not a masonry recess, so have your installer check the actual unit before building.
The drawing as text
- Home Fires 940. All dimensions in mm.
- Front: façade width B 940 mm
- Front: façade height A 835 mm
- Side: body depth C 410 mm
- Side: body height D 730 mm
- Side: rear height E 475 mm
- Side: flat top depth H 100 mm
- Side: façade top overhang J 75 mm
- Side: façade bottom overhang K 30 mm
- Body plan: body width F 760 mm
- Body plan: façade side overhang G 90 mm
- Coal gas grate: width 650 mm, height 200 mm, depth 270 mm
- Opening, vent slots and curved contours are illustrative.
GOOD TO KNOW
Plan your setup.
Plan the gas connection, the room and the wall with a qualified gas installer before you order.
What is included?
The HomeFires 940 vent-free gas firebox, with its black mild-steel housing and façade, and the coal-finish gas grate, model 700, for LPG. The gas supply, the gas connection, building work and installation are not included.
Which gas does it use?
This bundle has the LPG burner (supplier code GASGRA700VFC). Home Fires also makes a natural-gas version. The gas you connect must match the burner and its data plate, so ask us before you order if your home runs on natural gas.
Does it need a flue?
No. The 940 is an open, vent-free firebox with no flue connection. Ask us to confirm the minimum room size and ventilation for your room before you order.
How much gas does it use?
At most 0.64 kg of gas an hour with this coal gas grate.
How much heat does it give?
We do not have a confirmed kW rating or room size for this firebox, so the Output Calculator has no figure for it. Send us your room sizes and we will check them with Home Fires before you order.
How much space do I need?
The façade is 940 mm wide and 835 mm high. The body behind it is 760 mm wide and 410 mm deep, 730 mm high at the front and 475 mm high at the back, where the top slopes down. These are product sizes, not a masonry recess. Have your installer check the actual unit and the opening before building.
How big is the gas grate?
The model 700 coal gas grate is 650 mm wide, 270 mm deep and 200 mm high.
Where can it go?
It is made for a single-sided, built-in installation into a wall.
What about the guarantee?
Ask us for Home Fires' current guarantee terms for this firebox and grate before you order.
Can you help with my setup?
Yes. Send a photo and measurements of your wall for a product quote. We do not install, so arrange the installation and the gas connection with an independent, qualified gas installer.
