THE SPIT
Let the motor do the turning.
The chicken and sheep spits run on a heavy-duty 220 V electric motor, so the roast turns while you see to the guests. A qualified electrician wires the motor and the light, and both must be earthed.
Sale!

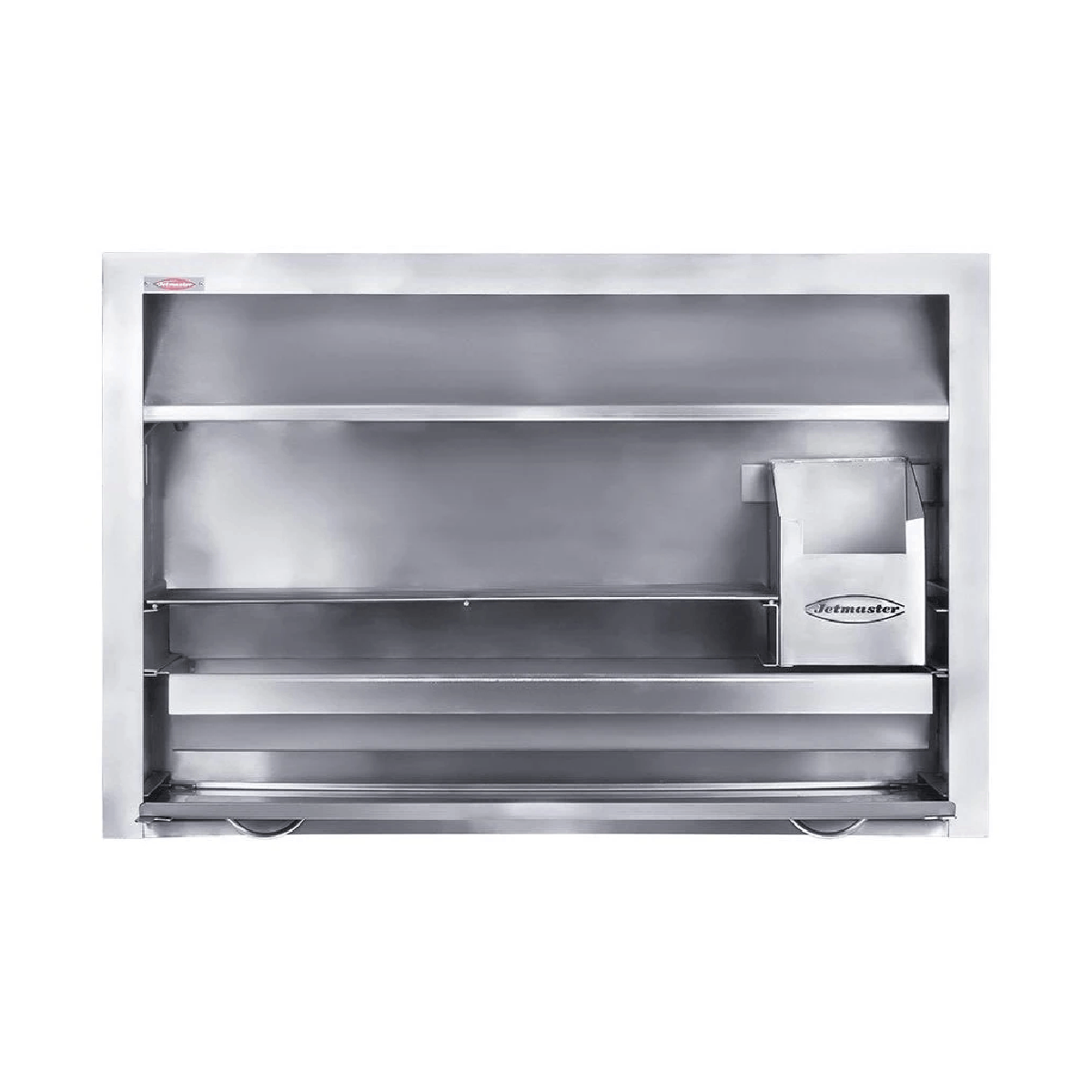

Jetmaster 1500 Super Deluxe Stainless Steel Built-in Braai (made to order)
A big stainless-steel braai with its own spit motor, made to order for your wall.
Original price was: R109,309.00.R88,999.00Current price is: R88,999.00.
Save R20,310Made to order Delivery ETA: 15–20 working days
About your braai
- Spit roasting
- Chicken and sheep spits on a heavy-duty 220 V motor
- Included
- Door, charcoal tray and starter, potjie arm, light fitting, ash and warming drawers
- Not included
- Flue, electrical work, building work and installation
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE WHOLE MENU, ONE FIRE
Spit, potjie and braai.
All in one wall.
Put a chicken or lamb on the spit and let the heavy-duty motor do the turning. Get the coals going in the adjustable charcoal starter, hang a potjie from the swivel arm and keep the first round warm in the warming drawer. The light fitting takes a conventional bulb for late suppers, and the ash has its own drawer, so clean-up stays simple.
This braai is made to order. We confirm the current list of what comes with it when you order.
- Heavy-duty 220 V electric spit motorTurns the chicken and sheep spits
- Adjustable charcoal starterWith a charcoal tray
- Slide-in-and-under reinforced doorWith a handle bar
- Warming and utensil drawerPlus an ash disposal drawer
- 304 stainless-steel firebox and smoke gatherA heavy-duty combination
- Installation manualUnder Plan your setup
LONG AFTERNOONS, GOOD COMPANY
Pour the wine.
The coals are nearly ready.
Boerewors and ribs over the coals, a glass of red in hand and friends in no hurry to leave. Built into your wall, a Super Deluxe makes the braai the heart of the afternoon, with the spit and the potjie arm ready for the days when the crowd grows.
The scene shows a Super Deluxe of this design at this braai's size. The brick wall, counter, firewood, furniture, food and drinks are not included. Plan the gather, flue and clearances with an independent installer.
MADE FOR THE WHOLE AFTERNOON
Keep the spit turning.
THE COALS
Coals started, coals kept.
Light charcoal in the adjustable charcoal starter and spread the coals on the charcoal tray. Swing the suspension arm over the fire and hang a potjie from its hook for something slow.
THE DRAWERS
Ash out. Utensils in.
Ash goes into the ash disposal drawer, and the warming and utensil drawer keeps the tongs and the first round close. The reinforced door slides in and under when you open it.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Width including front frame
- 1,600 mm
- Body height, without the gather
- 935 mm
- Gather outlet width × depth
- 500 × 350 mm
- Round flue diameter, nominal
- 475 mm
- Flue section length
- 1,200 mm
- Minimum chimney flue length
- 2,000 mm
- Side clearance to combustibles
- 200 mm
- Top clearance to combustibles
- 450 mm
- Maximum face recess
- 150 mm
- Material
- 304 stainless steel
Ask us for the body depth before you build.
The front frame is 1,600 mm wide and the body 935 mm high, without the gather. Ask us for the body width and depth before you build. These are product dimensions, not a building opening: have your installer check the actual unit and safe clearances.
The drawing as text
- ALL SIZES IN MILLIMETRES
- Jetmaster 1500 Super Deluxe Stainless Steel Built-in Braai
- Built-in braai: 304 stainless steel, with a spit motor box, a charcoal starter and two drawers
- 01 FRONT VIEW
- 500 gather outlet
- 935 body height
- 1,600 including frame
- Door slid in and under. Spit motor box at the left.
- 02 SIDE VIEW
- 350 outlet depth
- 935 body height
- Front at the right.
- The body height does not include the gather.
- Dashed: the spit motor box.
- 03 TOP VIEW
- 500 gather outlet
- 1,600 including frame
- Front at the bottom. White: the gather outlet.
- 04 FACE RECESS (SMALLER SCALE)
- 350 outlet depth
- 150 at most
- Front at the right.
- The face of the braai sits
- at most 150 behind the face
- of the brickwork or plaster.
- 05 CLEARANCES (SMALLER SCALE)
- 200 side
- 200 side
- 450 top
- Braai box from the front, without the gather.
- No combustible material inside the dashed line,
- unless that material is insulated.
- 06 FLUE SECTION, SOLD SEPARATELY (SMALLER SCALE)
- Ø475 round flue
- 1,200 flue section
- The gather outlet is rectangular:
- 500 by 350. The flue is round.
- Ask us which flue parts fit
- before you order.
- The minimum chimney flue length
- is 2,000 mm.
- PLANNING NOTES
- These are product sizes, not a building-opening size. Ask us for the opening size before you build.
- Ask us for the body width, the body depth and the gather height before you build.
- Ask us which cooking grid comes with your braai, and its size, before you order.
- Support the braai mainly along its bottom side and back edges.
- The body and the gather need fibreglass insulation and an expansion joint.
- A qualified electrician must do the electrical work. The light and the 220 V spit motor must be earthed.
- Included: chicken and sheep spits, the spit motor, a charcoal tray and an adjustable charcoal starter.
- Also included: a light fitting, a swivel arm with a potjie hook, an ash drawer and a warming and utensil drawer.
- The reinforced door has a handle bar and slides in and under.
GOOD TO KNOW
Plan your setup.
Read your installation manual before you plan, and book a qualified electrician for the spit motor and the light.
What is included?
The 1500 Super Deluxe, made to order in 304 stainless steel: the heavy-duty firebox and smoke gather, a slide-in-and-under reinforced door with a handle bar, a charcoal tray, an adjustable charcoal starter, a swivel suspension arm with a potjie hook, a light fitting for a conventional bulb, an ash disposal drawer, a warming and utensil drawer, and chicken and sheep spits with a heavy-duty 220 V motor.
Is the flue included?
No, the flue is separate. Its sections are round, with a nominal diameter of 475 mm and a length of 1,200 mm, and the gather outlet is rectangular, 500 × 350 mm. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.
How tall must the chimney be?
The minimum chimney flue length is 2,000 mm. Your independent installer plans the flue route and the final height for your building.
Does it need an electrician?
Yes. A qualified electrician must do the electrical work for the 220 V spit motor and the light fitting, and both must be earthed. Plan it with your installer before the wall goes up.
How much space do I need?
The front frame is 1,600 mm wide and the body is 935 mm high, without the gather. Ask us for the body width and depth and the gather height before you build. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.
How close can it be to combustible materials?
Without extra insulation, keep combustible materials at least 200 mm from the sides of the braai box and 450 mm above it. Adequate extra insulation can change this, so let your installer decide. The braai can sit at most 150 mm behind the masonry face.
How is it built in?
Support the braai mainly along its bottom side and back edges. The body and the gather need fibreglass insulation and an expansion joint. Your independent installer follows the installation manual under Plan your setup.
Which fuel does it use?
It is set up for charcoal, with a charcoal tray and an adjustable charcoal starter. Ask us before you braai over wood.
Which cooking grid comes with it?
Grids differ between configurations. Ask us which grid comes with your made-to-order braai, and its size, before you order.
What does the guarantee cover?
Ask us for the current Jetmaster guarantee terms for this braai before you order.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer, and the electrical work with a qualified electrician.
