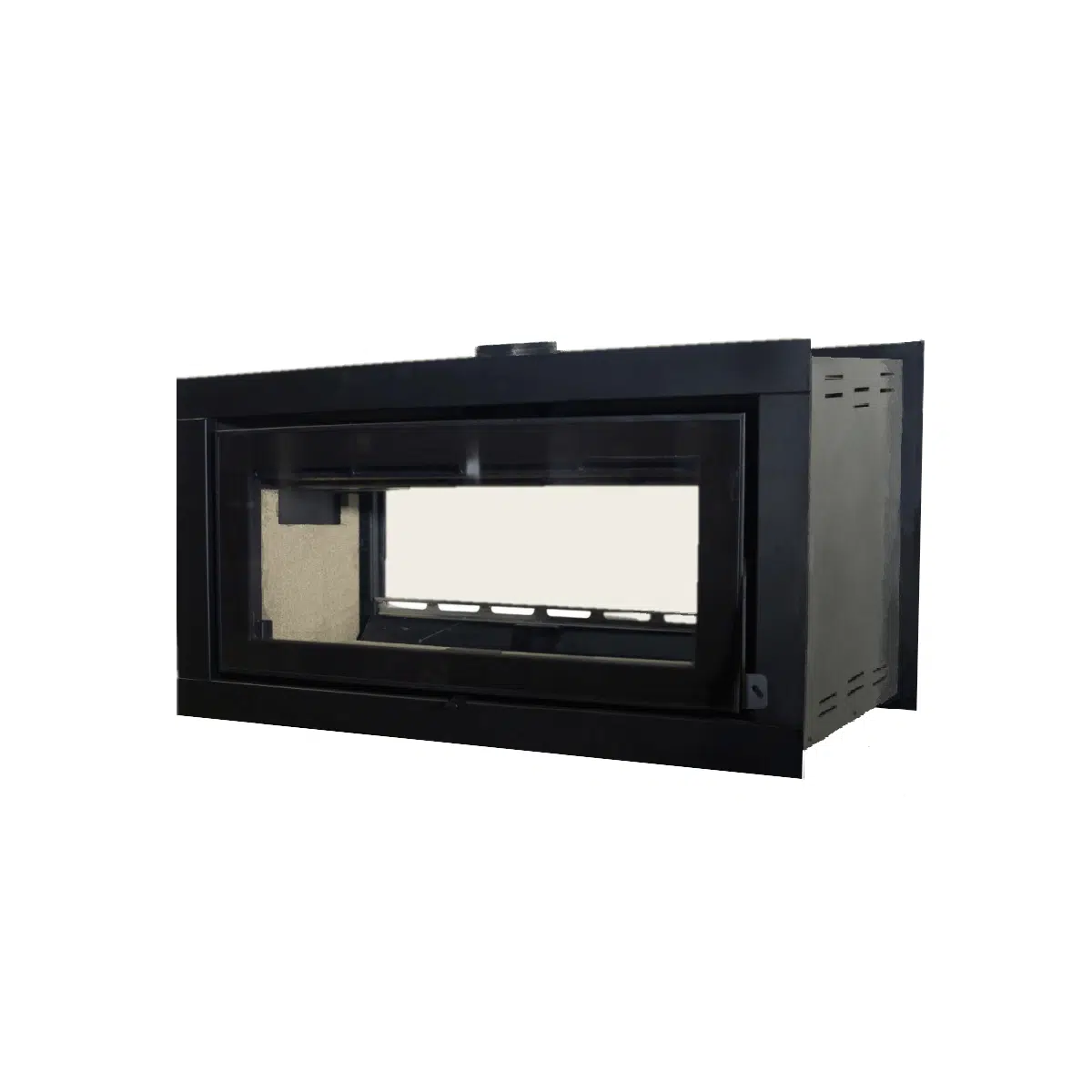

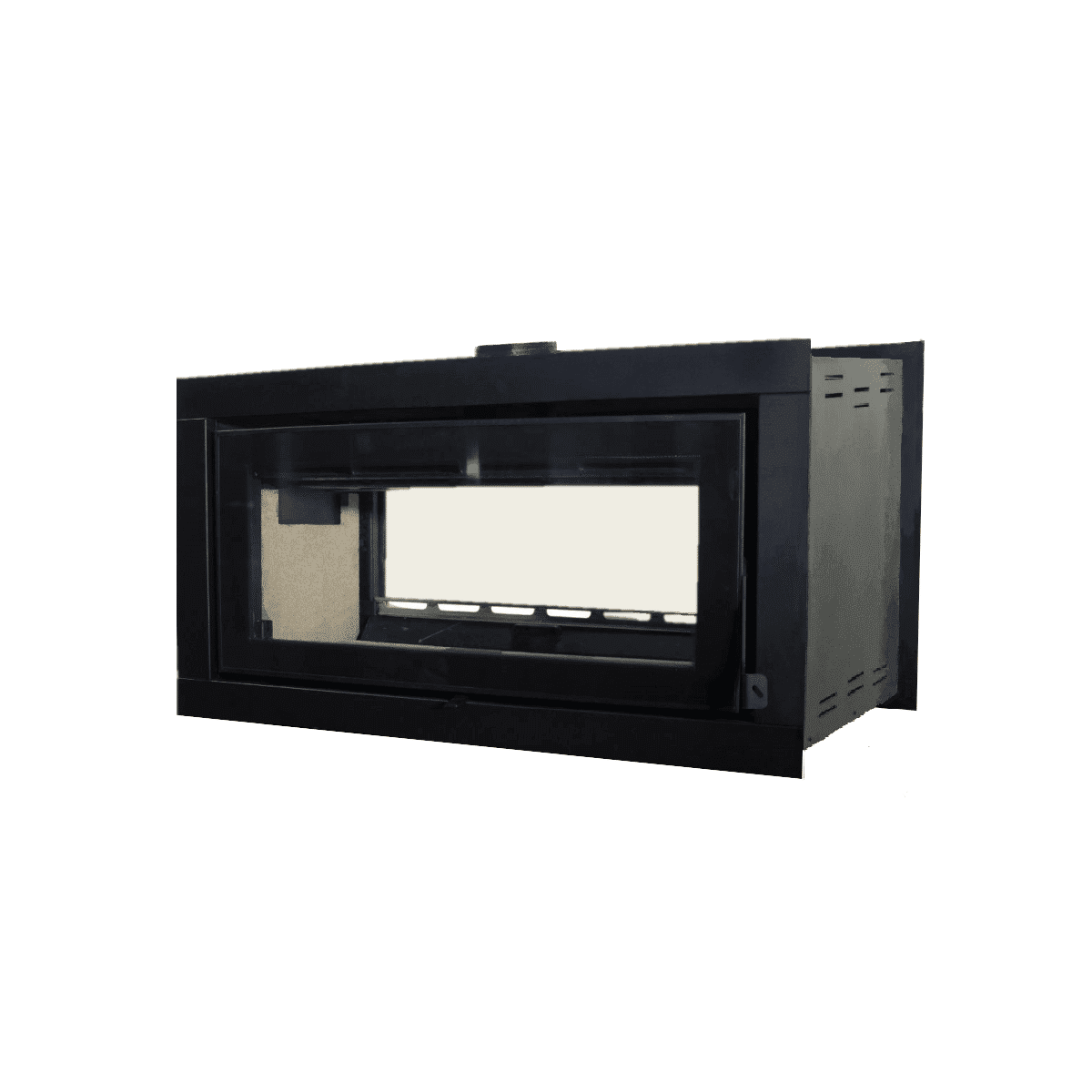

Jetmaster FIRESCAPE 1060 Slow Combustion Double Sided Freestanding Fireplace without Log Box

A fire with glass on both sides, ready to share between two living spaces.

Original price was: R55,610.00.Current price is: R52,599.00.

Save R3,011
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU 40200015

In stock Delivery ETA: 5–7 working days

Complete your setup

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE FIRE, FRONT AND BACK

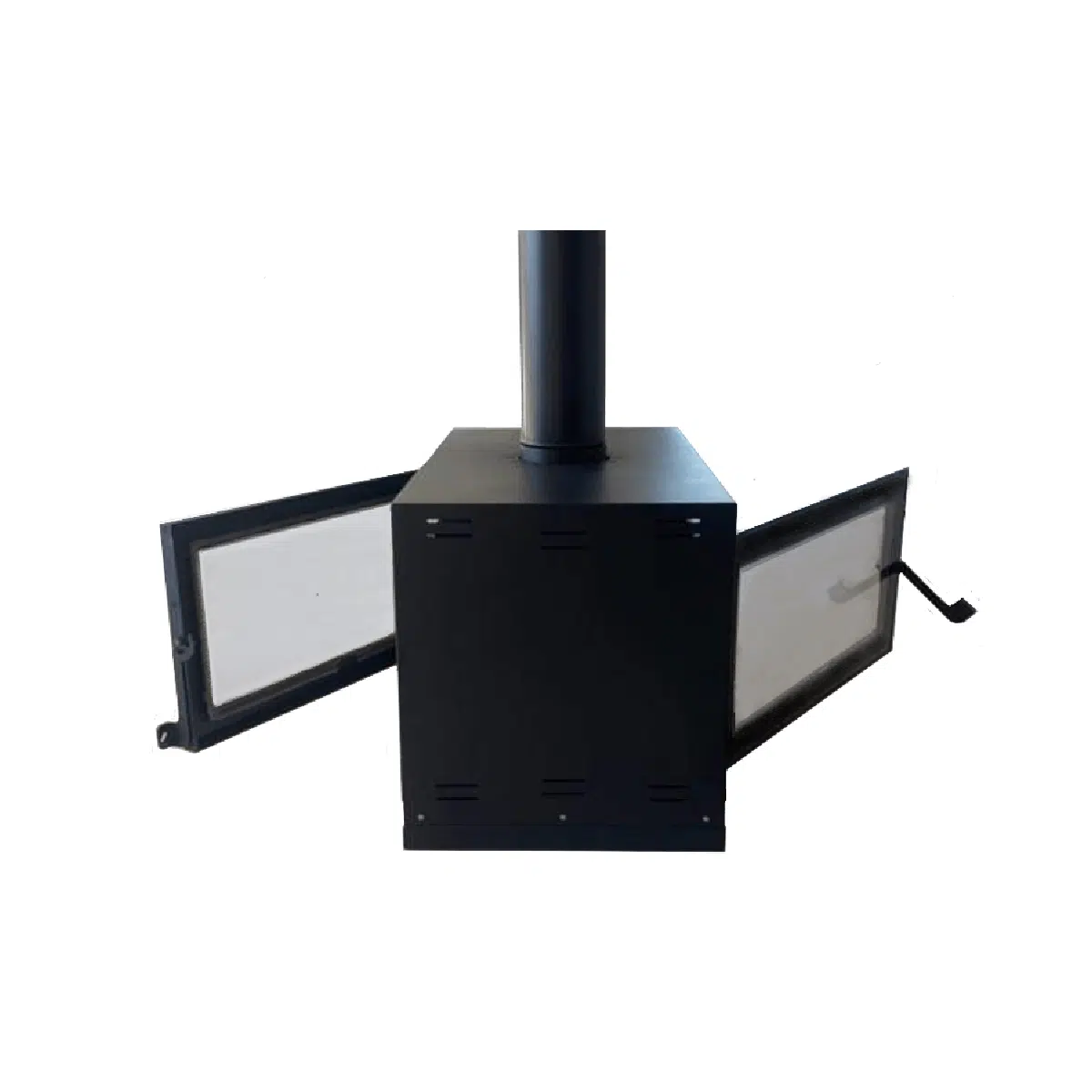

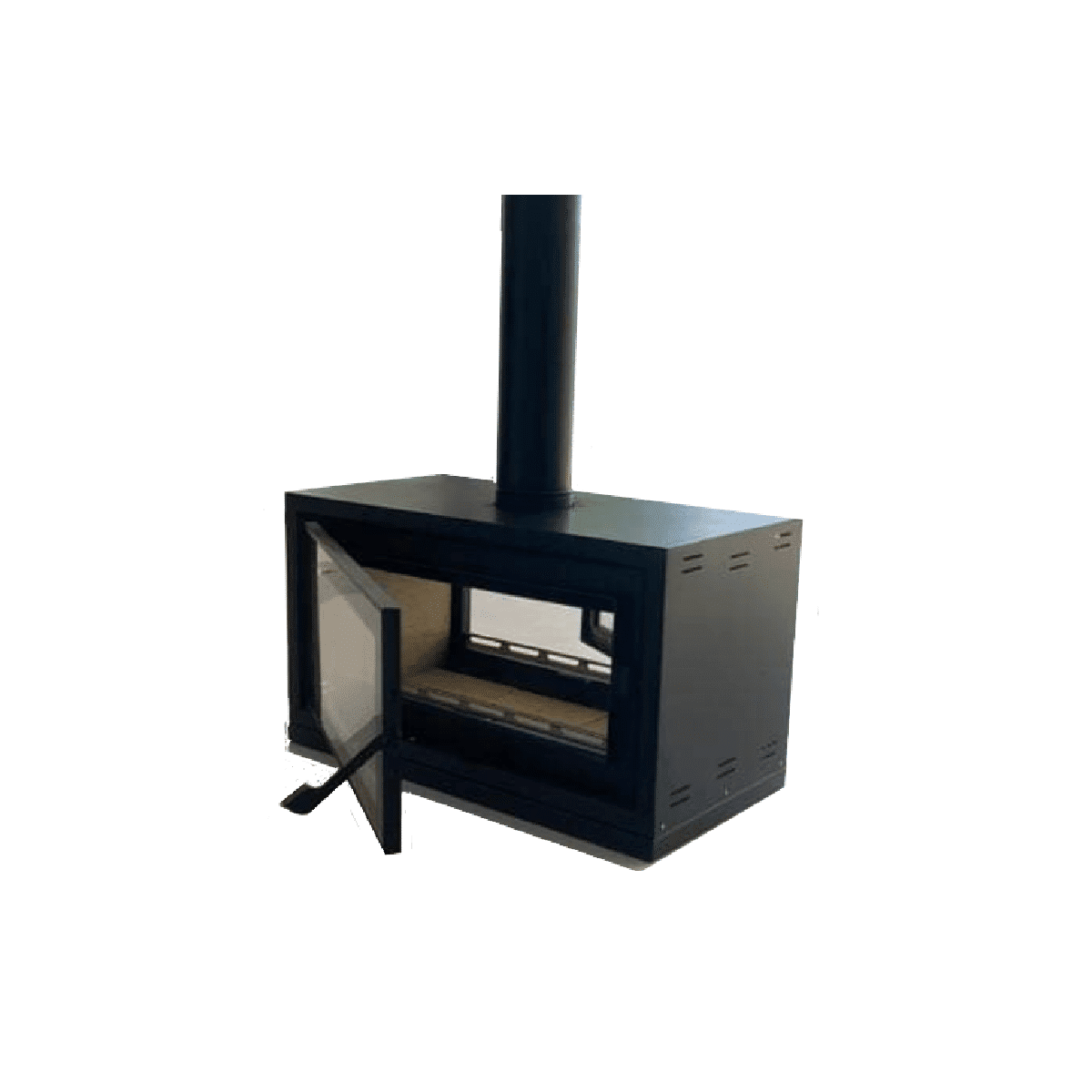

Glass on both sides of the Firescape 1060 Double-sided Freestanding.

The Firescape 1060 Double-sided Freestanding puts the fire on show from both sides, through glass on its front and back. Vermiculite boards line the firebox, and the listed heat output is 17 kW. This version comes without a log box, so you decide with your installer what it stands on and where it sits in the room.

  1. Glass on both sidesSee the fire from either side
  2. Vermiculite inner boardsLine the firebox
  3. 17 kW listed heat outputUsed by the Output Calculator
  4. No log boxPlan the base with your installer
Jetmaster Firescape 1060 double-sided fireplace on a concrete plinth in an open-plan farmhouse, a woman with coffee on the couch, a man reading behind

SLOW AFTERNOONS IN

A fire between the lounge and the table.

Coffee on the couch, the paper at the table and the flames glowing in between. The glass on both sides lets the fire belong to the whole room, so the afternoon drifts from lunch to the couch without anyone missing the view.

The plinth, hearth plate, furniture, plants and firewood are not included. The flue pipe is an option, and an independent installer fits the flue.

A LITTLE PRACTICAL THINKING

Plan the base, the heat and the flue.

THE HEAT

Start with your room.

The listed heat output is 17 kW. The Output Calculator on this page uses that figure to compare the fireplace with your room. Use the result as a guide when you plan.

THE BASE

Plan what it stands on.

This version comes without a log box, so you choose what the fireplace stands on. Plan the base and the safe clearances with an independent installer before the building work starts.

THE FLUE

Plan the flue with the room.

The fireplace takes a 175 mm round flue (nominal size), and each separate flue section is 1,200 mm long. The 175 mm stainless steel flue pipe is an option on this page. Send a photo and measurements, and we confirm the flue parts for your setup.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing

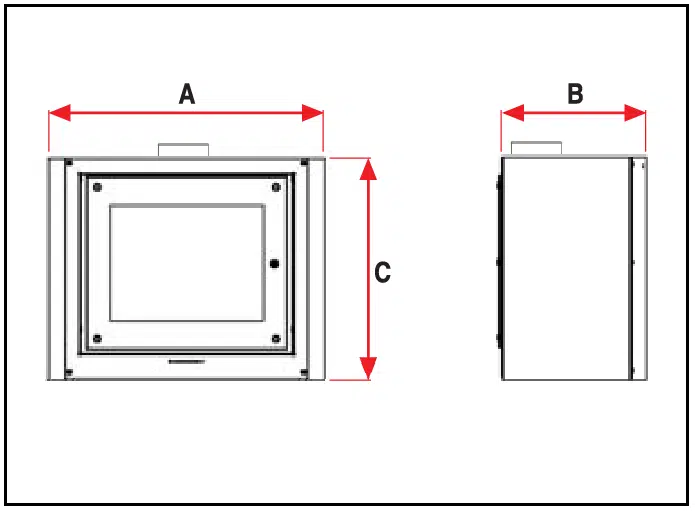

Firescape 1060 Double-sided Freestanding dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Body width × depth
1,085 × 581 mm
Body height
587 mm
Round flue diameter (nominal)
175 mm
Flue section length, each
1,200 mm
Lining
Vermiculite inner boards
Heat output
17 kW
Log box
Not included

Plan the fireplace, its base and the flue together.

The fireplace body is 1,085 mm wide, 581 mm deep and 587 mm high, without the frame, collar and handles, and it takes a 175 mm round flue (nominal size). These are product dimensions, not clearances, so have your installer check the actual unit, the base and safe clearances.

Planning notes

  • These are body sizes, not clearances. They leave out the frame, the collar and the handles.
  • Have your installer check the actual unit, the base and the safe clearances.
  • This version comes without a log box, so plan the base it stands on with your installer.
  • It takes a 175 round flue (nominal size).
  • Have an independent installer plan the height, support, roof exit and any bends.
  • The flue pipe, cowl and escutcheon plate are options, and installation is not included.
  • Send a photo and measurements for a product and flue configuration quote.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Jetmaster Firescape 1060 Double Sided
  • Freestanding wood fireplace: slow combustion, glass on both sides, without a log box
  • 01 FRONT VIEW
  • 1,085 body width
  • 587 body height
  • A glass door on the front and on the back.
  • 02 SIDE VIEW
  • 581 body depth
  • A glass door at the left and at the right.
  • 03 TOP VIEW
  • 1,085 body width
  • 581 body depth
  • A glass door at the top and at the bottom.
  • 04 FLUE SECTION (SMALLER SCALE)
  • 175 round flue
  • 1,200 flue section
  • Each separate section.
  • Sold as an option.
  • PLANNING NOTES
  • These are body sizes, not clearances. They leave out the frame, the collar and the handles.
  • Have your installer check the actual unit, the base and the safe clearances.
  • This version comes without a log box, so plan the base it stands on with your installer.
  • It takes a 175 round flue (nominal size).
  • Have an independent installer plan the height, support, roof exit and any bends.
  • The flue pipe, cowl and escutcheon plate are options, and installation is not included.
  • Send a photo and measurements for a product and flue configuration quote.

GOOD TO KNOW

Plan your setup.

Plan the base, the flue and the safe clearances with your installer before the fireplace goes in.

What is included?

The Firescape 1060 double-sided fireplace module with its vermiculite inner boards. It comes without a log box. The 175 mm stainless steel flue pipe is an option that you choose on this page. Ask us for the cowl and the ceiling plate. Installation is not included.

How much heat does it give?

The listed heat output is 17 kW, and the Output Calculator on this page uses 17 kW to compare the fireplace with your room. The published heating range is up to 260 m². Treat that as a guide, not a promise: your room, ceilings and insulation decide the result.

Is there a log box?

No. This version comes without a log box, so plan the base it stands on with your installer.

Which flue does it need?

A 175 mm round flue (nominal size). Each separate flue section is 1,200 mm long. Have an independent installer plan the height, support, roof exit and any bends. We confirm the flue parts for your setup with your quote.

Are the flue pipe and cowl included?

No. The 175 mm stainless steel flue pipe is an option that you choose on this page. Ask us for the cowl and the ceiling plate. Send a photo and measurements for a product and flue configuration quote. A slow-combustion fireplace needs a stainless steel flue, so the flue options on this page are stainless steel.

How much space do I need?

The body is 1,085 mm wide, 581 mm deep and 587 mm high. These sizes leave out the frame, the collar and the handles, and they are not clearances. Have your installer check the actual unit, the base and the safe clearances.

What does the guarantee cover?

The fireplace box has a 5-year Jetmaster guarantee from the invoice date against defects in materials and workmanship, with normal domestic use and maintenance. Flue pipes and cowls have 12 months; rust, discolouration and fair wear and tear are not covered. Parts that wear in use, such as the vermiculite boards, rope seals, door handles and glass, are not covered, and the installation must follow the manual. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
