Jetmaster Pro Universal 700 Double-sided with Log Pan (Fire use)

One fire, two faces: a built-in open fireplace with a log pan for your logs.

Original price was: R15,766.00.Current price is: R14,899.00.

Save R867
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU 40211420

Made to order Delivery ETA: 15–20 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

ONE FIRE, TWO FACES

Jetmaster Pro Universal 700 Double-sided.
Logs on the pan.

The Jetmaster Pro Universal 700 Double-sided is a built-in open fireplace that is open at both faces, so the fire shows on each side of the wall. Logs sit on the log pan, the damper control helps you manage the fire, and the mild-steel body gives convection and radiated heat. Lekker for long winter evenings, whichever side you pick.

  1. Open at both facesA frame on each face
  2. Log panComes with this version
  3. Damper controlManage the fire
  4. Convection and radiated heatMild-steel body
  5. Wood or charcoalGas is a separate version
  6. Installation manualUnder Plan your setup
Jetmaster Pro Universal 700 Double-sided with logs on the log pan, in a plaster column between two rooms, as a couple with wine relax on a couch nearby

THE MIDDLE OF THE HOUSE

A fire you can see from both rooms.

The table is set on one side, the couch is taken on the other, and the logs are burning low on the pan between them. Pour a glass, pull up a blanket and watch the flames with the whole house in view. A double-sided fire has a way of turning two rooms into one long, easy evening.

The plaster wall, logs, couch, tables, food, drinks, dining room and décor are not included. Plan the wall, the flue and the clearances for both faces with an independent installer.

THINK ABOUT BOTH SIDES

Two faces, one flue.

THE HEAT

7 kW on wood.

The listed figures are 7 kW on wood and a heating capacity of 100 m². Our Output Calculator uses 7 kW to compare the fireplace with your room. The body gives convection and radiated heat.

THE LOG PAN

Your logs have a place to sit.

This version comes with a log pan, so the fire is ready for logs from the first evening. Planning around the pan? Ask us for the log pan size first, and we will confirm it for you.

THE FLUE

Start square, finish round.

The rectangular flue section is 300 × 300 mm. A flue adapter to a 350 mm round flue, flue pipe in 1,200 mm lengths and a rotating cowl are options on this page. Ask us for the flue position before you build.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Jetmaster Pro Universal 700 Double-sided dimension drawing, page 1 of 2: front, side and top views and flue, in millimetres.
Page 1 of 2
Body width × depth
750 × 600 mm
Body height, without the gather
683 mm
Gather above the body
225 mm
Add to the width for the frame
100 mm
Rectangular flue width × depth
300 × 300 mm
Round flue diameter (option)
350 mm
One length of round flue
1,200 mm
Insulation, existing masonry recess
25 mm
Fuel
Wood or charcoal
Material
Mild steel

Plan the body, gather, flue and both faces together.

The 683 mm body height does not include the 225 mm gather or the flue, and you add 100 mm to the width for the frame. These are product sizes, not a building opening, so ask us for the opening size and have your installer check both faces and safe clearances.

Planning notes

  • Comes with a log pan. Ask us for the log pan size before you plan around it.
  • For the width including the frame, add 100 mm.
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Ask us for the frame height and projection and the flue position: we confirm them with Jetmaster.
  • In an existing masonry recess, allow 25 mm all round for insulation.
  • The adaptor, flue, cowls, screens and ceramic blanket are listed as separate accessories.
  • The gas grate belongs to the gas version. It is not part of this wood fireplace.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Jetmaster Pro Universal 700 Double-sided with Log Pan
  • Double-sided built-in open fireplace for wood or charcoal
  • 01 FRONT VIEW
  • Damper
  • Log pan
  • 300 rectangular flue
  • 225 gather
  • 683 body height
  • 750 body width
  • 02 SIDE VIEW
  • 300 rectangular flue
  • 600 body depth
  • Open at both faces. A frame on each face.
  • 03 TOP VIEW
  • 750 body width
  • 600 body depth
  • Open at the top and bottom edges. White: the flue outlet.
  • 04 FLUE ACCESSORIES
  • 300 width
  • 300 depth
  • 350 diameter
  • Rectangular flue
  • Round flue
  • 1,200 length
  • One length of round flue
  • 05 GAS GRATE (OPTION)
  • 690 width
  • 510 depth
  • PLANNING NOTES
  • Comes with a log pan. Ask us for the log pan size before you plan around it.
  • For the width including the frame, add 100 mm.
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • Ask us for the frame height and projection and the flue position: we confirm them with Jetmaster.
  • In an existing masonry recess, allow 25 mm all round for insulation.
  • The adaptor, flue, cowls, screens and ceramic blanket are listed as separate accessories.
  • The gas grate belongs to the gas version. It is not part of this wood fireplace.

GOOD TO KNOW

Plan your setup.

Read your installation manual before you plan the wall, both faces and the flue.

Read the instruction manual

What is included?

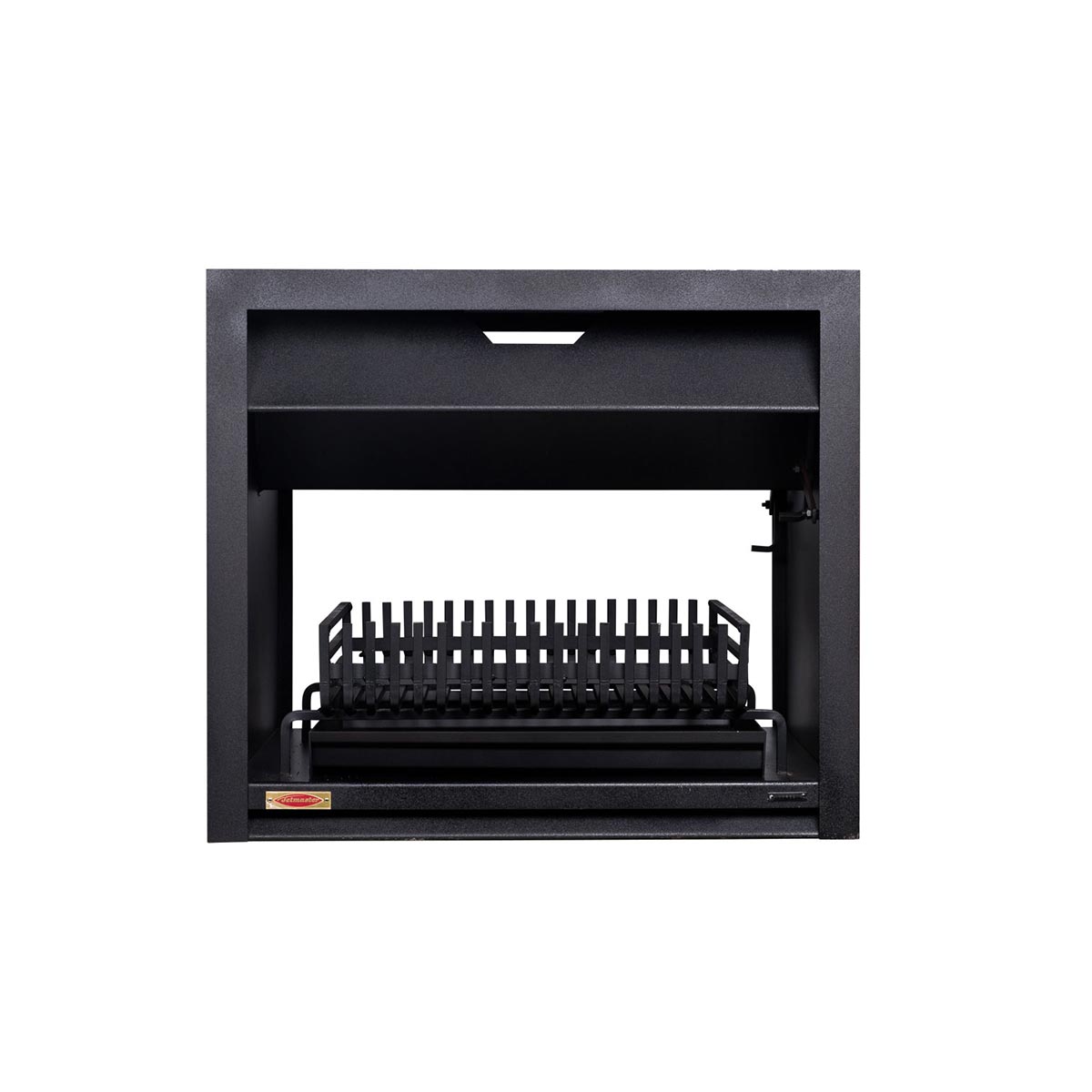

The main unit: a built-in, double-sided open fireplace in mild steel with damper control and a log pan. The front-view photo shows the same body with a basket grate, but this version comes with the log pan. The flue adapter, round flue pipe, rotating cowl and insulation blanket are options on this page. Ask us to confirm the full parts list for your order.

Is it open on both sides?

Yes. It is open at both faces, with a frame on each face, so the fire shows on each side of the wall. Plan the wall, the flue and the clearances for both faces with an independent installer.

Which fuel can I use?

Wood or charcoal. This is the solid-fuel version. Gas options are separate versions, so the gas grate on our drawing is not part of this fireplace. Ask us if you would rather burn gas.

How much heat does it give?

The listed figures are 7 kW on wood, not marked as nominal or maximum, and a heating capacity of 100 m². Our Output Calculator uses 7 kW when it compares the fireplace with your room. The body gives convection and radiated heat.

What size is the log pan?

Ask us for the log pan size before you plan around it, and we will confirm it for you. The pan comes with this version, so you do not need to choose one on this page.

Is the flue included?

No. The adaptor, flue, cowls, screens and ceramic blanket are listed as separate accessories. A flue adapter, round flue pipe, rotating cowl and insulation blanket are options on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the parts for your setup.

What size is the flue?

The rectangular flue section is 300 × 300 mm and the round flue diameter is 350 mm. One length of round flue is 1,200 mm. These sizes describe the flue parts. They are not a cut-out in your building. Ask us for the flue position before you build.

How much space do I need?

The body is 750 mm wide, 600 mm deep and 683 mm high. The gather is a further 225 mm, before the flue, and you add 100 mm to the width for the frame. These are product sizes, not a building opening. Ask us for the opening size and for the frame height and projection before you build: we confirm them with Jetmaster.

Can it go into an existing masonry recess?

In an existing masonry recess, allow 25 mm all round for insulation. That allowance is for this kind of recess only. It is not a finished opening size or a clearance from combustible materials. The insulation blanket is an option on this page. Have your installer check the rest.

Which parts of the installation manual apply?

The South African Jetmaster installation booklet applies to this Universal model. It also covers other models and has gas chapters, so follow the sections for this fireplace. Where a size in the booklet differs from this page, ask us first.

What does the guarantee cover?

Universal fireplace boxes are listed with a five-year Jetmaster guarantee against faults in materials and workmanship. It applies to normal domestic use, with proof of purchase, correct installation and maintenance, and its exclusions apply. Accessories have separate cover. Ask us for the full terms.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
