THE LOGS
Season them, split them.
Use hardwood with a moisture content below 20%. Split any log more than 6 cm across, and keep the length to about 250 mm so it lies flat over the embers. No other fuel belongs in this stove.
Sale!
About your fireplace
- Heat output
- 5 kW nominal · 7 kW maximum
- Included
- Riddling grate, ashpan, door and handle
- Not included
- Flue pipes, cowl and other flue parts (options on this page), hearth and installation
- Guarantee
- 3 years on the main body, if registered within 30 days

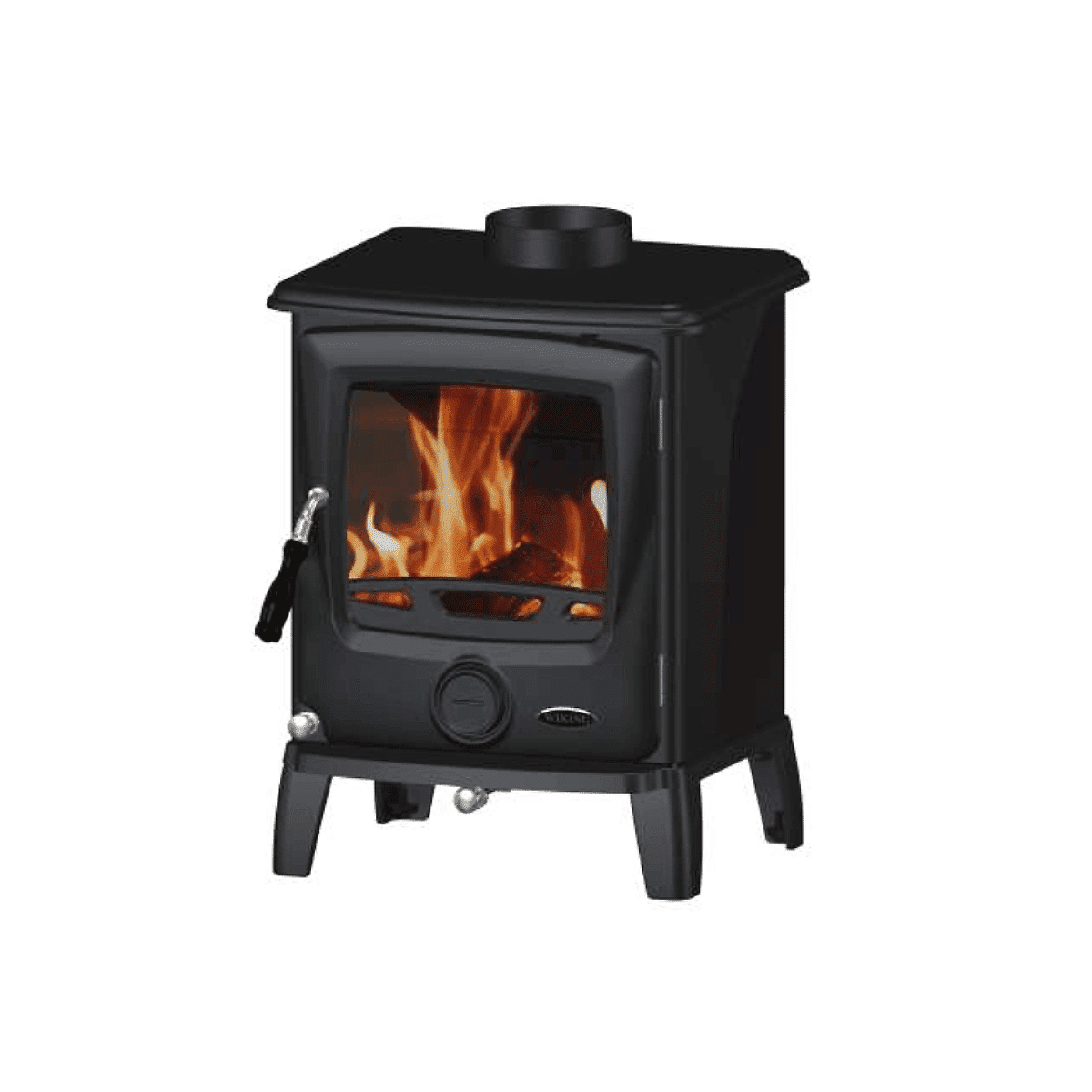

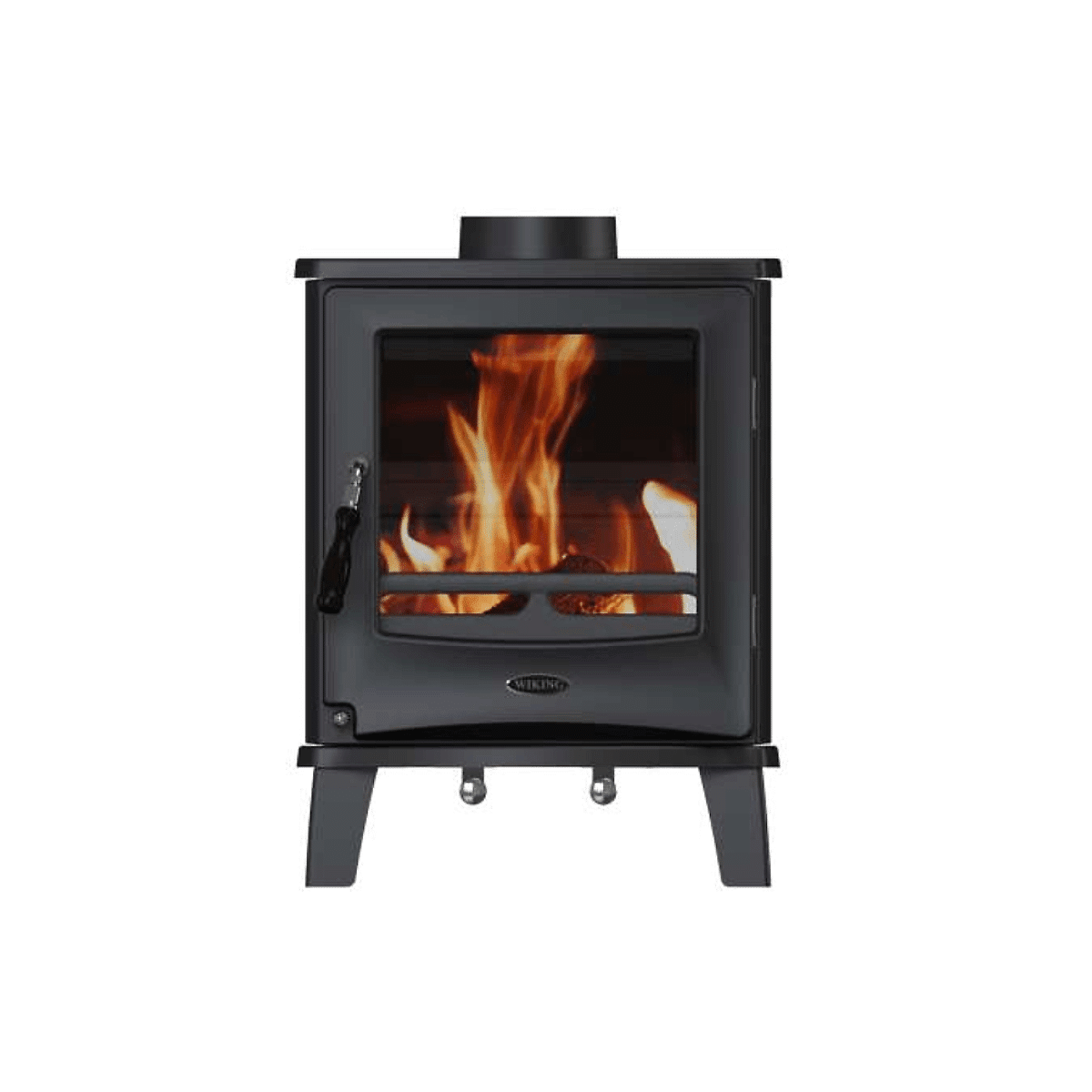

WIKING S1 5kW Slow Combustion Fireplace
Full cast iron, hardwood only, and a near-square window on the fire.
Original price was: R14,680.00.R13,799.00Current price is: R13,799.00.
Save R881In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE S1
WIKING S1 5kW Slow Combustion Fireplace.
Hardwood only.
The WIKING S1 5kW Slow Combustion Fireplace is a full cast-iron, closed-combustion stove made for well-seasoned hardwood. Keep the moisture below 20%, split anything over 6 cm across, and lay logs of up to about 250 mm flat over the embers. Ash falls through the riddling grate into the ashpan. Then pour yourself something and watch it burn.
- Hardwood onlyMoisture content below 20%
- Logs up to about 250 mm longSplit anything over 6 cm across
- Riddling grate and ashpanThe ash drops into the pan below
- Flue on top or at the rear125 mm nominal pipe, no adaptor
- No outside-air connectionAnd no extractor fan in the same room
- Installation manualUnder Plan your setup
THE END OF THE DAY
Mug in hand, fire going.
The work is done, the kitchen can wait and the mug is still hot. Hardwood burns behind the S1's glass while the evening settles outside. It is a small ritual and a lekker one: find the good chair, sit back and say nothing for a while.
The flue pipe is sold separately. The concrete hearth, furniture, rug and kitchen are not included. Have an independent installer confirm the hearth, flue route and clearances.
GOOD WOOD, GOOD FIRE
Plan the logs, the flue and the room.
THE FLUE
On top or at the back.
The S1 takes a 125 mm nominal flue pipe with 1 m of 6 mm rope and no appliance adaptor. Never connect it to a shared chimney or flue. Your independent installer selects the actual system.
THE ROOM
Keep the furniture back.
Allow 1,000 mm between the stove and household furnishings and 1,200 mm above it to a combustible ceiling, and 800 mm from combustible materials is recommended.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Width
- 450 mm
- Depth, without the handle
- 396 mm
- Height to the top plate
- 578 mm
- Height with the flue collar
- 616.6 mm
- Upper stove body height
- 468 mm
- Glass width × height
- 308 × 302 mm
- Nominal flue pipe
- 125 mm
- Net weight
- 92 kg
- Material
- Full cast iron
- Fuel
- Hardwood only
Plan the stove, the hearth and the flue together.
The S1 stands 578 mm to its top plate and 616.6 mm with the flue collar. The 396 mm depth runs from the back to the curved front, and the door handle stands out past it. Have an independent installer check the hearth, the flue, the clearances and the floor for its 92 kg.
The drawing as text
- ALL SIZES IN MILLIMETRES
- WIKING S1 Slow Combustion Fireplace
- Full cast-iron closed-combustion freestanding fireplace
- 01 FRONT VIEW
- 450 width
- 616.6 with collar
- 468 upper body
- 578 to the top plate
- 302 glass
- 308 glass
- 02 SIDE VIEW
- 396 plan depth
- 616.6 with collar
- Front at the right. The handle and the rods
- stand out past this depth.
- 03 TOP VIEW
- 450 width
- 396 depth
- Back at the top. Front at the bottom.
- 04 FLUE OUTLET (LARGER SCALE)
- 142.6 outer circle
- 132.7 inner circle
- Flue pipe: 125 nominal.
- Top or rear connection.
- 05 IN A RECESS (SMALLER SCALE)
- Hearth
- Stove
- 200 side
- 200 side
- 150 rear
- 400 front
- Plan. Front at the bottom.
- 200 above
- Front view.
- 06 CLEARANCES (SMALLER SCALE)
- 1,200 to ceiling
- Combustible ceiling
- Furnishings
- 800 combustibles
- 1,000 furnishings
- Side view. Front at the right.
- PLANNING NOTES
- The 616.6 height includes the collar on top. The 578 height stops at the top plate.
- The 396 depth runs from the back to the curved front. The door handle stands out past it.
- Flue pipe: 125, fitted with 1 m of 6 mm rope, with no appliance adaptor.
- A constructional hearth must be at least 125 thick, including any surface finish.
- A sheet hearth may be 12 thick only outside a recess and subject to testing. Read the manual before you plan it.
- Do not connect the stove to a shared chimney or flue. Do not fit an extractor fan in the same room.
- Net weight 92 kg: check that the floor can carry it.
- Included: the riddling grate, the ashpan, the door and its handle.
- Logs: about 250 long at most, so that they lay flat over the embers. Split logs more than 6 cm across.
- Use well-seasoned wood with a moisture content below 20%.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation. S105HEU2 is the listed manual for the S1.
See also: Closed combustion fireplaces · More from WIKING · WIKING T1202U Slow Combustion Fireplace
What is included?
The WIKING S1 stove, with its riddling grate, ashpan, door and handle. Flue pipes, a cowl, bends, a T-piece drain, escutcheon plates and wall brackets are options you can add on this page. The hearth and the installation are not included.
How much heat does it give?
Nominal output is 5 kW and maximum output is 7 kW. Our output calculator uses 6 kW, the middle of the two. Tell us about your room if you want a second opinion.
Which fuel and what size logs?
Hardwood only. Do not use any other fuel in this stove. Use well-seasoned wood with a moisture content below 20%. Logs can be about 250 mm long at most, so that they lie flat over the embers. Split any log more than 6 cm in diameter.
Where does the flue connect?
On top or at the rear, on a nominal 125 mm flue pipe with 1 m of 6 mm rope. No appliance adaptor is specified. Have an independent installer select the system and plan the route, height and support. Never connect this stove to a shared chimney or flue.
Is the flue included?
No. Flue pipes, a cowl and the other flue parts are options on this page, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The stove is 450 mm wide and 396 mm deep from the back to the curved front, and the door handle stands out past that. It stands 578 mm to the top plate, or 616.6 mm with the flue collar. Allow 1,000 mm to household furnishings and 1,200 mm above it to a combustible ceiling, and 800 mm from combustible materials is recommended. Your installer must follow the installation manual that comes with the unit.
What hearth does it need?
Allow a further 400 mm of hearth in front of the stove. A constructional hearth must be at least 125 mm thick, finish included. A 12 mm non-combustible sheet is possible only outside a recess and subject to testing, so read the manual before you plan it. Your installer confirms the hearth for your floor and room.
Can it stand in a recess?
Yes, with free air around it: 200 mm at each side, 200 mm above and 150 mm behind. These gaps apply only in a recess. Have your installer check the whole opening against the manual.
Can I fit an extractor fan in the same room?
No. Do not fit an extractor fan in the same room as the stove. It also has no outside-air connection, so talk to your installer about both early on, while your plans can still change.
How heavy is it?
The net weight is 92 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.
What does the guarantee cover?
The extended three-year warranty on the main body applies when bought new from Home Fires or an authorised retailer and registered within 30 days. Without registration it falls to 12 months. It covers the first owner at the first location, and needs compliant professional installation with proof and commissioning documents. Glass, grates, baffles, handles, seals, paint and other consumables are excluded. The manual has the full terms.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
