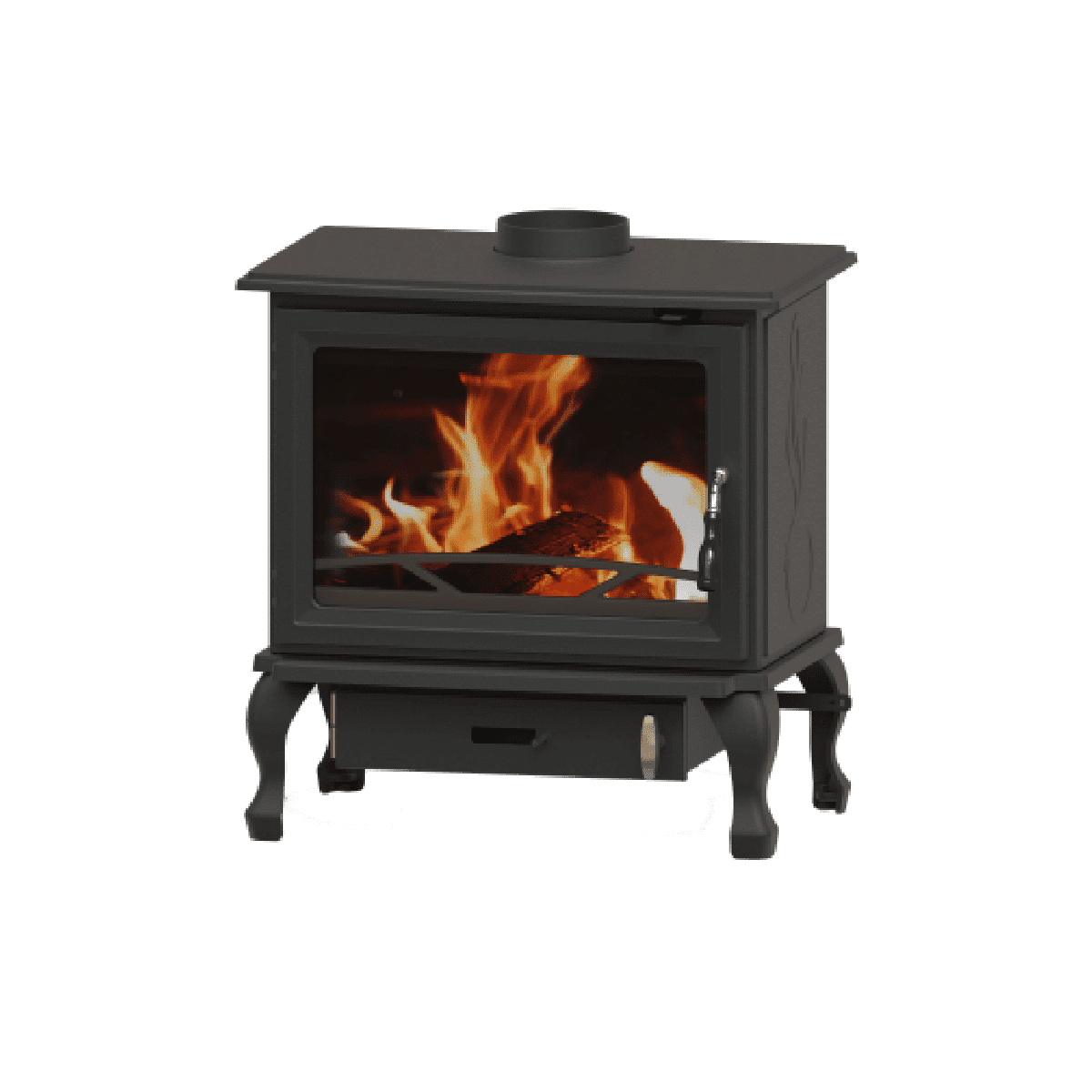

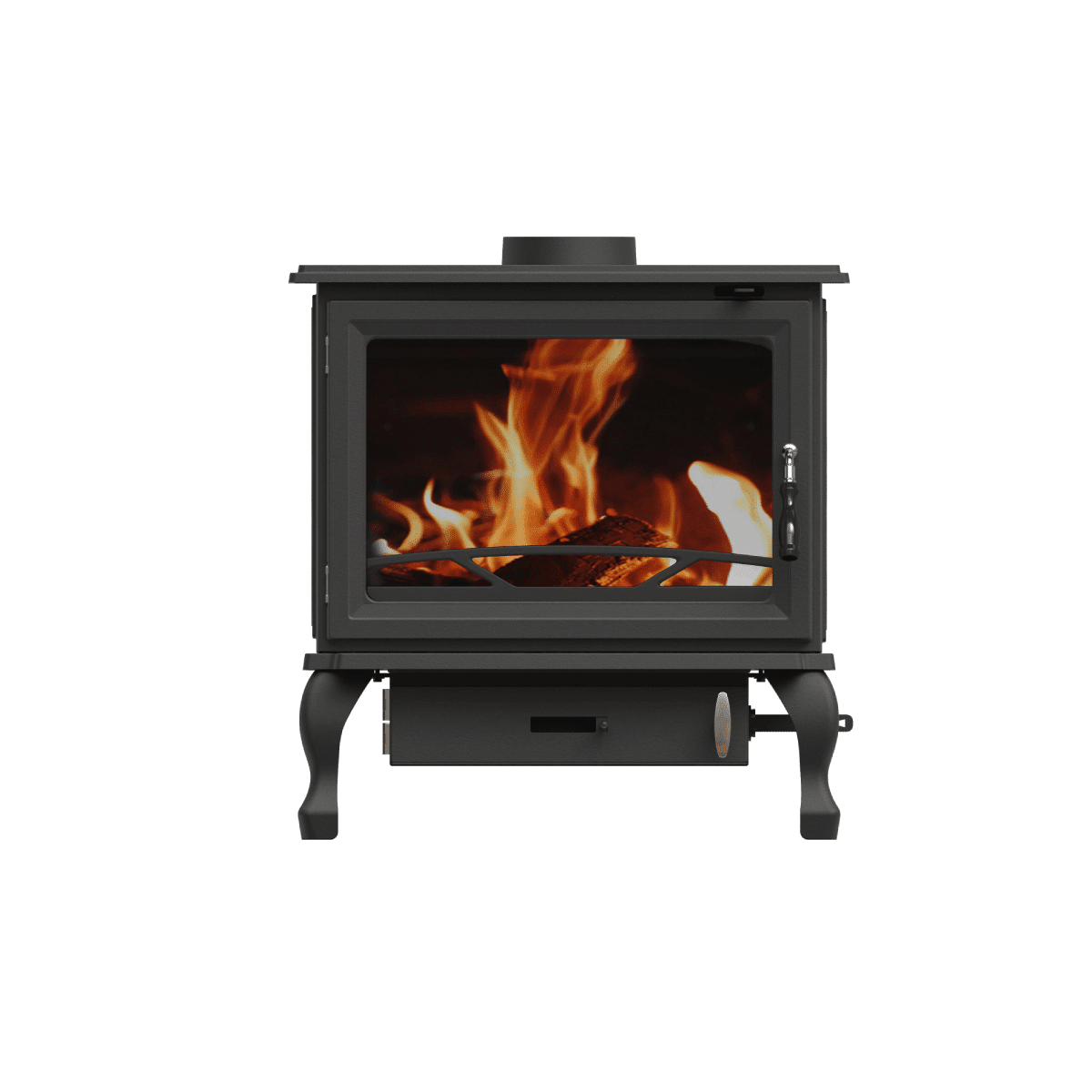

WIKING XN087 cast-iron fireplace in black, front view: one wide glass door with a silver handle, a wood fire, an ash drawer and four curved legs

Your fireplace, up close

Will it fit my space?

WIKING XN087 12-16kW– Slow Combustion Fireplace

Name: WIKING XN087 Slow Combustion Fireplace | Braai Culture
Brand: Wiking
SKU: WKINGXN087D2
Price: 24999.00 ZAR
Availability: InStock

Curved feet, one wide glass door and a fire you can watch all evening.

Original price was: R26,520.00.Current price is: R24,999.00.

Save R1,521

SKU WKINGXN087D2

In stock Delivery ETA: 5–7 working days

About your fireplace

Build and fuel: Full cast iron · dry wood and anthracite only
Included: The stove, with its riddling grate and ash pan
Not included: Flue pipes, accessories and installation

Free delivery in Central Gauteng on orders from R5,500. Other areas: delivery cost on request.

How delivery works

Your total R24,999.00

Delivery cost to be confirmed.

Get a Quote

14-day returns on the unit* Secure payments

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE XN087

Cast iron all round.
Flue on top or behind.

The XN087 is a full cast-iron, closed-combustion stove for dry wood or anthracite. Riddle the grate and the ash drops into the pan below, ready to empty once it is cold. Your installer can take the flue off the top or the back, whichever suits the room. At 151 kg it is a solid piece, so plan the move and the hearth early.

Riddling grate and ash panThe ash drops into the pan below
Dry wood or anthraciteOnly these two fuels
Flue on top or at the rearFor a 150 mm nominal flue pipe
Net weight151 kg
Installation manualUnder Plan your setup

WIKING XN087 alight on a dark hearth in a cottage with a terracotta floor, a couple playing chess at a table across the room in the evening

AN EVENING IN THE COTTAGE

Your move.
The fire can wait.

Terracotta underfoot, the evening drawing in and a game of chess at the table. Light the XN087, settle in and take your time over the next move. The wide glass door keeps the fire in view while the room warms around you.

The flue pipe, hearth, table, chairs, chess set and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.

A LITTLE PRACTICAL THINKING

Plan the heat, the flue and the room.

THE HEAT

12 kW nominal, up to 16 kW.

Home Fires rates the XN087 at 12 kW nominal and 16 kW maximum heat output: the 12–16 kW in its name. The Output Calculator uses 14 kW, the middle of the two, to compare with your room.

THE FLUE

On top or at the back.

Connect a 150 mm nominal flue pipe on top or at the rear, whichever suits the room. Send us a photo and measurements for a flue quote, and we will help you choose the parts.

THE ROOM

Give it space to breathe.

The manual asks for 1,000 mm between the stove and household furnishings, and recommends 800 mm from combustible materials. Leave 1,200 mm above it to a combustible ceiling.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

Top plate width × overall depth: 710 × 497.6 mm
Maximum width, seen from above: 714 mm
Height to the top plate: 725.6 mm
Height including the flue collar: 762.1 mm
Body casting height: 511.5 mm
Foot span, outside edges: 686.3 mm
Front glass width × height: 532 × 352 mm
Nominal flue pipe: 150 mm
Net weight: 151 kg
Material: Full cast iron

Plan the stove, the hearth and the flue together.

The XN087 stands 725.6 mm to its top plate and 762.1 mm to the top of the flue collar. These are product dimensions: have an independent installer check the hearth, the clearances and the floor for its 151 kg.

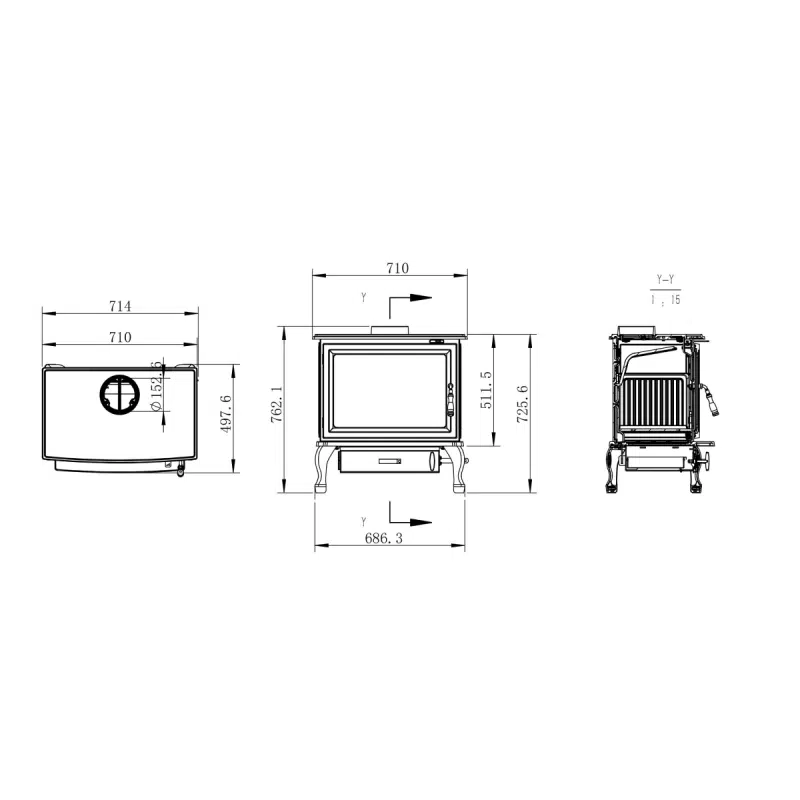

The drawing as text

WIKING XN087D2. Dimensions in millimetres.
Front: width at the top plate 710 mm
Front: height to the top plate 725.6 mm
Front: height including the flue collar 762.1 mm
Front: body casting height 511.5 mm
Front: outer foot span 686.3 mm
Front: glass width 532 mm, glass height 352 mm
Top: maximum width 714 mm
Top: overall depth 497.6 mm
Top: outlet bore Ø152.6 mm
Nominal flue pipe Ø150 mm

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The WIKING XN087 cast-iron stove, with its riddling grate and ash pan. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.

Which fuel can I burn?

Dry wood and anthracite only. Keep your firewood dry, and burn nothing else in it.

How much heat does it give?

12 kW nominal and up to 16 kW maximum heat output. The Output Calculator uses 14 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.

Where does the flue connect?

On top or at the rear, for a 150 mm nominal flue pipe. The manual gives the outlet socket's inside diameter as 152 to 157 mm, and our drawing shows it at Ø152.6 mm. Have an independent installer choose the outlet and plan the flue route, height and support.

Is the flue included?

No. Flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.

How much space does it need?

The stove is 710 mm wide at the top plate (714 mm at its widest), 497.6 mm deep, and 725.6 mm high to the top plate or 762.1 mm to the top of the flue collar. The manual asks for 1,000 mm to household furnishings, recommends 800 mm from combustible materials, and asks for 1,200 mm above it to a combustible ceiling.

What hearth does it need?

The manual asks for a solid, non-combustible constructional hearth at least 125 mm thick, finishes included, with an extra 400 mm at the front for any hot material that falls out. Your installer confirms the hearth for your floor and room.

Can it stand in a recess?

Yes, with permanent free air around it: 200 mm at the sides, 200 mm above and 150 mm behind, as the manual sets out. These gaps apply only in a recess. Have your installer check the opening and the flue before you build.

How heavy is it?

The net weight is 151 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.

How does the riddling grate work?

Riddle the grate to drop the ash into the ash pan below and keep the fire bed clear. Empty the ash pan only once the ash is completely cold.

What does the guarantee cover?

Ask us for the current guarantee terms for the XN087 before you order. Home Fires confirms them, and we pass them on to you.

Can you help with my setup?

Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
