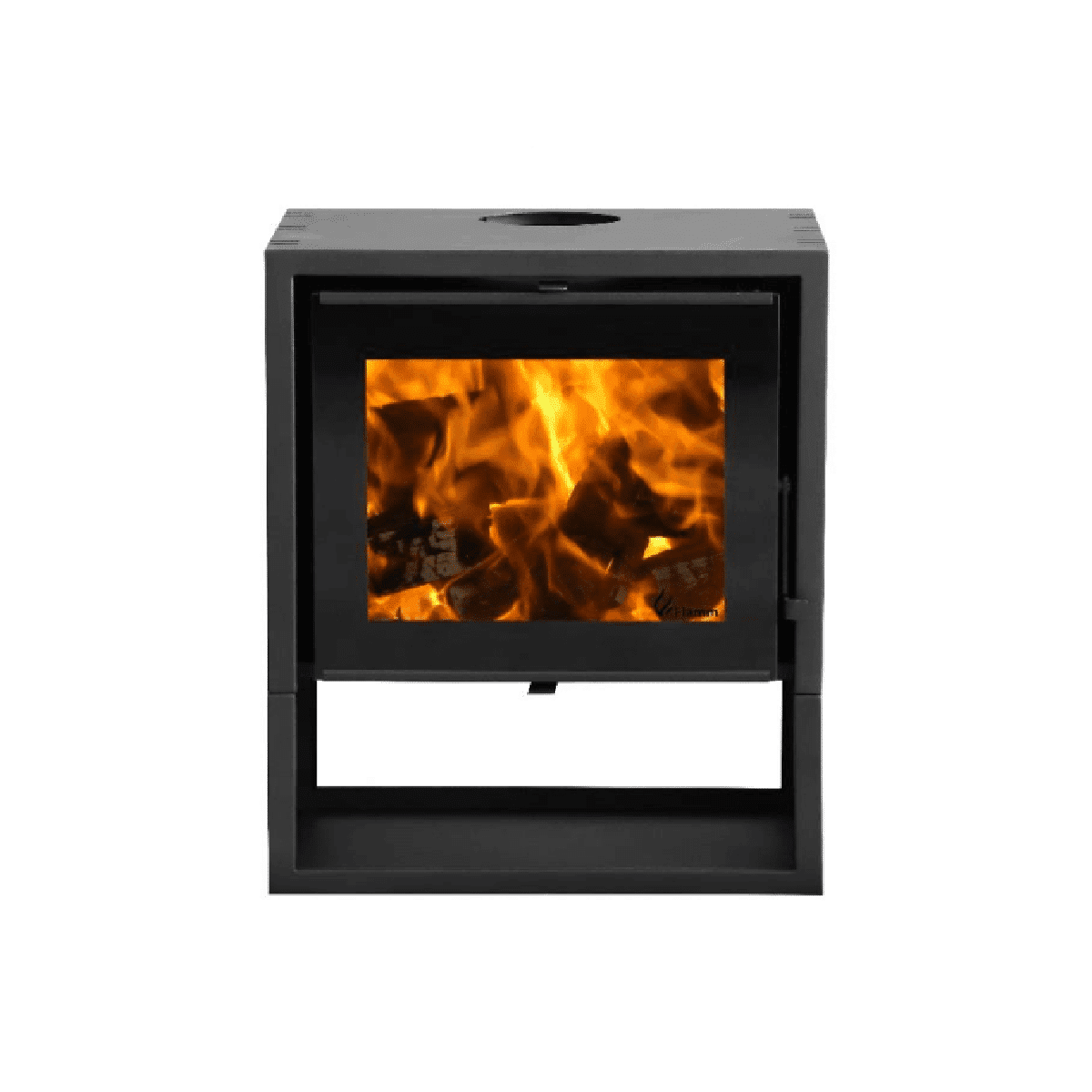

FLAMM 605 with Log Base – Closed Combustion Freestanding Fireplace

The FLAMM 605 closed combustion fireplace in metallic black, with its log base and the ash pan. Chimney flue pipes, accessories and installation are not included: we quote the flue parts for your setup.

Hardwood only. The log base under the firebox keeps the next load close at hand.

9 kW nominal and up to 11 kW maximum heat output, with an efficiency of 80%. The Output Calculator uses 10 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.

At the top. The outlet collar is 165 mm across the outside and takes a 150 mm nominal flue pipe. Have an independent installer plan the flue route, height and support for your building.

No. Chimney flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.

The fireplace is 605 mm wide and 480 mm deep, with a 536 mm firebox on a 247 mm log base. Ask us to confirm the overall height before a tight fit. The manual asks for 800 mm to combustible walls at the sides and rear, 1,200 mm to a combustible ceiling and 1,000 mm to household furnishings. Your installer applies the full manual and local requirements.

A floor protector that reaches 400 mm in front of the fireplace and 200 mm beyond the sides and the rear. The manual describes a solid, non-combustible constructional hearth 125 mm thick, decorative surface included. Under the manual's stated conditions, and not in a recess, a 12 mm sheet hearth may be allowed. Your installer confirms which applies.

In a recess, the manual asks for a permanent free air gap of 200 mm at the sides and the top and 50 mm at the rear. Where the manual calls for a firewall, it must be at least 100 mm of brick, concrete or stone. Plan it with your independent installer.

The manual suggests at least 4,500 mm of effective flue height, after a site check. A horizontal run may be at most 300 mm and must be followed by at least 2,500 mm of vertical flue, preferably insulated. In the manual's roof diagram, the flue rises 1,500 mm above the roof and 600 mm above the ridge. A register plate must be non-combustible and at least 1.5 mm thick.

The firebox is fully welded from 5 mm steel and lined with firebrick, with a large glass view. The side firebricks are 379 mm deep and 25 mm thick, and the lining assembly is 415 mm wide. The finish is a metallic black high-heat paint, and the fireplace weighs 110 kg net.

Home Fires gives a five-year limited warranty on the main body. It does not cover every part, and the full terms and exclusions are in Home Fires' documents. Ask us for the full terms.

Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
