THE FIRE
Coals when you need them.
Burn wood in the ember maker and rake fresh coals under the grid whenever the fire needs them. Charcoal works too, so pick the fuel that suits the day. The spade and poker come with the braai.
Sale!
About your braai
- Build
- 3 mm mild-steel body · stainless to special order
- Included
- Grid and lifters, ember maker, ash pan, ash trap, ash and warming drawers, potjie holder, light, spade, poker
- Not included
- Flue pipe, collar and cowl (optional add-ons), building work and installation
- Guarantee
- 15 years on the firebox
Homefires 1000 Super Deluxe Built-in Braai
A black built-in braai for wood or charcoal, with fresh coals ready for every round.
From: Original price was: R18,680.00.R17,599.00Current price is: R17,599.00.
Save R1,081In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsEVERYTHING FOR THE FIRE
Fresh coals, a warm drawer, a potjie on the side.
Burn wood in the ember maker and rake fresh coals under the grid whenever the next round is ready. Hang a potjie from the potjie holder, keep the first chops warm in the warming drawer and switch on the light when the evening comes. Insulation material and touch-up paint come with it, so the build and the finish are taken care of.
- Ember makerFresh coals for every round
- Warming drawer and potjie holder
- Ash pan, ash disposal trap and ash drawer
- Spade, poker and grid lifters
- Insulation material and touch-up paintCome with the braai
- Installation manualUnder Plan your setup
WHEN THE DAY WINDS DOWN
One more round before dark.
The sun drops behind the windpump, three chops sizzle on the grid and fresh coals glow in the ember maker. Dad has his mug, his son has the tongs. Built into a stone wall outside, the 1000 Super Deluxe is made for slow evenings and a conversation that lasts as long as the coals.
The stone wall, counters, table, chairs, plants, food and drinks are not included. The flue pipe, collar and cowl are optional add-ons. Plan the flue, support and clearances with an independent installer.
A LITTLE PRACTICAL THINKING
Keep the next round ready.
THE GRID
Cook now, keep warm.
Move the hot grid with the grid lifters, hang a potjie from the potjie holder for something slow, and keep the first round warm in the warming drawer while the next one cooks.
THE BUILD
Made to be built in.
The body is 3 mm mild steel. Cover the sides, back and top with fibreglass insulation and leave a 20 mm expansion gap at the sides and back. Insulation material comes with the braai.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Body width × depth
- 1,045 × 535 mm
- Body height, without the gather
- 890 mm
- Gather above the body
- 320 mm
- Front frame width × height
- 1,145 × 920 mm
- Gather outlet width × depth
- 440 × 350 mm
- Open lower flap, in front of the body
- 300 mm
- Cooking grid depth
- 460 mm
- Ash pan width × depth
- 960 × 470 mm
- Body material
- 3 mm mild steel, black
- Fuel
- Wood or charcoal
Plan the body, gather and flue together.
The 890 mm body height does not include the 320 mm gather above it, or the flue. These are product dimensions, not a building opening: plan the recess with your installer, who checks the actual unit, the open flap and safe clearances.

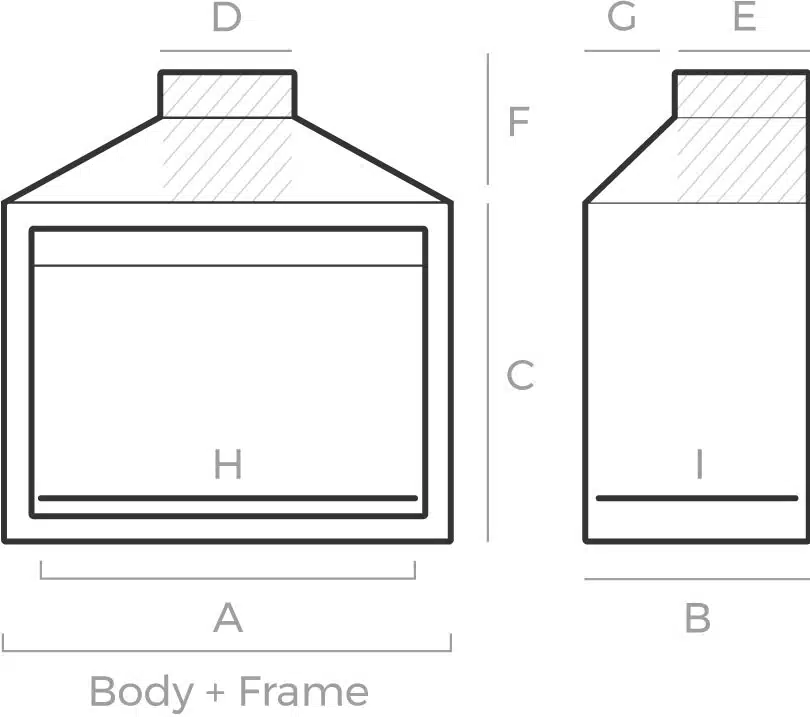

The drawing as text
- ALL SIZES IN MILLIMETRES
- Homefires 1000 Super Deluxe Built-in Braai
- Built-in braai: wood and charcoal, with an ember maker, a slide-in door and a lower flap
- 01 FRONT VIEW
- 440 gather outlet
- 920 frame height
- 1,045 body width
- 1,145 including frame
- 02 SIDE VIEW
- 350 outlet depth
- 535 body depth
- 300 flap open
- 320 gather
- 890 body
- Front at the right. Lower flap open.
- 03 COOKING GRID
- 460 depth
- Ask us for the grid width.
- 04 TOP VIEW
- 1,045 body width
- 535 body depth
- Front at the bottom. White: the gather outlet.
- 05 ASH PAN FROM ABOVE
- 960 width
- 470 depth
- Front at the bottom.
- 06 ASH PAN FROM THE FRONT
- 960 width
- 160 high
- PLANNING NOTES
- These are product sizes, not a building-opening size. Ask us for the opening size before you build.
- Leave a 20 mm expansion gap at the sides and back.
- The minimum chimney height is 2,500 mm.
- The lower flap opens 300 in front of the body: keep this space clear.
- The body steel is 3 mm thick.
- The flue pipes, the collars and the cowls are options and are sold separately.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The 1000 Super Deluxe in black, with a single slide-in door, a cooking grid and grid lifters, an ember maker, an ash pan, an ash disposal trap, an ash drawer and a warming drawer, a potjie holder and a light fitting. A spade, a poker, insulation material, touch-up paint and a guarantee certificate come with it too. The flue pipe, collar and cowl are optional add-ons on this page.
Which fuel can I use?
Wood or charcoal. Burn wood in the ember maker and rake the fresh coals under the grid as you cook. The spade and poker come with the braai.
How much cooking space is there?
The cooking grid is 460 mm deep, and grid lifters come with it. The potjie holder takes a potjie, and the warming drawer keeps the first round warm. Need the exact grid width before you order? Ask us and we will confirm it for you.
Is the flue included?
No. The flue pipe, joining collar and cowl are separate items: you can add the Homefires flue pipe, collar and a rotating or fixed cowl with a slip-on base on this page. Send a photo and measurements for a flue and configuration quote, and we will confirm the right parts for your setup.
Where does the flue connect?
At the outlet on top of the gather. The gather rises 320 mm above the body, and the outlet measures 440 × 350 mm. The minimum chimney height is 2,500 mm. Have an independent installer plan the flue route, height, roof details and support for your building.
How much space do I need?
The body is 1,045 mm wide, 535 mm deep and 890 mm high, and the gather rises 320 mm above it. The front frame is 1,145 mm wide and 920 mm high. Opened, the lower flap reaches 300 mm in front of the body. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.
How do I build it in?
Leave a 20 mm expansion gap between body and masonry at the sides and back, with fibreglass insulation over the sides, back and top. Your installer must follow the installation manual that comes with the unit. Insulation material comes with the braai. This is not a cut-out size or a full clearance schedule, so plan the recess with an independent installer. You can build it in indoors or outdoors, with the flue and clearances your installer plans.
Is there a stainless-steel version?
This page sells the standard version, with a 3 mm mild-steel body in black. Home Fires makes 3CR12 and 304 stainless-steel versions to special order. Ask us for a quote.
How do I look after the finish?
Touch-up paint comes with the braai, so you can refresh small marks on the black finish. The instruction manual under Plan your setup covers use and care.
What does the guarantee cover?
The firebox has a 15-year Home Fires guarantee against faulty workmanship or material under normal use, with regular maintenance. It does not cover replaceable parts, rust from harsh conditions or neglect, damage during installation, or installation and delivery costs. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
