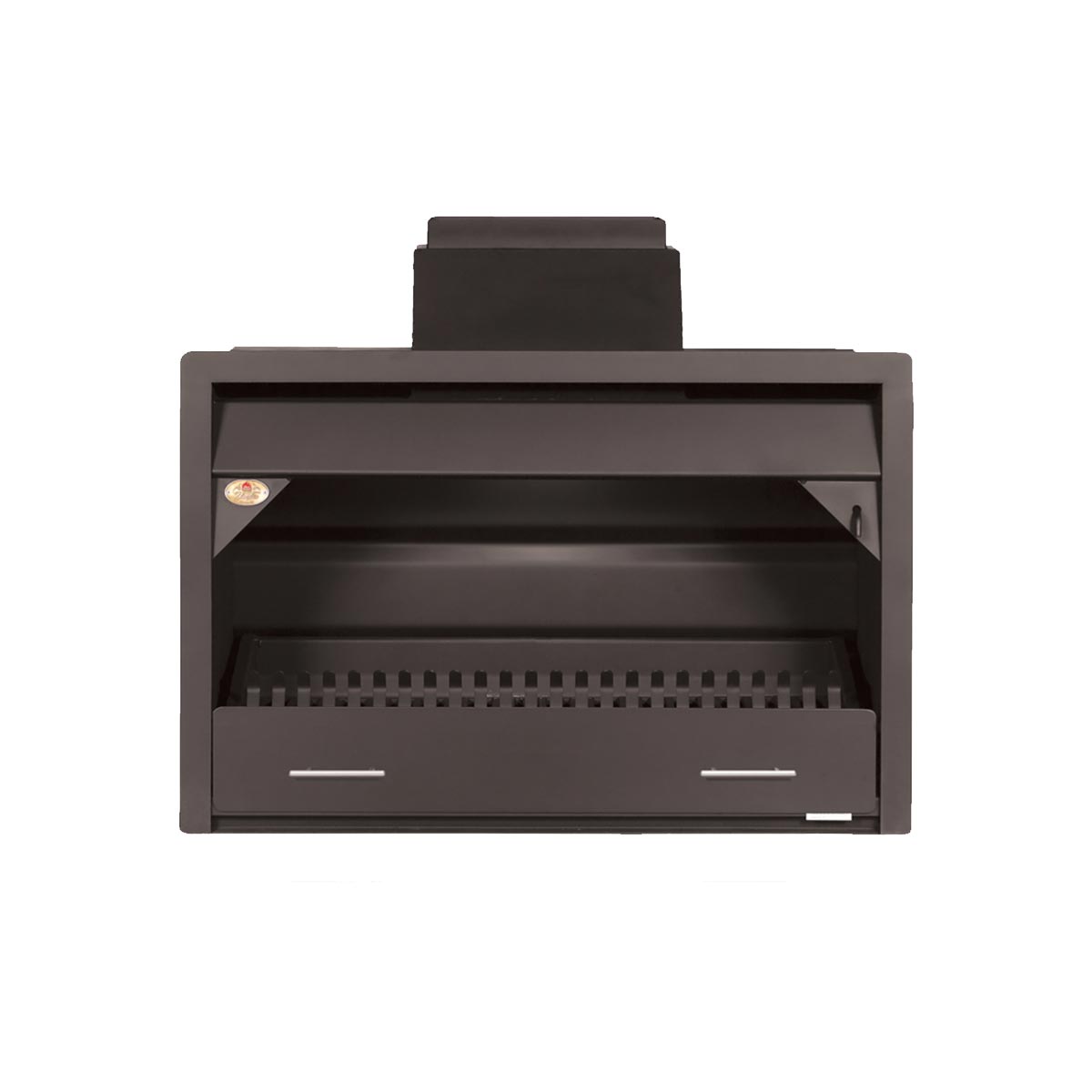

Homefires 850 Built-in Fireplace

A deep, single-sided open fire that builds into your wall.

Original price was: R14,090.00.Current price is: R13,299.00.

Save R791
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU F/PLACEB800

In stock Delivery ETA: 5–7 working days

Complete your setup

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

A FIRE IN THE WALL

Homefires 850 Built-in Fireplace.
Single sided and deep.

The Homefires 850 Built-in Fireplace gives your wall a deep, open fire to gather around. It is mild steel in a black finish, with convection and radiant heat and a built-in damper. Burn wood or anthracite, let the ash drawer take the ash, and keep the touch-up paint close for the day your installer has finished building it in.

Flue pipes, joining collars and the cowl are separate add-ons. Choose them on this page.

  1. Single sided and deepAn open fire, built in
  2. Convection and radiant heat
  3. Built-in damper
  4. Wood or anthracite
  5. Mild steel in a black finishThe standard unit
  6. Installation manualUnder Plan your setup
Homefires 850 Built-in Fireplace set flush in a plastered wall above a tiled bench, in a sunlit lounge, with logs burning on the grate

THE WALL EVERYONE FACES

A fire at the heart of the lounge.

A slow weekend, a cup of coffee and the first logs of the day catching in the wall. It is the kind of fire that pulls people off their phones and into the room, and then keeps them there well past the plan. Bring a cushion. Stay a while.

The plastered wall, hearth bench, wood basket, furniture and décor are not included. Flue pipes and the cowl are separate add-ons. Plan the building work and clearances with an independent installer.

BEFORE THE BUILDER ARRIVES

Plan the wall, then the flue.

THE BUILD

Built in, with a neat frame.

The body goes into your wall and the frame finishes the front. Insulation material comes with the fireplace, so talk to your installer about it when you plan the building work.

THE FLUE

Your choice of flue parts.

Flue pipes, joining collars and the cowl are add-ons on this page, so you order what your roof needs. The flue pipe has a nominal size of 420 × 220 mm. Send a photo and measurements for a quote.

THE HEAT

Radiant and convection.

This fireplace produces both convection and radiant heat. The listed heating volume is 140 m³, so multiply your room's length, width and height and compare the two.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires 850 Built-in Fireplace dimension drawing, page 1 of 2: front and side views, in millimetres.
Page 1 of 2
Body width × depth
890 × 475 mm
Body height, without the gather
755 mm
Gather above the body
230 mm
Frame width × height
945 × 770 mm
Gather outlet width × depth
435 × 235 mm
Flue pipe, nominal
420 × 220 mm
Fuel
Wood or anthracite
Material
Mild steel

Plan the body, frame, gather and flue together.

The frame is wider and higher than the body, and the gather rises above the body. These are product sizes, not a building-opening size. Ask us for the opening size before you build, and have your installer check the actual unit and safe clearances.

Planning notes

  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The frame is wider and higher than the body. The gather rises above the body.
  • Included: the basket grate, the grid, the ash drawer, the damper, the insulation material and the touch-up paint.
  • Flue pipes, joining collars and the cowl are separate add-ons.
  • The listed heating volume is 140 m³.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • Homefires 850 Built-in Fireplace
  • Built-in open fireplace, single sided and deep: wood and anthracite
  • 01 FRONT VIEW
  • 435 outlet width
  • 770 frame height
  • 890 body width
  • 945 frame width
  • 02 SIDE VIEW
  • 235 outlet depth
  • 230 gather
  • 755 body height
  • 475 body depth
  • Front at the right.
  • 03 TOP VIEW
  • 890 body width
  • 475 body depth
  • Flue outlet
  • Back at the top. Front at the bottom.
  • 04 FLUE PIPE
  • 420 nominal
  • 220 nominal
  • The flue pipe size, not the size of the outlet.
  • PLANNING NOTES
  • These are product sizes, not a building-opening size. Ask us for the opening size before you build.
  • The frame is wider and higher than the body. The gather rises above the body.
  • Included: the basket grate, the grid, the ash drawer, the damper, the insulation material and the touch-up paint.
  • Flue pipes, joining collars and the cowl are separate add-ons.
  • The listed heating volume is 140 m³.

GOOD TO KNOW

Plan your setup.

This model shares the Home Fires fireplace manual for the open-fireplace range. Read its built-in section before you plan.

Read the instruction manual

What is included?

The fireplace with a basket grate, a grid, an ash drawer and a built-in damper, plus insulation material and touch-up paint. Flue pipes, joining collars and the cowl are separate add-ons.

Is the flue included?

No. Flue pipes, joining collars and the cowl are options on this page. Send a photo and measurements for a product and flue configuration quote, and we will confirm the parts for your setup.

What size is the flue pipe?

The flue pipe has a nominal size of 420 × 220 mm. The outlet on top of the gather is a different measurement: 435 × 235 mm on the outside. Check the parts with us before you order.

Which fuel can I use?

Wood and anthracite are the fuels listed as suitable for this open fireplace.

How much space will it heat?

The listed heating volume is 140 m³. Compare it with your room's length × width × height. We have no confirmed kW figure for this model yet, so send us your room size and we will chat it through with you.

How much space do I need?

The body is 890 mm wide, 475 mm deep and 755 mm high. The frame is 945 mm wide and 770 mm high, and the gather rises 230 mm above the body. Have your installer check the actual unit and the safe clearances.

Can I use these sizes as my opening?

No. These are product sizes, not a building-opening size. Ask us for the opening size before you build, and have your installer plan the wall around it.

What is it made of?

The standard unit is made in mild steel with a black finish. Touch-up paint comes with it for small marks, and insulation material is included too.

What does the guarantee cover?

Ask us for the current guarantee terms on this fireplace before you order, and we will send them to you.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
