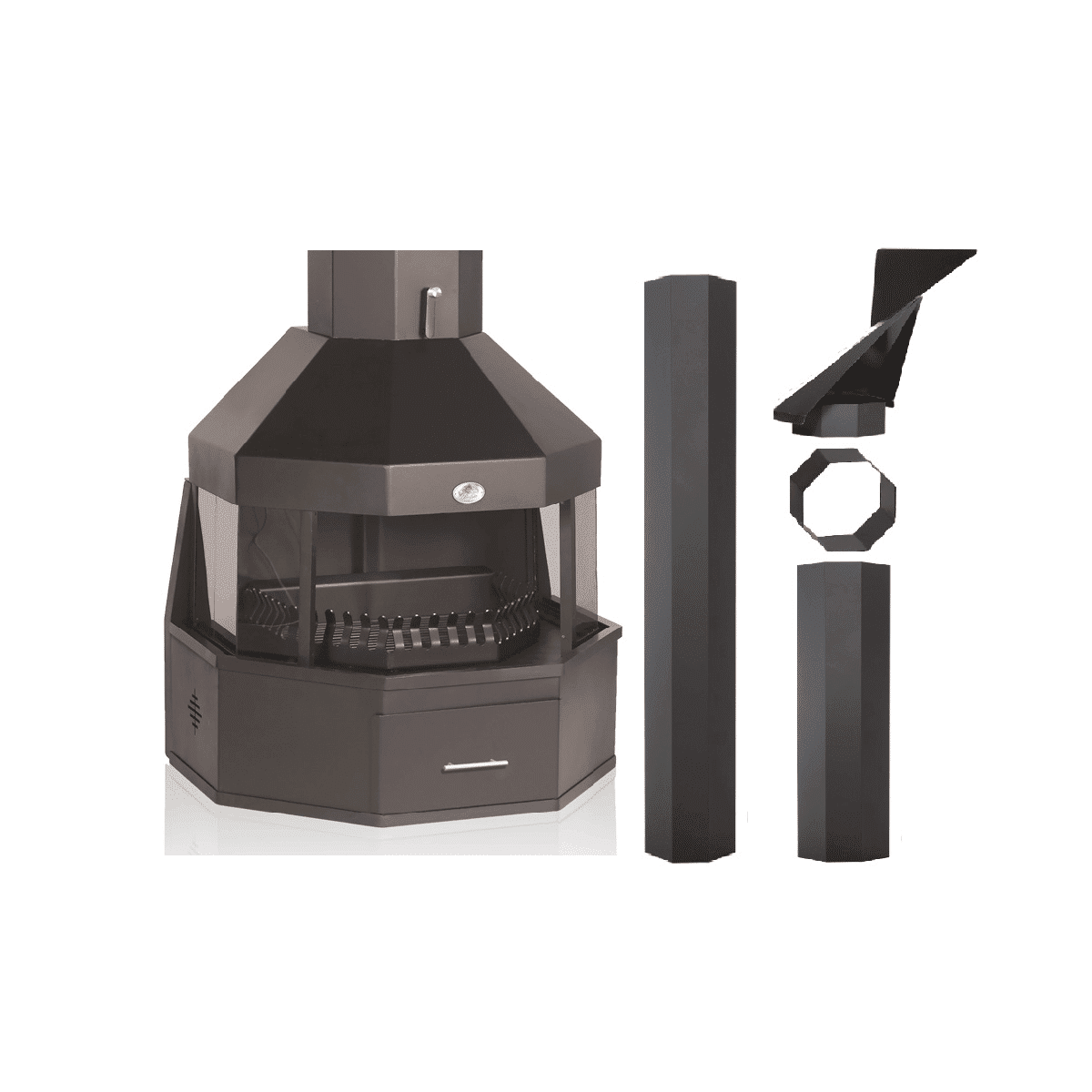

HomeFires Alpine 800 Wall Unit Freestanding Fireplace Complete

An open fireplace for against the wall, with glass on three sides and 3.6 m of flue.

Original price was: R29,310.00.Current price is: R27,599.00.

Save R1,711
Rated 4.7 out of 5Google rating ·54 reviews

Pay in interest-free instalments with Float

SKU ALP800H

In stock Delivery ETA: 5–7 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE ALPINE 800

Glass round the fire in the Homefires Alpine 800 Wall Unit Fireplace.

Stack wood or anthracite on the basket grate of the Homefires Alpine 800 Wall Unit Fireplace and watch the flames through glass shields on three sides. The built-in damper helps you manage the fire, and the ash drawer below keeps the clean-up easy. Insulation material and touch-up paint for small marks on the black mild-steel finish come with it.

Burn wood or anthracite only: coal and briquettes must not be used.

  1. Glass shields on three sidesSupplied in two sections
  2. Built-in damper
  3. Basket grate, fire grid and ash drawer
  4. 3.6 m flue stack1.2 m and 2.4 m pipes, one joining collar
  5. Escutcheon plate, insulation and touch-up paintWith a guarantee certificate
  6. Installation manualUnder Plan your setup
Homefires Alpine 800 Wall Unit fireplace with a wood fire against a whitewashed wall, on a flagstone floor, near a leather couch and a sheepskin rug

SLOW EVENINGS IN

A fire you can see from every chair.

The lamps are low, the logs are stacked and the fire glows behind its glass shields. Pull the couch a little closer, sink your feet into the rug and let a winter evening at home take its time. One more cup of coffee, one more chapter, one more log on the grate.

The flagstone floor, furniture, rug, lamps and décor are not included. Plan the hearth, flue and clearances with an independent installer.

A LITTLE PRACTICAL THINKING

Plan the hearth and flue early.

THE FUEL

Wood or anthracite only.

Burn wood or anthracite on the basket grate. Coal and briquettes must not be used in this fireplace, so keep them out of the fire.

THE HEARTH

Give the fire some floor.

For this open fireplace, use a hearth at least 350 mm in front and 200 mm at each side, and keep 1,000 mm between the fire and furniture or curtains.

THE FLUE

3.6 m of flue in the kit.

A 1.2 m and a 2.4 m pipe with one joining collar come with the fireplace. Keep the metal flue 200 mm from wooden roof trusses. Extra pipe and collars are options on this page.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open the full drawing
Homefires Alpine 800 Wall Unit Fireplace dimension drawing, page 1 of 2: front and top views and flue outlet, in millimetres.
Page 1 of 2
Base width × depth
900 × 675 mm
Height, floor to top of the outlet
930 mm
Base height
305 mm
Fire opening height
300 mm
Hood width × height
815 × 325 mm
Flue outlet, across the flats
340 mm
Supplied flue stack
3,600 mm
Front face width, top view
375 mm
Fuel
Wood or anthracite
Material
Mild steel, black

Plan the fireplace and the flue stack together.

The fireplace is 930 mm high to the top of the hood outlet, and the 3.6 m flue stack goes on top of that. These are product dimensions, not a building opening, so have your installer check the actual unit, the hearth and safe clearances.

Planning notes

  • These are product sizes, not a building opening. Your installer checks the actual unit and the safe clearances.
  • Keep 1,000 between the fire and furniture, curtains or anything else that can burn.
  • Use a hearth that reaches at least 350 in front of the fireplace and 200 at each side.
  • Keep the metal flue at least 200 from wood trusses. Your installer confirms the final layout for your room.
  • The heating volume is 120 m³. Burn wood or anthracite only: no coal and no briquettes.

Download printable drawing (A4 PDF)

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • HomeFires Alpine 800 Wall Unit
  • Freestanding wall-unit fireplace: open, for wood or anthracite, with glass shields and a flue kit
  • 01 FRONT VIEW
  • 340 outlet across the flats
  • 930 to the top of the outlet
  • 325 hood
  • 300 opening
  • 305 base
  • 815 hood width
  • 900 base width
  • 02 TOP VIEW
  • 900 base width
  • 675 base depth
  • 395 straight side
  • 375 front face
  • 375 chamfer
  • Back at the top. Ash drawer at the front.
  • 03 FLUE OUTLET, FROM ABOVE
  • 340 across the flats
  • 340 across
  • The flue connects here, on top of the hood.
  • 04 SUPPLIED FLUE (SMALLER SCALE)
  • 3.6 m flue pipe
  • 1.2 m pipe
  • 2.4 m pipe
  • It comes with the fireplace, with
  • one joining collar and an
  • escutcheon plate.
  • The 3.6 m is a supplied length,
  • not an installed height. For a
  • taller roof, add extra flue pipe
  • and collars on this page.
  • Ask us to confirm the cowl for
  • your roof.
  • 05 HEARTH, FROM ABOVE (SMALLER SCALE)
  • 350 in front
  • 200 at the side
  • 200 at the side
  • White: the hearth. Front at the bottom.
  • 06 CLEARANCES, FRONT VIEW (SMALLER SCALE)
  • 200
  • to wood trusses
  • 1,000 combustibles
  • PLANNING NOTES
  • These are product sizes, not a building opening. Your installer checks the actual unit and the safe clearances.
  • Keep 1,000 between the fire and furniture, curtains or anything else that can burn.
  • Use a hearth that reaches at least 350 in front of the fireplace and 200 at each side.
  • Keep the metal flue at least 200 from wood trusses. Your installer confirms the final layout for your room.
  • The heating volume is 120 m³. Burn wood or anthracite only: no coal and no briquettes.

GOOD TO KNOW

Plan your setup.

Read your installation manual before you plan the hearth, the flue and the installation.

Read the instruction manual

What is included?

The Alpine 800 wall unit in black mild steel, with glass shields on three sides (in two sections), a built-in damper, a basket grate, a fire grid and an ash drawer. The kit adds 3.6 m of flue pipe (a 1.2 m and a 2.4 m pipe with one joining collar), an escutcheon plate, insulation material, touch-up paint and a guarantee certificate. Extra flue pipe and collars are options on this page.

Which fuel can I burn?

Wood or anthracite. Coal and briquettes must not be used in this fireplace.

How much heat does it give?

The Alpine 800 has a published heating volume of 120 m³. That is a published room-volume guide, not a kW rating or a promise for your room: ceiling height, insulation and draughts all play a part. Ask us if you need a kW figure before you choose.

Is the flue included?

Yes, a 3.6 m stack: a 1.2 m and a 2.4 m pipe with one joining collar, plus the escutcheon plate. A taller roof can need more pipe, and extra flue pipe and collars are options on this page. Send a photo and measurements for a flue and configuration quote, and we confirm the cowl and any extra parts for your roof.

Where does the flue connect?

At the outlet on top of the hood, which measures 340 mm across the flats. The fireplace is 930 mm high to the top of that outlet. Keep the metal flue at least 200 mm from wooden roof trusses; the Home Fires manual explains the options when the space is tighter.

How much space do I need?

The base is 900 mm wide and 675 mm deep, and the fireplace is 930 mm high to the top of the hood outlet, with the 3.6 m flue stack above. The hood is 815 mm wide. These are product dimensions, not a building opening. Have your installer check the actual unit and safe clearances.

What hearth and clearances does it need?

For this open fireplace, use a hearth that reaches at least 350 mm in front of the fireplace and 200 mm at each side, and keep 1,000 mm between the fire and furniture, curtains or anything else that can burn. Your installer must follow the installation manual that comes with the unit. Your independent installer confirms the final layout for your room.

Is it an open or a closed fireplace?

An open, vented fireplace. The fire sits behind glass shields on three sides, supplied in two sections, and the built-in damper helps you manage the fire.

How do I look after it?

Paint and maintain the fireplace regularly: the guarantee asks for it. Touch-up paint comes with the fireplace for small marks on the black finish. Empty the ash drawer only when the ash is cold.

What does the guarantee cover?

The firebox has a 15-year Home Fires guarantee from purchase against faulty workmanship or material under normal use. Replaceable parts such as glass panels, grids, grates and ash pans are excluded, and so is rust from adverse conditions, no maintenance, misuse, water leakage or installation damage. Replacement installation and delivery costs are not covered.

Can you help with my setup?

Yes. Send a photo and measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
