SLOW COMBUSTION
A wide window on the flames.
Convection moves warm air into the room while radiant heat warms the space in front of the fire. The single glass door keeps viewing and loading on one side.
Sale!
About your fireplace
- Heat
- 17 kW, heats up to 260 m²
- Included
- Mild-steel body, front frame, glass door, vermiculite lining, poker, instructions
- Not included
- Flue, cowl, ceiling plates, insulation, stainless-steel trim, log box, hearth, building work
- Guarantee
- Five years, excluding glass and corrosion

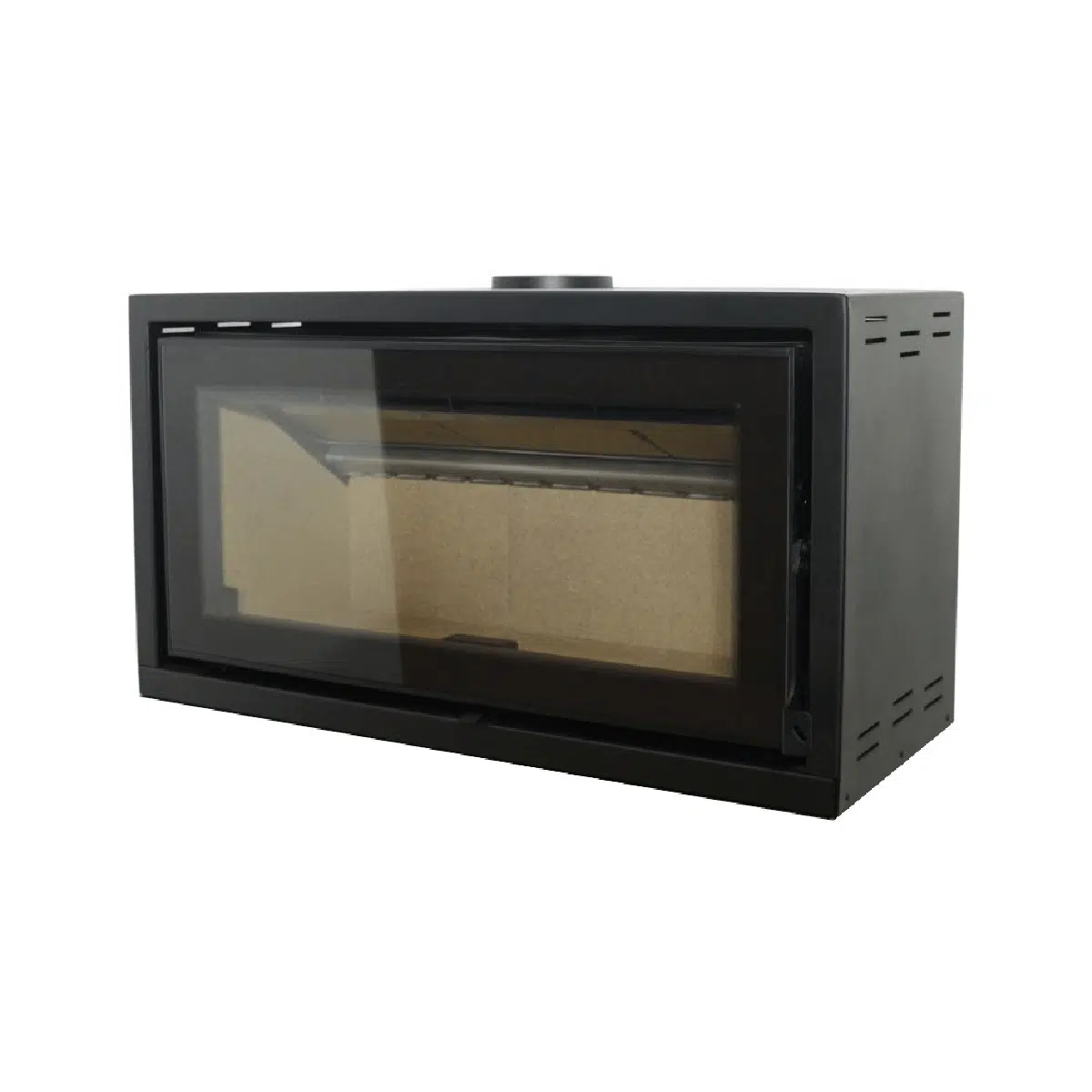

Jetmaster FIRESCAPE 1060 Slow Combustion Single Sided Built-in Fireplace
A wide view of the fire, built neatly into your wall.
From: Original price was: R35,398.00.R33,999.00Current price is: R33,999.00.
Save R1,399In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsA CLEAR VIEW OF THE FIRE
Big glass.
Steady warmth.
Convection moves warm air into the room, while radiant heat warms the space in front of the fire. The large glass door keeps viewing and loading on one side, and vermiculite lines the heavy-duty steel firebox. Burn dry, seasoned wood, keep the door closed while it burns and let the ash cool before you clean.
The heating area depends on insulation, ceiling height, room layout and weather.
- Convection and radiant heat
- Vermiculite-lined combustion chamber
- No grate requiredPoker and instructions included
- Burn dry, seasoned woodKeep the door closed while it burns
- Top flue connection, Ø 150 mmJoining sections overlap
- Installer to confirm the full setupInsulation, ventilation, hearth, flue
MAKE YOURSELF AT HOME
A fire worth staying in for.
Bring the chairs closer to the conversation and settle in for the evening. On a cold winter night, a built-in fire makes your living space feel like home.
Surround, hearth and furniture are not included. Your installer must confirm the recess, ventilation, hearth and safe clearances.
THE FIRE IN FULL VIEW
Room to relax.
THE HEAT
Plan the room.
The output is 17 kW, with a suggested heating area up to 260 m². Results depend on insulation, ceiling height, layout and weather.
THE SETUP
Choose the parts you need.
Add 150 mm flue pipes, a cowl, ceiling plates and an insulation blanket as optional extras. Not sure what you need? Send your measurements for a flue and configuration quote.
PLAN YOUR FIREPLACE
Will it fit your space?
- Body width × depth
- 1,043 × 412 mm
- Body height
- 589 mm
- Front frame width × height
- 1,090 × 640 mm
- Depth including front frame
- 425 mm
- Top flue diameter
- 150 mm
- Optional flue pipe length, nominal
- 1,200 mm
- Heat output
- 17 kW
- Material
- Heavy-duty mild steel
Check the full installation before building.
These are product dimensions, not a finished recess size. Allow for heat expansion, insulation, ventilation, the flue route and a suitable hearth, and have an independent installer confirm your setup.
The drawing as text
- ALL SIZES IN MILLIMETRES
- Jetmaster FIRESCAPE 1060 Built-in
- Built-in wood fireplace: single sided, with a glass door
- 01 FRONT VIEW
- Ø150 flue
- 640 frame height
- 1,090 frame width
- 02 SIDE VIEW
- 412 body depth
- 425 including frame
- 589 body height
- Front at the right.
- 03 TOP VIEW
- 1,043 body width
- 412 body depth
- Front at the bottom. Round flue outlet on top.
- 04 OPTIONAL FLUE (SMALLER SCALE)
- Ø150
- 1,200 flue section
- Flue sections are sold separately.
- Joined sections overlap, so the chimney
- is lower than the sum of the lengths.
- The cowl and the ceiling plates fit
- a Ø150 flue pipe.
- PLANNING NOTES
- These are product sizes, not a building-opening size. Ask us for the opening size before you build.
- Your installer must confirm the support, the hearth, the insulation, the air supply and the full flue route.
- Not included: the stainless-steel trim, the log box, the flue, the cowl, the ceiling plates and the insulation.
- Insulation blankets: large 6,000 × 500 × 25, small 5,000 × 350 × 25.
GOOD TO KNOW
Plan your setup.
Read the instructions supplied with your fireplace before you plan the installation.
See also: Jetmaster FIRESCAPE 1060 with Wood Box · Jetmaster Premium 1050 Fireplace · Homefires 1050 Built-in Fireplace
What comes with the fireplace?
The FIRESCAPE 1060 single-sided fireplace, black mild-steel body and front frame, glass door, vermiculite inner boards, poker and instructions. A stainless-steel trim, log box, flue, cowl, ceiling plates and insulation are not included.
How large a room can it heat?
The output is 17 kW, with a suggested heating area up to 260 m². Insulation, ceiling height, room layout, ventilation and weather affect the result. The Output Calculator uses 17 kW. Send your room dimensions if you need help choosing.
How much space does it need?
The body is 1,043 mm wide, 412 mm deep and 589 mm high. The front frame is 1,090 × 640 mm, and the depth including the frame is 425 mm. These are product dimensions, not a finished recess size.
Which extras should I choose?
Have your installer confirm the flue route, materials, cowl, insulation and ceiling penetrations. The selections above are individual parts, not a complete installation kit. Do not order quantities from product width alone.
How long is each flue section?
Each optional section is 1.2 m long with a Ø150 mm connection. Joining sections overlap, so their nominal combined length is not the installed chimney height. Choose the flue quantity above, or send your measurements for a configuration quote.
Which insulation sizes are available?
Large: 6,000 × 500 × 25 mm. Small: 5,000 × 350 × 25 mm. Your installer must confirm the suitable material, size and placement for the surround.
How much space do the cowl and ceiling plate need?
They connect to Ø150 mm pipe. Confirm the selected parts and finished openings with your installer before cutting or building.
What should I burn?
Use dry, seasoned wood; no grate is required. Follow the operating instructions supplied with the unit. Keep the door closed while the fire is burning and let the fire and ash cool before cleaning.
Where are the instructions?
The operating and installation instructions come with the fireplace. Read them before you plan the installation and before the first fire.
Can you help plan my fireplace?
Send a photo and measurements for a quote and a visual preview. We can help with product and flue configuration. Arrange the installation with an independent installer.
What does the warranty cover?
The fireplace has a five-year warranty, excluding glass and corrosion. Ask us for the full terms before ordering.
