THE HEAT
Convection and radiant heat.
Warm air moves into the room while radiant heat warms the space in front of the glass. It's listed at 17 kW, with a suggested heating area up to 260 m².
Sale!
About your fireplace
- Heat
- 17 kW · Convection and radiant heat
- Included
- Fireplace, large glass door, vermiculite inner boards, log-box base
- Not included
- Flue pipes, cowl, escutcheon plate, non-combustible hearth, installation
- Guarantee
- 5 years on the firebox

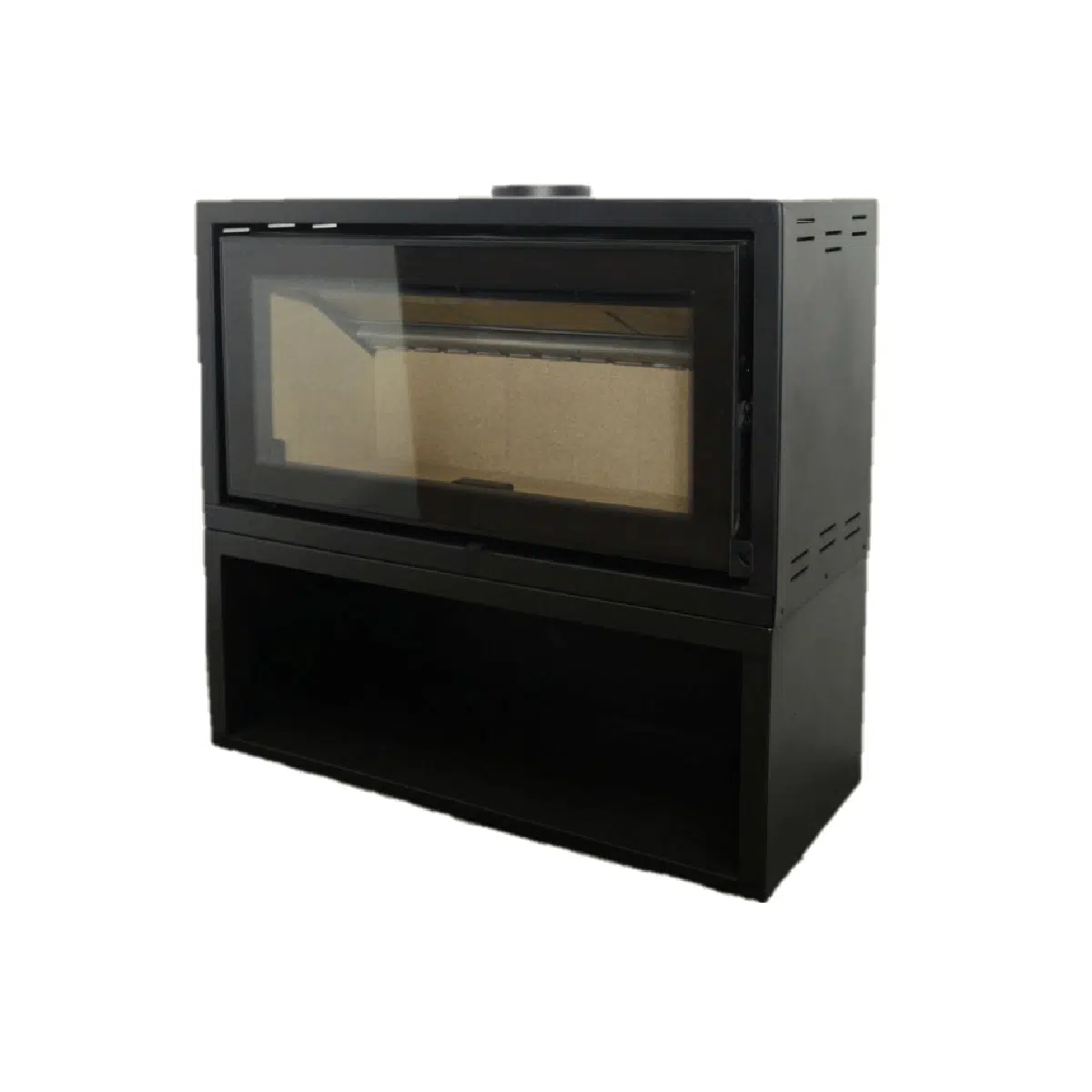

Jetmaster FIRESCAPE 1060 with Wood Box Slow Combustion Single Sided Freestanding Fireplace
A wide view of the fire, with its own log box below.
From: Original price was: R39,257.00.R37,999.00Current price is: R37,999.00.
Save R1,258In stock Delivery ETA: 5–7 working days
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsA CLEAR VIEW OF THE FIRE
A wide fire.
Wood close at hand.
A large glass door brings the flames into view from one side of the room. The heavy-duty black mild-steel body has vermiculite inner boards to help hold the heat in the closed-combustion chamber. It stands on its own log box, so dry wood is always within reach when the evening calls for one more log.
- Heavy-duty black mild-steel bodyClosed-combustion wood fire
- Vermiculite inner boardsLine the combustion chamber
- Log box below, the full width of the fireDry wood within reach
- Single-sided glass doorFor viewing and loading
- Ø150 mm flue outlet on topTotal flue height depends on your room
- Plan the hearth, air supply and clearancesFor the complete installation
MAKE YOURSELF AT HOME
Wood close by.
An evening at home.
A broad glass front faces the seating area, with a supply of logs below. On a cold winter evening, pull your chair a little closer and let the fire set the pace.
Firewood, hearth, flue pipe, furniture and installation are not included. Have an independent installer confirm the hearth, ventilation, flue route and clearances.
THE FIRE IN FULL VIEW
Room to relax.
THE LOG BOX
Wood stays close.
The fireplace stands on its own log box, the full width of the body. Keep a supply of dry, seasoned wood within easy reach of the door.
THE FIRE
No grate needed.
Vermiculite inner boards line the combustion chamber and help hold the heat. No grate is needed: burn dry, seasoned wood and keep the door closed while the fire burns.
PLAN YOUR FIREPLACE
Will it fit your space?
- Width × depth, fireplace and log box
- 1,085 × 461 mm
- Fireplace body height
- 585 mm
- Log box height
- 402 mm
- Overall height, before the flue
- 987 mm
- Top flue diameter
- 150 mm
- Optional flue pipe length, each
- 1,200 mm
- Material
- Heavy-duty mild steel
- Fuel
- Dry, seasoned wood
Plan the fireplace, log box and flue together.
The body and log box stand 987 mm high before the flue. These are product dimensions; have an independent installer confirm the hearth, air supply, flue route and safe clearances for the actual unit.
The drawing as text
- ALL SIZES IN MILLIMETRES
- Jetmaster FIRESCAPE 1060 with Wood Box
- Freestanding wood fireplace: single sided, on its own log box
- 01 FRONT VIEW
- Ø150 flue
- 585 fireplace
- 402 log box
- 987 total height
- 1,085 width
- 02 SIDE VIEW
- 461 depth
- Front at the right.
- 03 TOP VIEW
- 1,085 width
- 461 depth
- Front at the bottom. Round flue outlet on top.
- 04 OPTIONAL FLUE (SMALLER SCALE)
- Ø150
- 1,200 flue pipe
- Flue pipes, the cowl and the
- escutcheon plate are sold separately.
- The total flue height depends
- on your room.
- PLANNING NOTES
- The fireplace and the log box come together: 1,085 wide, 461 deep and 987 high.
- Plan the hearth, the air supply and the clearances for the complete installation.
- Ask us where the flue outlet sits before you cut the ceiling.
GOOD TO KNOW
Plan your setup.
Plan the hearth, flue and clearances with an independent installer before you build.
See also: Jetmaster FIRESCAPE 1060 Built-in Fireplace · Jetmaster Premium 1050 Fireplace · Homefires 1050 Built-in Fireplace
What is included?
The FIRESCAPE 1060 single-sided fireplace with its large glass door and vermiculite-lined combustion chamber, standing on its log-box base. Flue pipes, a cowl, the escutcheon plate, the hearth and installation are not included.
How much heat does it give?
The listed output is 17 kW, with a suggested heating area up to 260 m². Insulation, ceiling height, room layout and weather change the result. The Output Calculator uses 17 kW.
Which fuel should I use?
Burn dry, seasoned wood. The FIRESCAPE needs no grate. Keep the glass door closed while the fire burns, and let the fire and ash cool before cleaning.
How much space does it take?
The fireplace and log box are both 1,085 mm wide and 461 mm deep. The 585 mm body stands on the 402 mm log box, 987 mm in total before the flue. These are product dimensions, not the full space needed for safe use.
Where does the flue connect?
The flue connects at the top and takes 150 mm round pipe. Optional pipes are 1,200 mm long each. The total flue height depends on your room and roof, so have your installer plan the full route.
Are the flue, cowl and escutcheon plate included?
No. Add flue pipes, a cowl and escutcheon plates as optional extras when you order, or send a photo and measurements for a flue and configuration quote.
How much clear space does it need?
Have your installer confirm the hearth, the safe distance to anything that can burn and the flue height for your room before you build. Keep the floor in front of the door clear for loading and cleaning.
Does the room need an air supply?
Yes. Plan the room's air supply together with the hearth and flue. Your installer confirms what the room and the fireplace need.
Is this the built-in FIRESCAPE?
No. This FIRESCAPE 1060 stands on its own log box. The built-in FIRESCAPE 1060 has a different body and front frame, so plan with the sizes on this page.
Can you help plan my setup?
Yes. Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
What does the warranty cover?
The slow-combustion firebox has a five-year Jetmaster warranty against defects in materials and workmanship, subject to its terms. Glass, corrosion, seals, vermiculite panels and other wear parts are not covered by that firebox cover. Ask us for the full terms.
