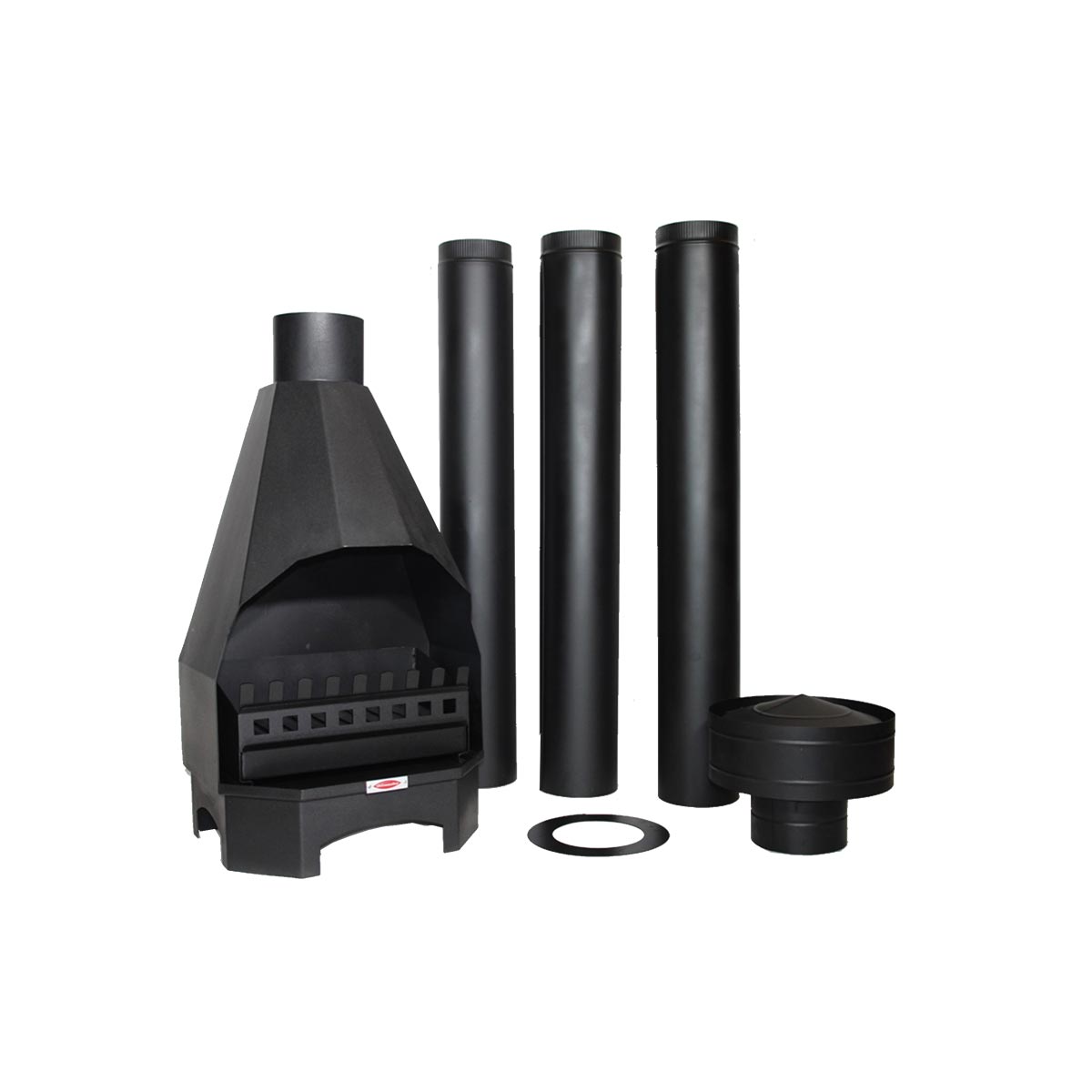

Jetmaster Mynx 7-50 Fireplace Bundle, open black fireplace body with separate flue sections and cowl

Your fireplace, up close

Will it fit my space?

About your fireplace

Build: Heavy-duty carbon steel · Built-in damper
Included: Fireplace, log pan, ash drawer, poker, 3 flue sections, storm cowl, ceiling plate, insulation
Not included: Hearth, heat-resistant silicone for the flue joints, installation
Guarantee: 5 years on the fireplace box, 12 months on accessories

Jetmaster Mynx 7-50 FS (Freestanding) Fireplace BUNDLE DEAL - Save!

Name: Jetmaster Mynx 7-50 Fireplace Bundle | Braai Culture
Brand: Jetmaster
SKU: 40240413
Price: 8599.00 ZAR
Availability: InStock

An open wood fire with the flue essentials already bundled.

R8,599.00

SKU 40240413

In stock Delivery ETA: 5–15 working days

Complete your setup

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

AN OPEN FIRE, BUNDLED

Open fire.
Warm welcome.

The Mynx radiates warmth from its open front, with a heavy-duty carbon-steel fire chamber and a tapered smoke hood in one freestanding unit. Use the built-in damper to manage the fire, keep the logs in the log pan and let the ash drawer handle the tidy-up. Burn dry, seasoned hardwood and keep the area in front clear.

Joints overlap, so the 3.6 m nominal flue is not the installed height. Send us your measurements for a flue quote.

Built-in damper
Log pan and ash drawerFor an easy tidy-up
Three Ø 175 mm flue sections includedAdd up to 5 more above
Storm cowl, ceiling plate and ceramic wool
Burn dry, seasoned hardwoodUse a fireguard near children or pets
No glass doorMade for an open wood fire

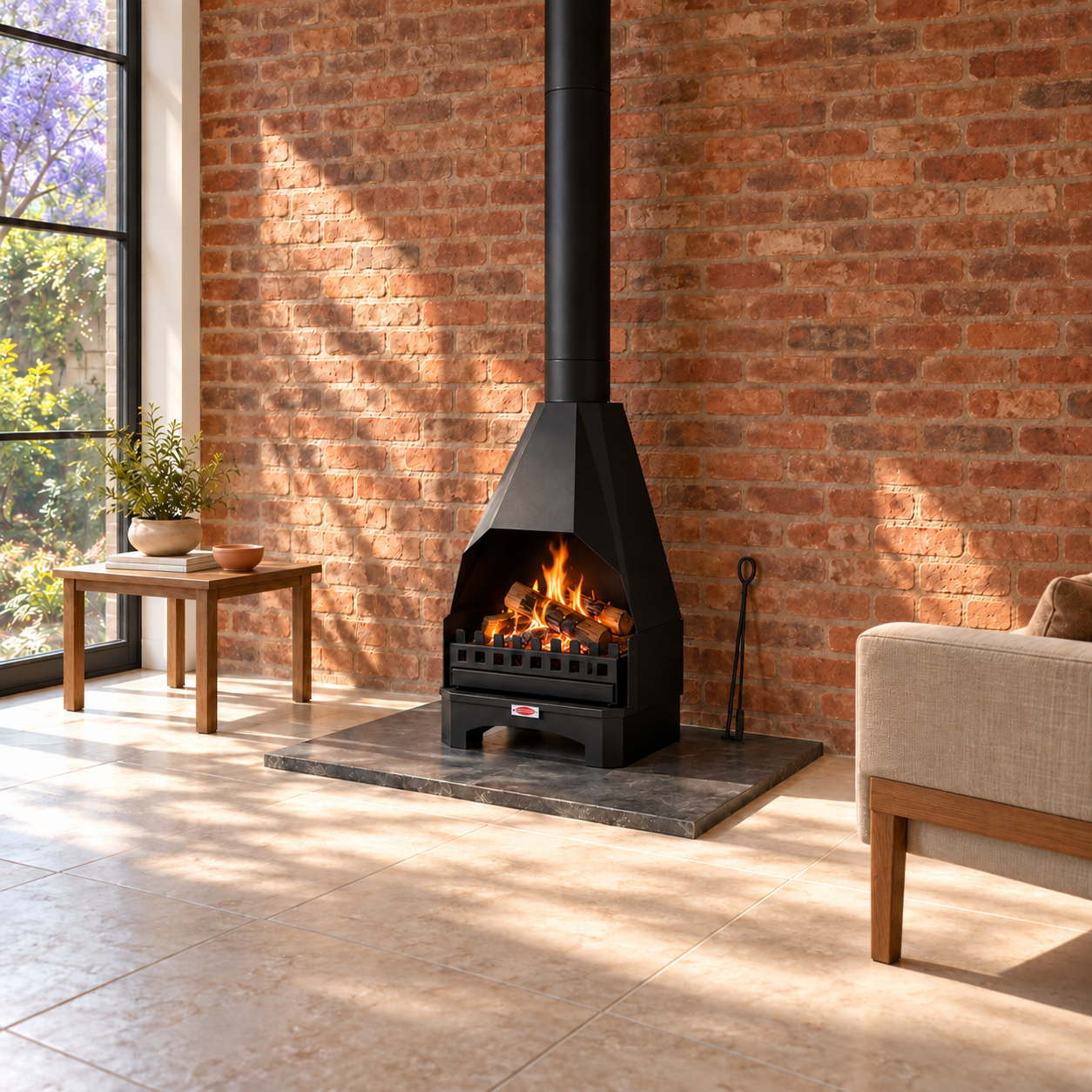

Jetmaster Mynx 7-50 Fireplace Bundle alight on a hearth against a brick living-room wall

MAKE YOURSELF AT HOME

A good fire.
A quiet evening.

Watch the flames, put your feet up and enjoy the warmth of an open wood fire. On a cold winter evening, it becomes the place everyone wants to sit.

Hearth and furnishings are not included. Have a qualified installer confirm the position, flue route and clearances.

A LITTLE PRACTICAL THINKING

Simple to run.
Easy to plan.

THE FIRE

Open to the room.

The Mynx radiates warmth from its open front. Use dry, seasoned wood and keep the area in front clear.

THE BODY

Steel, shaped for the fire.

The heavy-duty carbon-steel fire chamber and tapered smoke hood form one freestanding unit.

THE FLUE

The main flue parts, included.

Three 1.2 m sections, a storm cowl, ceiling plate and ceramic wool are supplied. Add extra sections if your roof route needs them.

MEASURE THE WHOLE SETUP

Will it fit your space?

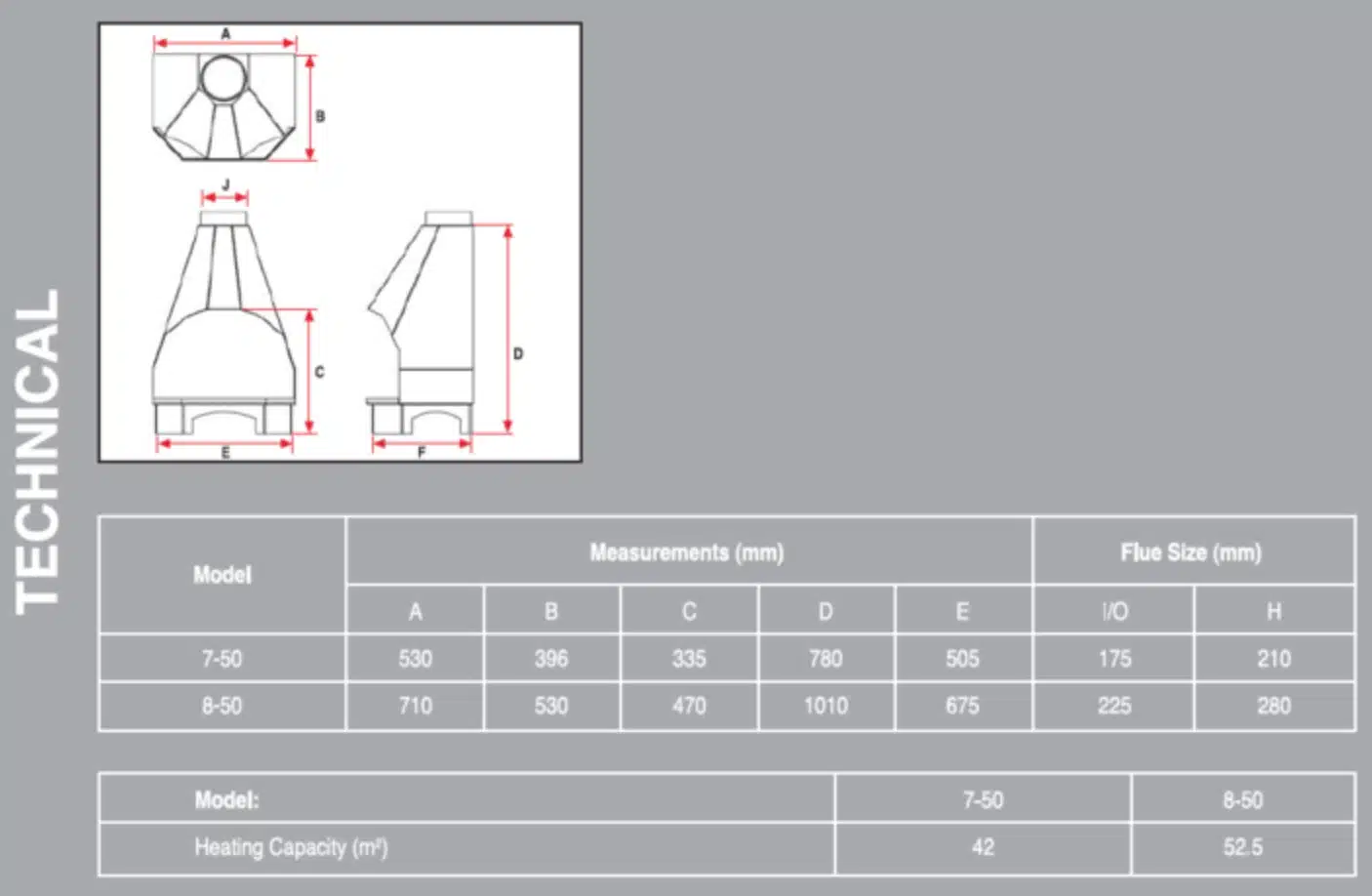

Open dimension drawing

Download the dimension drawing

Body width × depth: 530 × 395 mm
Body height, before the flue connection: 966 mm
Wood grate width × depth: 455 × 260 mm
Round flue diameter: 175 mm
Included flue sections: 3 × 1,200 mm
Extra flue section length: 1,200 mm
Body material: Heavy-duty carbon steel
Flue material: Mild steel
Fuel: Wood

Plan beyond the fireplace body.

The 966 mm body height does not include the flue connection or the roof route, so allow extra height for both. A qualified installer must confirm the hearth, room ventilation, clearances and roof weatherproofing.

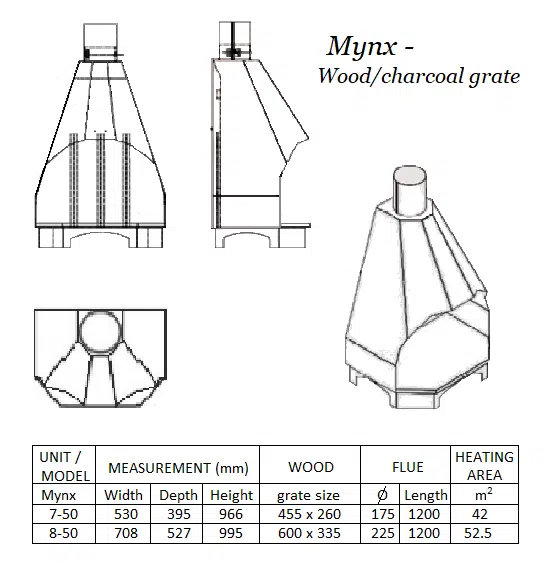

The drawing as text

BRAAI CULTURE / DIMENSIONS
Jetmaster Mynx 7-50 · Wood-fire bundle
ALL SIZES IN MILLIMETRES
01 FRONT / FIREPLACE BODY
530
966 body
Height excludes the flue connection.
02 SIDE / BODY DEPTH
395
966 body
Allow room for the hearth and flue route.
03 WOOD GRATE / PLAN
455
260
Log pan and ash drawer included.
04 INCLUDED FLUE SECTIONS
Ø175
1,200
3 sections · 3.6 m nominal total
05 FIREPLACE BODY / PLAN
Round flue collar
Faceted hood
Joints overlap. Nominal pipe length is not the installed flue height.

GOOD TO KNOW

Plan your setup.

Read the installation and operating instructions in the bundle before you plan the installation.

What is included in the bundle?

The wood-burning Mynx body includes its damper, log pan and ash drawer. The bundle also includes a poker, three 175 mm × 1.2 m mild-steel flue sections, storm cowl, ceiling plate, ceramic wool insulation and installation and operating instructions. The hearth and installation are not included.

Do I need extra flue sections?

That depends on the roof height, route and termination point. Three 1.2 m sections are included. Their 3.6 m nominal total is not the final installed height: joints overlap and the route must suit your roof. Add up to five extra 175 mm sections, or send measurements for a configuration quote.

How much space does the fireplace take?

The published body dimensions are 530 mm wide, 395 mm deep and 966 mm high. The flue connection projects above the body. These dimensions do not include room clearances, a hearth or the installed flue height.

How much heat does it give?

The Mynx gives radiant heat from its open front. We do not have a published kW rating for it. Send us your room size and we will help you check the choice.

What hearth and floor support are needed?

Use a suitable non-combustible hearth and keep combustible furnishings clear of the open fire. Have a qualified installer confirm the hearth size, floor support and all clearances for your room.

What about ventilation and the roof?

An open fire needs a reliable air supply and a correctly fitted flue. Have your installer assess room ventilation, nearby extractors, ceiling and roof penetrations, weatherproofing, support and the final cowl position before installation.

How are the flue joints sealed?

The flue joints are sealed with heat-resistant silicone, which is not included. Your installer fits the sections as the supplied instructions describe.

Which wood should I use?

Use dry, seasoned hardwood. Keep logs within the log pan and keep combustible items away from the opening. Never leave a burning fire unattended. Use a suitable fireguard when children or pets are nearby.

Is this a closed fireplace or a gas bundle?

This bundle is supplied for an open wood fire. It has no glass door or enclosed log base. A gas configuration requires different equipment; contact us before choosing a different fuel.

Can you help with the setup?

Yes. Send a photo and measurements for a flue and configuration quote. We can help you choose the parts; arrange installation with a qualified installer. Braai Culture does not provide installation services.

What does the warranty cover?

The fireplace box has a five-year limited warranty against defects in materials and workmanship. Accessories, including the flues, cowl and ash pan, have 12 months of cover. Corrosion, misuse and fair wear are excluded. Keep your proof of purchase and installation records.
