WIKING 1404E Slow Combustion Fireplace

Full cast iron and a wide glass door, so the fire stays part of the room.

Original price was: R14,680.00.Current price is: R13,799.00.

Save R881

SKU WKING1404E

In stock Delivery ETA: 5–7 working days

Complete your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

MORE ABOUT THE 1404E

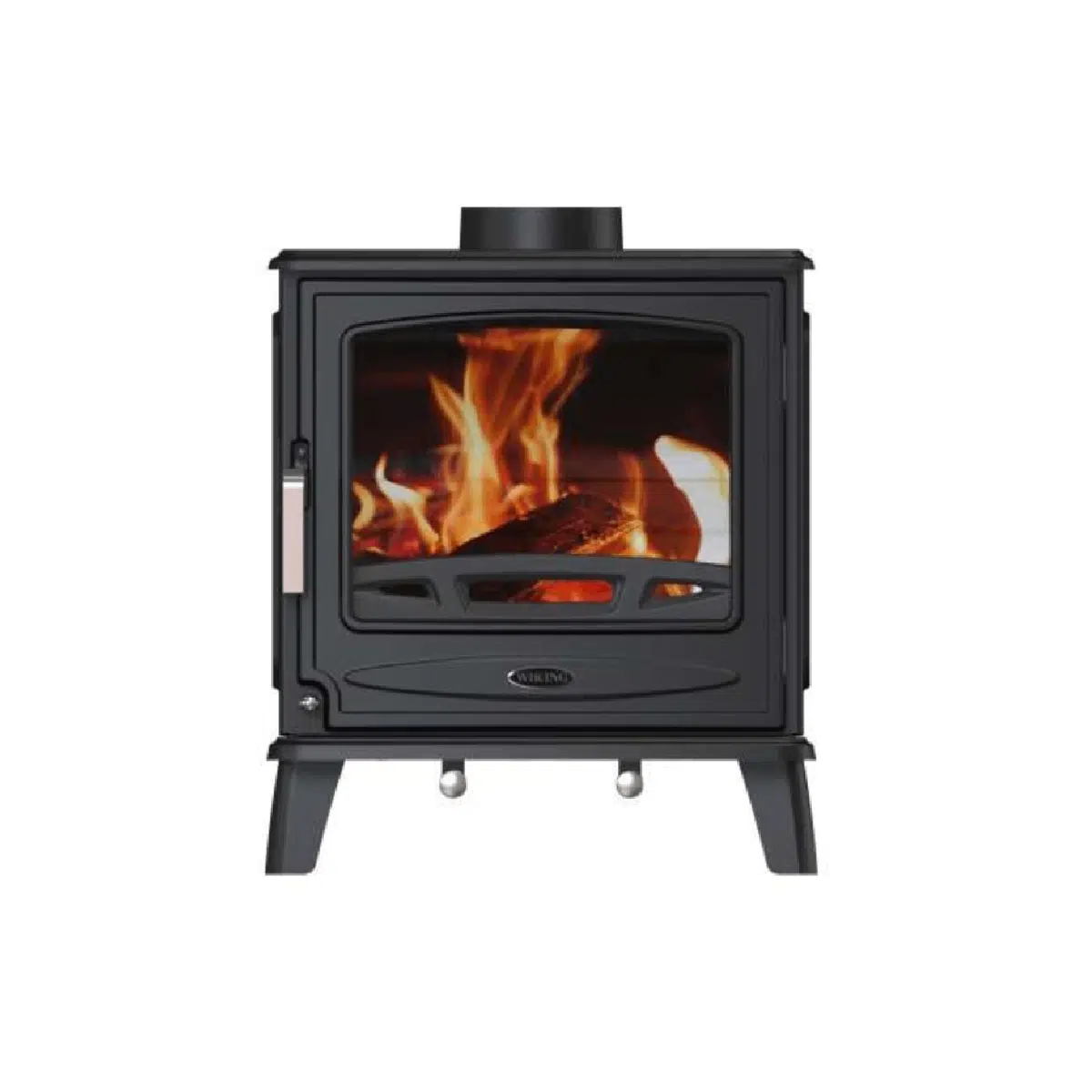

WIKING 1404E Slow Combustion Fireplace.
Wide glass.

The WIKING 1404E Slow Combustion Fireplace is full cast iron from top to bottom, a closed-combustion stove for dry wood or anthracite. Its glass is 354 mm wide, so you get a proper look at the fire. Ash falls through the riddling grate into the ashpan, and your installer can take the flue off the top or the back.

  1. Riddling grate and ashpanThe ash drops into the pan below
  2. Dry wood or anthraciteThe permitted fuels
  3. Flue on top or at the rearFor a 125 mm nominal flue pipe
  4. Glass door with a handleGlass 354 × 285 mm
  5. No outside-air connectionAnd no extractor fan in the same room
  6. Installation manualUnder Plan your setup
WIKING 1404E alight on a stone hearth in a white-walled lounge, with a couch to one side, proteas in a vase and the sea and mountains through the window

THE BEST SEAT IN THE HOUSE

Let the weather do what it likes.

Outside, the wind can have its way. Inside, the 1404E burns behind its glass door, the couch is close enough and there is a good view from the window. On a cold day this is the spot everybody wants, and the hardest one to leave.

The flue pipe is sold separately. The stone hearth, furniture, rug, vase and flowers are not included. Have an independent installer confirm the hearth, flue route and clearances.

BEFORE THE FIRST FIRE

Sort out the fuel, the flue and the floor.

THE FIRE

Two fuels, nothing else.

Dry wood and anthracite are the permitted fuels, so choose whichever suits you and leave everything else out. The riddling grate and the ashpan take care of what the fire leaves behind.

THE FLUE

On top or at the back.

Use a 125 mm pipe with 1 m of 6 mm rope, or a 130–150 adaptor to use a 150 mm pipe. Do not connect it to a shared chimney or flue. Your installer selects the actual system.

THE ROOM

Keep the furniture back.

Allow 1,000 mm between the stove and household furnishings and 1,200 mm above it to a combustible ceiling, and 800 mm from combustible materials is recommended.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

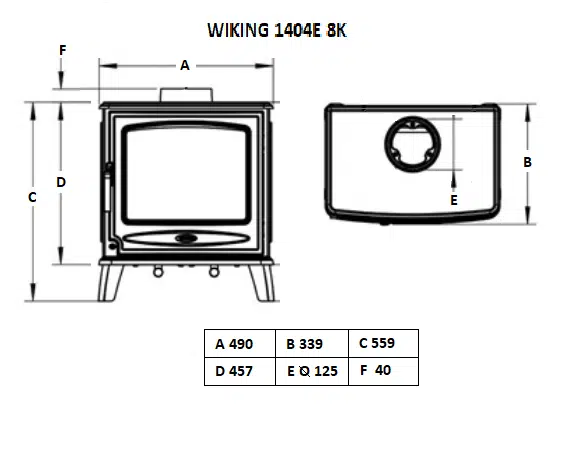

WIKING 1404E Slow Combustion Fireplace dimension drawing: front, side and top views and flue outlet, in millimetres.
Download the dimension drawing
Top-plate width
490 mm
Top-plate depth, without the handle
338.5 mm
Height to the top plate
559 mm
Height with the flue collar
596.6 mm
Upper stove body height
456.5 mm
Glass width × height
354 × 285 mm
Nominal flue pipe
125 mm
Material
Full cast iron
Fuel
Dry wood or anthracite

Plan the stove, the hearth and the flue together.

The 1404E stands 559 mm to its top plate and 596.6 mm with the flue collar, and the door handle stands out past the 338.5 mm depth. These are product sizes: have an independent installer check the hearth, the flue and the clearances.

The drawing as text
  • ALL SIZES IN MILLIMETRES
  • WIKING 1404E Slow Combustion Fireplace
  • Full cast-iron closed-combustion freestanding fireplace
  • 01 FRONT VIEW
  • 490 width
  • 596.6 with collar
  • 456.5 upper body
  • 559 to the top plate
  • 285 glass
  • 354 glass
  • 02 SIDE VIEW
  • 338.5 top plate depth
  • 596.6 with collar
  • Front at the right. The handle and the rods
  • stand out past this depth.
  • 03 TOP VIEW
  • 490 width
  • 338.5 depth
  • Back at the top. Front at the bottom.
  • 04 FLUE OUTLET (LARGER SCALE)
  • 142.6 outer circle
  • 132.7 inner circle
  • Flue pipe: 125 nominal.
  • Top or rear connection.
  • 05 IN A RECESS (SMALLER SCALE)
  • Hearth
  • Stove
  • 200 side
  • 200 side
  • 150 rear
  • 400 front
  • Plan. Front at the bottom.
  • 200 above
  • Front view.
  • 06 CLEARANCES (SMALLER SCALE)
  • 1,200 to ceiling
  • Combustible ceiling
  • Furnishings
  • 800 combustibles
  • 1,000 furnishings
  • Side view. Front at the right.
  • PLANNING NOTES
  • The 596.6 height includes the collar on top. The 559 height stops at the top plate.
  • The 338.5 depth is the top plate. The door handle stands out past it.
  • Flue pipe: 125, fitted with 1 m of 6 mm rope. For a 150 pipe, use a 130–150 adaptor.
  • A constructional hearth must be at least 125 thick, including any surface finish.
  • A sheet hearth may be 12 thick only outside a recess and subject to testing. Read the manual before you plan it.
  • Do not connect the stove to a shared chimney or flue. Do not fit an extractor fan in the same room.
  • Included: the riddling grate, the ashpan, the door and its handle.

GOOD TO KNOW

Plan your setup.

Read your instruction manual before you plan the installation.

Read the instruction manual

What is included?

The WIKING 1404E stove, with its riddling grate, ashpan, door and handle. Flue pipes, a cowl, bends, a T-piece drain, escutcheon plates and wall brackets are options you can add on this page. The hearth and the installation are not included.

Which fuel can I burn?

Dry wood and anthracite are the permitted fuels. Read the manual before your first fire.

How much heat does it give?

Ask us before you order. We are confirming the heat output with Home Fires, and we will help you match the stove to your room.

Where does the flue connect?

On top or at the rear. The specified flue is a 125 mm pipe with 1 m of 6 mm rope, or a 130–150 adaptor to use a 150 mm pipe. Have an independent installer select the system and plan the route, height and support. Do not connect this stove to a shared chimney or flue.

Is the flue included?

No. Flue pipes, a cowl and the other flue parts are options on this page, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.

How much space does it need?

The top plate is 490 mm wide and 338.5 mm deep, and the door handle stands out past that depth. It stands 559 mm to the top plate, or 596.6 mm with the flue collar. Allow 1,000 mm to household furnishings and 1,200 mm above it to a combustible ceiling, and 800 mm from combustible materials is recommended. Your installer must follow the installation manual that comes with the unit.

What hearth does it need?

Allow a further 400 mm of hearth in front of the stove. A constructional hearth must be at least 125 mm thick, finish included. A 12 mm non-combustible sheet is possible only outside a recess and subject to testing, so read the manual before you plan it. Your installer confirms the hearth for your floor and room.

Can it stand in a recess?

Yes, with free air around it: 200 mm at each side, 200 mm above and 150 mm behind. These gaps apply only in a recess. Have your installer check the whole opening against the manual.

Can I fit an extractor fan in the same room?

No. Do not fit an extractor fan in the same room as the stove. It also has no outside-air connection, so talk to your installer about both early on, while your plans can still change.

How heavy is it?

Ask us before you plan the move. We are confirming the net weight with Home Fires. Have your installer check that the floor and the hearth can carry the stove.

What does the guarantee cover?

The extended three-year warranty on the main body applies when bought new from Home Fires or an authorised retailer and registered within 30 days. Without registration it falls to 12 months. It covers the first owner at the first location, and needs compliant professional installation with proof and commissioning documents. Consumable parts, glass, grates, handles, baffles, seals and the finish are excluded. The manual has the full terms.

Can you help with my setup?

Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
