THE HEAT
8 kW nominal, up to 10 kW.
The AM1402 is rated at 8 kW nominal and 10 kW maximum heat output when burning wood. The Output Calculator uses 9 kW, the middle of the two, to compare with your room.
Sale!

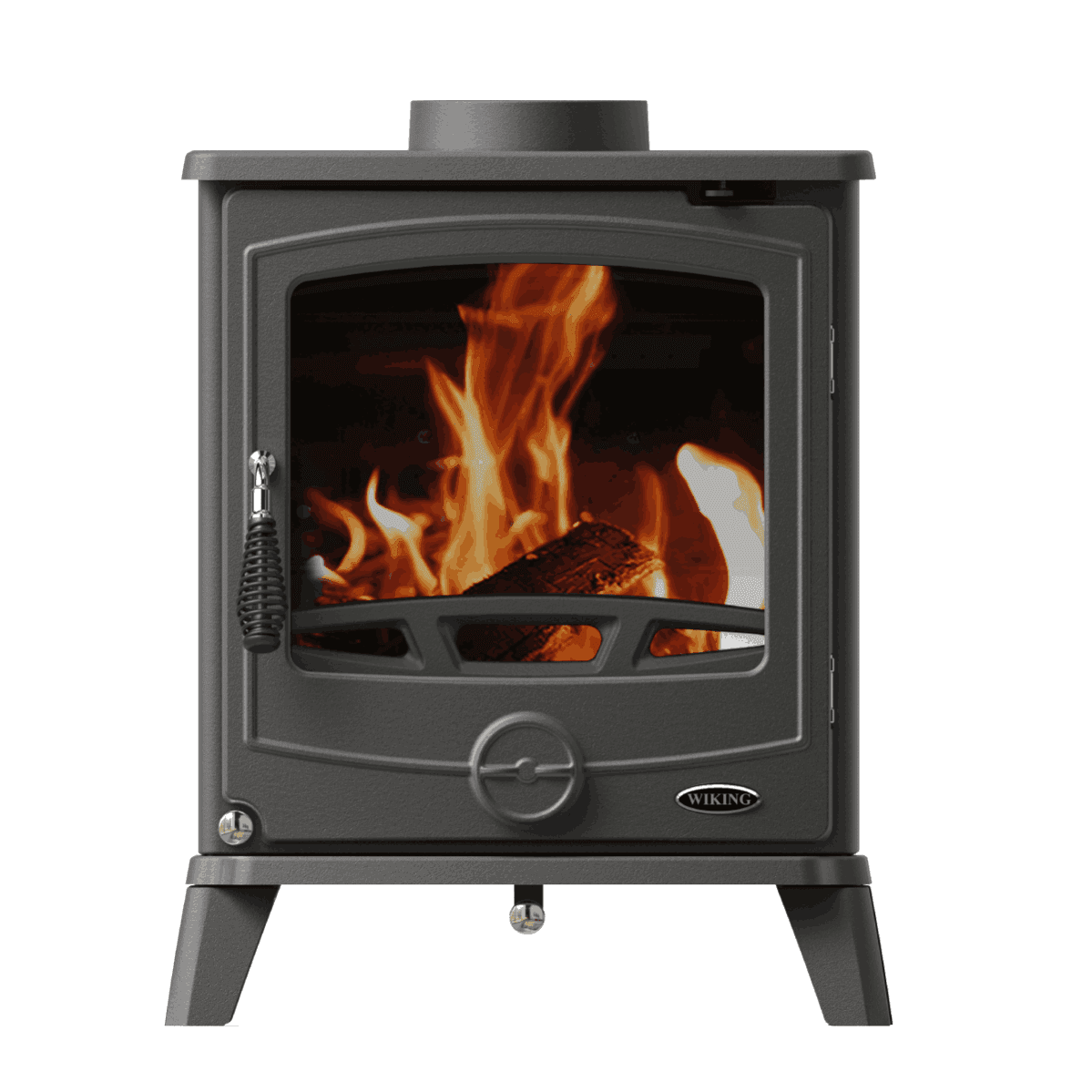

WIKING AM1402 8kW– Slow Combustion Fireplace
An arched glass door in full cast iron, for a warm fire of wood or anthracite.
Original price was: R20,990.00.R19,799.00Current price is: R19,799.00.
Save R1,191In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat and fuel
- 8 kW nominal, 10 kW max · wood or A-grade anthracite
- Included
- The stove, with its riddling grate and ash pan
- Not included
- Flue pipes, accessories and installation
- Guarantee
- Three years on the stove body when registered within 30 days
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsMORE ABOUT THE AM1402
Cast iron all round.
Flue on top or behind.
The AM1402 is a full cast-iron, closed-combustion stove for dry wood or A-grade anthracite. Watch the fire through the arched glass door, and let the ash fall through the riddling grate into the pan below, ready to empty once it is cold. Your installer can take the flue off the top or the back, on a 150 mm nominal pipe. At 106 kg, plan the move early.
- Riddling grate and ash panThe ash drops into the pan below
- Dry wood or A-grade anthraciteOnly these two fuels
- Flue on top or at the rearFor a 150 mm nominal flue pipe
- Arched glass doorGlass size 350 × 308 mm
- Installation manualUnder Plan your setup
FIRST COFFEE BY THE FIRE
Coffee's on.
So is the fire.
Early light across the wooden floor, a plunger of coffee on the table and the AM1402 already crackling. Sit back, talk through the plans for the day, and let the cast iron warm the room before anyone heads outside.
The flue pipe, hearth plate, furniture, rug and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
A LITTLE PRACTICAL THINKING
Plan the heat, the flue and the room.
THE FLUE
On top or at the back.
Connect a 150 mm nominal flue pipe on top or at the rear, whichever suits the room. Send us a photo and measurements for a flue quote, and we will help you choose the parts.
THE ROOM
Give it space to breathe.
Keep household furnishings 1,000 mm from the stove. We recommend 800 mm from combustible walls. Leave 1,200 mm above it to a combustible ceiling.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Top casting width
- 490 mm
- Foot span, outside edges
- 513 mm
- Depth (casing)
- 411 mm
- Height to the top casting
- 618 mm
- Height including the flue collar
- 652.1 mm
- Body casting height
- 518 mm
- Glass size
- 350 × 308 mm
- Nominal flue pipe
- 150 mm
- Net weight
- 106 kg
- Material
- Full cast iron
Plan the stove, the hearth and the flue together.
The AM1402 stands 618 mm to its top casting and 652.1 mm to the top of the flue collar, and its feet span 513 mm. These are product dimensions: have an independent installer check the hearth, the clearances and the floor for its 106 kg.
The drawing as text
- WIKING AM1402. Dimensions in millimetres.
- Front: top casting width 490 mm
- Front: foot span 513 mm
- Front: height to the top casting 618 mm
- Front: height including the flue collar 652.1 mm
- Front: body casting height 518 mm
- Side: depth 411 mm
- Top flue socket (detail enlarged): Ø157.2 mm
- Glass size 350 × 308 mm
- Combustible walls (installation schematic): 800 mm and 800 mm
- Floor protector, edge extensions (schematic): 400 mm, 200 mm and 200 mm
- Chimney and roof (installation schematic): 1,500 mm above the roof at the flue, 600 mm above the ridge
- Use the installation manual for all site requirements.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The WIKING AM1402 cast-iron stove, with its riddling grate and ash pan. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel can I burn?
Dry wood or A-grade anthracite, and nothing else. Keep your firewood dry. The heat output figures are for wood.
How much heat does it give?
8 kW nominal and up to 10 kW maximum heat output, rated on wood. The Output Calculator uses 9 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.
Where does the flue connect?
On top or at the rear, for a 150 mm nominal flue pipe. Our drawing shows the top flue socket at Ø157.2 mm. The roof diagram shows the flue ending 1,500 mm above the roof where it passes through, and 600 mm above the ridge. Have an independent installer choose the outlet and plan the flue route, height and support.
Is the flue included?
No. Flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The stove is 490 mm wide at the top casting, its feet span 513 mm, and it is 411 mm deep. It stands 618 mm to the top casting or 652.1 mm to the top of the flue collar. Keep household furnishings 1,000 mm away, and leave 1,200 mm above it to a combustible ceiling. We recommend 800 mm from combustible walls. Your installer must follow the installation manual that comes with the unit.
What hearth does it need?
Build a solid, non-combustible constructional hearth at least 125 mm thick, finishes included, that reaches 400 mm in front of the stove. Its floor-protector diagram, also on our drawing, shows edge extensions of 400 mm and 200 mm. Your installer confirms the hearth for your floor and room.
Can it stand in a recess?
Yes, with permanent free air around it: 200 mm at the sides, 200 mm above and 150 mm behind. These gaps apply only in a recess. Where a firewall is needed, use one at least 100 mm thick, usually brick, concrete or stone.
What size is the glass?
The glass measures 350 × 308 mm. Give us this size if you ever need a replacement pane.
How heavy is it?
The net weight is 106 kg. Plan how it will be moved into place, and have your installer check that the floor and the hearth can carry it.
What does the guarantee cover?
The main stove body has a three-year limited Home Fires guarantee when you register it within 30 days; otherwise the cover is 12 months. It covers the first owner at the first installed location, needs professional installation, and excludes the glass, grate, firebricks, handles, seals, paint and other wear parts. The manual has the full terms.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
