THE HEAT
9 kW nominal, up to 11 kW.
The R01 gives 9 kW nominal and up to 11 kW maximum heat output, with a listed efficiency of 78%. The Output Calculator uses 10 kW, the middle of the two, to compare with your room.
Sale!

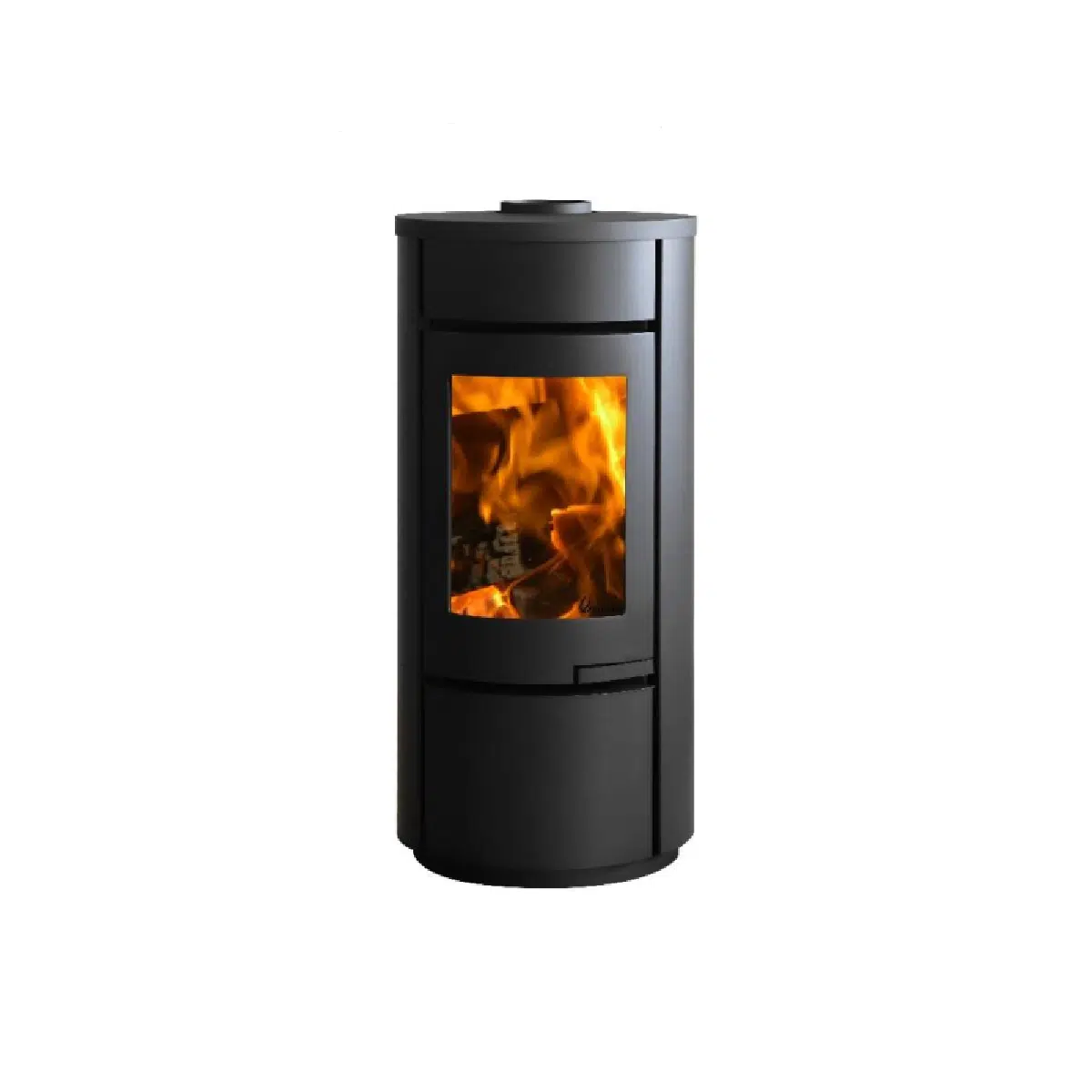

FLAMM R01 – Closed Combustion Freestanding Fireplace
A tall wood stove with a long, upright view of the flames.
Original price was: R33,590.00.R31,599.00Current price is: R31,599.00.
Save R1,991In stock Delivery ETA: 5–7 working days
About your fireplace
- Heat
- 9 kW nominal · 11 kW maximum
- Included
- The fireplace, with its vermiculite lining and the ash pan
- Not included
- Flue pipes, accessories and installation
- Guarantee
- 5 years on the main body (limited)
14-day returns on the unit*
Secure payments
See it in your space. Send a photo and measurements for a quote and a visual preview.
WhatsApp UsTHE R01, UP CLOSE
Tall glass, a lined firebox and an easy clean-up.
The R01 puts the fire behind an upright window, 432 mm high, so the flames are the first thing you notice in the room. Inside the 5 mm steel firebox, a vermiculite lining surrounds the fire, and an ash pan takes care of the clean-up. The finish is a black high-heat paint, the flue connects on top, and the listed efficiency is 78%.
- Upright glass window276 × 432 mm
- 5 mm steel fireboxVermiculite lining
- Ash panIncluded
- Top flue outletFor a 150 mm nominal flue
- Black high-heat finish
- Installation manualUnder Plan your setup
SLOW MORNINGS AT HOME
A quiet fire for a slow morning.
Sun on the oak floor, proteas on the shelf and a fire going before breakfast. The R01 takes the chill off a winter morning without taking over the room. Bring your coffee, pull the blanket a little closer and stay a while.
The flue pipe, hearth plate, furniture, rug, flowers and décor are not included. Have an independent installer confirm the hearth, flue route and clearances.
BEFORE THE FIRST FIRE
Heat, view and flue, sorted.
THE FIRE
A tall window on the flames.
The glass is 432 mm high and 276 mm wide, so the fire stays in view from across the room. A vermiculite lining surrounds the fire inside the 5 mm steel firebox.
THE FLUE
One outlet, on top.
The flue connects on top. The collar rises 26 mm, with a 155 mm socket for a 150 mm nominal flue pipe. Send us a photo and measurements for a flue quote.
MEASURE THE WHOLE SETUP
Will it fit your space?
- Height to top of flue collar
- 1,228 mm
- Flue collar rise
- 26 mm
- Upper casing band height
- 189.5 mm
- Lower casing band height
- 352 mm
- Glass width × height
- 276 × 432 mm
- Flue socket inside diameter
- 155 mm
- Flue size (nominal)
- 150 mm
- Clearance to combustible materials
- 800 mm
- Fuel · finish
- Wood · black high-heat finish
Confirm the width and depth before a tight fit.
The R01 stands 1,228 mm tall to the top of its flue collar. Ask us to confirm its width, depth and weight before you plan a tight fit, and have an independent installer check the clearances on site.
The drawing as text
- FLAMM R01 freestanding. Dimensions in mm.
- Front: upper casing band 189.5 mm
- Front: lower casing band 352 mm
- Front: glass 276 mm wide, 432 mm high
- Front: overall height 1,228 mm, to the top of the flue collar
- Side: flue collar 26 mm
- Outlet detail: inside Ø 155 mm, nominal pipe Ø 150 mm
- Internal firebricks: baffle 323 × 175 mm, 25 mm thick; side brick 229 × 475 mm, 20 mm thick; rear brick 332 × 475 mm, 20 mm thick
- Installation, schematic: combustible ceiling 1,200 mm above; combustibles 800 mm (manual recommendation)
- Floor protector: 400 mm in front, 200 mm at the side, 200 mm at the rear
- Only if recessed: air gaps of 200 mm at the side, 200 mm at the top and 50 mm at the rear; these gaps do not define a cut-out
- Household furnishings: 1,000 mm
- Conditional sheet hearth 12 mm; constructional hearth 125 mm; firewall 100 mm
- Flue route, manual diagrams (schematic): horizontal run 300 mm, vertical run 2,500 mm, flue height 4,500 mm, rise above the roof 600 mm
- The installer determines the site-specific flue route. Use the exact model manual for installation.
GOOD TO KNOW
Plan your setup.
Read your instruction manual before you plan the installation.
What is included?
The FLAMM R01 closed combustion fireplace in a black high-heat finish, with its vermiculite lining and the ash pan. Flue pipes, accessories and installation are not included: we quote the flue parts for your setup.
Which fuel does it burn?
Wood. It is a closed combustion fireplace, with the fire behind the glass.
How much heat does it give?
9 kW nominal and up to 11 kW maximum heat output, with a listed efficiency of 78%. The Output Calculator uses 10 kW, the middle of the two. Insulation, ceiling height and climate change how warm a room feels.
Where does the flue connect?
At the top. The flue collar rises 26 mm, with a socket 155 mm across inside, and takes a 150 mm nominal flue pipe. Have an independent installer plan the flue route, height and support for your building.
Is the flue included?
No. Chimney flue pipes and accessories are sold separately, because they depend on your room and roof. Send a photo and measurements for a product and flue configuration quote, and we will help you choose the right parts.
How much space does it need?
The R01 stands 1,228 mm tall to the top of its flue collar. Ask us to confirm its width, depth and weight before you plan a tight fit. Leave at least 1,200 mm to a combustible ceiling. We recommend 1,000 mm to household furnishings and at least 800 mm from combustible materials. Your installer applies the full manual and local requirements.
What does it need underneath?
Use a floor protector that reaches 400 mm in front of the fireplace and 200 mm beyond the sides and the rear. Depending on your floor, the hearth can be a 125 mm constructional hearth or, in some cases, a 12 mm non-combustible board. Have your installer check the floor.
Can it stand in a recess?
In a recess, leave a free air gap of 200 mm at the sides and the top and 50 mm at the rear. These gaps are for airflow and do not define a cut-out. Where a firewall is needed, use 100 mm of brick, concrete or stone.
How high should the flue go?
A flue of about 4,500 mm could be satisfactory. Where an offset is allowed, a horizontal run is limited to 300 mm, followed by 2,500 mm of vertical flue, and in the manual's roof diagram the flue rises 600 mm. Your installer decides the route for your building and wind.
What lines the firebox?
A vermiculite lining. The baffle brick is 323 × 175 mm and 25 mm thick, the side bricks are 229 × 475 mm and the rear brick is 332 × 475 mm, both 20 mm thick. Bricks and baffles are not covered by the guarantee, so keep these sizes handy when you ask us for a replacement.
What does the guarantee cover?
The main body has a five-year limited Home Fires warranty against manufacturing defects. Register it within 30 days, or the term drops to 12 months. It covers the first owner at the first installed location, for a unit bought from Home Fires or an authorised retailer and installed correctly; keep your purchase and installation records. Glass, bricks, baffles, handles, paint and seals are excluded. Ask us for the full terms.
Can you help with my setup?
Yes. Send a photo and your room measurements for a product and flue configuration quote. We do not install, so arrange installation with an independent installer.
