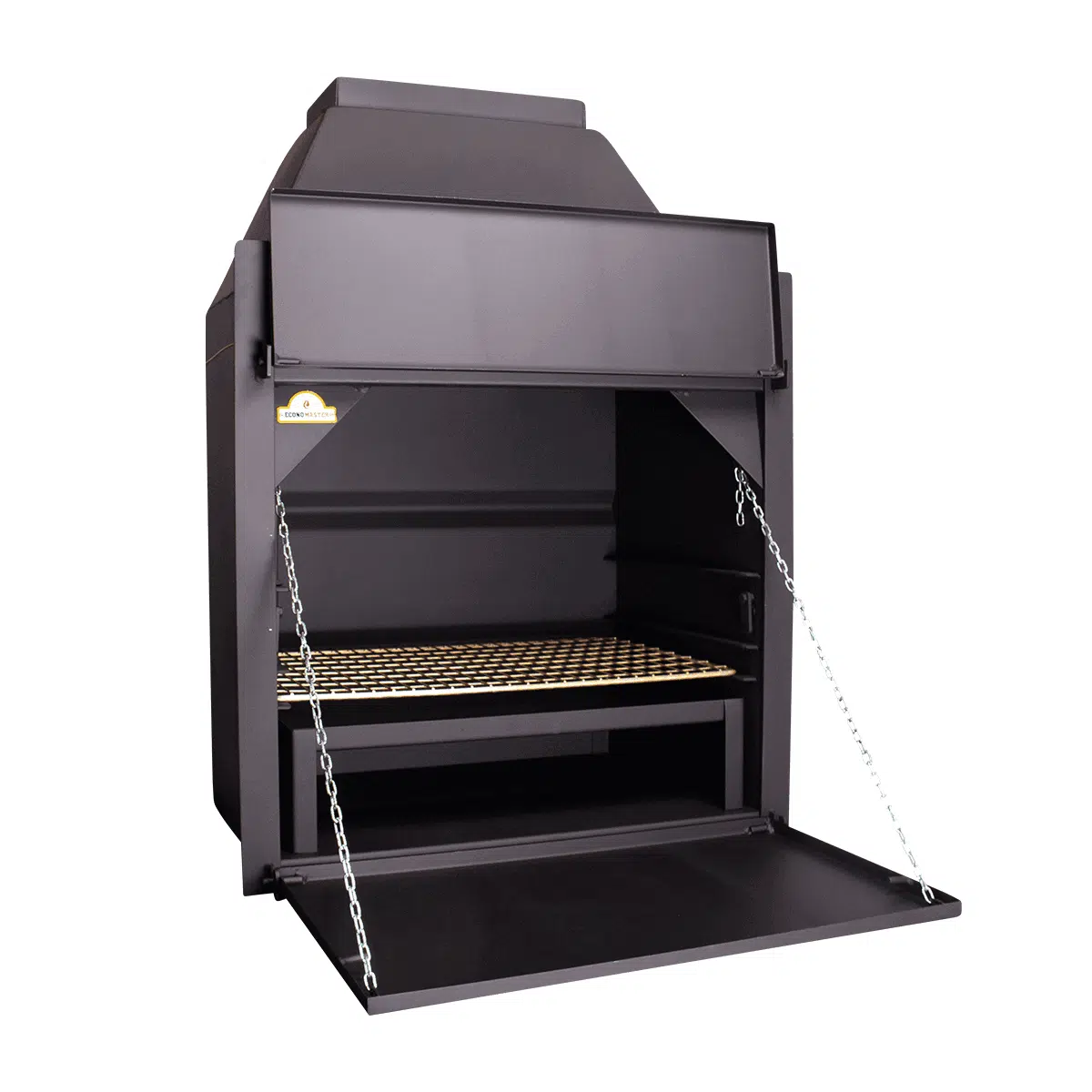

Homefires 700 Deep Economaster Braai, black compact braai with upper and lower doors open

Your braai, up close

Will it fit my space?

About your braai

Body: Black mild steel
Included: Full-length grid, ash pan, potjie arm, top and bottom doors, light fitting
Not included: Ember maker, insulation and building materials
Guarantee: 5 years on the firebox

HomeFires Braais

Homefires 700 Deep Economaster Built-in Braai

Name: Homefires 700 Deep Economaster Braai | Braai Culture
Brand: HomeFires
SKU: BRAAIB700DBEMAS
Price: 7999.00 ZAR
Availability: InStock

A compact built-in braai with a deeper cooking grid.

From: Original price was: R8,440.00.Current price is: R7,999.00.

Save R441

SKU BRAAIB700DBEMAS

In stock Delivery ETA: 5–7 working days

Complete your setup

Guide

Need help choosing?

Plan your setup

See it in your space. Send a photo and measurements for a quote and a visual preview.

WhatsApp Us

THE ECONOMASTER ESSENTIALS

Compact in front.
Deep on the grid.

The 700 Deep keeps the front of your built-in braai compact and gives you more depth on the full-length grid. The ash pan below holds the fire, and the potjie arm is there when there's time for a slow pot. Top and bottom doors close it up neatly, and a light fitting helps when the braai runs into the evening.

Full-length deep cooking grid
Ash pan below the fire
Potjie armFor a slow pot
Top and bottom doors and light fitting
Plan support, insulation and the flue routeBefore you build
Installation manualUnder Plan your setup

Homefires 700 Deep Economaster Braai built into a light outdoor surround beside patio seating

MAKE YOURSELF AT HOME OUTSIDE

Make a little room for the coals.

Chops on a Wednesday. A potjie on Saturday. Built into your braai area, the compact front leaves room for a prep counter beside it, while the deeper grid gives you space to spread out.

Surround, counter, furniture and food are not included. Once built in, the gather is hidden in the masonry. Confirm the support, insulation and flue route with an independent installer.

BUILT FOR EVERYDAY BRAAIS

Keep it simple.

THE GRID

A deeper grid.

The full-length grid is 680 mm wide and 450 mm deep. That depth is what sets this Deep model apart, with room for the wors, the chops and the mielies.

THE FIRE

Coals on the ash pan.

There is no separate ember maker on this model. Build the fire in the middle of the ash pan, let it burn down to good coals and braai above it.

THE FRONT

Doors and a light.

Top and bottom doors close up the front between braais. The light fitting helps when the cooking runs past sunset.

MEASURE THE WHOLE SETUP

Will it fit your space?

Open dimension drawing

Download the dimension drawing

Body width × height: 730 × 780 mm
Overall depth: 510 mm
Front frame width × height: 785 × 810 mm
Gather above the body: 320 mm
Cooking grid: 680 × 450 mm
Flue outlet width × depth: 430 × 230 mm
Frame front to the flue outlet: 120 mm
Open lower door projection: 430 mm
Material: Black mild steel
Fuel: Wood or charcoal

Plan the body, frame and gather together.

The body is 780 mm high with a 320 mm gather above it, behind a 785 × 810 mm front frame. These are product dimensions, not a finished masonry opening. Have your installer check the actual unit, door movement, insulation and flue route.

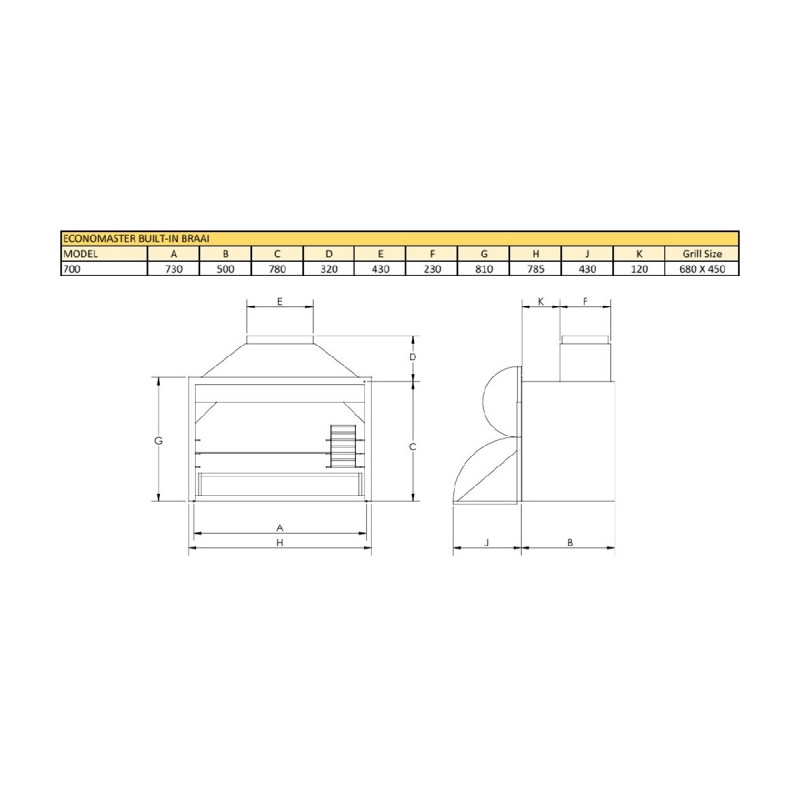

The drawing as text

BRAAI CULTURE / DIMENSIONS
Homefires 700 Deep Economaster
ALL SIZES IN MILLIMETRES
01 FRONT VIEW
02 SIDE / DOORS OPEN
785 frame width
730 body width
780 body height
810 frame height
Top and bottom doors · no ember maker
120 outlet setback
Flue outlet
510 overall depth
430 lower door
320 gather rise
Front opens to the left in this side view.
03 COOKING GRID
04 FLUE OUTLET
680 grid width
450 grid depth
430 outlet width
230 outlet depth
Check the flue route with your installer.
Top and bottom doors, grid, ashpan, potjie arm and light fitting included.
Product dimensions are not a finished masonry opening. Gather concealed when installed.

GOOD TO KNOW

Plan your setup.

Plan the opening, gather and flue route before you build.

Read the instruction manual

What is included?

The 700 Deep Economaster braai with its full-length 680 × 450 mm grid, ash pan, potjie arm, top and bottom doors and light fitting. Flue pipes, cowl, insulation and building materials are not included.

Does it have an ember maker?

No. This 700 Deep model has no separate ember maker. Build the fire in the middle of the ash pan and let it burn down to coals before you braai.

Which fuel can I use?

Wood or charcoal. Use dry, seasoned wood or good-quality charcoal. Never burn treated timber or household waste.

How much cooking space is there?

The full-length grid is 680 mm wide and 450 mm deep. That extra depth is what makes this the Deep model.

How much space do I need?

The body is 730 mm wide, 780 mm high and 510 mm deep overall, with a 320 mm gather above it. The front frame is 785 × 810 mm. Allow 430 mm in front for the open lower door. These are product dimensions, not a finished masonry opening.

Where does the flue connect?

The flue outlet is 430 × 230 mm. Flue pipes and a cowl are not included. Have an independent installer plan the route, chimney height and roof exit, and send your measurements for a flue and configuration quote.

Can it go indoors?

Yes. Homefires built-in braais may be installed indoors or outdoors. Have an independent installer plan the chimney, insulation and safe clearances for your space.

What does the guarantee cover?

Homefires guarantees the EconoMaster firebox for 5 years from the date of purchase against faulty workmanship or materials, when the fire is made in the ash pan. Loose, replaceable parts such as the grid and the ash pan are not covered, and neither is rust for any reason, misuse or water leaks, or damage from incorrect installation. Keep the braai painted and maintained. Ask us for the full terms.

Can you help with my setup?

Send a photo and measurements for a product and flue configuration quote. Arrange installation with an independent installer.
